Fanvil FAN-PA2S This all-in-one gateway enables to upgrade a digital solution intoaSIP-basedvoice&video security solution. It can be used for intercom, paging, amplify, video & more. With its HD voice quality, provides high quality & reliability for

Fanvil PA2S SIP Paging Gateway
This is a SIP paging gateway that uses the standard IP/RTP/RTSP protocol for media streaming. It sets a variety of functional interfaces in one: broadcast, recording, intercom, security. Through the connection of the external devices to achieve audio and video intercom, broadcast, security trigger and other practical functions, Fanvil PA2S can apply to multiple scenarios to deploy the equipment. The size of the device is small, which is suitable for DIY applications of various integrated solutions.
- Exquisite, can be embedded in other equipment for internal installation
- Emergency call button interface, active call
- NVR video recording, standard RJ45 interface
- Recording output, 3.5mm standard audio interface
- Audio line out port, expandable external active speaker.
- 10W ~ 30W mono channel power amplifier output, according to the input voltage to setting the output power.
- Adaptive 10/100 Mbps network port, integrated PoE

Physical Specifications
Keypad: 3 keys, including
2 volume control keys (Up/Down)
1 reset key (soft reset)

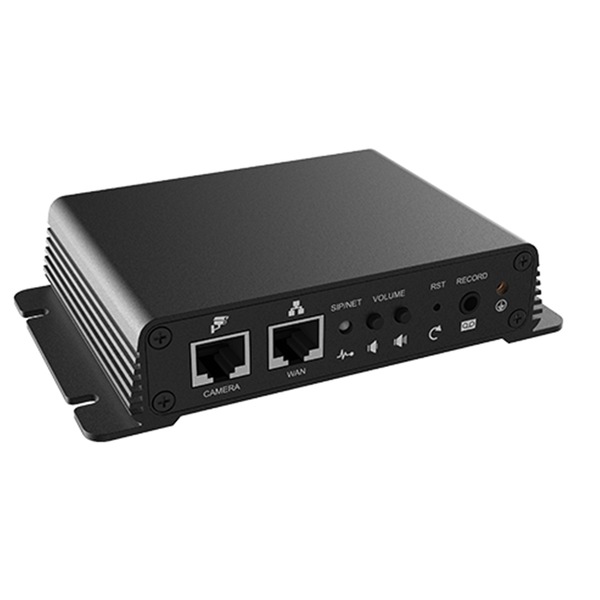

RJ45 port x2: connect the network
WAN port: connect the network, support PoE
Camera port: connected to the original camera
Blue LED
x1: (SIP status and network status)
Recording output port x1: connect audio device
Out: mixed output of local microphone voice and call voicerecording
Port: 3.5mm standard audio port
Impedance: 15 Ohm
Ground screw
x1

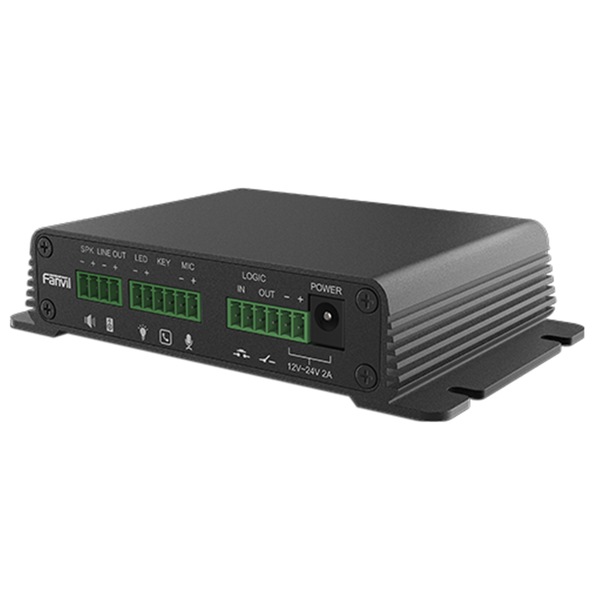

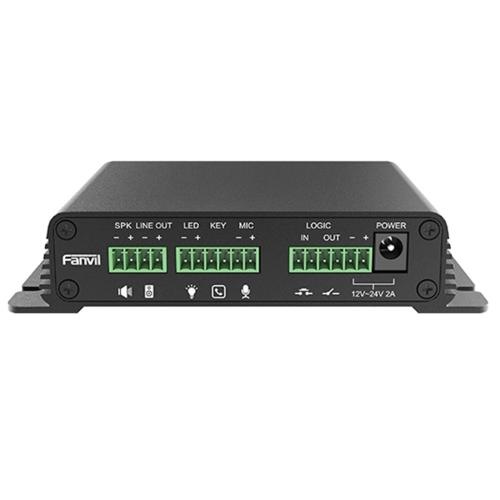

Passive speaker port
x1: connect the speaker
Output power
4O, PoE/10W, 12V/10W, 18V/20W, 24V/30W; related to power supply voltage.
8O, PoE/5W, 12V/5W, 18V/10W, 24V/15W; related to power supply voltage.
Wire diameter: 18AWG or higher.
Port: terminal socket
Line out port x1: connect the active speaker
Out: adjustable by volume, max up to 1.2Vpp.
Port: terminal socket
DSS keys port x1: connect the external buttons (support LED)
LED: Output 5.0Vdc/5mA.
Port: terminal socket
MIC in / Line in port x1: connect the MIC or audio line in device
The multiplex port is microphone input by default, which be configured as audio line input function through software.
Electret condenser MIC is recommended
Sensitivity: - 38dB, impedance 2.2k ohm, bias voltage 2.54Vpp
Port: terminal socket
Short circuit input and output port x1 (built-in relay)
Relay: MAX DC30V / 2A, AC125V / 0.5A
Port: terminal socket
2 parallel power input DC port: DC power input
DC power input: DC12V~24V/2A
1 road for the 5.5mm DC power seat
1 road for the 2 Pin terminal socket
PoE level
Class 3
Power Consumption (PoE)
2.16W ~ 8.98W
Power Consumption (Adapter)
1.73W ~ 7.9W
Housing material
aluminum alloy
Installation
Desktop stand / Wall-mounted
Color
black
Working temperature
-40? ~ 70?
Storage temperature
-40? ~ 70?
Working humidity
10~95%
Device dimensions
113x83x28 mm
Audio
Narrowband codec
G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
Wideband codec
G.722, Opus
DTMF
In-band, Out-of-Band (RFC2833/ SIP INFO)
General
Generic
2 SIP lines
Speed dial
Linkage with IP camera to realize video intercom
Oral announcement of the IP address(in English)
MP3 broadcasting
Support mono active speaker (audio line out)
Support audio line in
Talkback recording output
Switch signal input and output
Support programmable DSS key ports
PoE enabled
Functions
Device Functions
Auto-answering
Programmable DSS keys
Through button or web page volume adjustment
Network time synchronization
Time plan (task management)
Incoming call multicast
Dynamic multicast function
HTTP API
Action URL / Active URI
Call Functions
Call out / answer / reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call (Hide caller ID)
Network
Physical
10/100 Mbps Ethernet
IP mode
IPv4/IPv6/IPv4&IPv6
IP configuration
Static IP / DHCP / PPPoE
VPN
L2TP / OpenVPN
Protocols
SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
- MPN: FAN-PA2S

MPN: FAN-PA2S
