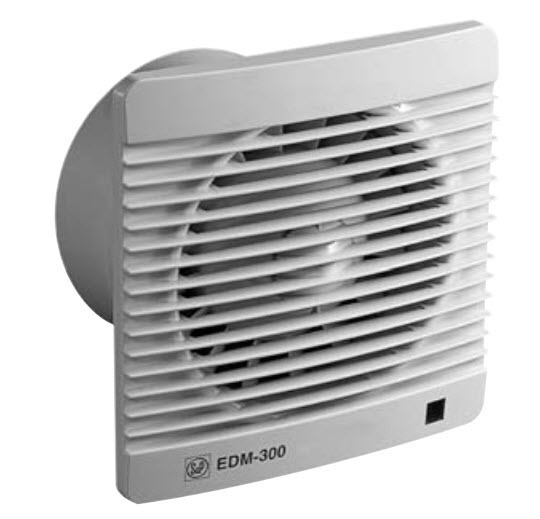

Fantech EDM-300S - 150mm Wall / Ceiling Mounted Exhaust Fan

The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings.

Construction

• All units have weather and impact resistant housings.
• Motors
• Type - shaded-pole induction motor.
• Electricity supply - single-phase 230V, 50Hz
• Bearings - Ball
• Maximum ambient temperature - 40°C
• Class II insulation, IP44 rated*.
• Grill: 200mm
• Depth inc Grill and motor housing: 129mm
• Distance of Motor Housing in wall space: 148mm
• Depth inside wall space only not inc grill: 104mm
• Speed: 37 rps
• Avh DBA @ 3m: 41
• Input Kwatts: 0.029
• Amps: 0.21
• Max Temp: 40 degrees C
• Approx weight:1.44
