Explore Planet Earth 120W Portable Solar Blanket Expansion Kit

120W Portable Solar Blanket Expansion Kit - Model No. SP551B - is to be used with the Explore Planet Earth Portable Solar Blanket Kit with Controller (Model No. SP551A - sold separatley) - This expansion kit allows for expansion to 240W

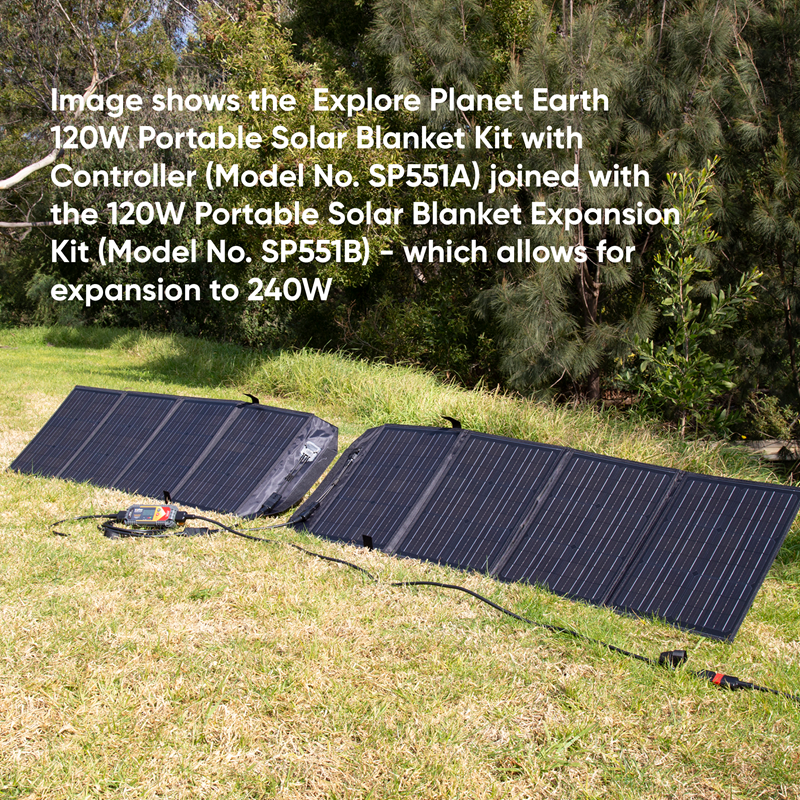

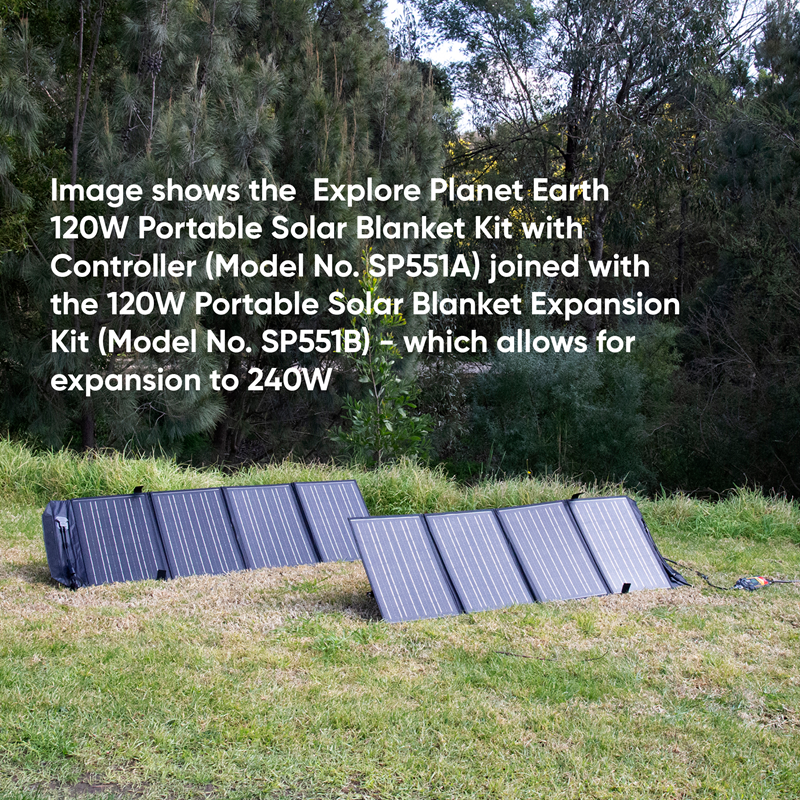

Explore Planet Earth is the first to market with this unique system in offering two separate 120W Solar Blanket Kits, each with the necessary items required to connect the two kits together, effectively doubling the wattage output to 240W.

Firstly, the ‘complete’ Portable Solar Blanket Kit with Controller (Model No. SP551A - sold separately) that has everything included to charge your 12V DC system and secondly, a separate ‘expansion’ add-on 120W PORTABLE SOLAR BLANKET EXPANSION KIT (Model No. SP551B) that includes only the necessary items for connection to the ‘complete’ Portable Solar Blanket Kit with Controller (Model NO. SP551A) allowing for the expansion.

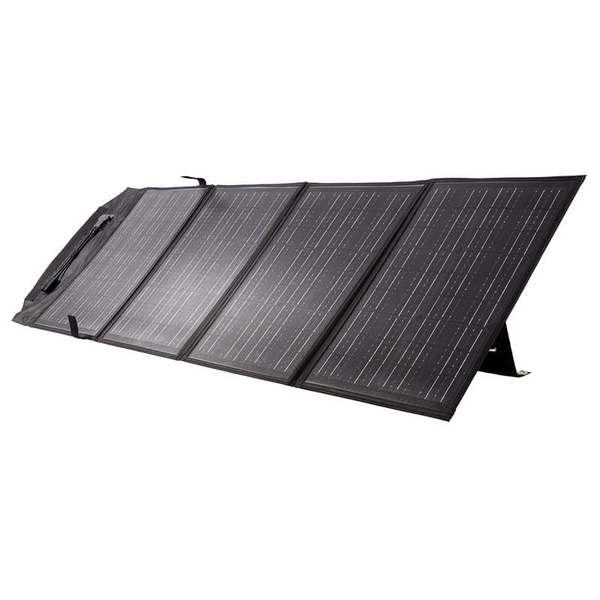

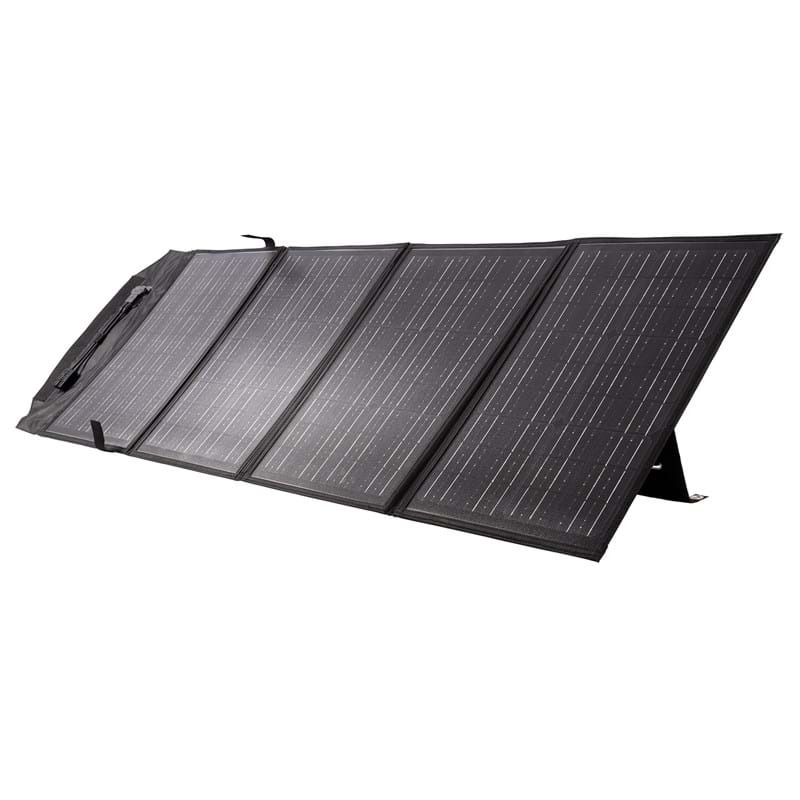

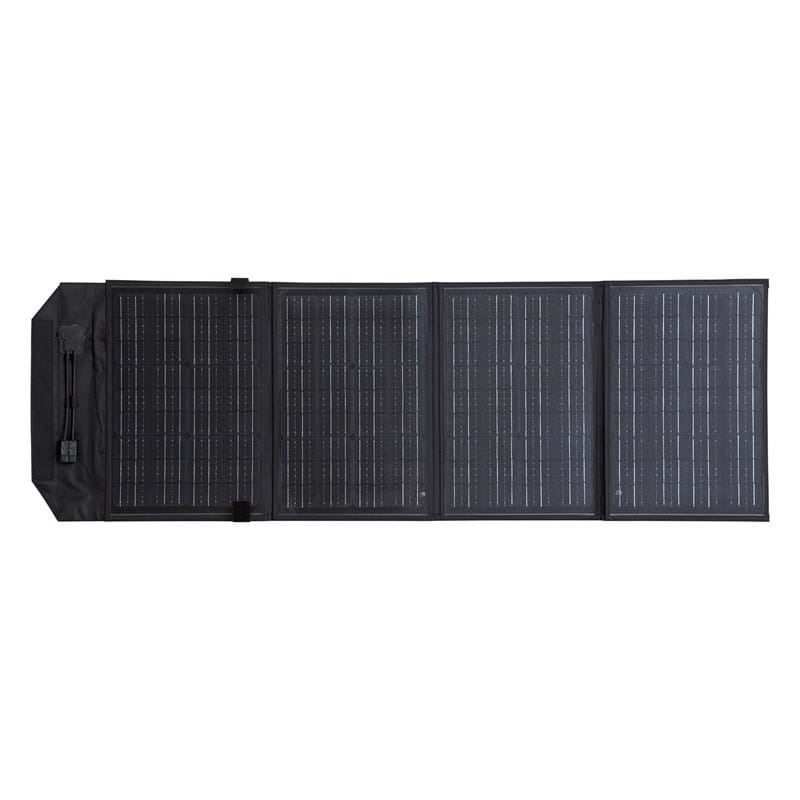

The Explore Planet Earth 120W Portable Solar Blanket Kit is a high performance, ultra-compact solution for solar charging most common chemistry types of 12V DC batteries, including Lithium Iron Phosphate (LiFeP04). It is one of the easiest and fastest ways to keep your battery charged up at your campsite. It folds out in seconds and takes less than a minute to hook up to the 120W Portable Solar Blanket Kit with Contoller thanks to the quick connect, Anderson type plugs!

The monocrystalline solar cells ensure the highest efficiency possible! This lightweight and compact blanket will produce up to 6.6A in optimal conditions.

The 120W Portable Solar Blanket Kit is designed for Australia’s tough conditions, using high quality components and the latest in solar cell technology which provide dependable performance and reliability in an easy to use extremely compact and portable solar kit.

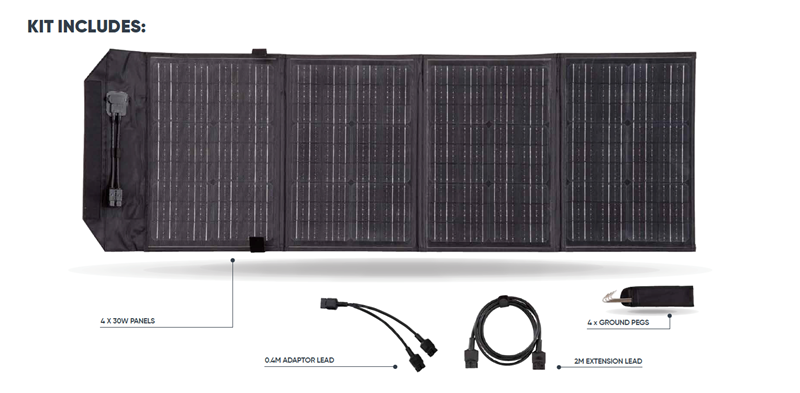

KIT INCLUDES:

4 x 30W panels
50A heavy duty Anderson type plugs on all leads
2M extension lead
0.4M adaptor lead
4 x ground pegs

CELLS / PANELS:

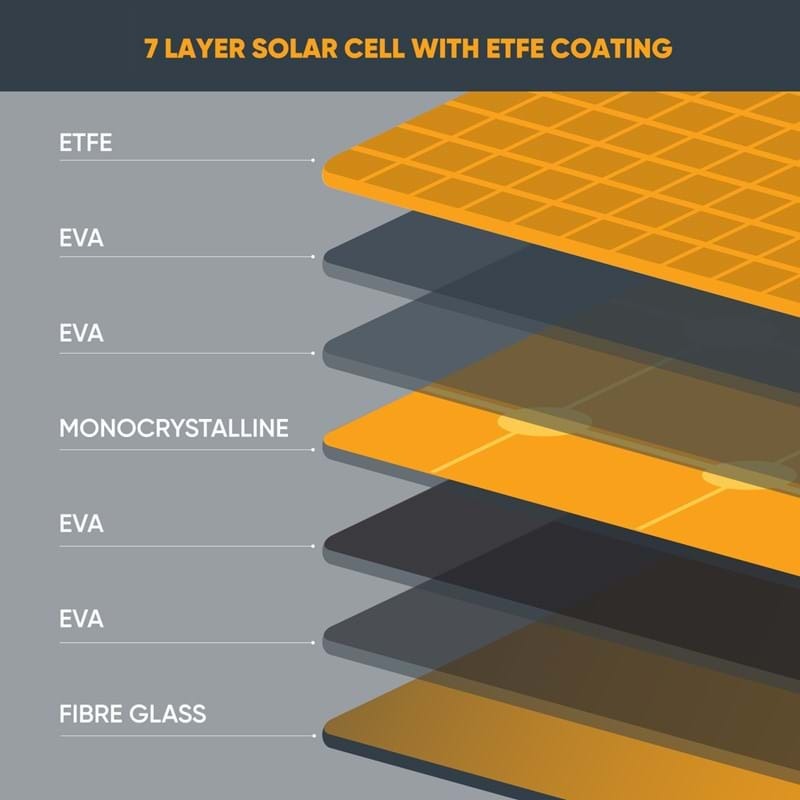

7 layer cell with ETFE Coating

Built in panel stand

Cell make:	PERC
Cell type:	Monocrystalline
Cell efficiency:	21.65%
Cell qty & panel qty:	4 x 30W panels
Maximum power (Pm):	120W
Current at max power (Imp):	6.66A
Voltage at max power (Vmp):	18V
Open circuit voltage (Voc):	22V
Short circuit current (lsc):	7A
Extension leads:	4mm² (AWG12)
Output and lead connection:	50A Anderson Type
Cell Encapsulation:	ETFE lamination

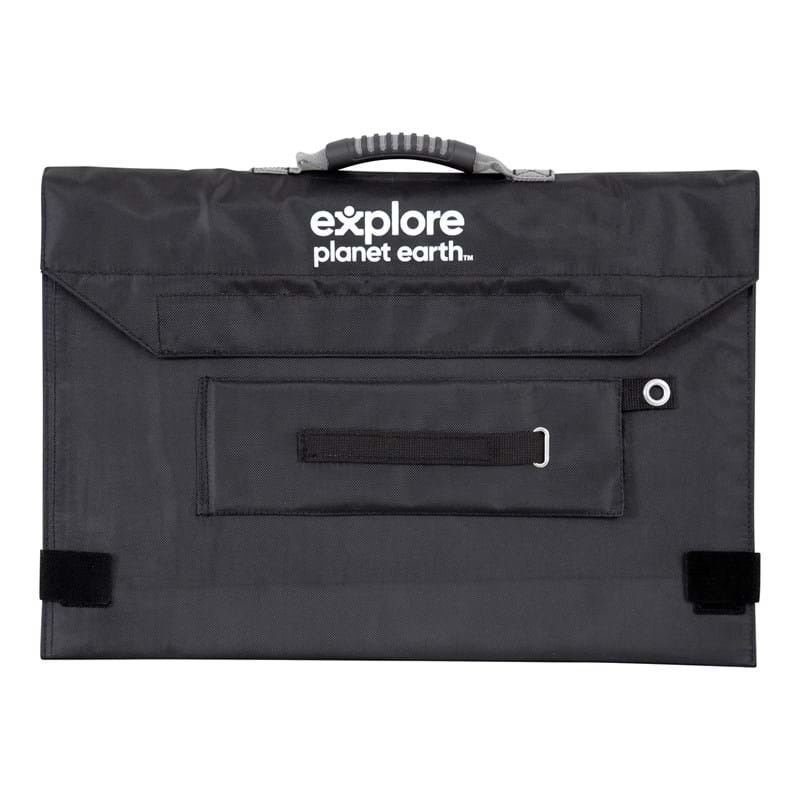

Bag fabric:	Polyester 900D
Adjustable support legs:	Yes
Folded dimension L x W x H:	560mm x 420mm x 40mm
Unfold dimension L x W:	1700mm x 560mm
Net weight (total kit):	6.0Kg (including accessories)

Suitable for camping, 4WDriving, caravaning, boating and other outdoor activities

Suggested applications depending on battery capacity: 12V LED lighting, 12V portable TV, 12V bilge pump, mobile devices, 12V portable fridge, 12V portable fan, 12V shower water pump

GTIN: 9314388082451
