EPA254- Quad Channel Class D Power Amplifier
The EPA series are energy efficient Class-D Specifications power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi-zone distributed speaker
systems.
They come available in various models with different output configuration and power ratings.
An outstanding sound quality is combined with other knownadvantages of Class-D amplifiers such as high energy efficiency.
Automatic signal detection switches the amplifier to standby mode when no input signal is detected.
This makes the amplifier comply to international energy and environmental requirement standards.
The compact size and lightweight design only requires a single 19" rackspace, while making them suitable for both fixed rack and mobile applications.
The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability.
The EPA254 is built as a quad channel amplifier containing four individually controllable channels capable of delivering a power of 4 x 250 Watt in stereo mode.
The outputs can be bridged two-by-two for merging their power, while an integrated (selectable) active crossover network allows to apply high-pass and low-pass filters to the channels, creating a sub / top configuration for a stereo system with bass cabinet.
Specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

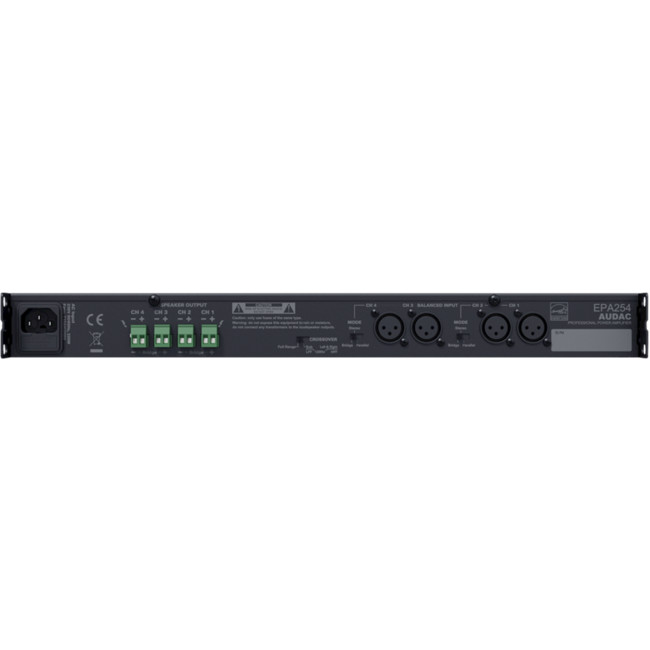

The signal input connections are implemented using balanced XLR connectors with link output connectors, allowing linkthrough to other amplifiers.
Loudspeaker outputs are connected using both Speakon compatible and terminal block output connectors.
Features
- 4 x 250 Watt RMS output power
- Energy-star certified
- Standby energy saving mode
- Internal crossover network (switchable)
- Lightweight Class-D amplifier
- Convection cooled
- Advanced protection circuitry
- Stereo, parallel and bridged mode
- High efficiency
Applications
- Clubs & pubs
- Restaurants & bars
- Warehouses & retail stores
- Public & office buildings
- Mobile installations
Specifications
| 4 x 250 Watt |
| 4 x 130 Watt |
| 2 x 500 Watt |
| 20 Hz - 20 kHz |
| > 90 dB |
- THD+N by 1 kHz (1/2 Rated Power)
| < 0.1% |
| > 70 dB |
| Class - D |
| Switching mode - 100-240V AC - 50/60 Hz |
| 0 dB (1V RMS) |
| 12 k Ohm balanced |
| DC Short-circuit |
| _ | Over heating |
| _ | Over load |
| _ | Signal limiting |
| Convection cooled |
| Input | XLR input |
| _ | Output | 2-pin terminal block (5.08 mm) |
| 0° ~ 40°C at 95% humidity |
| 438 Watt (1/3 MOP at 1 kHz) |
- Standby power consumption
| 0.7 Watt (~30 sec standby time) |
- Dimensions (Width x Height x Depth)
| 482 x 44 x 330 mm |
| 4.7 Kg |
| 19" |
| 1 HE |
| Steel |
| Black |
| Kg - 0.028 Cbm |
| _ | _ |
*AUDAC reserves the right to change specifications without notice: this is part
of our policy to continuously improve our products. |
