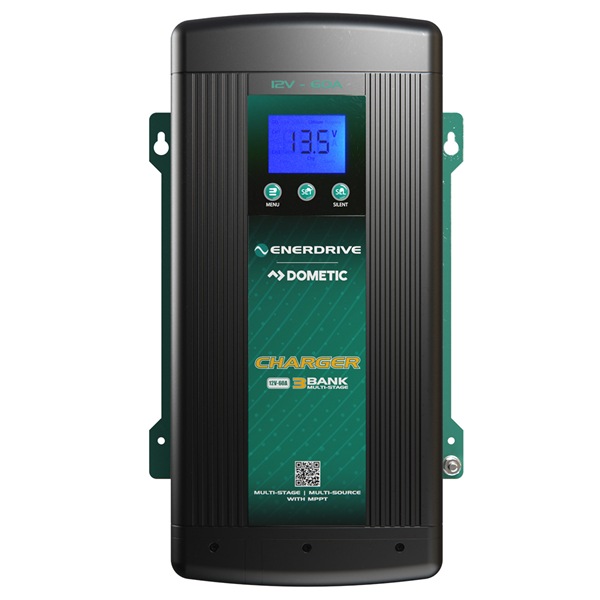

Enerdrive 60A AC to DC Battery Charger with Installation Kit

The Enerdrive ePOWER 60A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently. As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

Features:

Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
Isolated charging design where battery bank one is separate from battery bank two and three
Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
Current Control
Smart Charging
Operates on both 110V / 60Hz and 240V / 50Hz
LED Display
Silent Mode
Temperature Sensor: Battery temperature sensor included with 7.5 meter cable.
5 Year Warranty

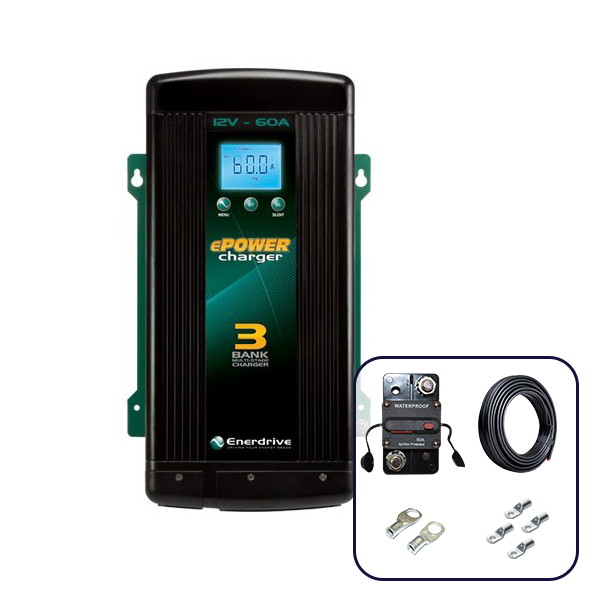

Included:

60Amp ePower Battery Charger- EN31260
16mm ² Twin Core Cable 1.5 Meters
80 Amp Manual Reset Circuit Breaker
2 x 16MM – 6MM Diameter Cable Lugs
4 x 16MM – 8MM Diameter Cable Lugs

Specifications:

Output Current Rating (Amps) 60.0
Charger Mode Output Voltage 14.2 – 15.5 V (Battery Charger)
Float 13.4 – 13.8 V (Battery Charger)
Equalize 16.0 V (Battery Charger)
Charging Control Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program setting), Priority Battery Bank Charging (Battery Charger)
DC Output Three (1 fully independent, 2 common with diode isolation) (Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
Standby Current < 2 mA (Battery Charger)
AC Input Voltage 90 to 265 VAC (Battery Charger)
AC Input Operating Range 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max) (Battery Charger)
AC Input Frequency Range 47 – 63 Hz (Battery Charger)
Power Consumption (DC 12V) 1050W (Full Load) (Battery Charger)
Power Factor Correction Yes (Battery Charger)
Charger Efficiency > 82% (Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (Battery Charger)
Over Charge Yes, unit shutdown (Battery Charger)
Over Temperature Protection Yes, unit de-rated and shutdown (Battery Charger)
Cooling Forced air ventilation (thermo controlled fan) (Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (Battery Charger)
Temperature Setting Hot, Normal, Cold (no sensor connected) (Battery Charger)
Battery Temperature Sensor Port RJ12 (standard battery temp. sensor supplied) (Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (Battery Charger)
DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (Battery Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (Battery Charger)
Storgae Range (temp) -40° to 70° C (Battery Charger)
Operating Range (temp) -20° to 60° C (Battery Charger)
Humidity 5-95%, relative humidity non-condensing (Battery Charger)
Ingress Protection IP32 (Basic drip proof in vertical orientation) (Battery Charger)
Weight 4.0 kg
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations. (Battery Charger)

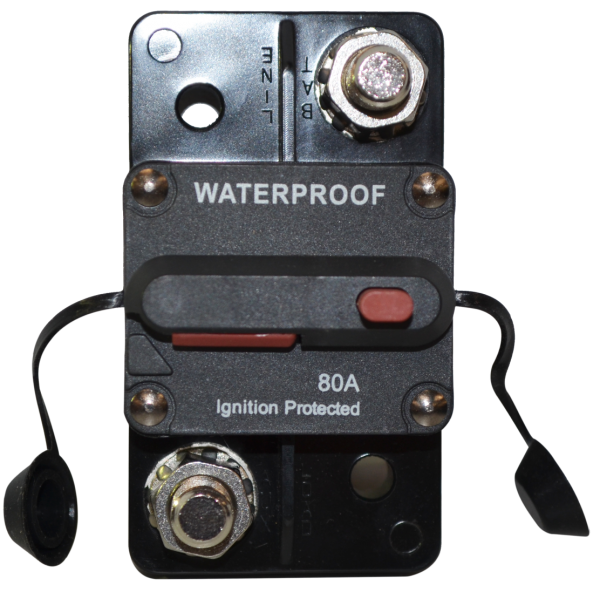

80 Amp Manual Reset Circuit Breaker

The 80 Amp reset circuit breaker is typically used in auxiliary and accessory circuits in truck, bus RV's and marine applications.

Specifications:

Rated Current 80Amp
Dimensions 86 x 48.4 x 44.2mm
Interrupt Capacity 5KA @ 16Vdc | 3KA @ 32Vdc | 2KA @ 72 Dvc
Voltage Up to 48Vdc
Calibration @ 25°C 100% Hold 135% Trip (percentage of rating)
Endurance 400% A 14Vdc, 5000 cycles

GTIN: 9342616024133
