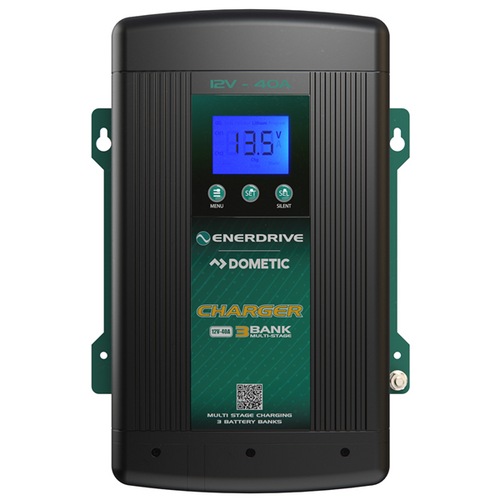

Enerdrive 40A AC to DC Battery Charger with Installation Kit

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently. As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive ePOWER 40A Battery Charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

Features:

  • Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
  • Isolated charging design where battery bank one is separate from battery bank two and three
  • Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
  • User adjustable current output
  • Smart Charging
  • Operates on both 110V / 60Hz and 240V / 50Hz
  • LED Display
  • Silent Mode
  • Temperature Sensor: Battery temperature sensor included with 7.5 meter cable.
  • 5 Year Warranty

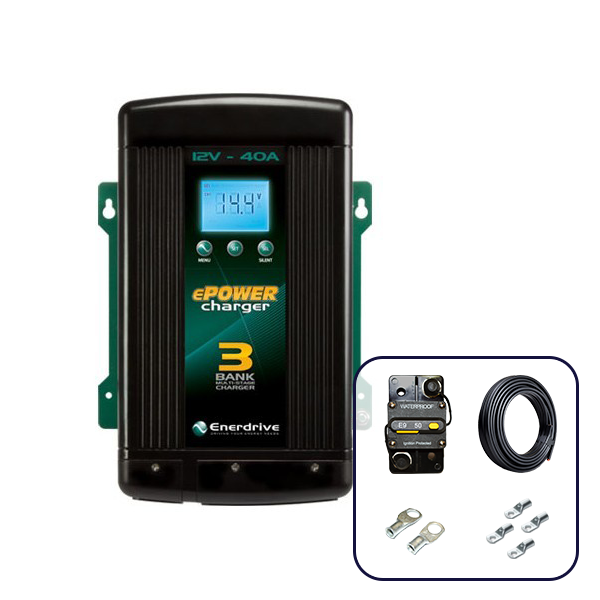

Included:

  • Enerdrive ePOWER 40A Battery Charger - EN31240
  • 16mm ² Twin Core Cable 1.5 Meters
  • 50 Amp Manual Reset Circuit Breaker
  • 2 x 16MM – 6MM Diameter Cable Lugs
  • 4 x 16MM – 8MM Diameter Cable Lugs



Specifications:

  • Output Current Rating (Amps) 40.0
  • Charger Mode Output Voltage 14.2 – 15.5 V (Battery Charger)
  • Float 13.4 – 13.8 V (Battery Charger)
  • Equalize 16.0 V (Battery Charger)
  • Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (Battery Charger)
  • DC Output Three (1 fully independent, 2 common with diode isolation) (Battery Charger)
  • Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
  • Standby Current < 2 mA (Battery Charger)
  • AC Input Voltage 90 to 265 VAC (Battery Charger)
  • AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (Battery Charger)
  • AC Input Frequency Range 47 – 63 Hz (Battery Charger)
  • Power Consumption (DC 12V) 700W (Full Load) (Battery Charger)
  • Power Factor Correction Yes (Battery Charger)
  • Charger Effciency > 82% (Battery Charger)
  • Reverse Polarity Yes, (with user replaceable fuse/s) (Battery Charger)
  • Over Charge Yes, unit shutdown (Battery Charger)
  • Over Temperature Protection Yes, unit de-rated and shutdown (Battery Charger)
  • Cooling Forced air ventilation (thermo controlled fan) (Battery Charger)
  • Output Short Circuit Yes, (with user replaceable fuse/s) (Battery Charger)
  • Temperature Setting Hot, Normal, Cold (no sensor connected) (Battery Charger)
  • Battery Temperature Sensor Port RJ12 (standard battery temp. sensor supplied) (Battery Charger)
  • LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (Battery Charger)
  • AC Input Connection IEC with Supplied 1.2M Power Lead (Battery Charger)
  • DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (Battery Charger)
  • DC Output Ground Single Heavy Duty Common Ground Stud (Battery Charger)
  • Storage Range (temp) -40° to 70° C (Battery Charger)
  • Operating Range (temp) -20° to 60° C (Battery Charger)
  • Humidity 5-95%, relative humidity non-condensing (Battery Charger)
  • Ingress Protection IP32 (Basic drip proof in vertical orientation) (Battery Charger)
  • Weight 2.6 kg
  • Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations. (Battery Charger)

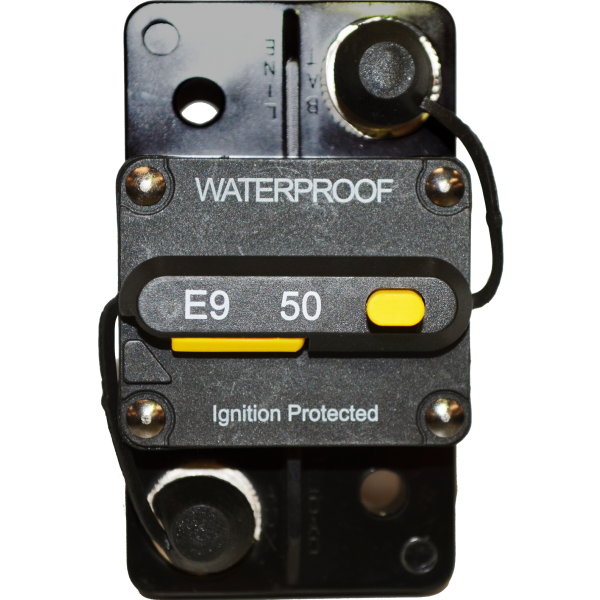

50 Amp Manual Reset Circuit Breaker

The 50 Amp Manual Reset Circuit Breaker is typically used in auxiliary and accessory circuits in truck, bus RV's and marine applications.

Specifications:

  • Rated Current 50Amp
  • Dimensions 86 x 48.4 x 44.2mm
  • Interrupt Capacity 5KA @ 16Vdc | 3KA @ 32Vdc | 2KA @ 72 Dvc
  • Voltage Up to 48Vdc
  • Calibration @ 25­°C 100% Hold 135% Trip (percentage of rating)
  • Endurance 400% A 14Vdc, 5000 cycles





GTIN: 9342616024126
