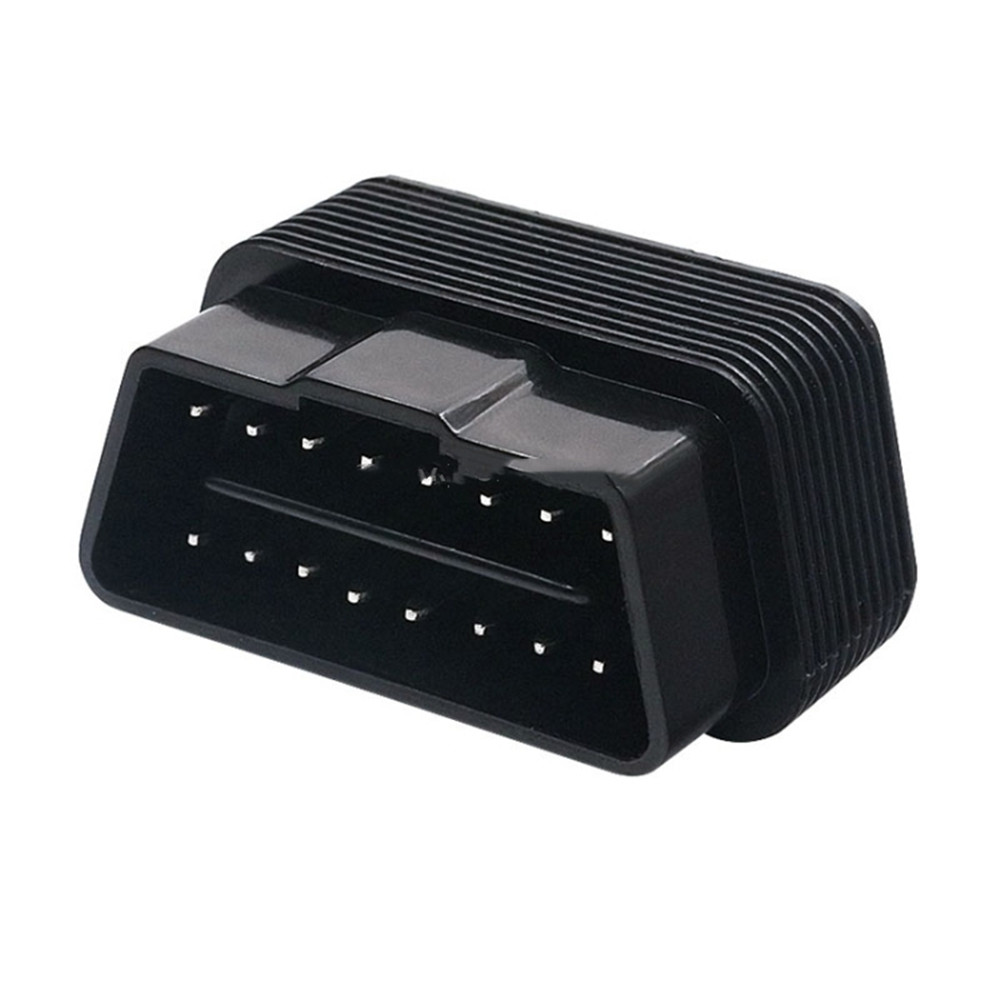

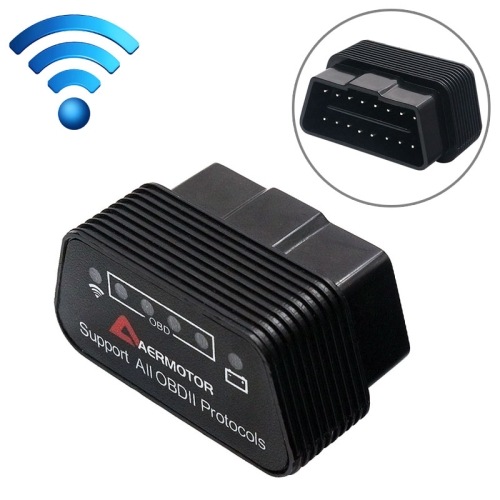

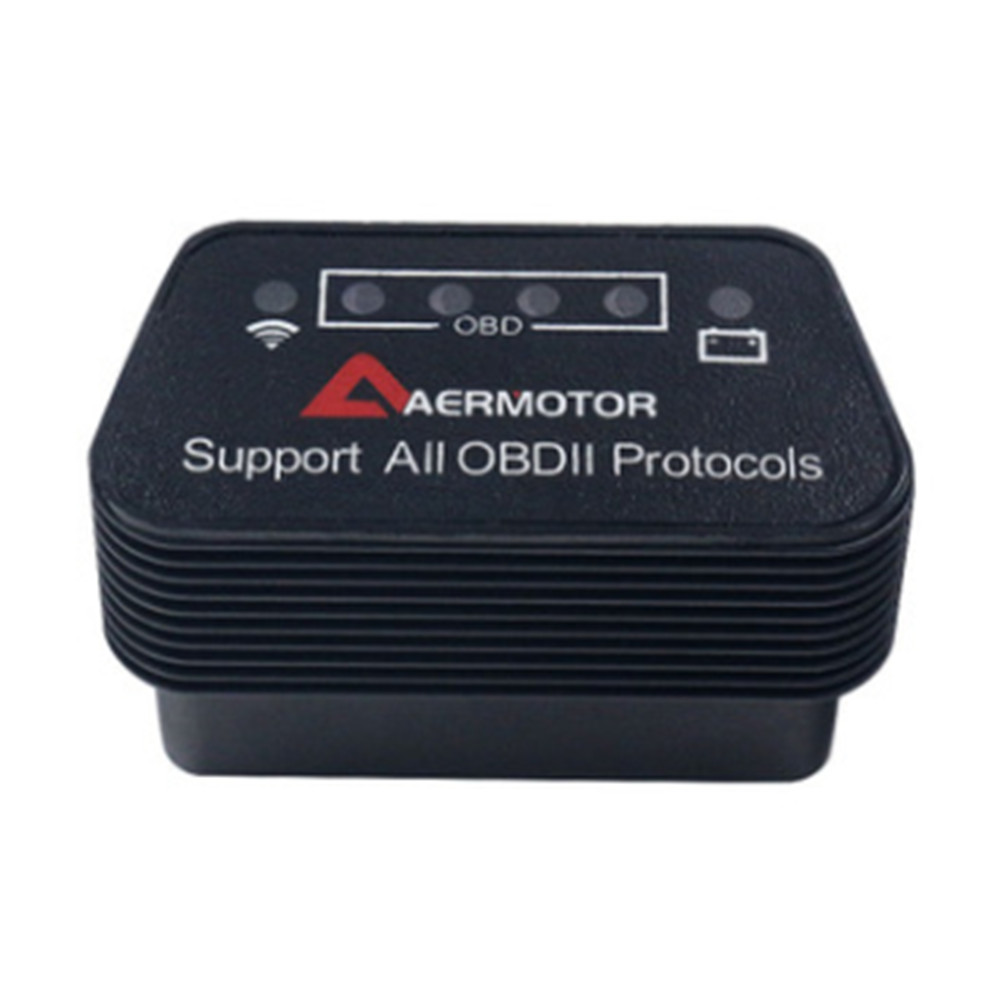

Elm327 Car Fault Detector Wifi Diagnostic Tool

1. PIC chip; version V1.5 (support 9 protocol); intelligent automatic shutdown; dual security protection; ultra low power consumption; classic dual board.
2. ELM327 WiFi OBD2 scanner car diagnostic adapter supports all OBD-II self-diagnostic systems and compatible communication protocol detection. Through the link with the car, the relevant data of the car such as: engine speed, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, long-term fuel correction, throttle opening, car fault code, etc. can be reflected to the mobile phone via Bluetooth. It is a very powerful and convenient diagnostic tool for mobile devices such as computers.
3. Supported OBD-II protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
4. Software features:
The software can do the following:
Read error diagnostic codes - generic and factory-specific, and display their meaning (the database has more than 3000 common code definitions)
Clear the error code and turn off MIL (check engine indicator)
Display current sensor data, including:
Engine revolutions per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Fuel injection advance time
Intake air temperature
Air flow rate
Throttle absolute position
Oxygen detection voltage associated with short-term fuel state
Fuel system status
Fuel pressure
There are many other data on fuel consumption monitoring...
Future features of the software:
Data chart display and log
Frozen frame data
Continuous and discontinuous oxygen detection results
5. Software support platform: Windows XP, Windows 7/8 Android, IOS, Symbian, WP7, PC and other systems.
