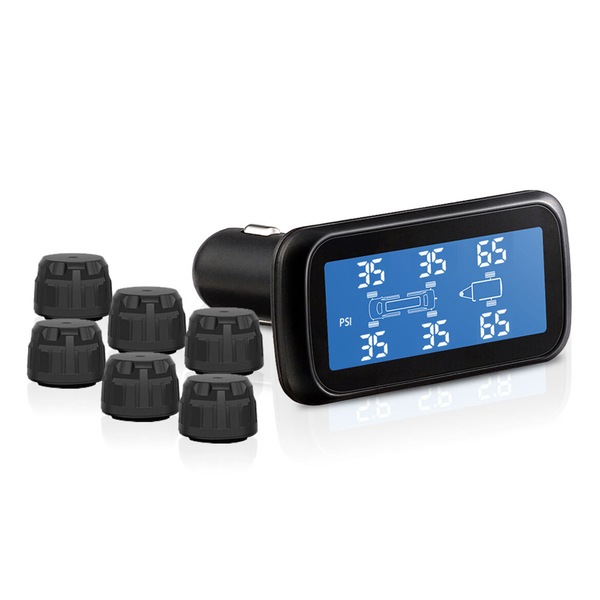

Elinz Tyre Pressure Monitoring System with 6 External Waterproof Sensors Trailer Caravan TPMS

Digital LCD Screen

The clear and easy-to-read tyre data allows the driver to know the tyre pressure and temperature of all tyres at any time, ensuring visibility and your safety on the road.

High Tyre Pressure Alert

When the tyre pressure is higher than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.

Low Tyre Pressure Alert

When the tyre pressure is lower than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.

High Tyre Temperature Alert

When the tyre temperature is higher than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.

Quick Air Leakage Alert

When the sensor detects air leakage from the tyre, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.

Sensor Low Battery Alert

When the sensor detects low battery level, it will send an alert to the monitor immediately. the low battery icon (LO) and the TPMS icon will keep on flashing with audible alarm to alert the driver.

Easy to Install

Does not require any complicated operations, you only need to turn on the monitor first, and then install the sensors on the tyre at the corresponding position (1,2,3,4,5,6). All sensors have been programmed before leaving the factory so you don't need to pair them manually.

IP67 Waterproof

It comes with 6pcs IP67 waterproof external sensors to protect against dust and water.

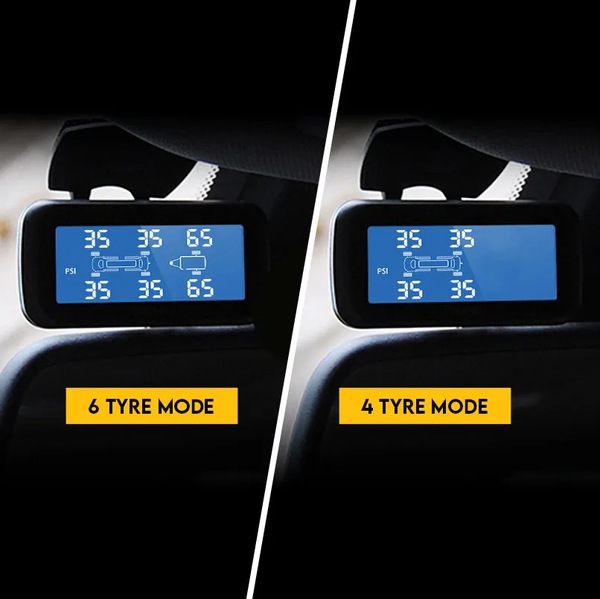

• Switchable Display Modes
  • Easily switch from 6 to 4 tyre mode when you are not towing your trailer/caravan.
  • Press and hold the SET and UP button for 5 seconds.

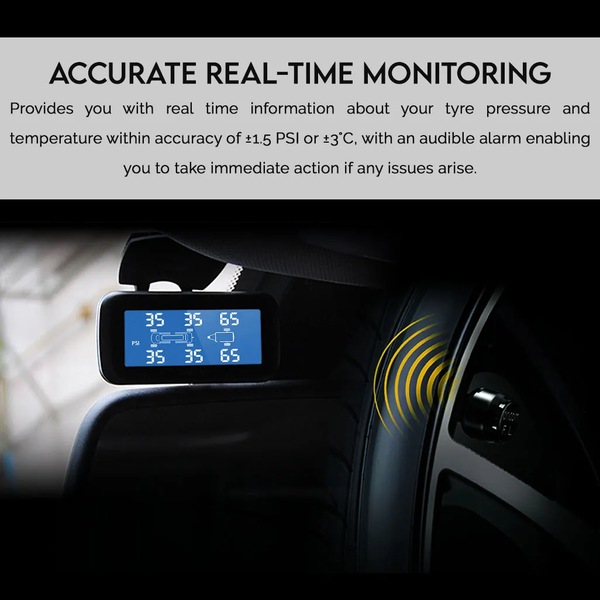

• Accurate Real-time Monitoring
  • Provides you with real time information about your tyre pressure and temperature within accuracy of ±1.5 PSI or ±3°C, with an audible alarm enabling you to take immediate action if any issues arise.

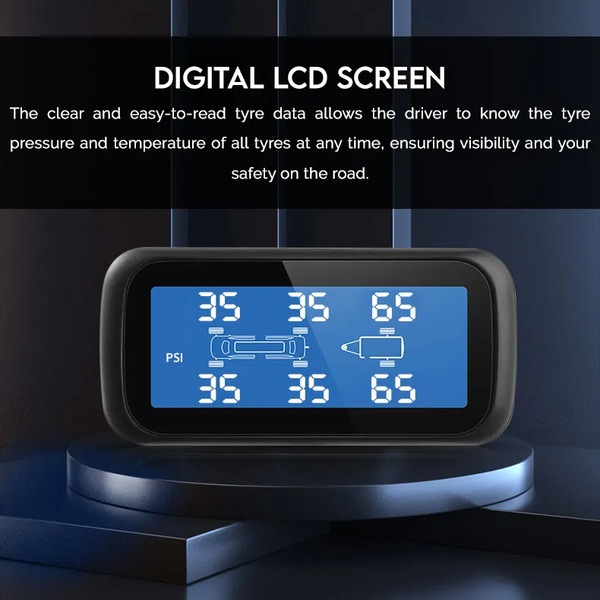

• Digital LCD Screen
  • The clear and easy-to-read tyre data allows the driver to know the tyre pressure and temperature of all tyres at any time, ensuring visibility and your safety on the road.
• Wide Compatibility
  • This tyre pressure monitoring system has 6 external sensors, suitable for most vehicles such as cars, SUVs, RVs, Utes with trailers, Caravans with a tyre pressure range of 0 - 199 PSI. Operating at a frequency of 433.92MHz, this tyre pressure monitoring system offers a reliable communication between sensors and the display unit. For longer trailers we highly recommend also purchasing TPMSRPV2 repeater for more stable signal.
• High Tyre Pressure Alert
  • When the tyre pressure is higher than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• Low Tyre Pressure Alert
  • When the tyre pressure is lower than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• High Tyre Temperature Alert
  • When the tyre temperature is higher than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• Quick Air Leakage Alert
  • When the sensor detects air leakage from the tyre, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• Sensor Low Battery Alert
  • When the sensor detects low battery level, it will send an alert to the monitor immediately. the low battery icon (LO) and the TPMS icon will keep on flashing with audible alarm to alert the driver.
• Easy to Install
  • Does not require any complicated operations, you only need to turn on the monitor first, and then install the sensors on the tyre at the corresponding position (1,2,3,4,5,6). All sensors have been programmed before leaving the factory so you don't need to pair them manually.

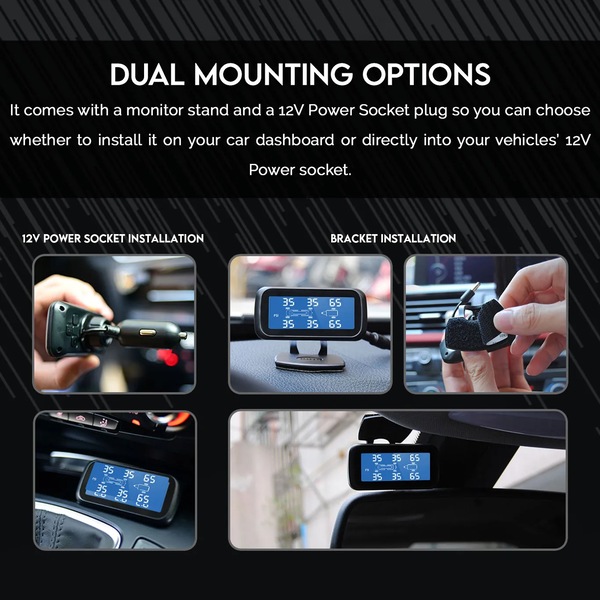

• Dual Mounting Options
  • It comes with a monitor stand and a 12V Power Socket plug so you can choose whether to install it on your car dashboard or directly into your vehicles’ 12V Power Socket.
• IP67 Waterproof
  • It comes with 6pcs IP67 waterproof external sensors to protect against dust and water.

• Working Frequency: 433.92MHZ
• Working Voltage: DC 12V~24V
• Monitoring Pressure: 0 ~ 13.7bar / 0 ~ 199 psi
• Monitoring Temperature: -40°C ~ +125°C
• Working Temperature: -30℃～ +85℃
• Storage Temperature: -30℃～ +85℃
• Size:80*37*12mm

• Pressure Range: 0~8bar(0~116psi)
• Frequency: 433.92MHZ
• Standby Current: 1uA
• Waterproof Rating: IP67
• Operating Temperature: -40°C~+155°C
• Accuracy: ±1.5 PSI or ±3°C
• Battery: 3V CR1632 Panasonic Battery
• Size: 24*17mm

Important Note: The connection between the display and the sensor is wireless. Several anti-interference functions have been designed and the possibility of its being interfered with is extremely low. If you find a sensors data is not displayed or displayed intermittently during use, it may be that the sensors wireless signal transmission is interfered with by objects with high electromagnetic interference. You can solve this problem by moving the display away from the interference source, such as moving the monitor away from the GPS navigator and closer to the driving position. If the problem still persists, you may need to install a repeater that extends the signal transmission distance and eliminates interference. Note ELinz does sell a TPMSRP separately.

1. 1x Monitor

2. 6x External Sensors (Batteries Included)

3. 6x Anti-theft Nuts

4. 1x Monitor Stand

5. 1x 12V Power Socket Plug

6. 1x Spanner

7. 1x User Manual

8. 1x 12V Power Adapter
