Elinz Solar Powered Tyre Pressure Monitoring System Trailer Caravan TPMS 6 External Sensors

Introducing the Elinz Powered Tyre Pressure Monitoring System (TPMS) for Trailers and Caravans, featuring 6 external sensors for accurate, real-time monitoring of tyre pressure and temperature. This innovative system ensures road safety with alerts for low/high pressure, high temperature, quick air leaks, and low battery in the sensors. Equipped with a 4.3" LCD screen, solar and USB charging options, and easy installation, it’s ideal for vehicles like Cars, RVs, SUVs, and Caravans. Switch effortlessly between 4-tyre and 6-tyre modes for towing convenience, backed by a built-in 1000mAh battery.

TPMS (Tyre Pressure Monitoring System) is strictly designed for monitoring tyre pressure only. It does not replace regular tyre maintenance, inspections, or manual pressure checks. Users should not rely solely on TPMS for tyre safety and are advised to periodically check tyre pressure using a calibrated gauge. Improper use or misinterpretation of TPMS data may lead to vehicle handling issues or potential safety risks. Always refer to your vehicle manufacturer’s guidelines for proper tyre care and maintenance.

• Accurate Real-time Monitoring
  • Providing real-time information about your tyre pressure and temperature within the accuracy of ±1.5 PSI or ±3°C, with an audible alarm enabling you to take prompt action if any issues arise.
• Solar and USB Charging
  • It features solar charging capabilities tailored to provide a continuous power supply from sunlight and offer flexibility by charging via a USB port to power the monitor on rainy days or nights (12V adapter not included).
• 6pcs External Sensors
  • This kit comes with 6 external sensors suitable for most vehicles such as Cars, SUVs, RVs, Utes with trailers, Caravans with a tyre pressure range of 0 - 199 PSI.
  • Easy to install.
• 3.25" LCD Screen
  • With 3.25" LCD screen and easy-to-read tyre data makes it easy for the driver to know the tyre pressure and temperature of all tyres at any time, ensuring road safety.
• 4/6 Tyre Modes
  • Easily switch from 6 to 4 tyre mode when you are not towing your trailer/caravan.
    1. Simply press and hold the SET and MINUS button for 3 seconds.
    2. Press the PLUS to select 4 or 6 tyre mode.
    3. Press and hold the SET and MINUS button for 3 seconds again to save the settings.
• Built-in 1000mAh Battery
  • The monitor has a built-in 1000mAh rechargeable lithium battery, 120 hour battery life after full charge.
• Low Tyre Pressure Alert
  • When the tyre pressure is lower than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• High Tyre Pressure Alert
  • When the tyre pressure is higher than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• High Tyre Temperature Alert
  • When the tyre temperature is higher than the preset value, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• Quick Air Leakage Alert
  • When the sensor detects air leakage from the tyre, the TPMS icon and pressure will keep on flashing with an audible alarm to alert the driver.
• Sensor Low Battery Alert
  • When the sensor detects low battery level, it will send an alert to the monitor immediately. the low battery icon (LO) and the TPMS icon will keep on flashing with audible alarm to alert the driver.
• Benefits of TPMS
  • Improved safety.
  • Improved fuel efficiency.
  • Extended tyre life.
  • Reduced maintenance.
  • Reduces the risk of sudden blowouts.

• Screen Size: 3.25 inch
• Monitoring Pressure: 0~199 PSI
• Pressure Unit: PSI / BAR
• Monitoring Temperature: 40℃~+105℃
• Temperature Unit: °C / °F
• Working Temperature: -20℃-80℃
• Storage Temperature: -30℃-85℃
• Transmitting Frequency:433.92MHz
• Solar & DC Input Voltage: DC5V
• Size (L*W*H):109*50*40mm
• Battery Capacity: 10,000mAh
• Battery life: 120 hours per full charge

• Pressure range of 0~199 PSI
• Pressure Accuracy: ±1.5 PSI or ±3°C
• Working Temperature: -40℃~+125℃
• Storage Temperature: -40℃~+125℃
• Transmitting Frequency:433.92MHz
• Temperature Accuracy: ±3℃
• Transmitting Power: <10dbm@50Ω
• Battery: 3V CR1632 Panasonic Battery

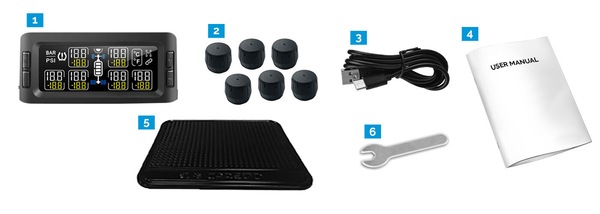

1. 1x Monitor
2. 6x External Sensors (Batteries Included)
3. 1x Type C USB Cable
4. 1x User Manual
5. 1x Anti-Slip Mat
6. 1x Spanner
