Elinz 5" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single View DC12~24V 800*480 Dashboard Mount

Elinz 5" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single View DC12~24V 800*480 Dashboard Mount

Hurry! 5 items left!

Price	$169.95
	Collect 169 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz 5" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single View DC12~24V 800*480 Dashboard Mount

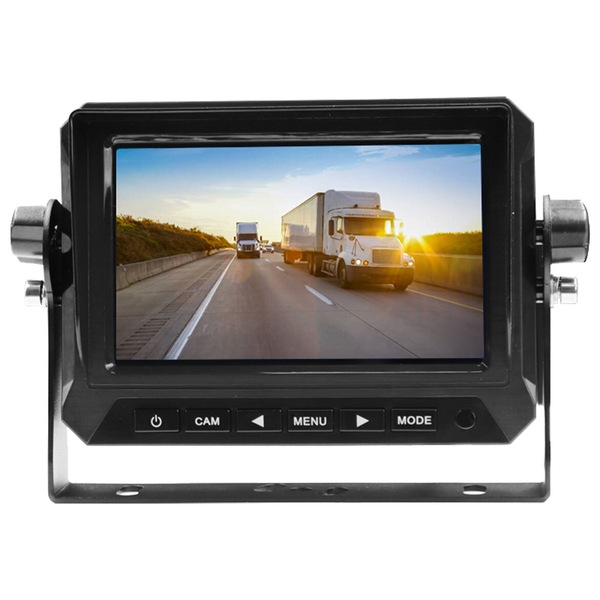

Upgrade your vehicle with the Elinz 5" AHD Monitor, featuring 800x480 resolution and Analog High Definition (AHD) technology for sharp, real-time visuals. Compatible with up to three AHD cameras, it ensures safer reversing with optional parking guidelines. Powered by DC 12-24V and equipped with an adjustable U-bracket, this monitor is perfect for Cars, RVs, Trucks, and more.

PRODUCT HIGHLIGHTS

AHD (Analog High Definition)
- AHD Analog High Definition monitors offer a higher resolution and quality video footage than standard analog monitors.
5" LCD Display
- This 5" AHD Monitor offers 800*480 screen resolution, perfect for enhancing visibility on Cars, SUVs, RVs, Utes, and Trucks while providing real-time images so you can have a clear view of what's behind your vehicle.
3CH Single View
- Supports up to three AHD cameras.
- Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD.
Guidelines On/Off
- The monitor has built-in parking guidelines to make it easier and safer for you when reversing. Guidelines can be turned ON/OFF.
DC 12-24V Power Source
- Compatible with most vehicles with a power input range of DC12-24V. The monitor supplies DC12V power to the cameras.
U Shape Bracket
- This monitor is equipped with a U bracket that allows you to tilt or rotate the monitor on the desired position to have a better view of the displayed image. With this type of mount, this monitor can be mounted on the dashboard or roof of a truck/caravan/car or anywhere suitable.

ITEM DESCRIPTION

Screen Size: 5 inch
Monitor Type: AHD
Display Technology: LCD
Screen Resolution: 800*480
Video Input: 720P/1080P
Video Channels: 3CH
Connection Type: 4PIN
Power Consumption: <5W
Operating Temperature: -30~ +70 ºC
Input Voltage: DC12V-24V
Output Voltage: DC12V
Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD

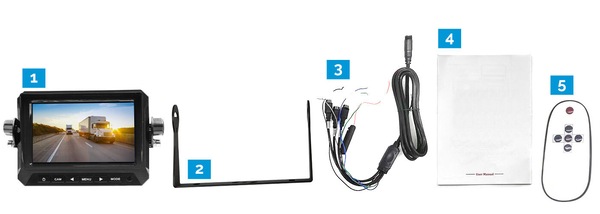

WHAT'S INCLUDED

1x Monitor
1x U Bracket
1x Power Cord
1x User Manual
1x Remote (* No Batteries included)

GTIN: 0743966017018
