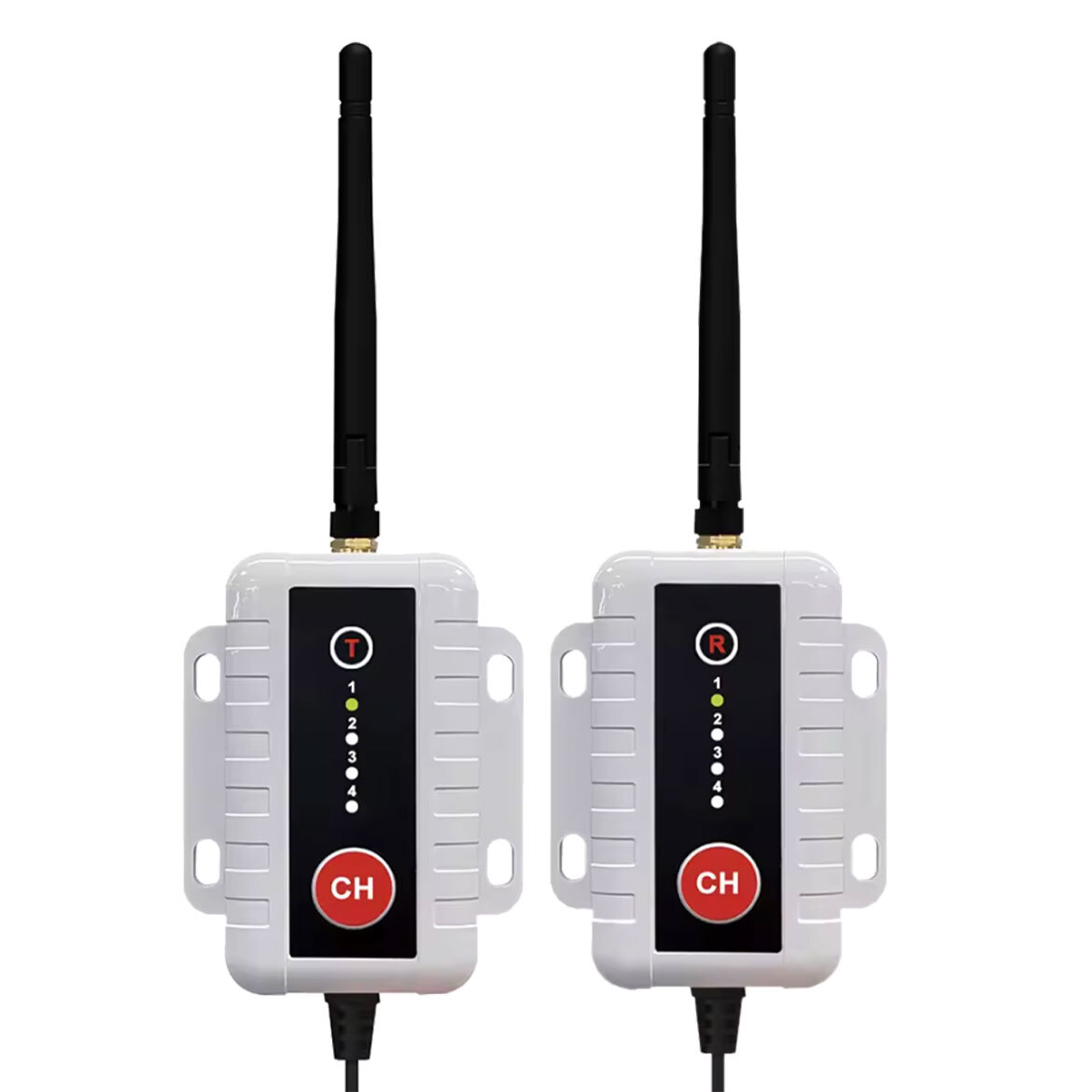

Elinz 4CH 2.4GHz Wireless Transmitter & Receiver with 8 Switchable Frequencies for 4PIN Wired Analog Front or Rear Backup Camera System

Introducing the Elinz 4CH Analog 2.4GHz Wireless Transmitter & Receiver, designed for seamless integration with 4PIN wired analog front or rear backup camera systems. With 8 switchable frequencies, ranging from 2370MHz to 2468MHz, you can select the optimal channel to minimize interference and ensure reliable signal transmission. Ideal for large vehicles like RVs and trucks, it supports up to 4 cameras, providing real-time, stable wireless images even over distances as large as 7.92 meters (26 feet). Both transmitter and receiver are IP68 waterproof-rated, ensuring durability in diverse weather conditions.

• 8 Switchable Frequencies
  • Transform your 4PIN analog reverse camera system to 2.4GHz wireless. By pressing the “CH” button, you can change the frequency from CH1: 2370Mhz, CH2: 2390Mhz, CH3: 2490Mhz, CH4: 2510Mhz, and by holding the “CH” button you can change the frequency to CH5: 2414Mhz, CH6: 2462Mhz, CH7: 2450Mhz, CH8: 2468Mhz. With 8 switchable frequencies, you can choose the best channel for your cameras and avoid interference.
• Supports 4CH Reversing Camera System
  • This analog 2.4G wireless video transmitter is specially designed to meet the demand for multiple transmitters & receivers for up to 4 camera systems. To connect 4 cameras on your monitor use 4 pairs of HDWRL4CH and set each camera to different frequencies.
• Powerful and Stable Signal
  • Get a real-time and stable wireless camera image on your monitor even if installed in a 7.92 metres(26ft) large caravan. For best results do not use cameras that are very close to one another.
• DC12V~24V Compatible
  • Suitable for most large vehicles, such as RVs, trucks, trailers, buses, motor homes, caravans, and campers
• IP68 Waterproof
  • Both transmitter and receiver are IP68 waterproof.

• Power Supply: DC12~24V
• Consumption Current: 150mA
• TX Channel: 8 channel
• T/R Frequency: 2.4G
• Output Power: 200mW
• Unobstructed Effective Range: 150 ~ 200 m
• Operating temperature: -10°c ~ +50°c
• Transmitter Dimension: L80mm*W40mm*H20mm
• Receiver Dimension: L80mm*W40mm*H20mm
• Weight: 58g/pc
• Modulation type: FM

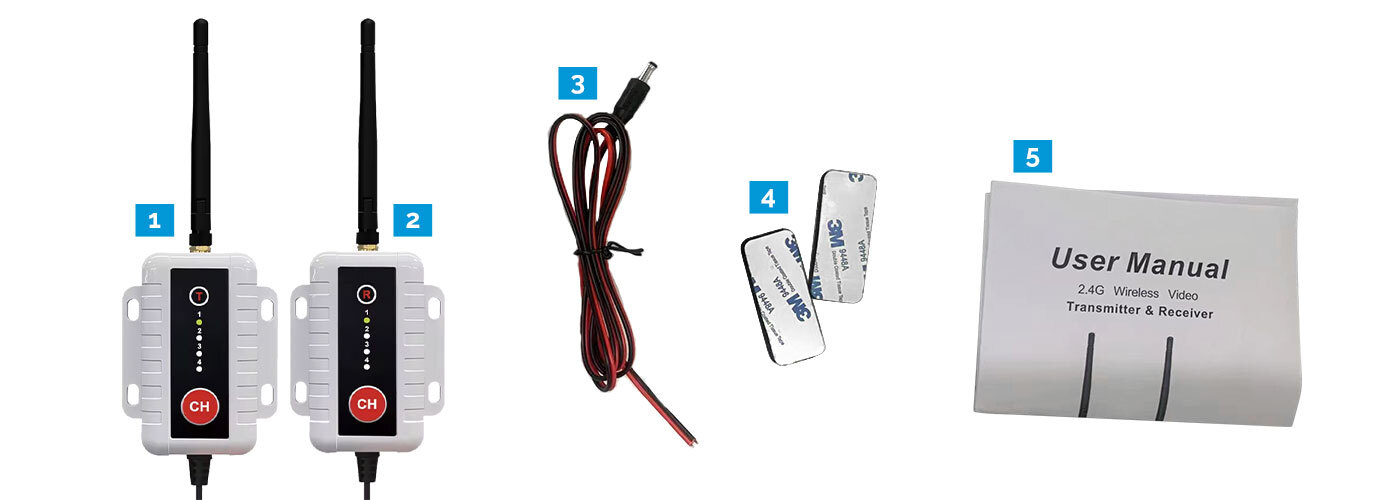

1. 1x Receiver
2. 1x Transmitter
3. 1x Power Cord
4. 2x Double Sided Tape
5. 1x User Manual
