Electronic Time Delay Switch - 30 sec – 480 Minutes - Blue LED Indicator - LSTDE-L

Description
Indoor timer-controlled switches are a great way to save time and money. Connected Switchgear’s electronic time delay switches come with a host of useful features for a wider variety of applications. They are great for bathrooms, pantries, stairways and walk-in robes. Our latest 240V AC electronic time delay switch boasts a full 2400W power rating and comes with a unique load current limiting circuitry that prevents overload of capacitance luminaires and inductive loads that would normally reduce the life of electronic switch contacts.

Connected Switchgear’s new electronic time delay switch is the first time delay switch that can be installed in both 2 and 3-wire configurations.

• Installed in the basic 2-wire mode without a neutral connection requires a minimum load of just 5W to operate. Choosing to install a 3-wire connection with a neutral terminal will eliminate any load-type restrictions.

A total of 8 pre-defined ‘time out’ times ranging from 30 seconds to 480 minutes can be easily selected. Simply remove the front cover plate and select the corresponding toggles. Three function modes are available. These are repeat time out, turn off and run on timer.

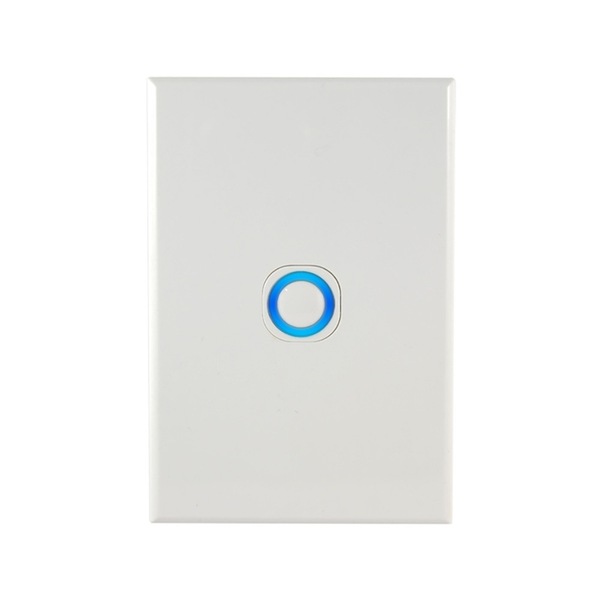

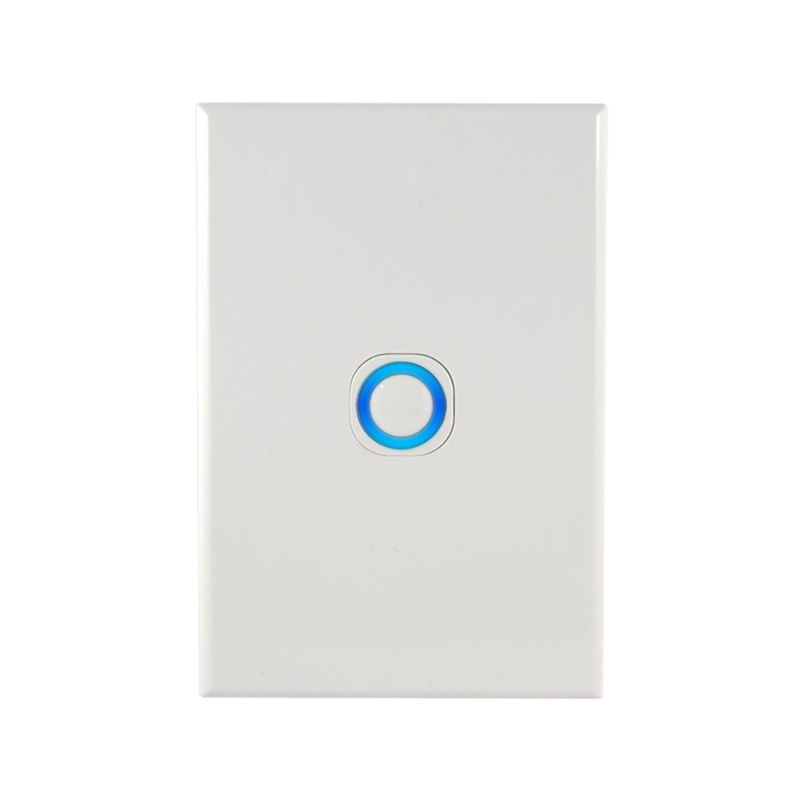

The Blue LED Indicator allows for visual identification of the switch in dimly lit areas. They also flash when the time setting has been actuated and the set time has begun the countdown.

Features:

• 240V AC
• 2400W
• 30 sec – 480 Minutes
• White with Blue LED Indicator

• 2 Wire with Optional 3 Wire Applications
• Time Out Range: 30 seconds to 480 minutes
• 5W Minimum Load in 2 Wire Applications
• Over Current Protection Circuitry
• 3 Programs: Timeout, Turn Off, Run On Timer

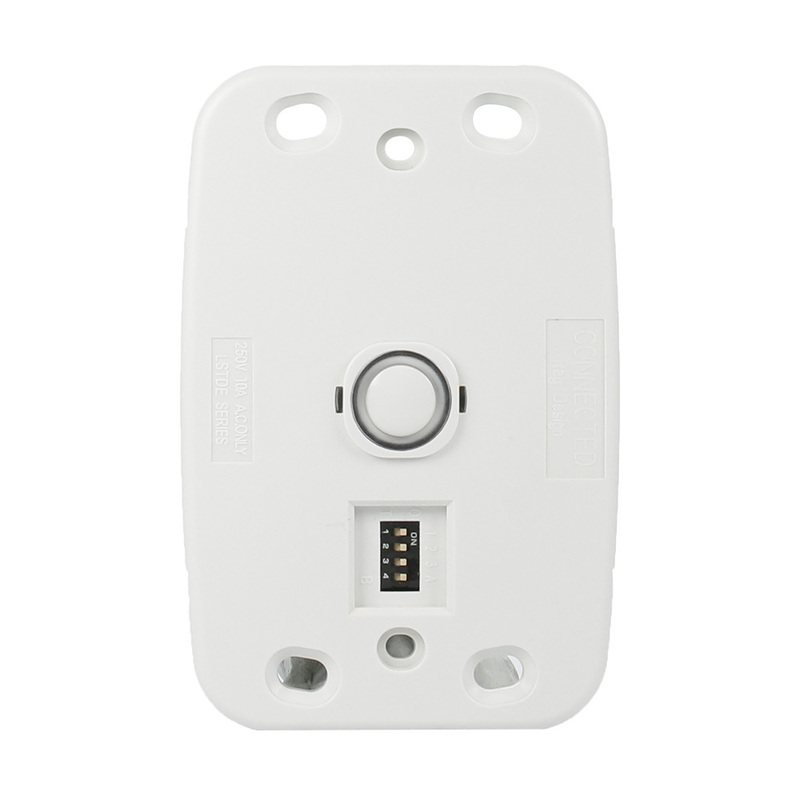

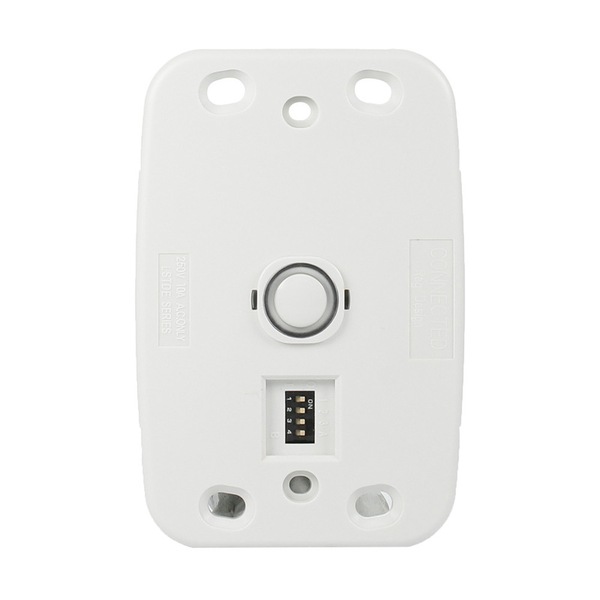

• Easily Configurable Settings By Removing Cover Plate
• Slim at 6.5mm Thick
• Contact Status: Normally Open
• Max Current: 10amp
• Over-Temp Cutout Current: 12amp
• Max Load 2400W

This time delay switch comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, we will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.
