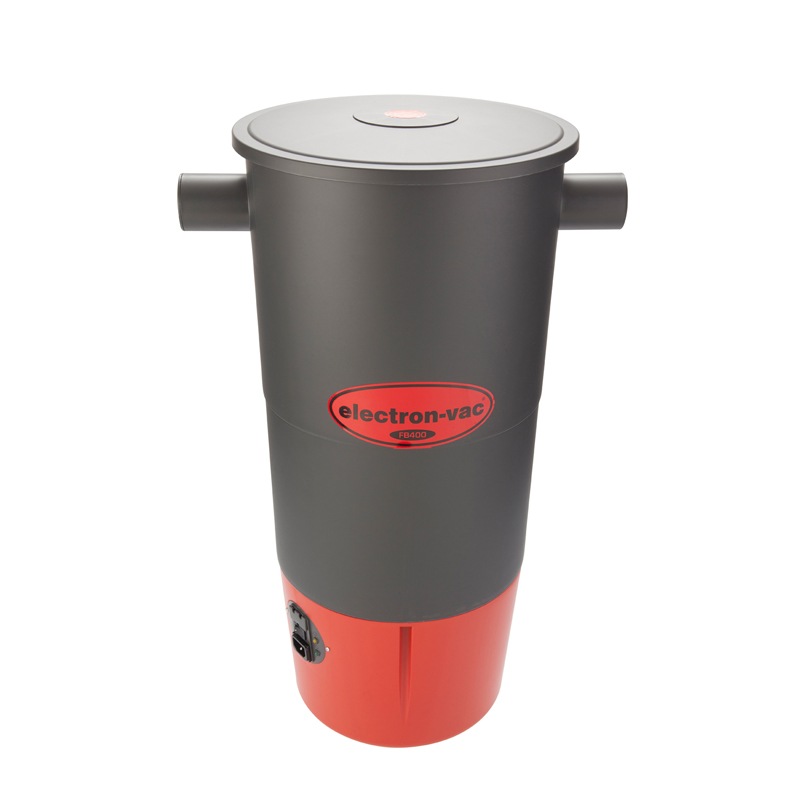

Electron EVS Ducted Vacuum Cleaner System Model FB400 1700 Watts 10yr warranty
3x
Electron EVS Ducted Vacuum Cleaner System Model FB400
FB400
10 Years Warranty
Model FB400
Vacuum Motor Specifications
Tangential By-pass discharge l
Flow Through discharge
Double ball bearings l
Diameter of Motor mm 143
Air Watts 515
Airflow l/s (max.) 48
Sealed Vacuum mm H2O (max.) 3150
RPM @19mm working orifice 18250
Label Rated Electrical Watts 1700
Noise Level dbA with Silencer @ 3m 65.5
Temperature Sensistive Thermal Protector l
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l
Power Unit Physical Specifications
Overall Height (mm) 735
Overall Diameter (mm) 330
Overall Weight (kg) 7.1
Dual Filtration Compatible System
Cyclonic Filtration (Standard)
HFPC Filter Cartridge
Filter Bag Filtration l
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 20
Authority Approvals / Origin
"C" Tick Compliance EMC - AS/NZS 1044 l
Made in Australia l
Installation Recommendations *
Size of Building up to Squares 40
Number of Inlet Points 8
Number of Aux Points 4
Working Hose length - up to metres 12
Max distance to furtherest point metres
Hide-A-Hose Compatible l
Notes:-
Instalaltion Recommendations shown is only an approxiate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.
Specifications subject to change without notice. EOR
