Electron EVS Ducted Vacuum Cleaner System Model 3505 + Hose Kit Complete
3x
Electron EVS Ducted Vacuum Cleaner System Model 3505 + Hose Kit Complete

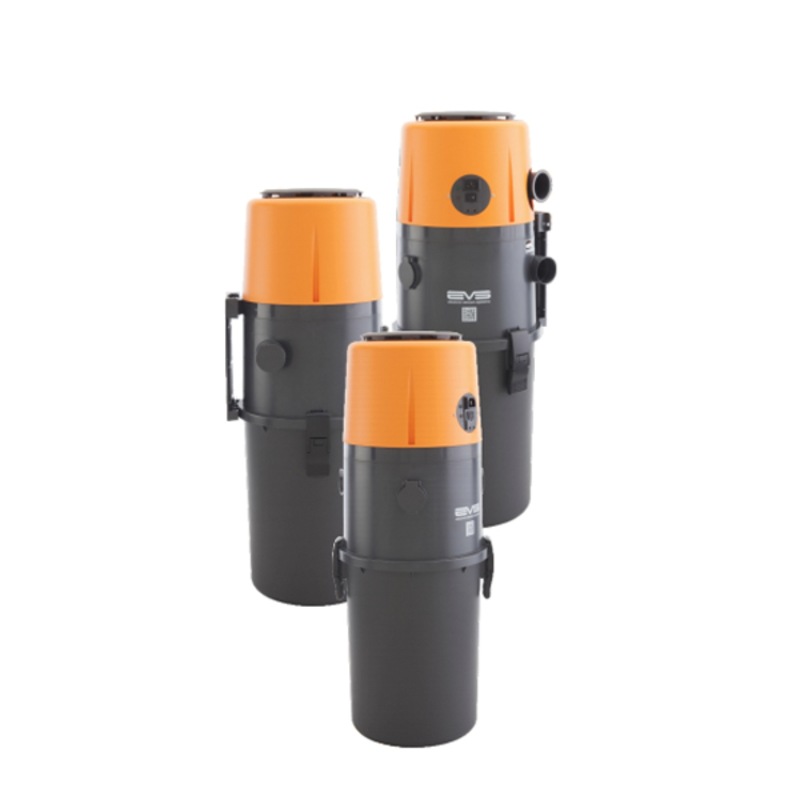

The EVS Power Unit, "the heart of the cleaning system" is constructed only with quality materials and workmanship, assuring years of trouble free vacuuming.
Power Unit Features:
Injected molded from high impact, high temperatures ABS poly carbonate and polypropylene plastics,
- Provides greater strength and durability
- Will not dent and will last a house time
- Rust and Corrosion proof
- Excellent for areas where there is excessive humidity and ideal for coastal areas

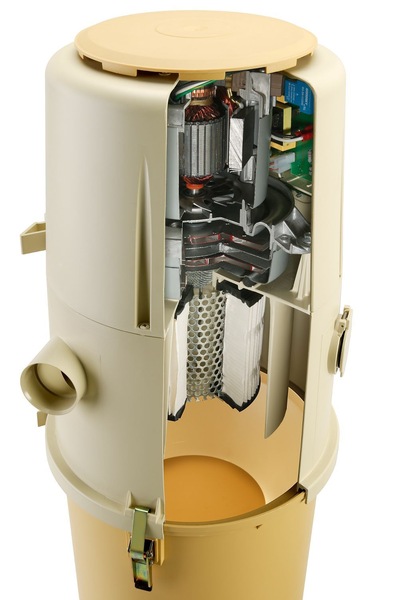

Right & Left Entry points for connection of ducting pipe to unit.Cyclonic Filtration System utilizing HFPC filter for added motor protection.Also offering Dual Filtration Compatibility; allowing optional Disposable Filter bag to be fitted if required with Bag Conversion Kit.Large capacity dirt receptacle easily emptied by releasing two clamping latches that provide a hermetic vacuum seal between motor base housing and dirt receptacle.Single printed circuit board control module complete with:
Model 3505

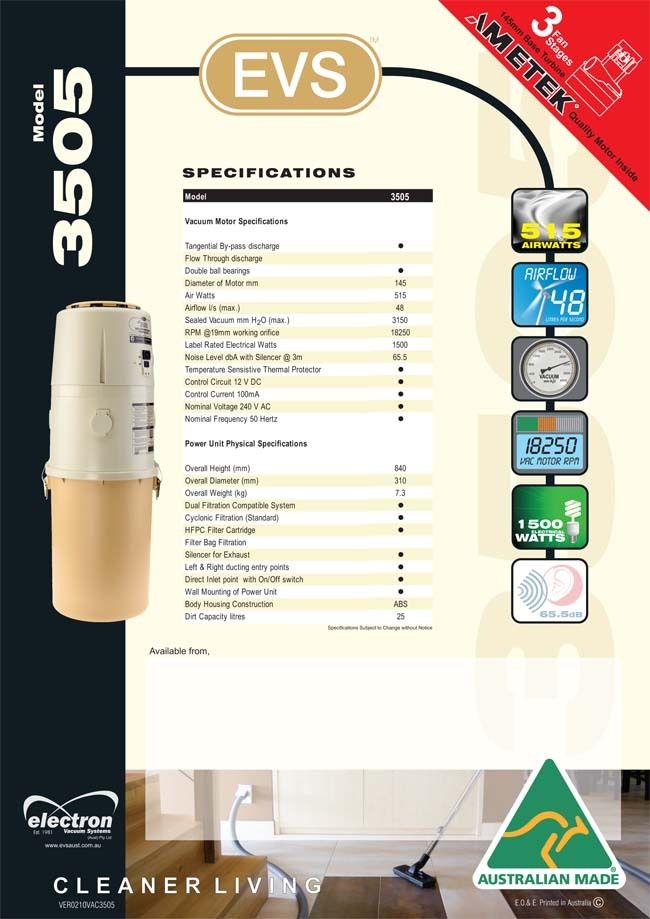

Vacuum Motor Specifications
Tangential By-pass discharge l
Double ball bearings l
Diameter of Motor mm 145
Air Watts 515
Airflow l/s (max.) 48
Sealed Vacuum mm H2O (max.) 3150
RPM @19mm working orifice 18250
Label Rated Electrical Watts 1500
Noise Level dbA with Silencer @ 3m 65.5
Temperature Sensistive Thermal Protector l
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l
Power Unit Physical Specifications
Overall Height (mm) 840
Overall Diameter (mm) 310
Overall Weight (kg) 7.3
Dual Filtration Compatible System l
Cyclonic Filtration (Standard) l
HFPC Filter Cartridge l
Filter Bag Filtration
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch l
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 25
Authority Approvals / Origin
"C" Tick Compliance EMC - AS/NZS 1044 l
Made in Australia l
Installation Recommendations *
Size of Building up to Squares 40
Number of Inlet Points 8
Number of Aux Points 4
Working Hose length - up to metres 12
Max distance to furtherest point metres
Hide-A-Hose Compatible l
