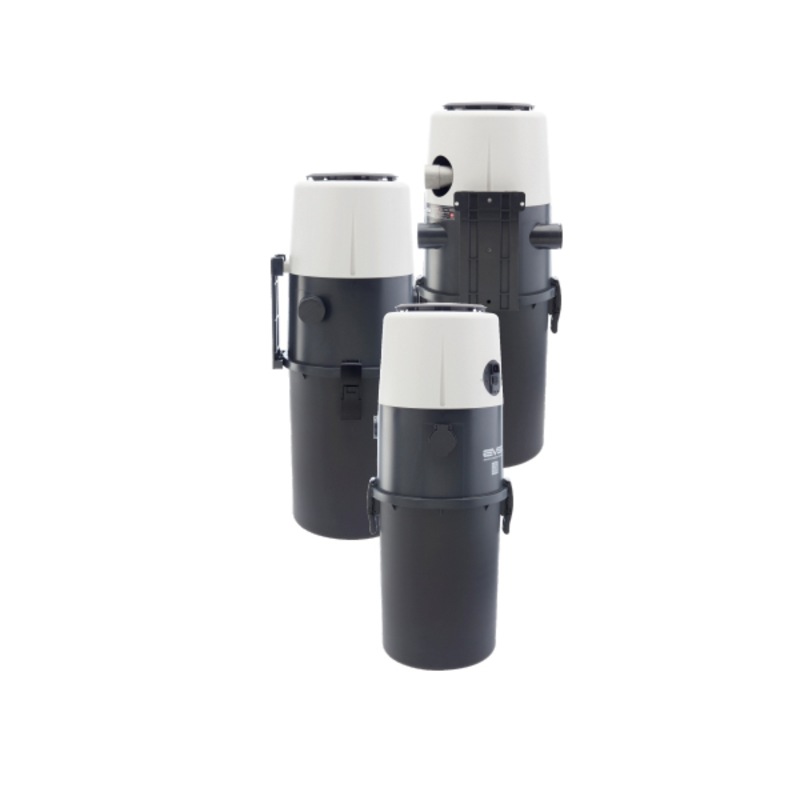

Electron EVS Ducted Vacuum Cleaner System Model 2808
3x

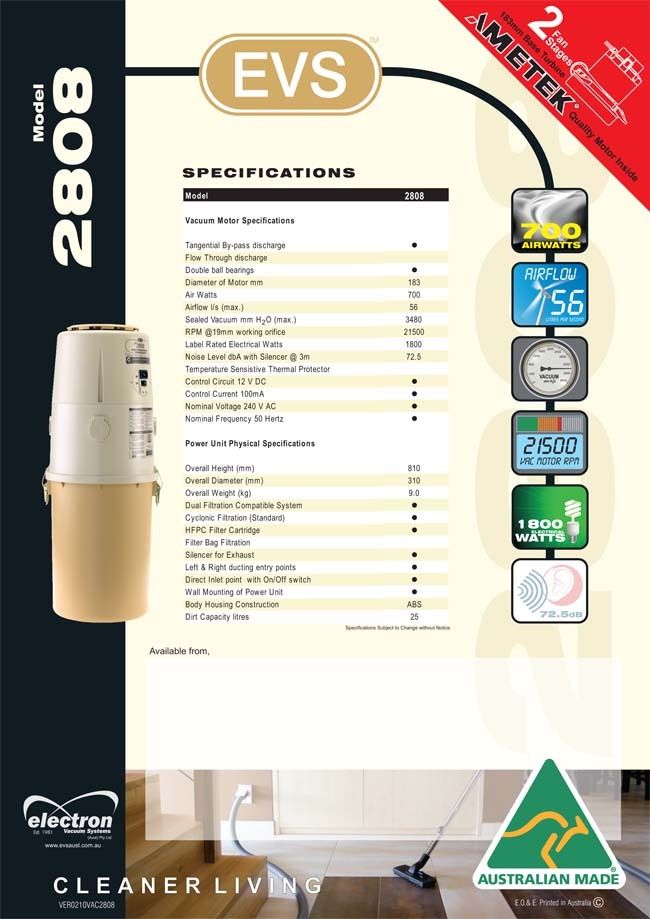

Electron EVS Ducted Vacuum Cleaner System Model 2808
Model 2808
Vacuum Motor Specifications
Tangential By-pass discharge l
Double ball bearings l
Diameter of Motor mm 183
Air Watts 700
Airflow l/s (max.) 56
Sealed Vacuum mm H2O (max.) 3480
RPM @19mm working orifice 21500
Label Rated Electrical Watts 1800
Noise Level dbA with Silencer @ 3m 72.5
Temperature Sensistive Thermal Protector
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l
Power Unit Physical Specifications
Overall Height (mm) 810
Overall Diameter (mm) 310
Overall Weight (kg) 9.0
Dual Filtration Compatible System l
Cyclonic Filtration (Standard) l
HFPC Filter Cartridge l
Filter Bag Filtration
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch l
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 25
Authority Approvals / Origin
"C" Tick Compliance EMC - AS/NZS 1044 l
Made in Australia l
Installation Recommendations *
Size of Building up to Squares 90
Number of Inlet Points 12
Number of Aux Points 6
Working Hose length - up to metres 15
Max distance to furtherest point metres
Hide-A-Hose Compatible l
Notes:-
Instalaltion Recommendations shown is only an approxiate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.
Specifications subject to change without notice. EOR 2808
