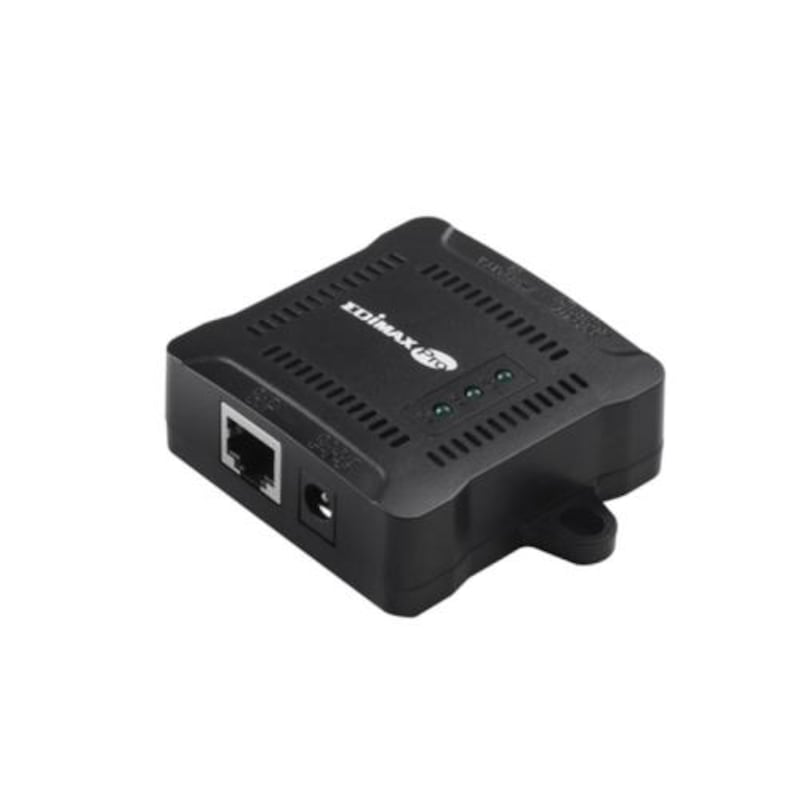

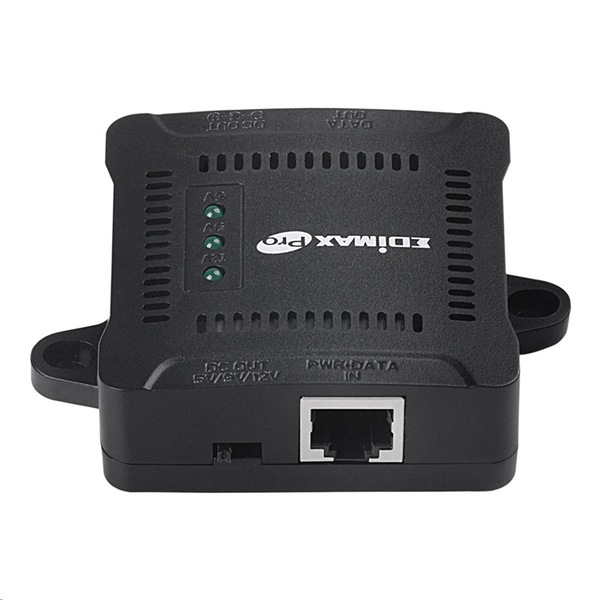

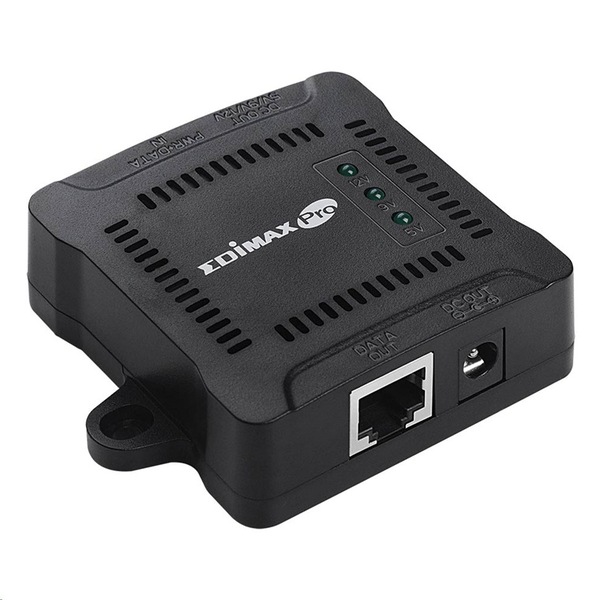

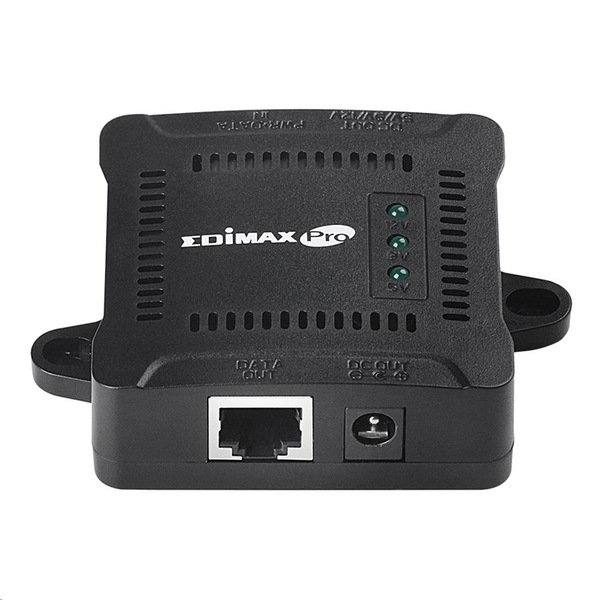

Edimax GP-101ST Gigabit PoE Splitter. Adjustable output power 5V, 9V, 12V DC. [GP-101ST]

Edimax GP-101ST Gigabit PoE Splitter. Adjustable output power 5V, 9V, 12V DC. [GP-101ST]

Be the first to review this product

Hurry! 2 items left!

Price	$66.53
	Collect 198 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Edimax GP-101ST Gigabit PoE Splitter. Adjustable output power 5V, 9V, 12V DC.

The GP-101ST Gigabit PoE (Power over Ethernet) Splitter delivers both data and electrical power to non-PoE Fast Ethernet or Gigabit Ethernet-enabled products such as network cameras and wireless access points, using an Ethernet cable and without deploying power outlets and electrical cabling. Ideal for remote locations, the GP-101ST allows data transfer between the PSE (Power Source Equipment) and GP-101ST up to Gigabit speeds and delivers power output voltages of 12V, 9V or 5V DC simultaneously up to 100 meters (328 feet). The GP-101ST is easy to install and requires no tools or software, while offering the benefits of cost savings as well as flexible network planning and high reliability.

Easy Installation End-to-End PoE Solution

The GP-101ST supports 802.3at/af and proprietary PoE, ensuring compatibility with other 802.3at/af PoE/proprietary-compliant injectors and switches. The GP-101ST is easy to install and requires no tools or software configuration. Just connect the GP-101ST device to any power source device such as a PoE injector unit or a PoE switch to provide power to Ethernet-enabled devices. The GP-101ST offers small to medium business a complete end-to-end PoE solution.

Cost Saving Network Deployment

The GP-101ST supports 802.3at/af ensuring compatibility with other 802.3af PoE compliant injectors or PoE switches. Taking the convenience of PoE, the GP-101ST eliminates the need and costs to place an Ethernet-enabled device such as a wireless access point or a network camera near a power outlet or deploy electrical cabling. For flexible network deployment options, the compact-sized GP-101ST can be mounted on a ceiling or wall up to 100 meters (328 feet) from a power source.

Reliable and Flexible Power Supply

The GP-101ST features PoE short circuit protection to safeguard network devices and supports 5V, 9V or 12V DC output with a built-in slide switch to select the power output according to the requirements of your network device.

HARDWARE

Ports
1 Port RJ-45 10/100/1000Base-T PoE Input Port
1 Port RJ-45 10/100/1000Base-T Output Port
1 Port DC Jack Output Port
LED Indicators
5V/9V/12V, Power and AC
Power Input
IEEE 802.3af, IEEE 802.3at
Power Output
DC Out Adjustable Slide Switch for Either 5V/2A, 9V/2A or12V/2A DC Output Power

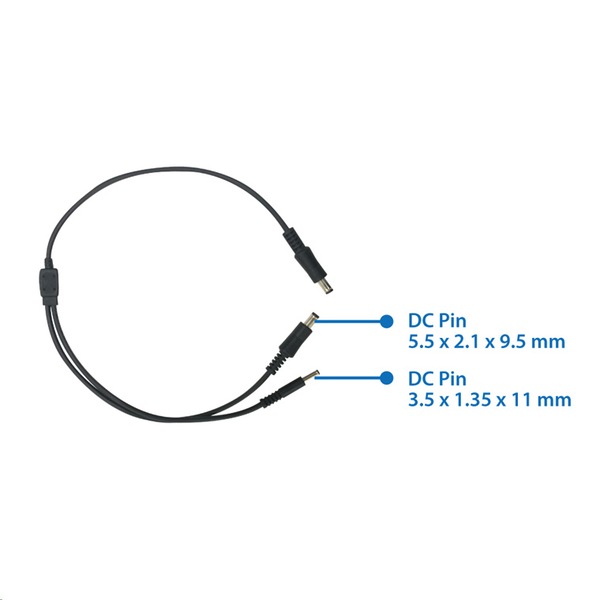

Y-Cable DC Pin (ODxIDxL) : 5.5 x 2.1 x 9.5 mm and 3.5 x 1.35 x 11 mm
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A) or 4/5(+), 7/8(-) Mids-Span (Mode B)
Dimensions (L x W x H)
63 × 64 × 23 mm
Weight
65g

ENVIRONMENT

Temperature Operating:
0 ~ 40?
Storage:
-40 ~ 70?
Humidity (Non-condensing) Operating:
10 ~ 90%
Storage:
5 ~ 90%

STANDARDS COMPLIANCE

Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
Certifications
FCC, CE

PACKAGE CONTENTS
GP-101ST PoE+ Splitter
One DC Y-Cable
Quick Installation Guide
- MPN: GP-101ST

GTIN: 4717964701374
