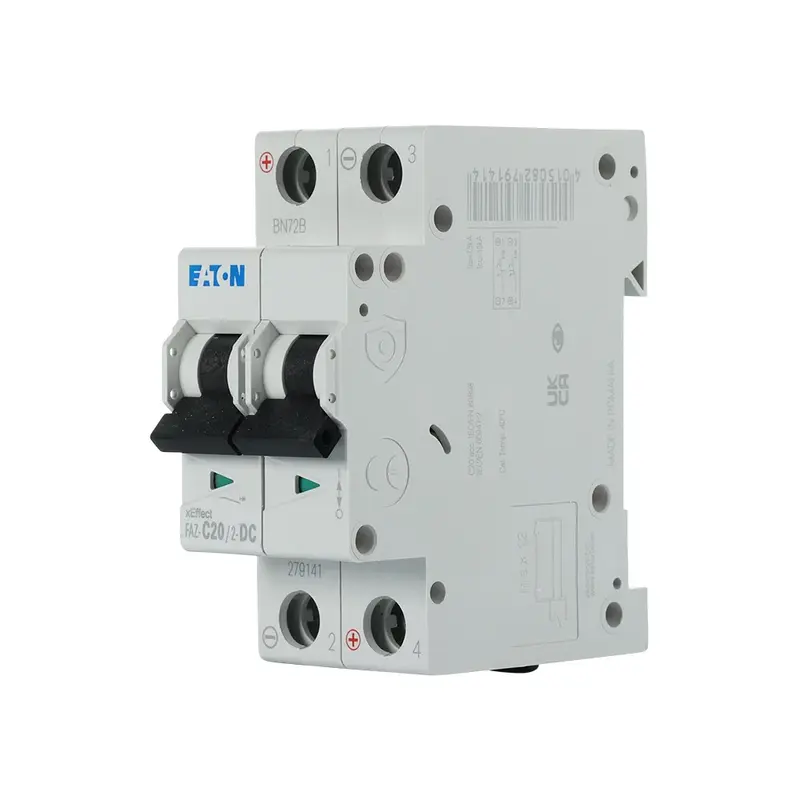

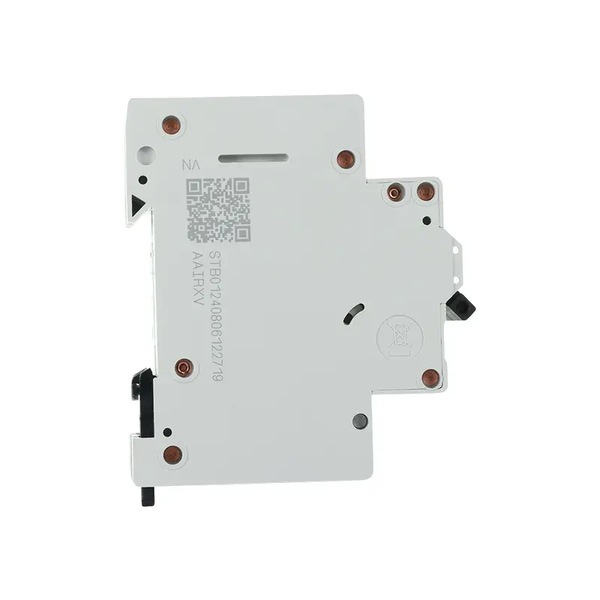

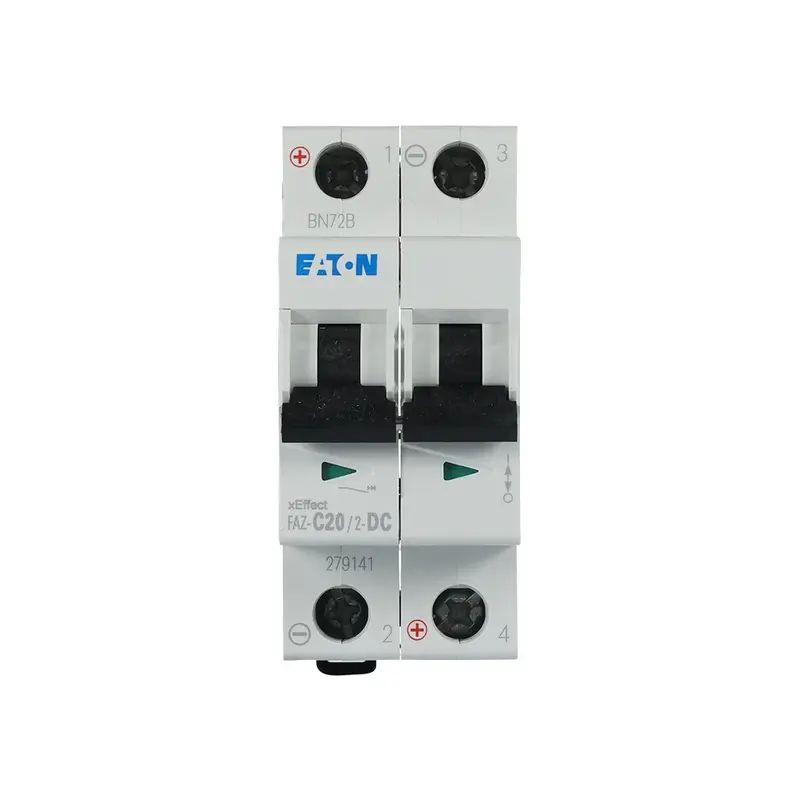

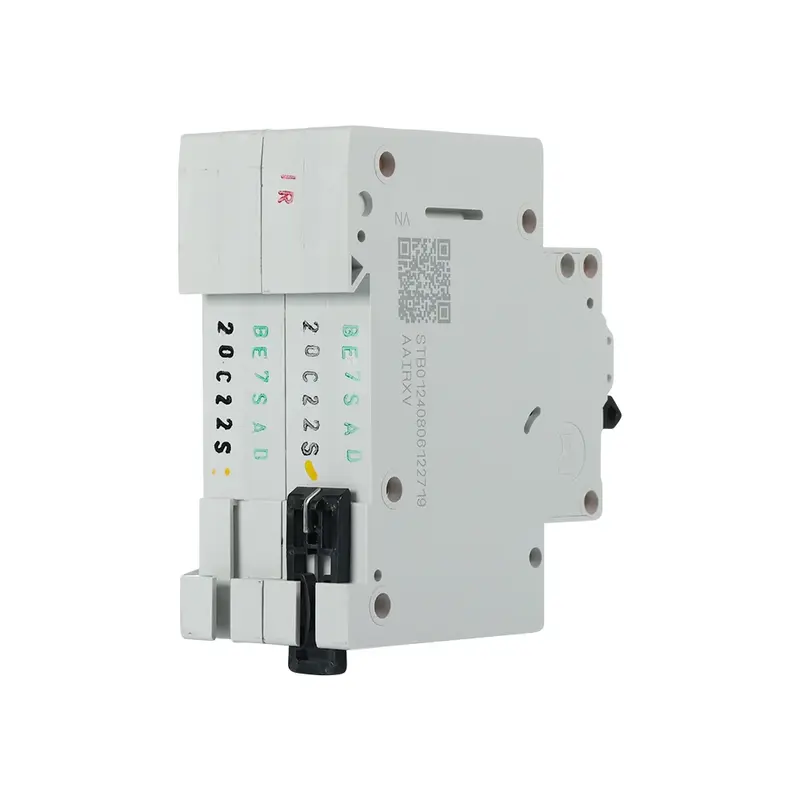

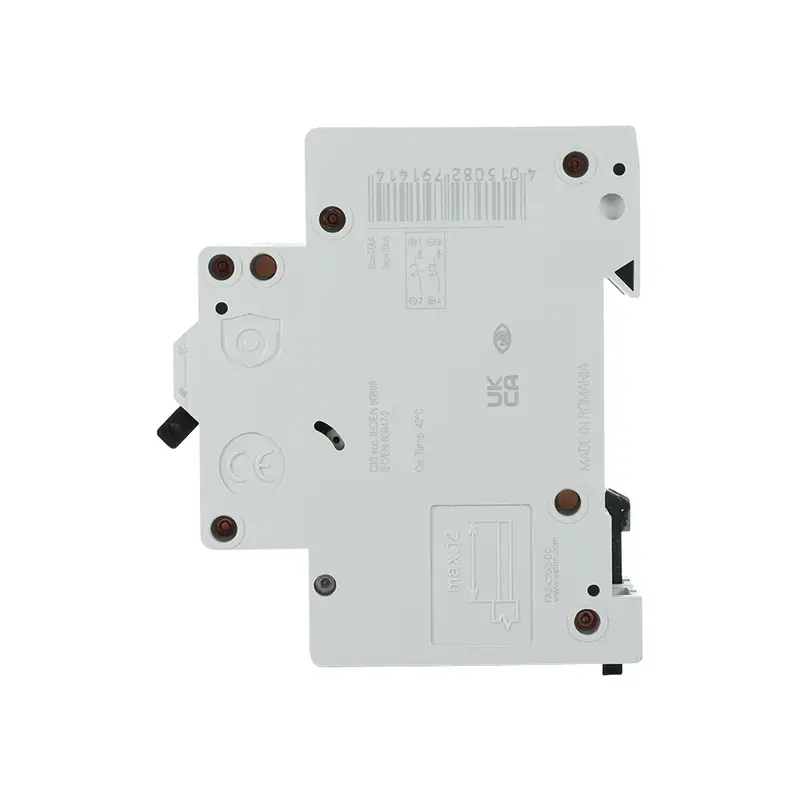

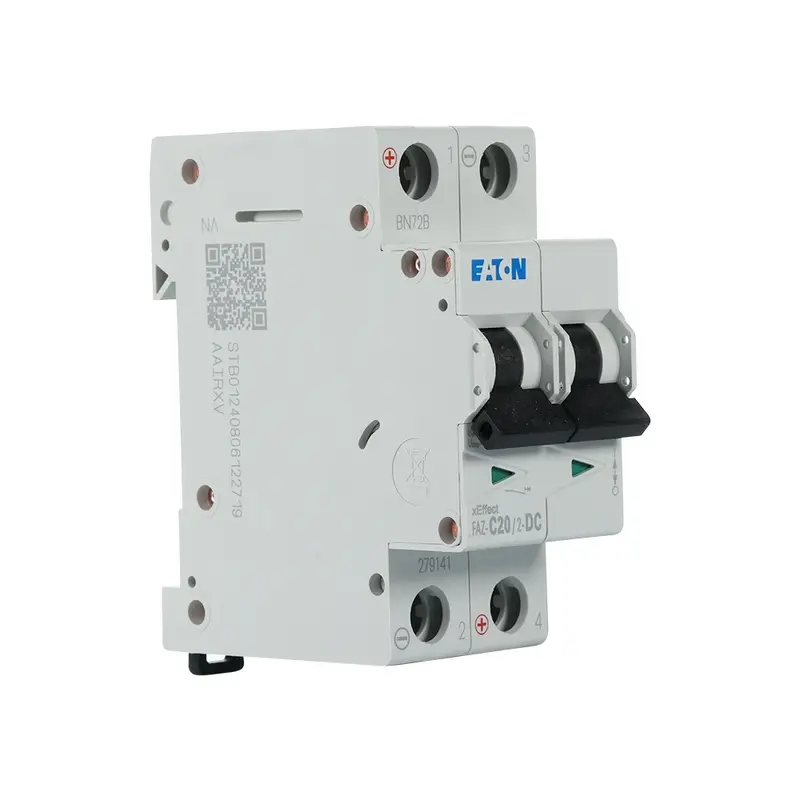

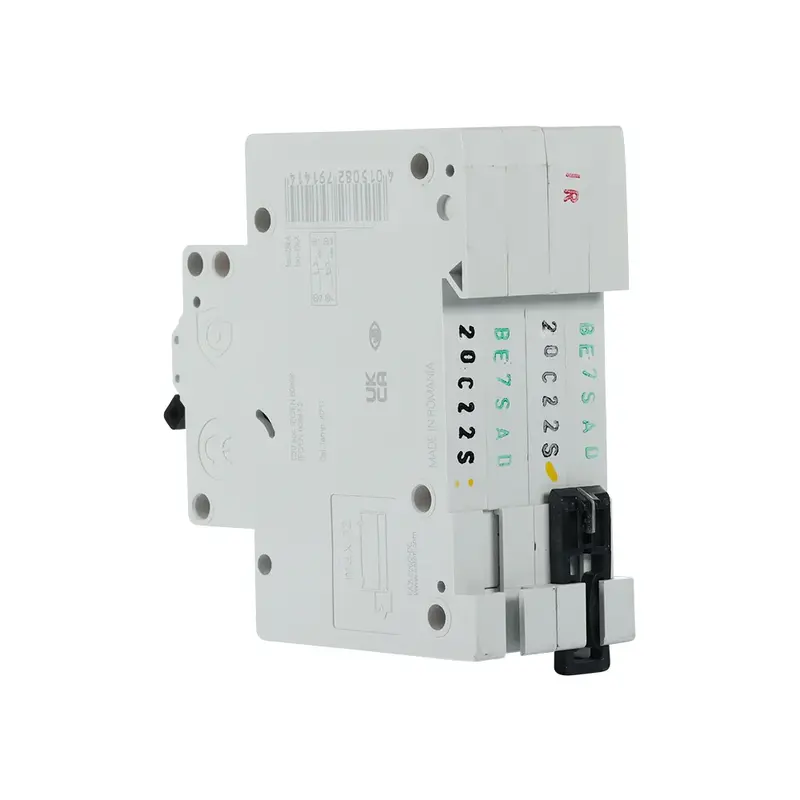

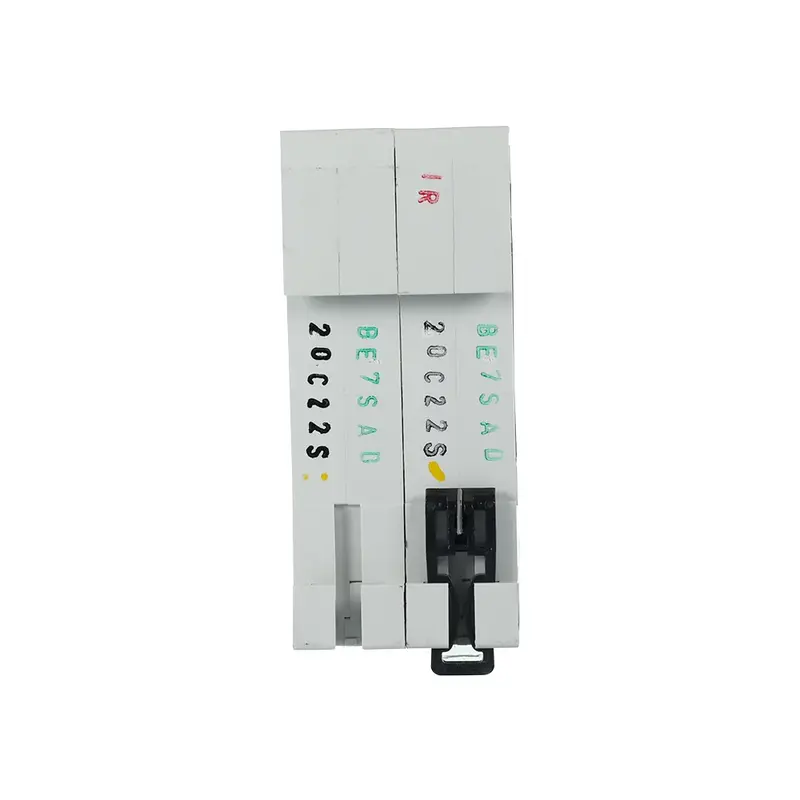

Eaton FAZ-C20-2-DC | 20 amp DC Circuit breaker 2 pole 10kA
The Eaton FAZ-C20-2-DC is a rugged 20-amp DC circuit breaker built for safe, efficient switching and protection in DC systems. With a two-pole design and "C" tripping characteristic, this breaker handles up to 250V DC per pole and offers a high 10kA short-circuit breaking capacity, complying with IEC/EN 60947-2 standards. Its compact size (80mm x 75.5mm x 36mm) and IP20 rating make it a secure, space-efficient choice for top-hat rail installations in control panels or industrial environments.
Designed for reliability, the FAZ-C20-2-DC features twin-purpose terminals that work with both multi-wire (1-25mm²) and solid-core (1-25mm²) conductors, ensuring flexibility and robust connections. Additionally, its finger-safe terminals enhance safety, meeting DGUV VS3 and EN 50274 standards.
Eaton FAZ-C20-2-DC Features:
- Rated Current & Voltage: 20A, 250V DC per pole, suitable for various DC applications.
- High Breaking Capacity: 10kA short-circuit breaking capacity, in line with IEC/EN 60947-2 standards.
- Tripping Characteristic “C”: Provides reliable overload protection for general DC use.
- Compact and Durable Design: Measures 80mm (L) x 75.5mm (H) x 36mm (W) with IP20 protection.
- Flexible Connection Options: Twin-purpose terminals support both solid and multi-wire conductors from 1-25mm².
- High-Temperature Range: Operates efficiently between -25°C and +75°C.
Eaton FAZ-C20-2-DC FAQ:
Q: What applications is this circuit breaker suitable for?
A: The FAZ-C20-2-DC is ideal for DC applications, including control panels and industrial environments, offering a reliable 20A rating and 10kA breaking capacity.
Q: What is the rated operational voltage per pole?
A: The breaker is rated for 250V DC per pole, ensuring stable performance in DC applications.
Q: Does it support multi-wire connections?
A: Yes, it features twin-purpose terminals compatible with both solid and multi-wire conductors (1-25mm²) for flexible installation options.
