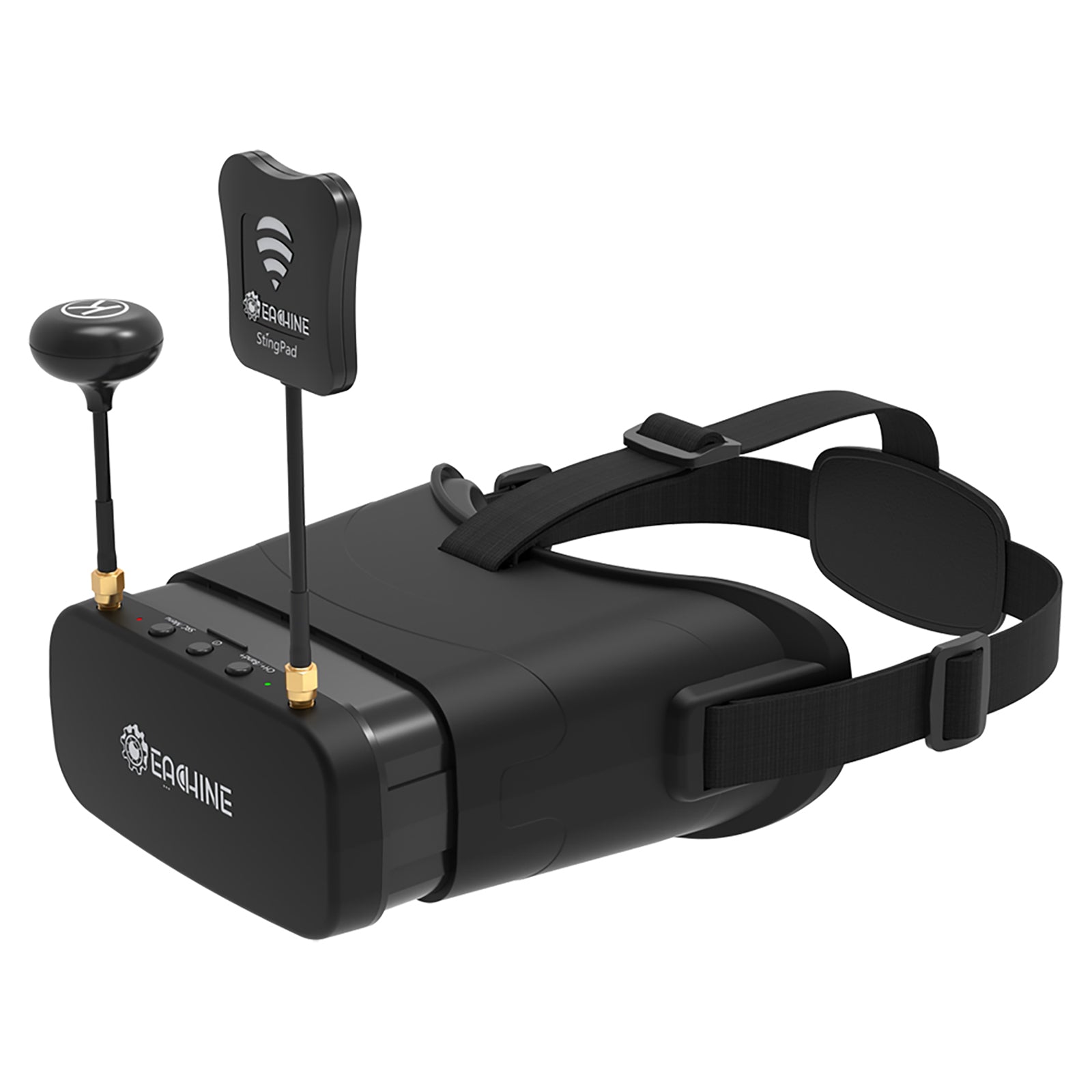

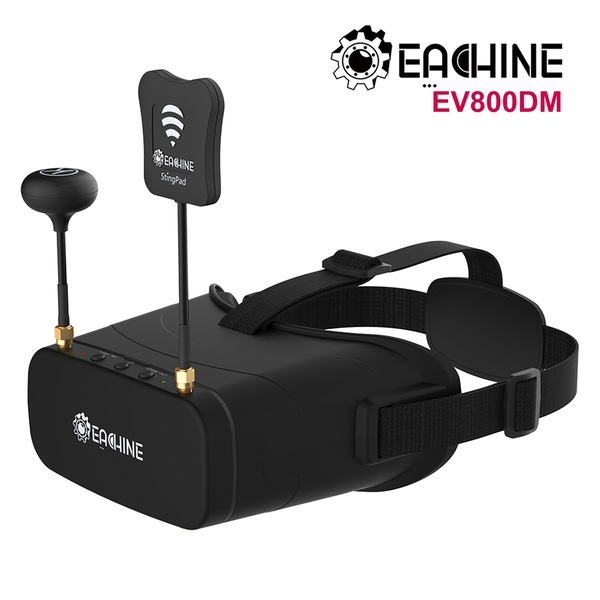

Eachine EV800DM 5.8G 40CH HD DVR RC Camera Racing VR Video FPV Drone Goggles

Eachine EV800DM 5.8G 40CH HD DVR RC Camera Racing VR Video FPV Drone Goggles

Price	$297
	Collect 297 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Features:

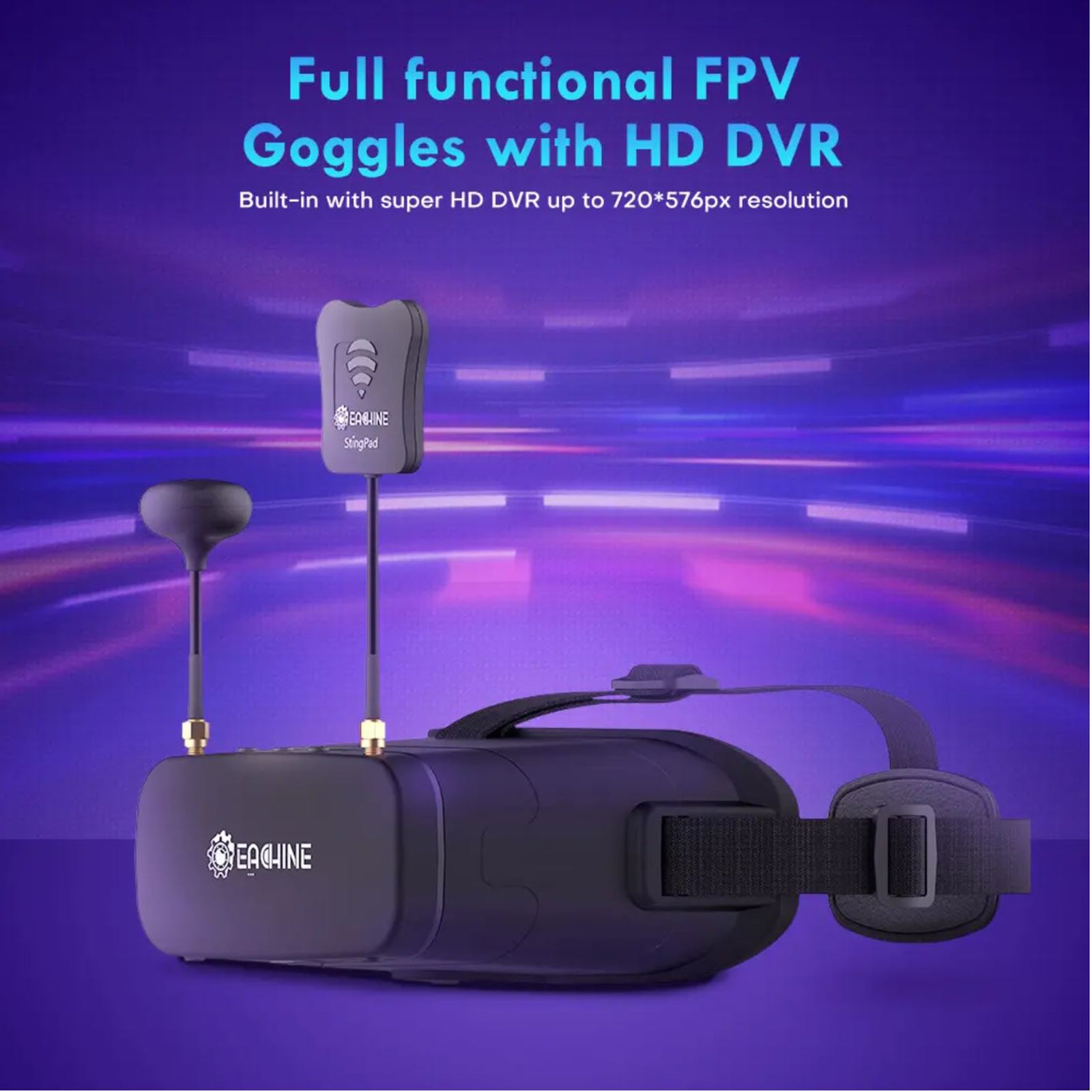

Built-in with super HD DVR up to 720*576px resolution.
Diversity RaceBand 40ch Auto-Searching.
Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording).

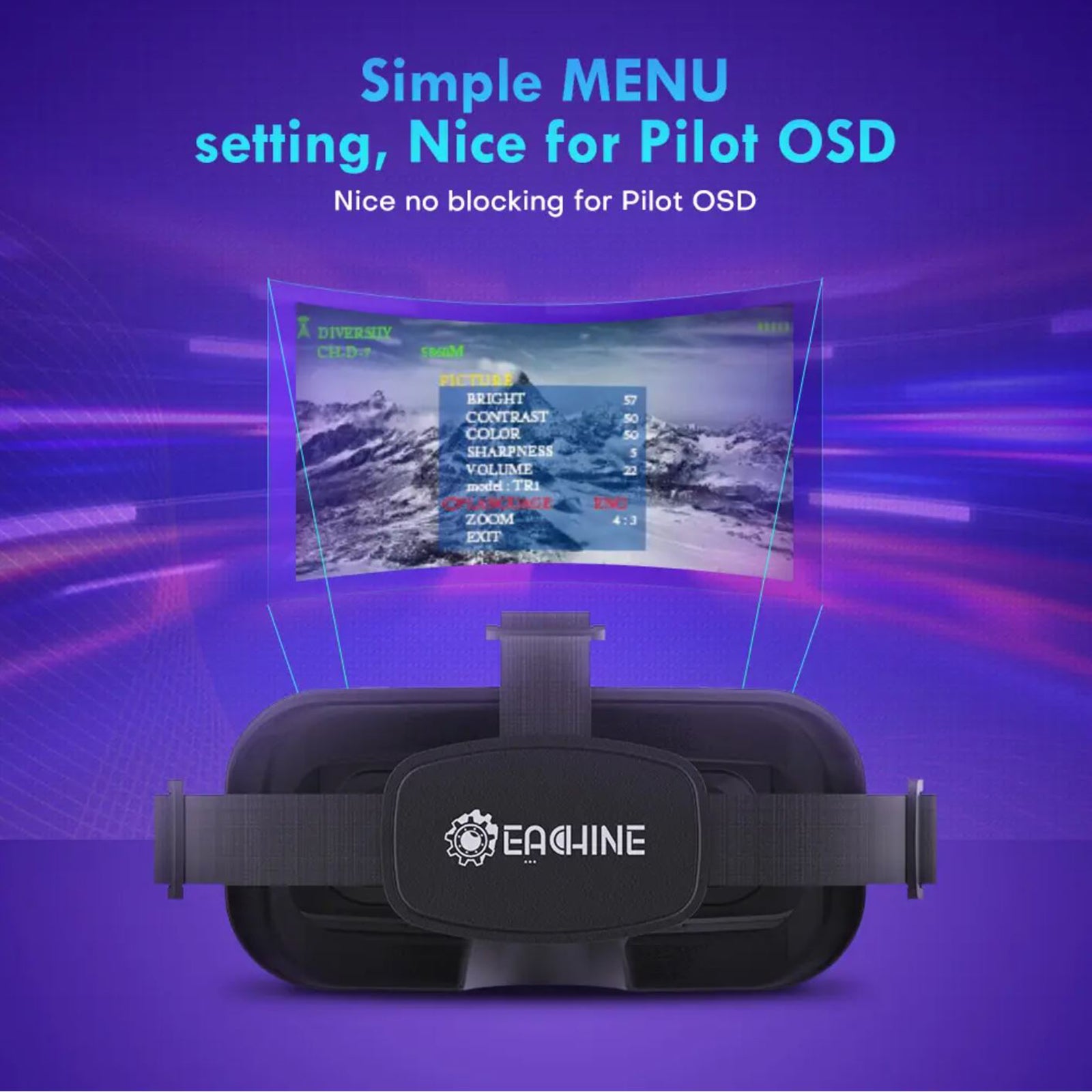

Work friendly with player-OSD, no blockage on the important flying OSD information.
Focal length adjustable design. Room for eye glasses. HD high brightness 3 inch LCD specially tuned for FPV racing.
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with Race band.
Advanced auto-searching function and the working frequency shows on screen.
Built-in 3.8V 2000mAh battery, each full charge offers 2.2 hours working time.
Wide range re-charge voltage 5-180V.
Accept 2S or 3S batteries as back-up power source.
Nice ergonomic design and fit different faces.
Super-wide visible angle up to 82 degree.
92% transparent lens adopted, no distortion and no blur on the edge of screen.
Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game.

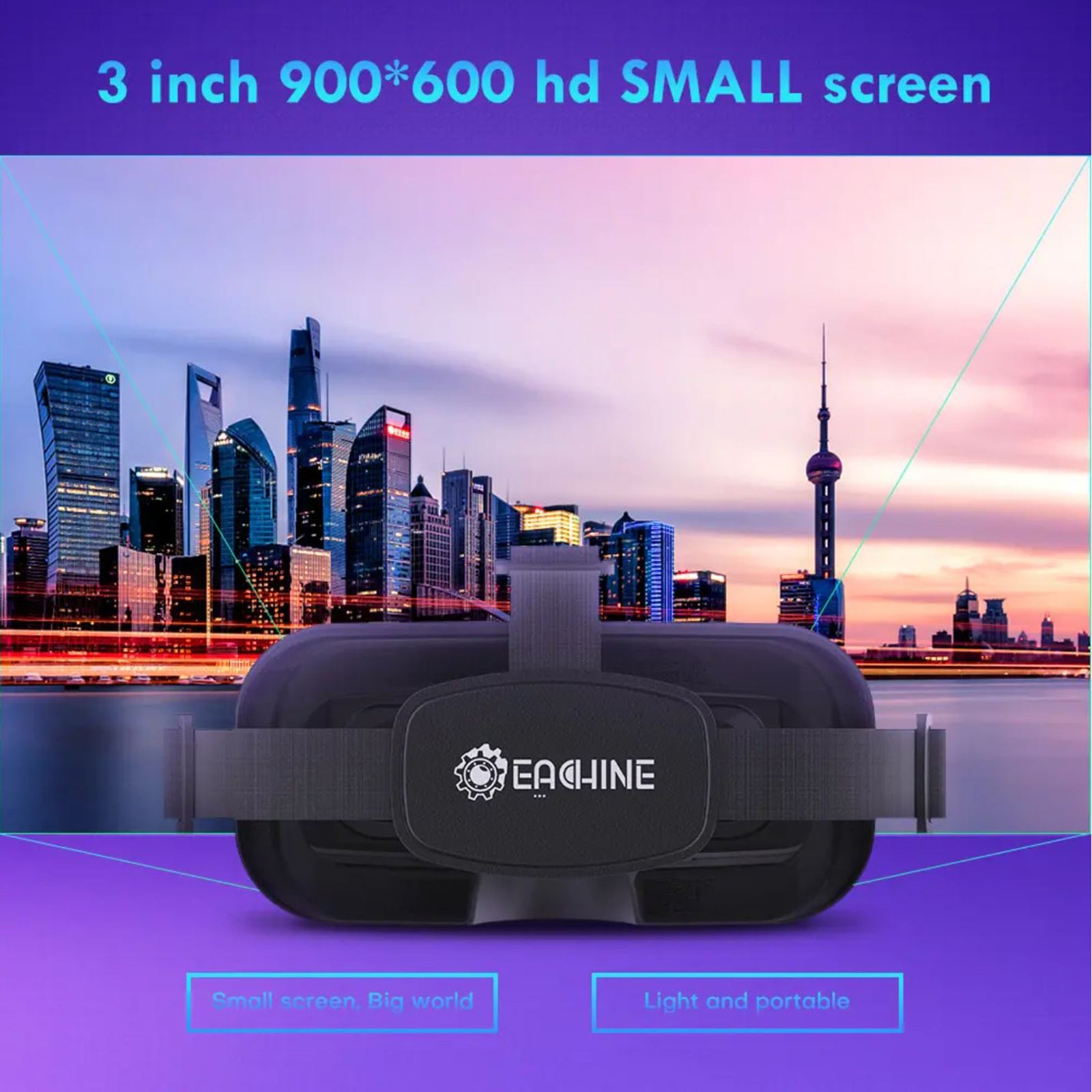

3 Inch 900*600px HD high brightness LCD.

Description :
Brand Name : EACHINE
Item Name : EV800DM

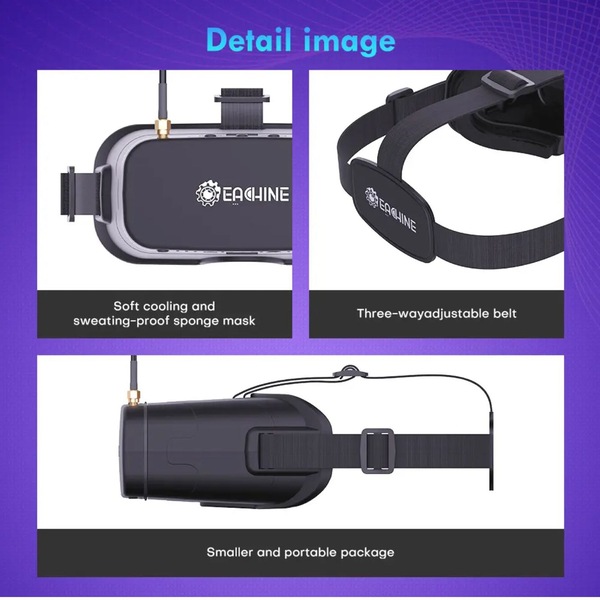

Appearance	Dimension: 15017080mm Weight: 320g without antenna Belt : three-way adjustable belt
Specification	Build in DVR Records up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 card to record full frame rate
Diversity	-90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used
Display	Screen size: 3.0 inch Screen resolution: 900*600(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness back light LED for outdoor FPV Ratio : 4:3 View Angle: 140/120 degree(Horizontal/Vertical)

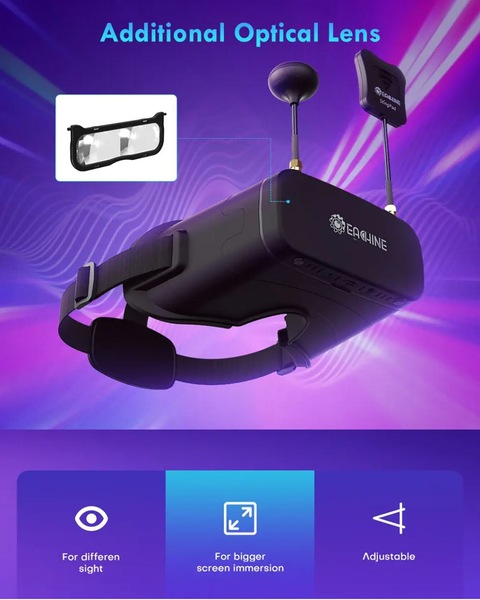

Lens	3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light;

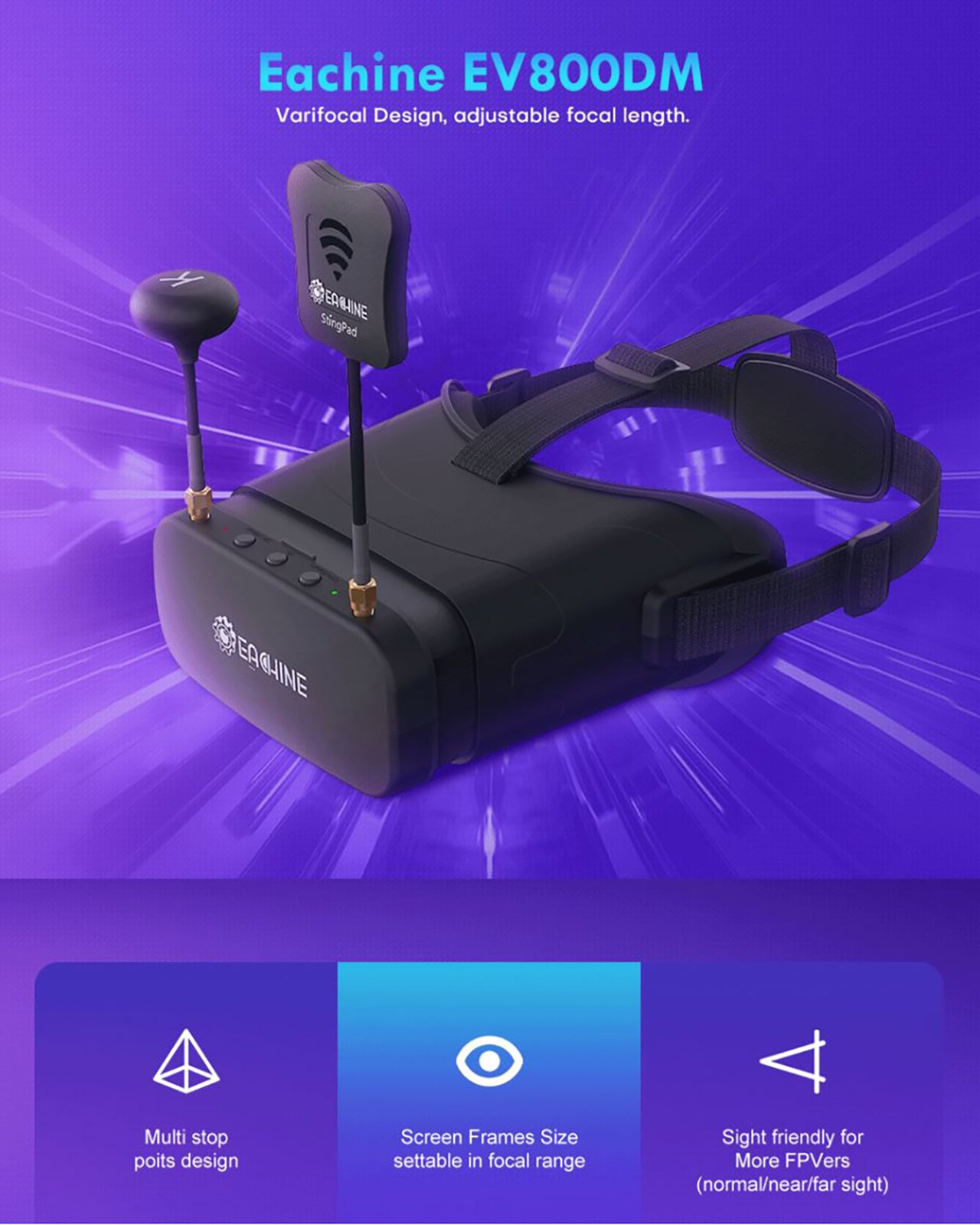

Varifocal	20mm focal length adjustable; Multi stop points design for vertical individual user adjust; For more users with different eyesight

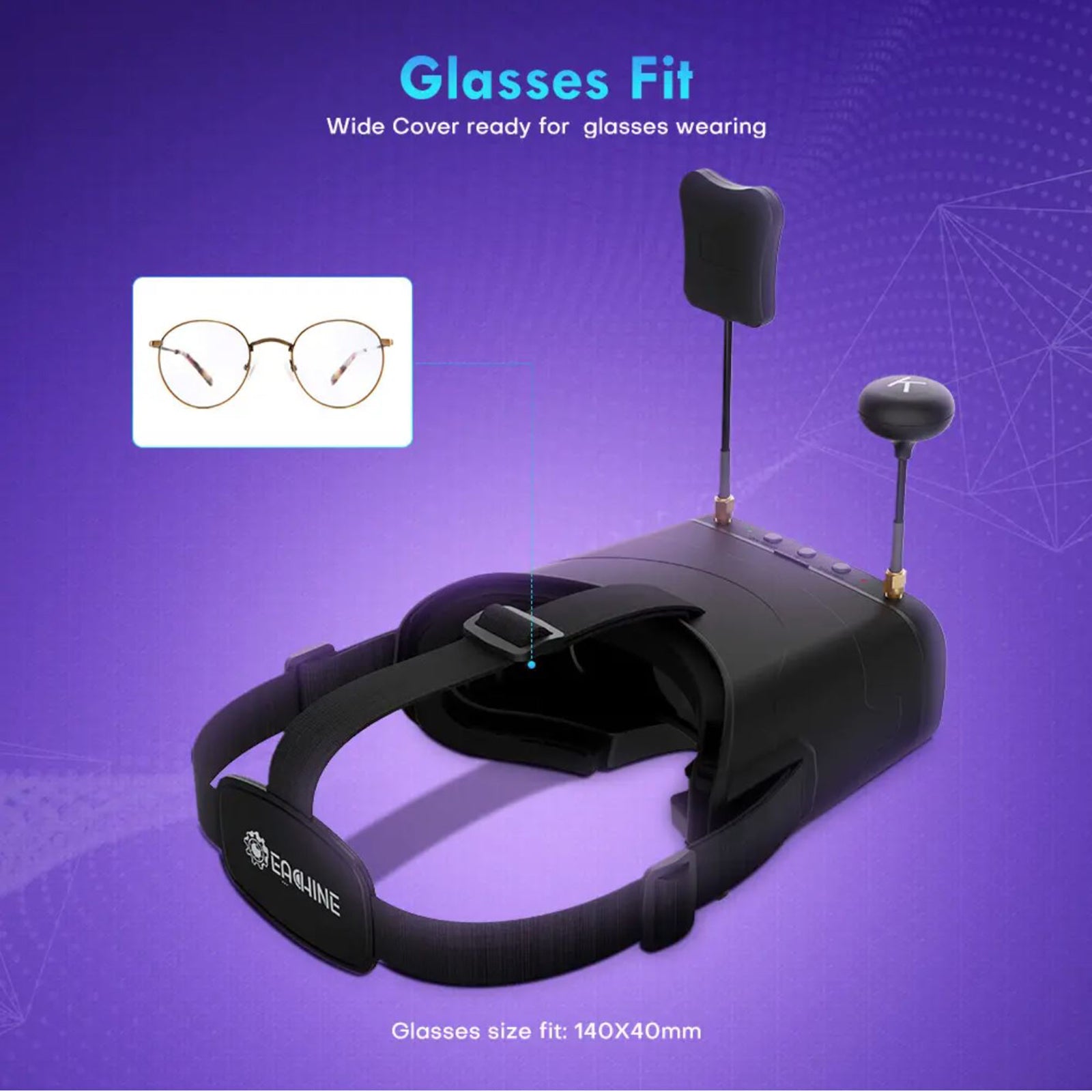

Glasses Fit	Fit for wear with glasses; Glasses Fit Size; 140mm*40mm; Focal length need to be reset when wear glasses
Battery	Built-in 3.8V/2000mAh battery; Each battery circle offer around 2.2hr working time; 5-18V wide range recharging voltage range, typical recharging with 5V/2A Charger : 5V, 2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

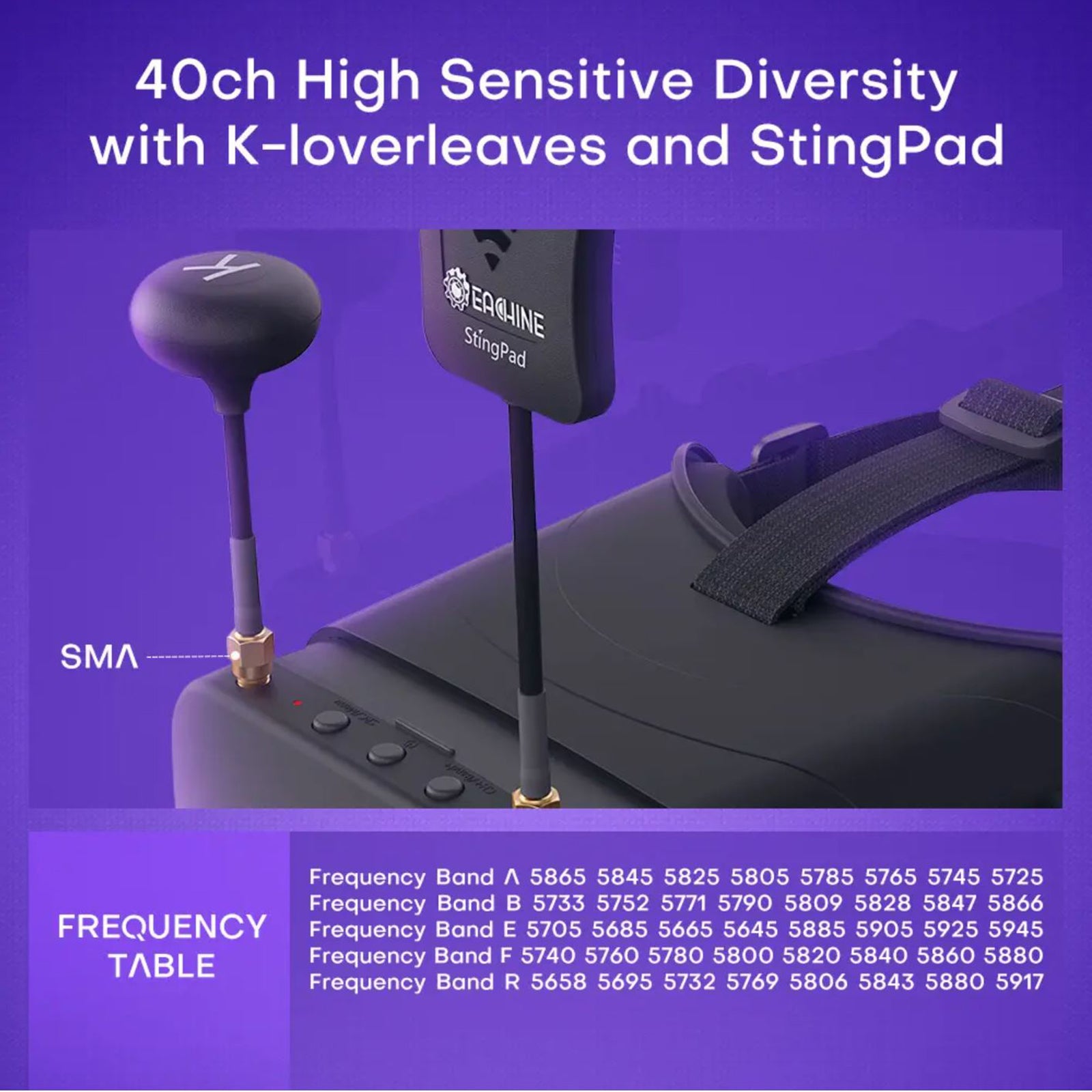

Frequencies (5.8GHz, with RaceBand)

CH	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
GROUP
A or FR1	5865 MHZ	5845 MHZ	5825 MHZ	5805 MHZ	5785 MHZ	5765 MHZ	5745 MHZ	5725 MHZ
B or FR2	5733 MHZ	5752 MHZ	5771 MHZ	5790 MHZ	5809 MHZ	5828 MHZ	5847 MHZ	5866 MHZ
C or FR3	5705 MHZ	5685 MHZ	5665 MHZ	5645 MHZ	5885 MHZ	5905 MHZ	5925 MHZ	5945 MHZ
D or FR4	5740 MHZ	5760 MHZ	5780 MHZ	5800 MHZ	5820 MHZ	5840 MHZ	5860 MHZ	5880 MHZ
R or FR5	5658 MHZ	5695 MHZ	5732 MHZ	5769 MHZ	5806 MHZ	5843 MHZ	5880 MHZ	5917 MHZ

Package Includes :
1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x USB Power Charging Cable
1 x AV In/Out cable
1 x User Manual

GTIN: 9360159050341
