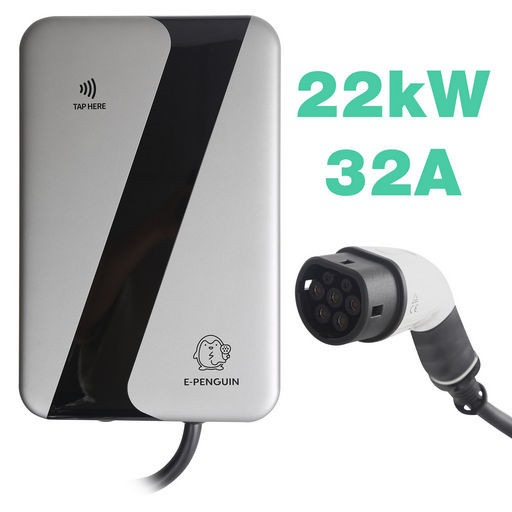

E-PENGUIN 32A 22kW TYPE 2 EV HOME CHARGER - Sliver

E-PENGUIN 32A 22kW TYPE 2 EV HOME CHARGER - Sliver

Hurry! 15 items left!
Price
$999
Collect 999 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (15) has been reached.


INPUT: 240Vac SINGLE PHASE 7kW OR 400VAC 3-PHASE 22kW

The 32A 22kW Type 2 EV Home Charger is a high-powered, efficient solution for electric vehicle owners seeking a rapid home charging system. This AC charger supports single-phase (240V) or 3-phase (400V) charging and can deliver up to 22kW of power, making it significantly faster than standard portable chargers. It features a tough and reliable 5M power cable to a Type-2 plug to support most electric vehicles available in Australia. For added convenience, you can control and monitor charging by connecting a smart device to the charger via WiFi. The enclosure has a large LED indicator to show charging status.

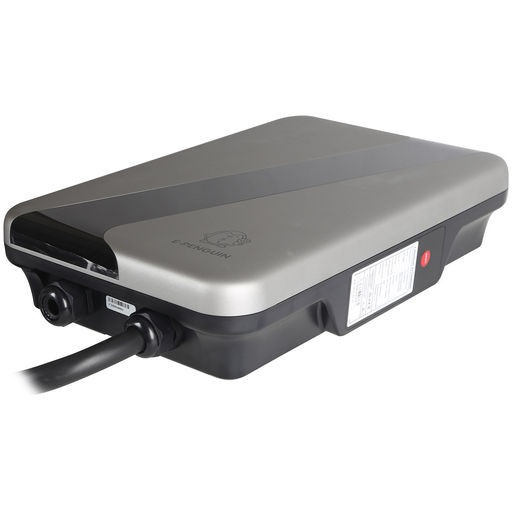

Wall mount bracket included. Dimensions: 385x284x80mm

  • 7kW charging from Single-phase 240Vac input (32A max.)
  • 22 kW charging from 3-phase 400Vac (32A Max.)
  • Can only be installed by licensed electricians.
  • Must have a dedicated power circuit to the main electrical power board.

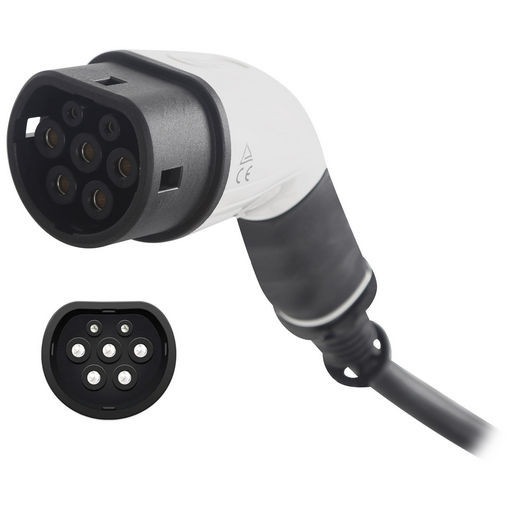

  • Type 2 (IEC 62196-2) plug to suit most EV and plug-in hybrid vehicles
  • 5 metre long EV connection cable. Tough and durable long-life
  • Designed in Australia by an Australian company E-Penguin
  • Front LED charging status indicator, charging, complete, or fault.
  • WiFi phone app to check and be notified of EV charging status
  • After plugging the EV in, charging starts if the WiFi app is within range.
  • Alternatively, you can use the included RFID cards to initiate charging.
  • Meets all Australian RCM, EMC, EME, SAA, ISO, and CE certifications.
  • Features short circuit, over-voltage, over-current, lightning surge, and over-temperature protection for safety, confidence, and reliability.
  • Supports wall mounting (bracket included) or pole mounting.
  • TUV Certified IP65 rated for strong water-resistant and dust-proof.

Code LP01-WH
Colour Silver
Cable Length 5M
Current 32A max
Dimensions 385x284x80mm
IP Rating IP65
Power Output 22kW max
V in 400Vac (3-phase), 240Vac 50-60Hz (1-phase)
Weight 6.8kg
MPN: LP01-WH
