Working Conditions:
Medium temperature: 5-50℃
Environmental temperature: ≤50℃
Humidity: 65% RH
Maximum working pressure: 0.4MPa
Model | DXD-320E |
---|---|

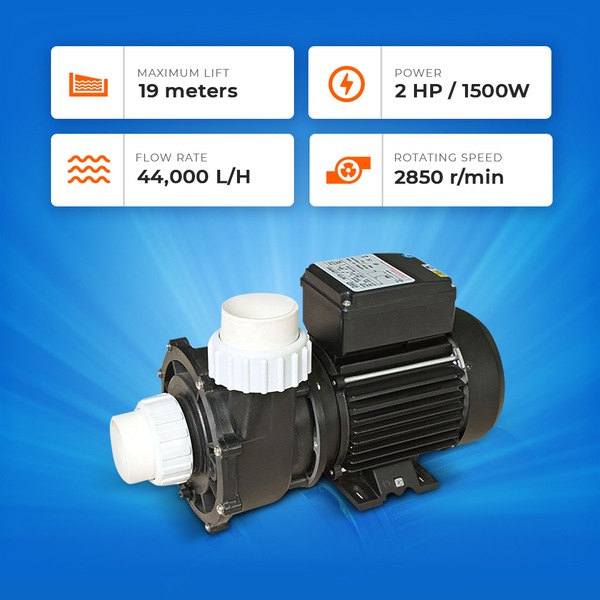

Maximum Lift (Hmax) | 19m |

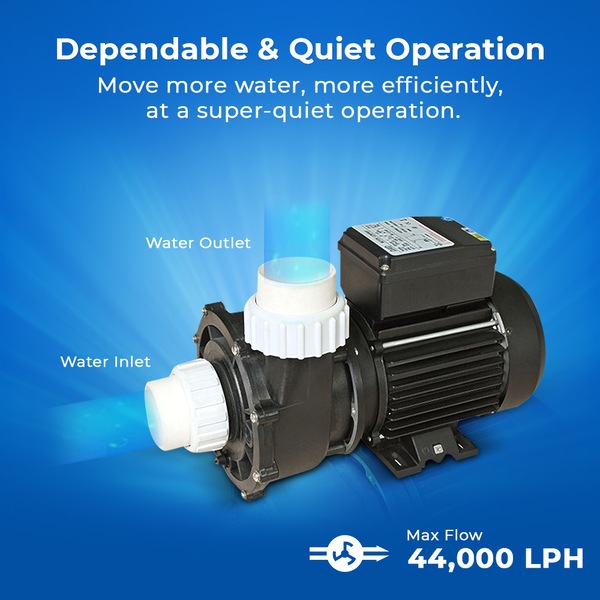

Maximum Flow (Qmax) | 733 L/M or 44,000 L/H |
Voltage | 230V / 50Hz |
Power | 2 HP / 1500W |
Rotating Speed | 2850 r/min |
Insulation Class | F |
Protection Grade | IPX5 |

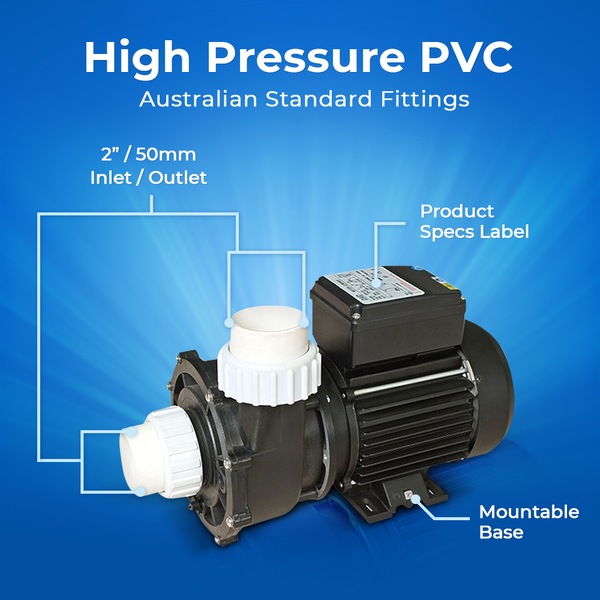

Inlet/Outlet | 50mm/2" High Pressure PVC |
Dimension/Weight | |
Net dimension (mm) | 415mm x 160mm x 225mm |
Net weight | 15 kg |
Packing dimension (mm) | 400 x 170 x 240 mm |
All DXD products are backed by a 2-year parts manufacturer warranty. The warranty exceeds the consumer warranties and guarantees under Australian Consumer Law. Warranties are for the original unit owner and authorized resellers in the location where the unit was installed. Premier House warrants all new equipment to be free from defects, including factory-used materials and workmanship, and of acceptable quality and durability in every possible way.
