The do it all wheel - bringing high end tech into an affordable wheel.

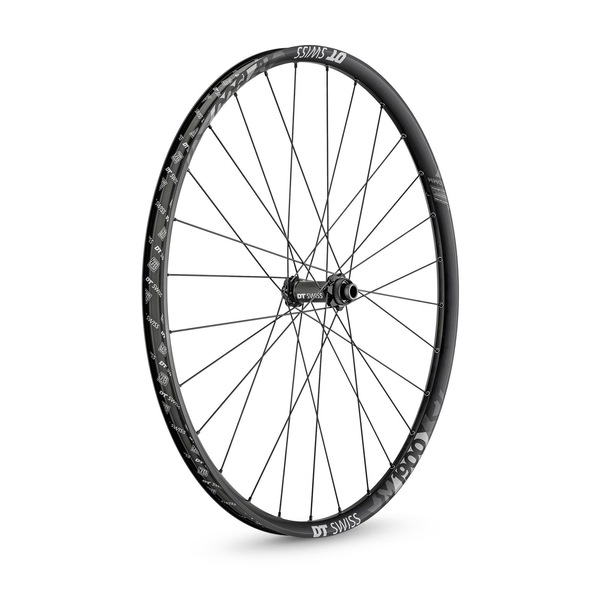

M 1900 SPLINE means business. It's been developed for the new all-mountain bikes. We've packed all our expertise into the high-end machined hubs of the M 1900 SPLINE. Forces to and from the hubs are transmitted via our proven straight pull spokes. The strong, lightweight rims of either 25, 30 or 35 mm innerwidth offer the best tiresupport for your prefered tirewidth and meet all the demands of a tubeless setup and modern MTB tires - they'll have you flying up and down the mountains.
REAR WHEEL | FRONT WHEEL | |
GENERAL | ||
NET WEIGHT | 1033g / 1021g | 1081g / 1070g | 893g / 900g | 943g / 949g |
RECOMMENDED SYSTEM WEIGHT MAX. | 120 kg | 120 kg |
ASTM CLASSIFICATION | 4 | 4 |
RIM | ||
MATERIAL | Aluminum | Aluminum |
RIM JOINT | - | - |
TIRE INTERFACE | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC |
VALVE HOLE | Presta | Presta |
RIM DIAMETER | 27.5"/650B | 29"/700C | 27.5"/650B | 29"/700C |
RIM HEIGHT | 20mm | 20mm |
DECAL TYPE | Hub vinyl / Rim waterslide | Hub vinyl / Rim waterslide |
INNER WIDTH | 30 mm | 30 mm |
OUTER WIDTH | 35 mm | 35 mm |
HUB | ||
HUB TYPE | 370 | 180 |
AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
BUILT-IN DIMENSION | 142mm | 148mm Boost | 100mm | 110mm Boost |
BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
FREEHUB BODY | Shimano Alu/Steel (ASS) | SRAM XD MTB Alu/Steel (ASSRAM) | - |
FREEHUB SYSTEM | 3 Pawl | - |
SPOKES & NIPPLES | ||
SPOKES LEFT | DT champion(R) Straightpull | DT champion(R) Straightpull |
SPOKES RIGHT | DT champion(R) Straightpull | DT champion(R) Straightpull |
SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
INCLUSIVE | ||
Tubeless tape 32 mm | Tubeless tape 32 mm | |
Tubeless valve MTB 32 mm | Tubeless valve MTB 32 mm | |
IS 6-bolt adapter MTB | IS 6-bolt adapter MTB | |
