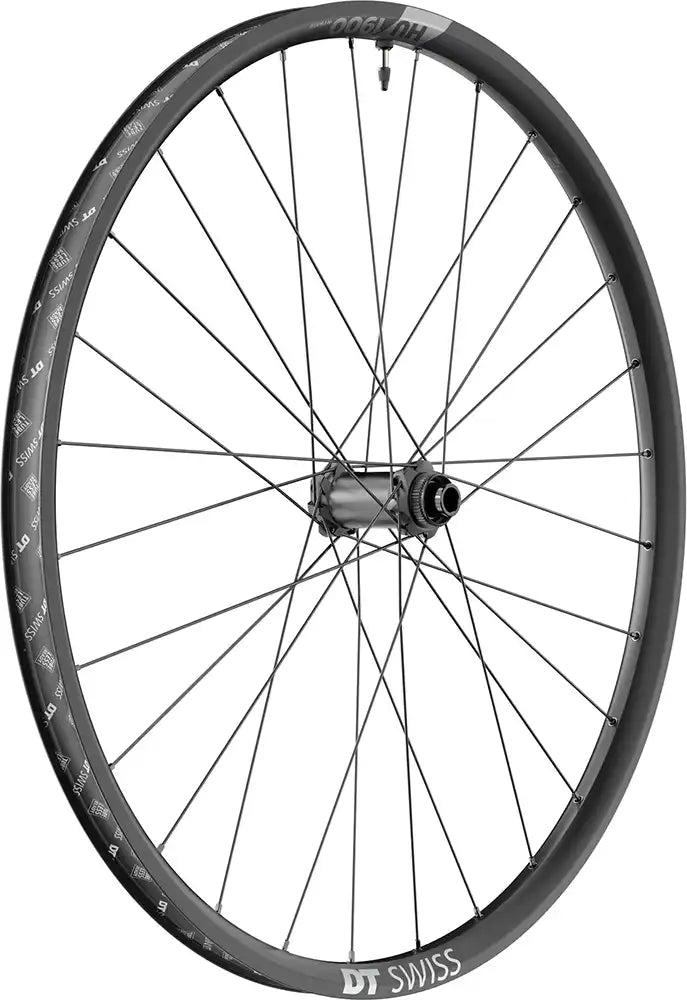

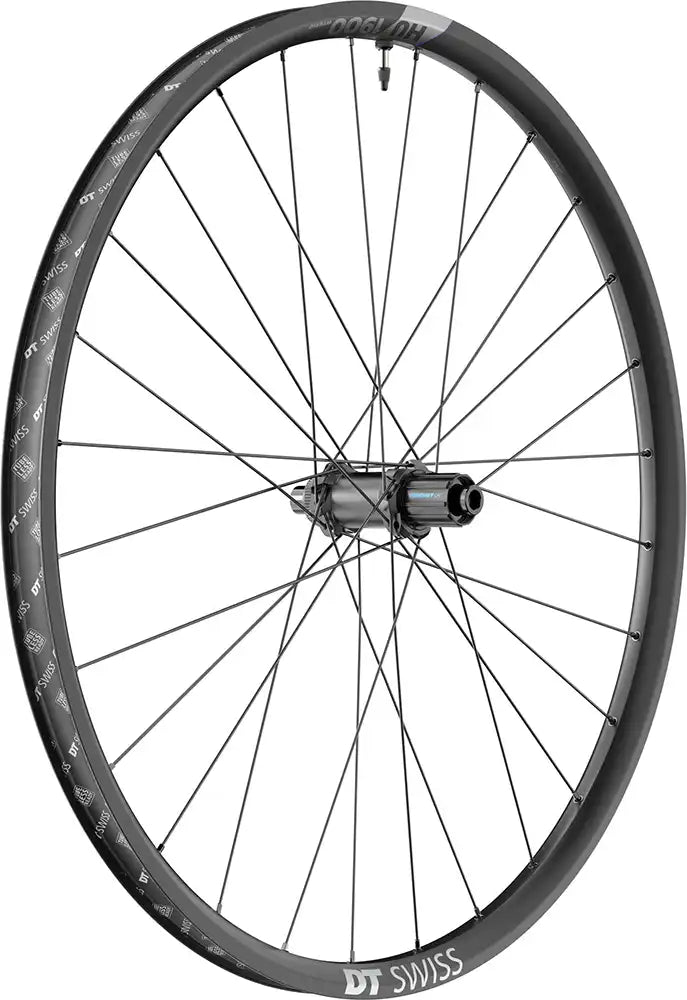

DT Swiss HU 1900 Spline 30 Tubeless Disc eMTB Wheel
2x

DT Swiss HU 1900 Spline 30 Tubeless Disc eMTB Wheel

SOLD OUT
Enter your email to receive a notification when this item is back in stock


Built to last.

E-touring bikes are often ridden at an increased system weight, putting considerable strains on the wheel and its components. This can cause damage to the rim and spokes in the long run. The HU 1900 SPLINE has been engineered and tested accordingly. Certified for a maximum system weight of 180 kg, this e-bike specific wheel is able to cope with these increased loads: Featuring a thicker cross section and laced with reinforced 2.34 mm spokes, these wheels are built for longevity. The 370 hub rounds up the package with the legendary Ratchet System with 18T. The reliability of the wheel comes from the quality of it's assembly. All wheels are hand-laced by professionally trained wheel-builders, ensuring equal residual spoke tension in every riding situation.

REAR WHEEL FRONT WHEEL
GENERAL
NET WEIGHT 1321g 1156g
RECOMMENDED SYSTEM WEIGHT MAX 180kg 180kg
ASTM CLASSIFICATION 2 2
RECOMMENDED FOR eBikes Yes Yes
RIM
MATERIAL Aluminium Aluminium
RIM JOIN Pin Joint Pin Joint
TYRE INTERFACE Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC
VALVE HOLE Schrader (plus Presta-adapter) Schrader (plus Presta-adapter)
RIM DIAMETER 29" / 700C 29" / 700C
RIM HEIGHT 22mm 22mm
INNER WIDTH 30mm 30mm
OUTER WIDTH 35mm 35mm
HUB
HUB TYPE 370 370
AXLE SYSTEM 12 mm Thru Axle 15 mm Thru Axle
BUILT-IN DIMENTION 148mm Boost 110mm Boost
BRAKE INTERFACE Disc Center Lock Disc Center Lock
CASSETTE INTERFACE Shimano MTB -
FREEHUB BODY Shimano Steel (SS) -
FREEHUB SYSTEM Ratchet LN 18 -
SPOKES & NIPPLES
SPOKES LEFT DT hybrid 1 Straightpull DT hybrid 1 Straightpull
SPOKES RIGHT DT hybrid 1 Straightpull DT hybrid 1 Straightpull
SPOKE PATTERN Three-cross (1:1) Three-cross (1:1)
NIPPLES DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu
INCLUSIVE
Tubeless tape 32 mm Tubeless tape 32 mm
Valve adapter AV to SV Valve adapter AV to SV
