This is a state-of-the-art DC to AC pure sine wave power inverter. With advanced digital signal processing technology, the power inverter has multiple functions such as power turbo mode, power-saving mode, adjustable output voltage / frequency, fan speed control etc.
The power inverter has outstanding protection included input DC polarity reversed protection, input DC over/under voltage protection, internal over-temperature protection, overload protection and output short circuit protection.

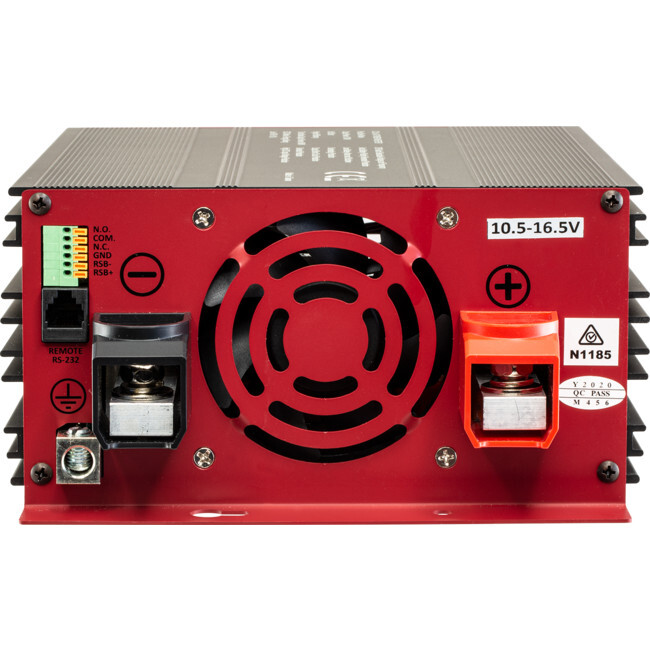

With RS232 communication port, it can be easily monitor the status of the power inverter.
Three types of remote controls available as optional accessories, regular or with LCD display, or Bluetooth ( Android system only)
Capacity | 700W |
Output Power | |
Continuous | 700W |
Surge | 1400W |
Turbo Mode | 840W |
Output Voltage | 200VAC / 220VAC / 230VAC / 240VAC (Dip Switch Selectable) |
Output Frequency | 50Hz / 60Hz (Dip Switch Selectable) |
Wave Form | Pure Sine Wave |
THD | <3.0% (Normal Voltage * 1.1) |
Input Voltage Range | |
12VDC | 10.5VDC ~ 16.5VDC |
24VDC | 21.0VDC ~ 33.0VDC |
Max Efficiency | |
12VDC | 92% |
24VDC | 93% |
No Load Power Consumption | |
12VDC | < 1.26A |
24VDC | < 0.63A |
ECO Mode | < 1W |
High Battery Alarm | |
12VDC | 16.0VDC |
24VDC | 32.0VDC |
Protection | DC Input Polarity Reversed / DC UnderVoltage / DC Over Voltage / Output Short Circuit / Overload / Over Temperature |
Environment Operating Temperature Storage Temperature Humidity |
-20 ? C ~ 60 ? C (De-rating Begin 40 ? C ~ 60 ? C) -30 ? C ~ 70 ? C 95%, non-condensing |
Dimension (L * W * H) mm | 210*187*96 |
Weight (kgs) | 2.5 |
Remote Control (Option) | Yes |
GFCI (Option) | Yes |
*GFCI receptacles |
