Dormakaba Passage Lockpack SB2212 23mm Backset SB2212KIT55SS 9400000014984

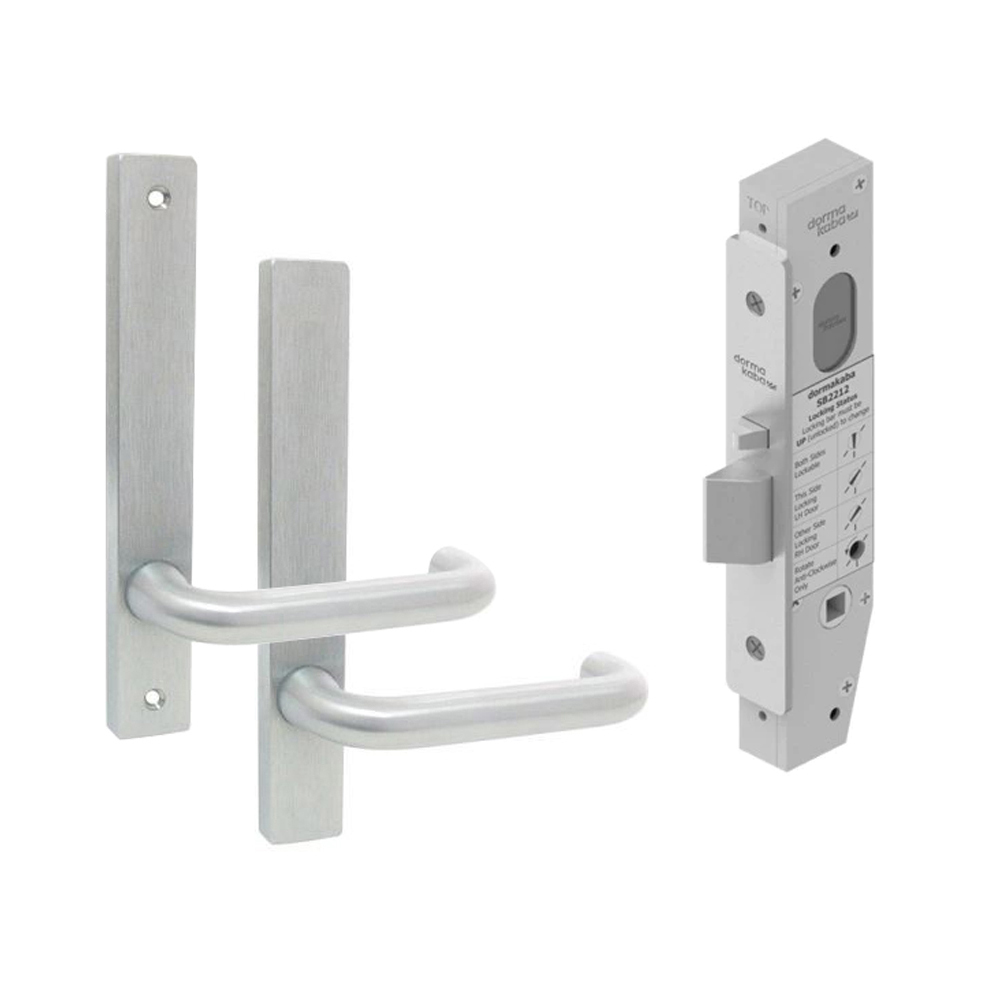

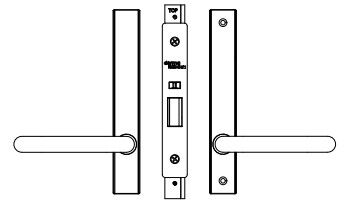

Dormakaba Passage Lockpack
SB2212KIT55SS

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 1 x Dormakaba Narrow Style Mortice Lock 23mm Backset Satin Stainless Steel (SB2212SSS)
• 1 x Kaba Door Handle N600 Narrow Style Plate w/ 25 Lever Satin Chrome Plate (N602C25SCP)
• 1 x Kaba Door Handle N600 Narrow Style Plate w/ 25 Lever Satin Chrome Plate (N602V25SCP)

Dormakaba Narrow Style Mortice Lock
SB2212SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied with cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Backset: 23mm
• Finish: Satin Stainless Steel

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever
N602V25SCP

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Designed to fit back to back with either concealed or visible fixing to outside plate
• Tiebolt M5 fixing screws have a cross-recessed head
• Plates and knobs are non-handed with levers reversible on site in most cases

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever
N602C25SCP

Features:

• Rectangular narrow stile exterior square end plain plate
• 25 series lever
• Disabled access AS1428.1 compliant lever
• Plates are designed to fit back to back
• External plates supplied with fixing screws
• Reversible Handing

Specifications:

• Fixing: Concealed Fix
• Plate size: 185 x 26 x 12mm
• Door Thickness: 32-50mm
• Screw fixing centres:158.8 mm
• Fire Rated: Yes
• Finish: Satin Chrome Plate
