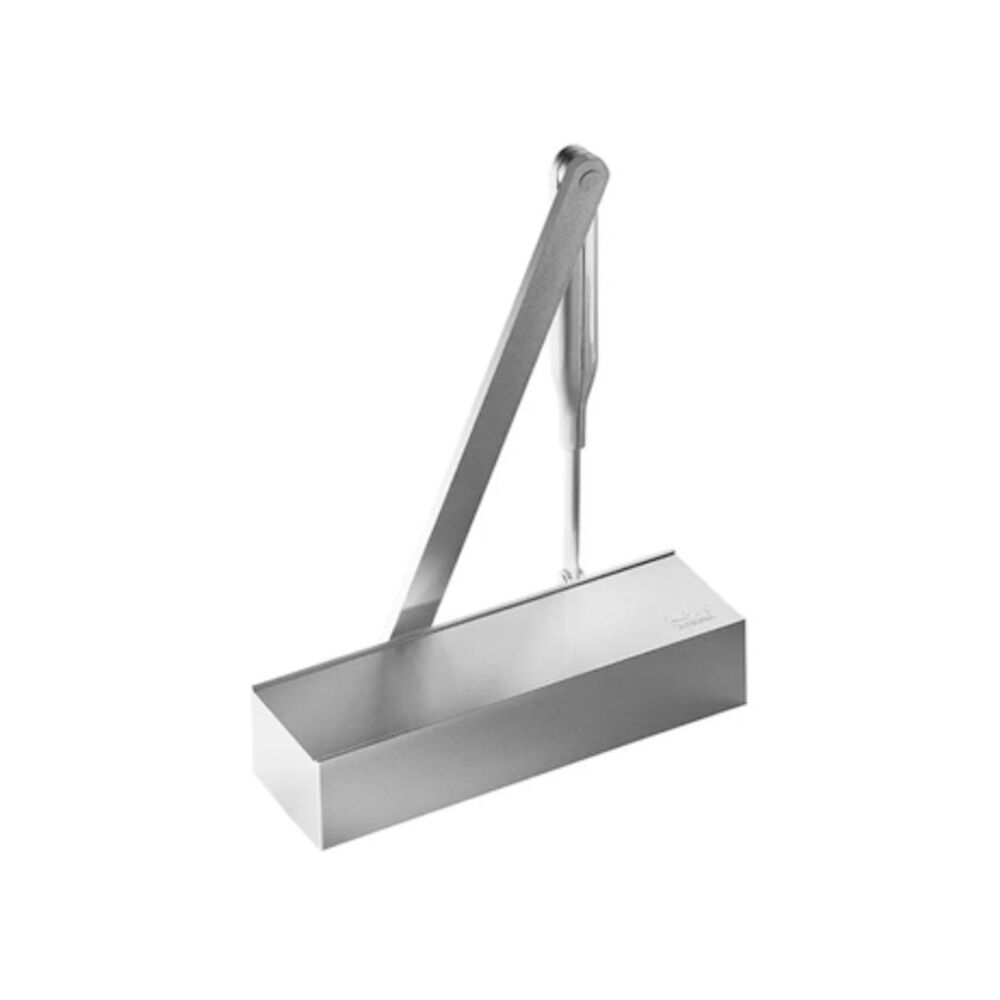

Dormakaba TS72 EN 1-4 Door Closer Hold Open Silver 22252501

Dorma TS72 Door Closer Hold Open
22252501

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.

• The DORMA TS72 standard closer is non-handed closer suitable for all common doors and does not require a mounting backplate.

Features:

• For single and double leaf doors
• Outstanding value for money
• Compact construction in timeless design
• Includes hold open arm
• One model for all standard doors
• Outstanding value for money
• Compact construction in timeless design
• Includes hold open arm and quick to fix
• The spring strength can be individually adapted to the door size by means of an adjusting hex screw. Certified to ISO 9001

Specifications:

• Power: EN adjustable 1 to 4
• Closing speed: 180 degrees to 15degrees (adjustable at 2 separate valves 15degrees - 0degrees)
• Standard Doors: 1100mm
• Backcheck: No

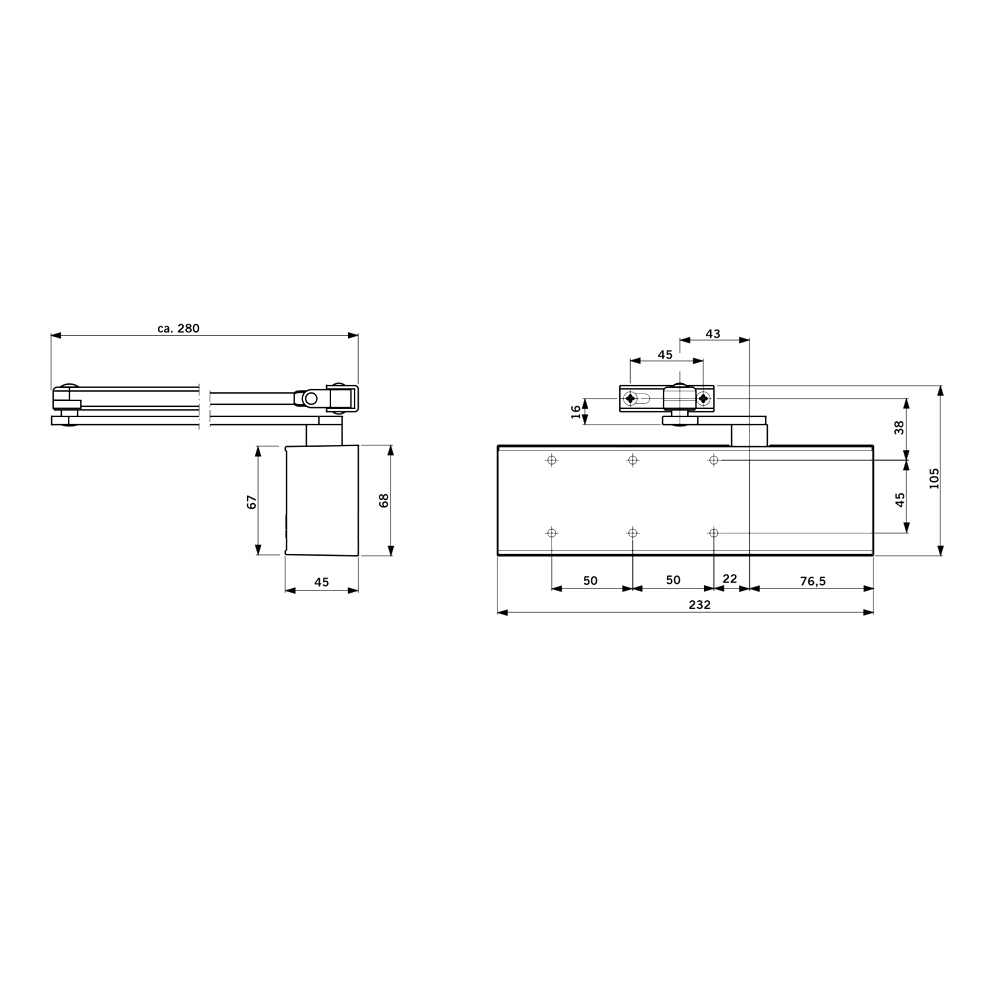

• Dimensions: 232mm
• Length: 45mm
• Height: 68mm
• Finish: Silver

Standards and Compliance:

• Disabled Access Australian Standard (AS1428.1) Design for access and mobility

Note: Hold open option is not approved on any fire door.
