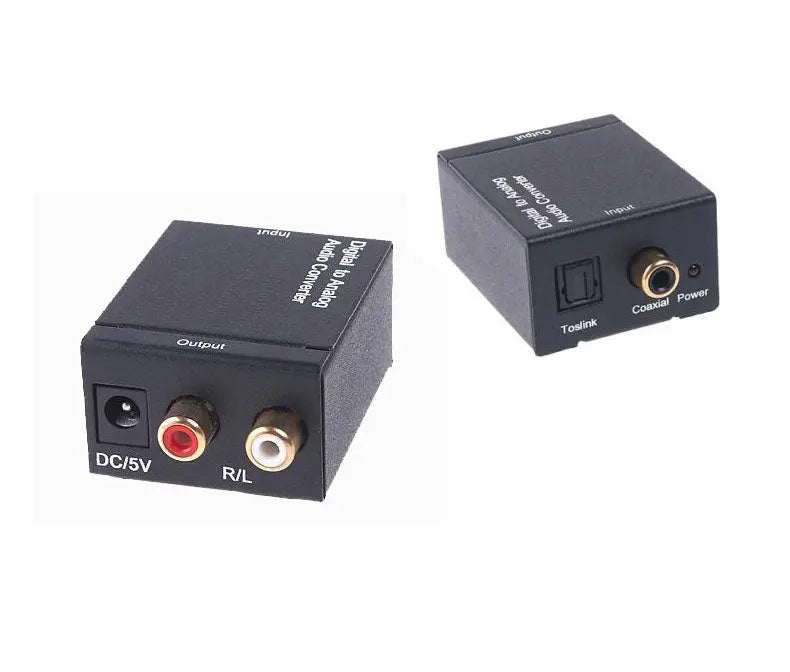

Digital Analog Audio Converter 3.5MM Jack RCA Amplifier Decoder Optical Fiber Coaxial Signal to Analog DAC Spdif Stereo
Description:
Digital Analog Audio Converter 3.5MM Jack RCA Amplifier Decoder Optical Fiber Coaxial Signal to Analog DAC Spdif Stereo.
This Digital to Analog Audio Converter is Designed for Either Home or Professional Audio Switching
It Converts Coaxial or Toslink Digital Audio Signals to Analog L/R Audio
This Converter Has Many Features That Enable It to Perform in a Superior Manner. Among Those Converts Coaxial orToslink Digital Audio Signals to Analog L/R Audio
Supports Sampling Rate at 32, 44.1, 48 and 96 KHz
24-bit S/PDIF Incoming bit Stream on Left and Right Channels
Provides Electromagnetic-noise-free Transmission also includes AC adaptor
Features:
100% Brand New and High Quality
Color: Black
Size: 6.5 x 4 x 2.6cm (L x W x H)
Optical Digital Audio Cable provides you the cleanest possible signal, even at extreme volume levels.
Optical cables transfer the signal using light; thus completely eliminating any chance for RFI, EMI or ground loop interference
Anti-interference, high-definition, high-fidelity, low loss
High-bandwidth, high performance, lightweight and small size
Connect to your DVD, CD, MiniDisc, and DAT other digital audio equipment for clear, full and richly detailed sound
Connectors: Optical Male to Optical Male
Application:
For a variety of short-range signal to Yu and communications DVD, VCR, efficacy, switches, 1394 card, sound card
Limited TV, set-top boxes, digital cameras, computer peripherals, etc
Digital products, copiers, printers, printing equipment, optical sensors, and industrial control equipment, automotive, medical equipment and power system, etc
Designed for CD, D/A Converters, Dolby Digital DTS Surround sound receivers, DVD, MiniDisk players and recorders, Pro Audio cards, etc
Suggested Applications: ADAT, DAW, Dolby Digital, DTS devices with Optical interface
Note:
1. The Reason of cancel the external power adapter and use USB powered.
Many devices (e.g. Computer TV DVD) USB ports output stable voltage and current, And filters some bad waves. So the DAC
(Digital to Analog audio converter) will works better, And decode will more stable.
2. In addition ,Use USB output power that is more environmentally friendly, And reduce costs, And compatible with all country
3. This item NOT convert Dolby.
Specifications:
Input Audio: Coaxial or Toslink Digital Audio
Output Audio: L/R Audio
Input Audio Connector: Toslink, 1x RCA(Coaxial)
Output Audio Connector: 2x RCA R/L
Sampling Rate: 32, 44.1, 48 and 96 KHz
Operating Temperature:0~70oC
Operating Humidity:10%~85%RH(No Condensation)
External Power Supply:5V DC/1A
Power Consumption:0.5W
Dimension: 50 x 41 x 26 mm
Package Includes:
1x Digital to Analog Audio Converter
1x USB Power Cable(78cm Length)
1x Fiber Optical Cable(100cm Length)
1x AC adapter
