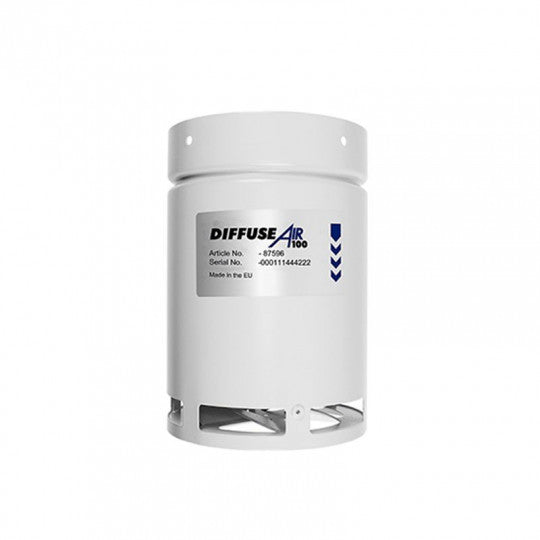

DiffuseAir 100mm | Air Distribution System
Introducing DiffuseAir: The Ultimate Air Mixing Solution for Your Grow Room
Achieve total control over your grow room climate with the highly efficient DiffuseAir system, thoughtfully designed and crafted by Systemair. Say goodbye to microclimates, high humidity zones, and hot spots, as well as the harsh air streams that can harm your plants and lead to salt accumulation in the growing media.
Key Features:
Aerodynamically Efficient: The DiffuseAir system is designed to efficiently mix air, ensuring a uniform climate throughout your grow room.
Proven Technology: You can trust in the effectiveness and reliability of this technology to enhance your growing environment.

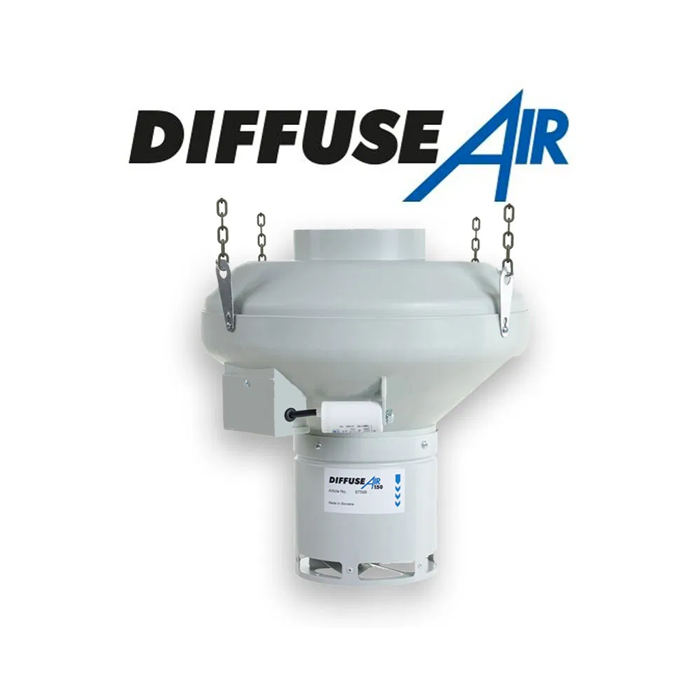

Ceiling Hung for More Grow Space: By hanging from the ceiling, the DiffuseAir unit maximizes your floor space for plant growth, giving you the flexibility you need.
12-Month Warranty: Your investment is protected by a 12-month warranty, providing you with peace of mind.
Screws and Brackets Included: Installation is a breeze with included screws and brackets, making setup quick and convenient.

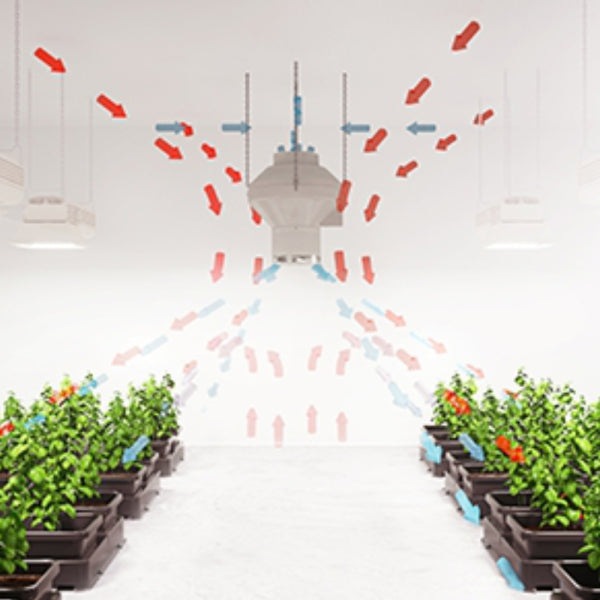

Air Distribution: The DiffuseAir system is engineered to pull air from the top of your grow room and release it above the canopy, effectively circulating the air between the grow lights and your plants. This approach is ideal for eliminating temperature microclimates, whether you have a ventilated or closed-loop grow room. In a square grow room, a single centrally mounted DiffuseAir system can replace the need for multiple air movement fans.

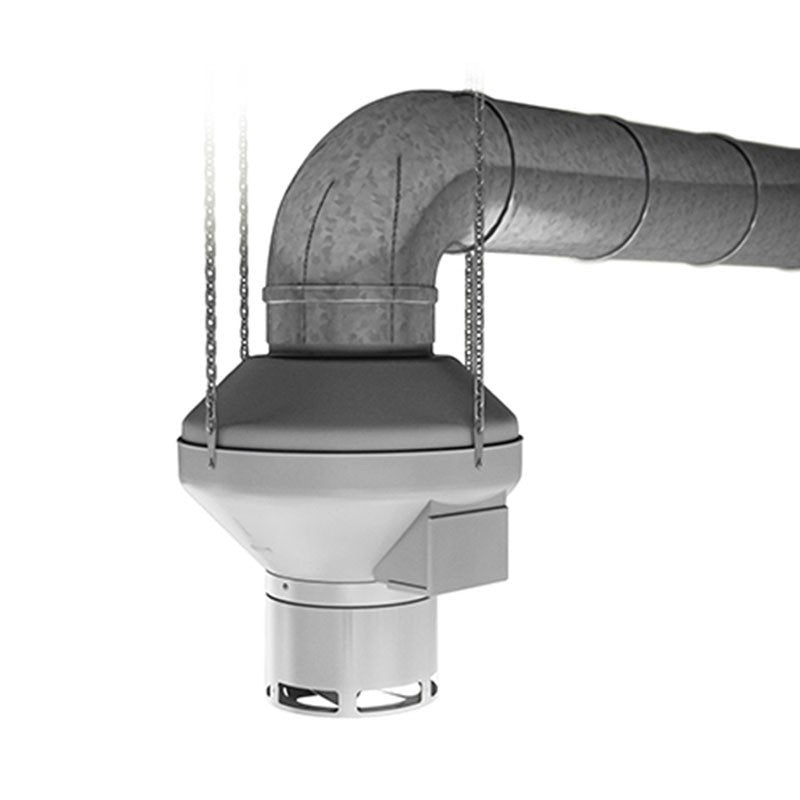

Inlet Distribution: The versatility of the DiffuseAir system extends to acting as the distribution point for your fresh input air supply. By attaching ducting to the fan, you can pull air from your desired location, such as fresh air from outside. This allows DiffuseAir to serve as your climate cooling intake fan, distributing CO2-rich air precisely where your plants need it most.
Multiple Systems: For larger grow rooms, air movement can often be a challenge. Oscillating fans can disrupt your plants and lead to issues like wind burn and salt accumulation in the growing media. Positioning multiple DiffuseAir systems above the plant canopy ensures even air distribution, effectively reducing hot spots and humidity pockets. This strategic approach maintains a healthy and uniform climate for optimal plant growth.
Enhance your grow room's efficiency and climate control with DiffuseAir. It's the reliable solution that ensures your plants thrive and flourish.

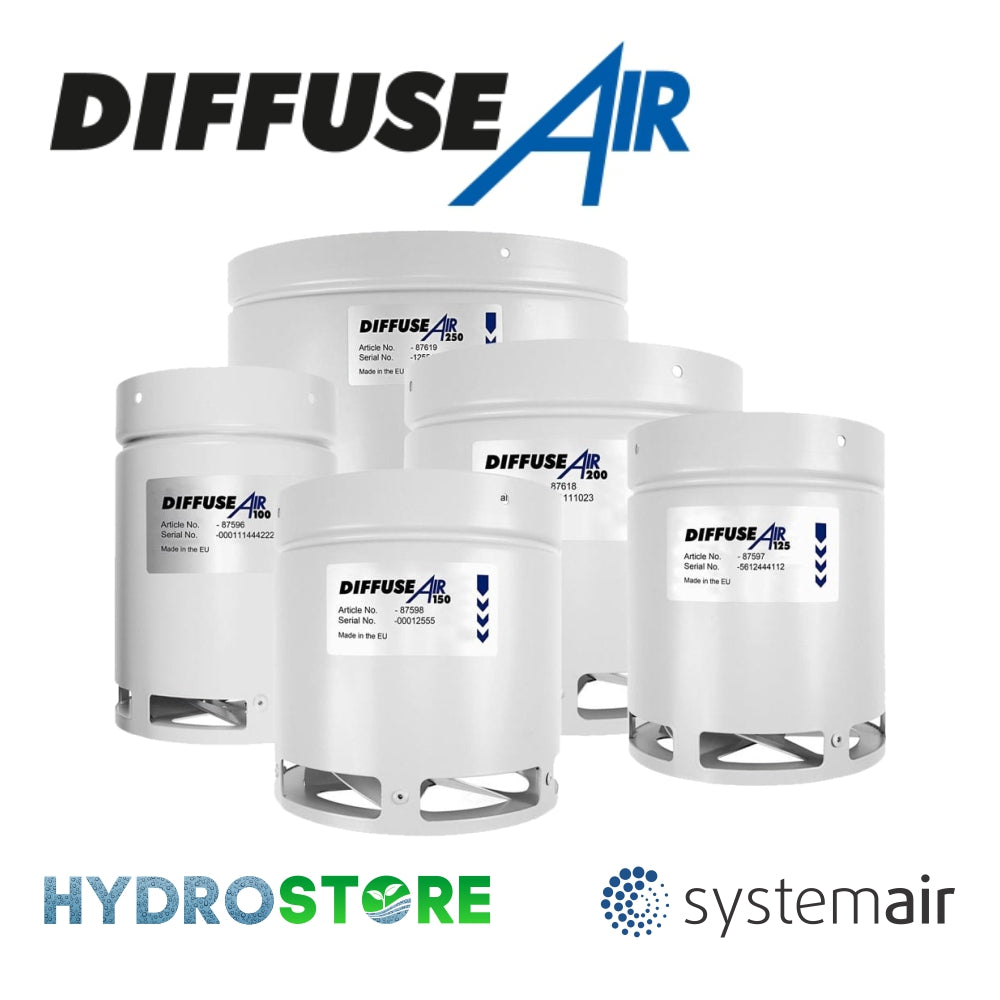

PRODUCT CODE | DESCRIPTION | DIAMETER | VOLUME COVERED | MAX. AIR FLOW | RECOMMENDED FAN |
---|---|---|---|---|---|
DA100 | DiffuseAir 100 | 100mm | 1x1x2 | 184 m3/h | RVK100A1 |
DA125 | DiffuseAir 125 | 125mm | 1.2x1.2x2 | 220 m3/h | RVK125A1 |
DA150 | DiffuseAir 150 | 150mm | 1.5x1.5x2 | 428 m3/h | RVK150A1 |
DA160 | DiffuseAir 160 | 160mm | 1.5x1.5x2 | 428 m3/h | RVK160A1 |
DA200 | DiffuseAir 200 | 200mm | 2x2x2 | 796 m3/h | RVK200A1 |
DA250 | DiffuseAir 250 | 250mm | 2.4x2.4x2 | 860 m3/h | RVK250A1 |
