Deye 5KW Hybrid Solar Inverter MPPT Charger Regulator 3PCS KIJO 51.2V 5120Wh Lithium Battery Module

Deye 5KW Hybrid Solar Inverter MPPT Charger Regulator 3PCS KIJO 51.2V 5120Wh Lithium Battery Module

Hurry! 2 items left!

Price	$9209
	Collect 9209 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Ultimate Backup Power: Hybrid Inverter + 5120Wh Battery Module - Reliable energy for home, RVs, and off-grid setups. Extended Runtime: High-capacity battery ensures long-lasting power. Versatile Solution: Perfect for backup, solar integration, and mobile power needs!

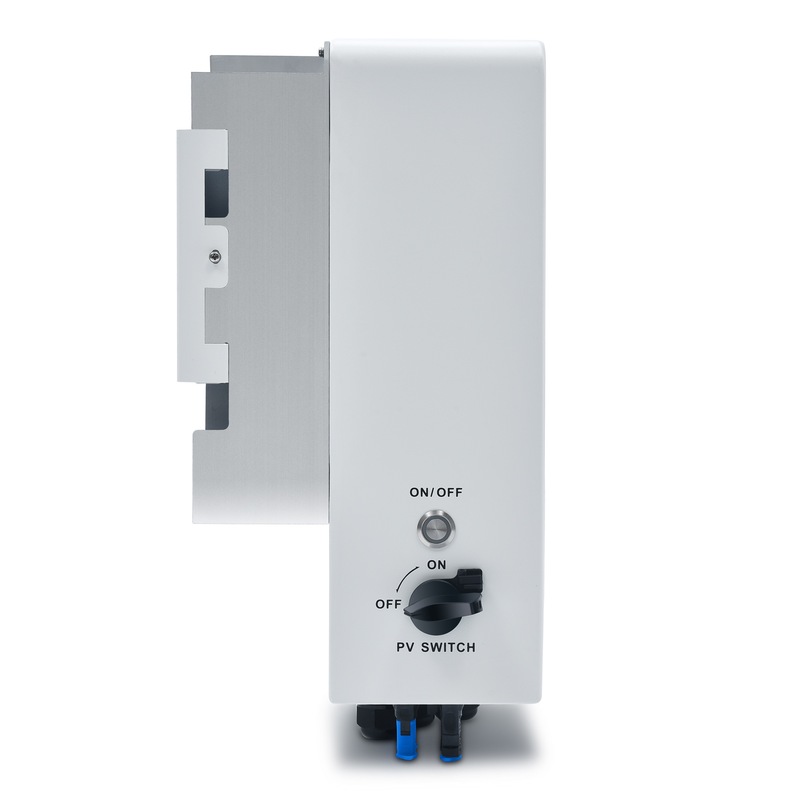

MODEL1: 1* 5KW Hybrid Inverter
Specification
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40~60
Max. Charging Current (A): 120
Max. Discharging Current (A):120
Charging Curve: 3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W):6500
Rated PV Input Voltage (V):370 (100~500)
Start-up Voltage (V):125
MPPT Voltage Range (V):125-425
Full Load DC Voltage Range (V):240-425
PV Input Current (A):13+13
Max. PV ISC (A): 17+17
Number of MPPT / Strings per MPPT: 2/1+1
AC Output Data
Rated AC Output and UPS Power (VA): 5000
Max. AC Output Power (W): 5000
AC Output Rated Current (A):21.7
Max. AC Current (A):21.7
Max. Continuous AC Passthrough (A):35
Peak Power (off grid) :2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type: Single Phase
DC injection current (mA):THD<3% (Linear load<1.5%)
Efficiency:
Max. Efficiency:97.60%
Euro Efficiency:97.00%
MPPT Efficiency: 99.90%
Protection: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection: DC Type II/AC Type III
Certifications and Standards
Grid Regulation : AS/NZS 4777.2
Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C):-40~60°C, >45°C derating
Cooling : Nature Cooling
Noise (dB): <30 dB
Communication with BMS:RS485; CAN
Weight (kg):15.1
Size (mm):330W x 433H x238D
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 Years

Package List
Hybrid inverter x1
Wall mounting bracket x1
Stainless steel anti-collision bolt M6*60 x4
Stainless steel mounting Screws M4*12 x2
Parallel communication cable x1
L-type Hexagon wrench x1
Wi-Fi Plug x1
Battery temperature sensor x1
User Manual x1
Sensor Clamp x1

MODEL2: 3* 5120Wh Lithium Battery Module
32 years Old company, CEC approved Battery
Specification
Nominal capacity: 100Ah
Nominal voltage: 51.2VDC
Maximum continuous charging current: 95A
Maximum continuous discharge current: 95A
Voltage range: 40-58.4V
Total power consumption during operation: ≤20mA
Voltage acquisition accuracy: ≤±10mV
Current acquisition accuracy: ≤±2%
Temperature acquisition accuracy: ±2°C
Is there a balanced current: Possess
Two SOC measurement errors: ≤5%
Protection and alarm: Including: individual overvoltage, undervoltage, overall overvoltage, undervoltage, overcurrent, over temperature, short circuit protection, etc., and the protection settings can be set
Communication: RS485/RS232/CAN
Product dimension: 430*442*132mm
Package dimension: 514*504*172mm
Net weight: 44.5kg
Gross weight: 50kg
Warranty: 10 years

Package List x3
1* battery module
1* 1.5m Network cable
4* Quick Plugs
1* Premium Limited Warranty
1* Operating Manual
