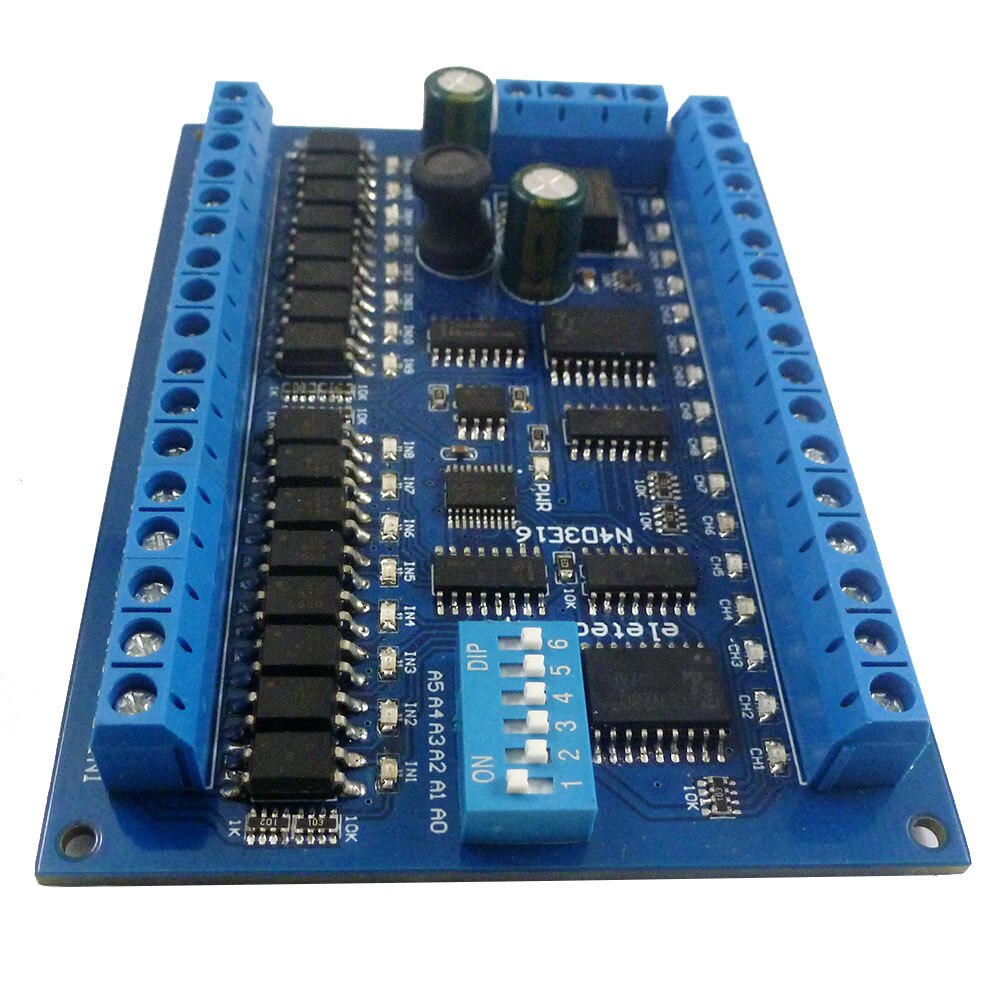

16CH Input Output Port Remote Control Switch PLC IO expansion Board-1#

16CH Input Output Port Remote Control Switch PLC IO expansion Board-1#

Price
$39.17
Collect 39 Everyday Rewards points
Plus get 2x points on every order when you spend $100+
Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA
Quantity
Maximum item limit (20000) has been reached.

Description:
?
1: Working voltage: DC 6.5-30V (9V 12V 24V)
2: Working current: 8-50MA
3: 16 channels photoelectric isolation Input ports (NPN low level active )

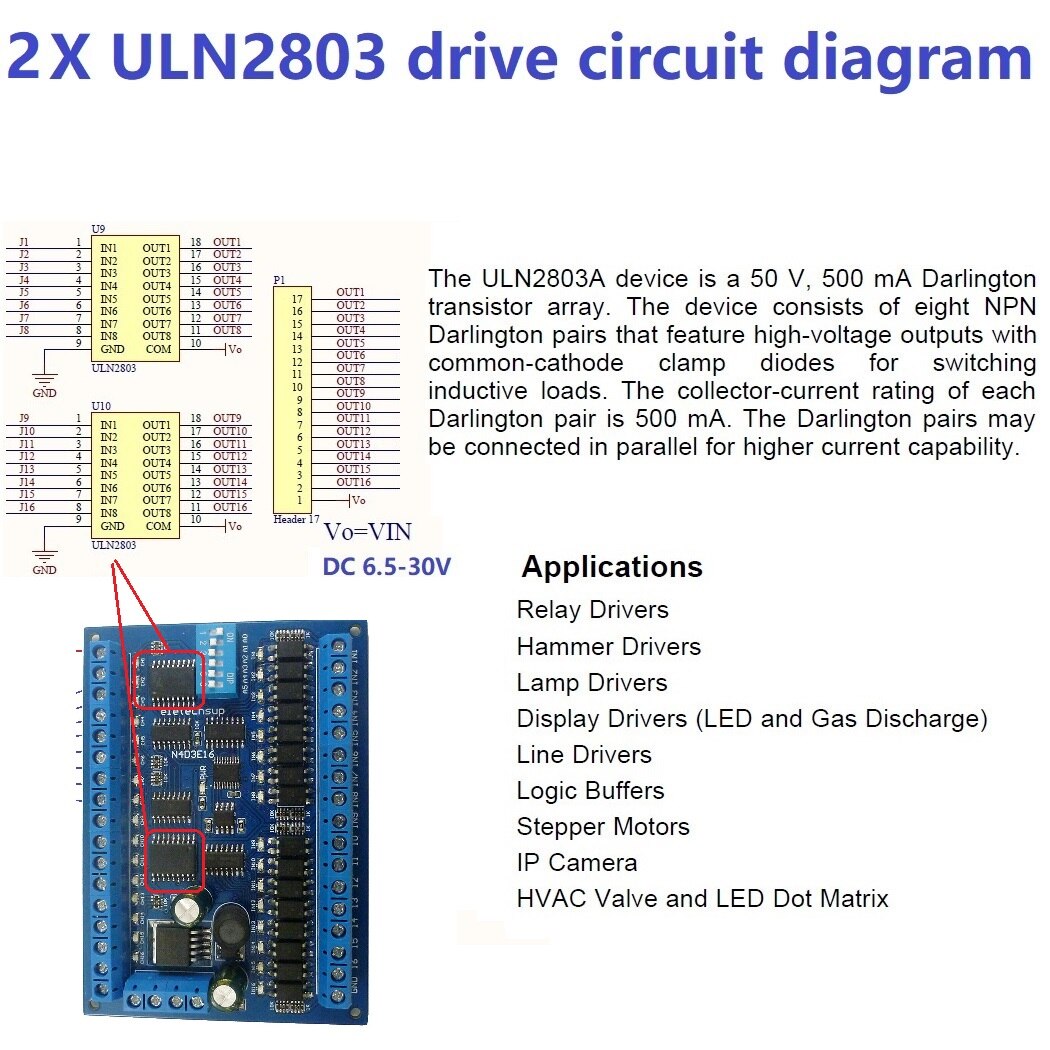

4: 16 channels Darlington output (ULN2803 NPN output)
5: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

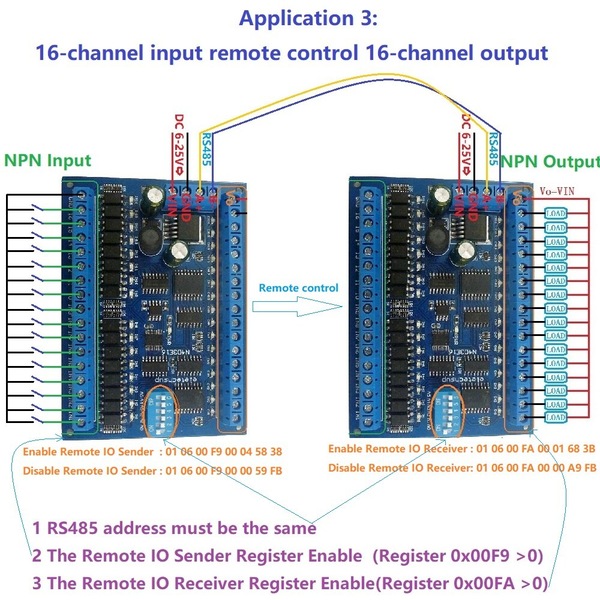

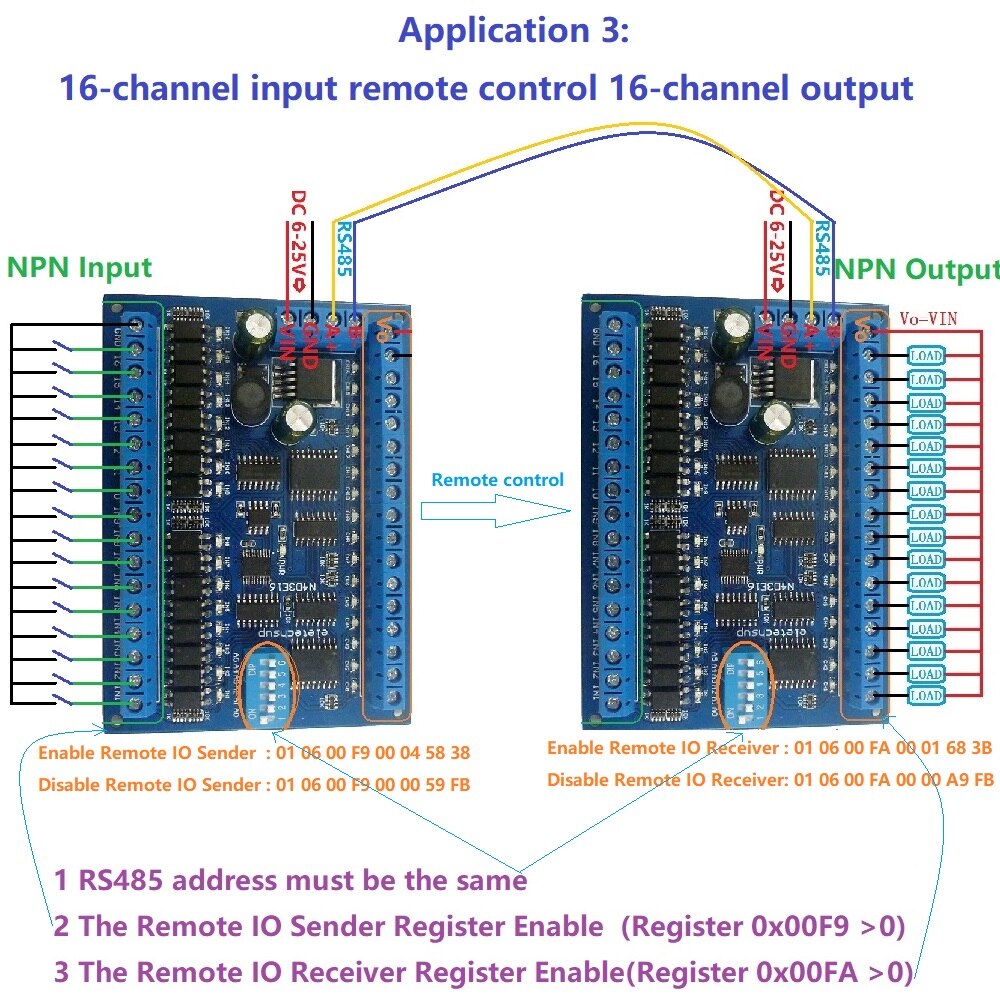

6: 16 inputs can remotely control 16 outputs of another board via RS485 bus (relevant registers must be set)
7: MODBUS RTU command, Support 03 06 function code(Some registers support 16 function codes)
8: Under the ''Delay'' command ,the maximum delay is 255 seconds;
9 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
10 Under the MODBUS command mode, it can support up to 64 devices in parallel
11 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
12 Size: 100 * 72 * 20mm(Only PCB Board)
13 Weight: 64g(Only PCB Board)
14 Maximum load: the maximum load current of each channel is 300MA
?
DIN rail Box parameters:

Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 100 mm PCB boards
Net weight: 72g
Installation: DIN35 and C45 rail

Application??
?
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTC Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control

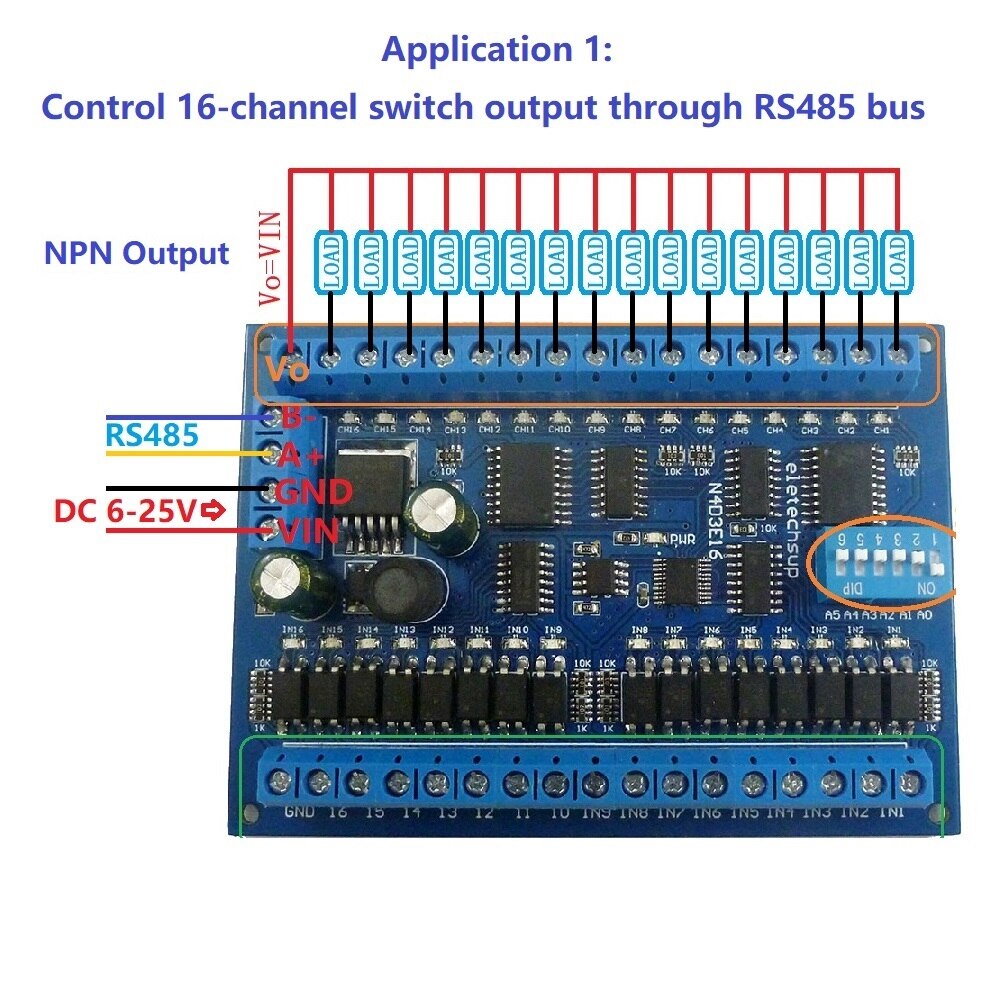

Application 1: Control 16-channel switch output through RS485 bus

Package inlcuded:1PCS DC 12V 24V 16Ch Input & 16CH Output RS485 IO Module
GTIN: 774048926263

Estimated Delivery Time Frame: 12-20 business days
