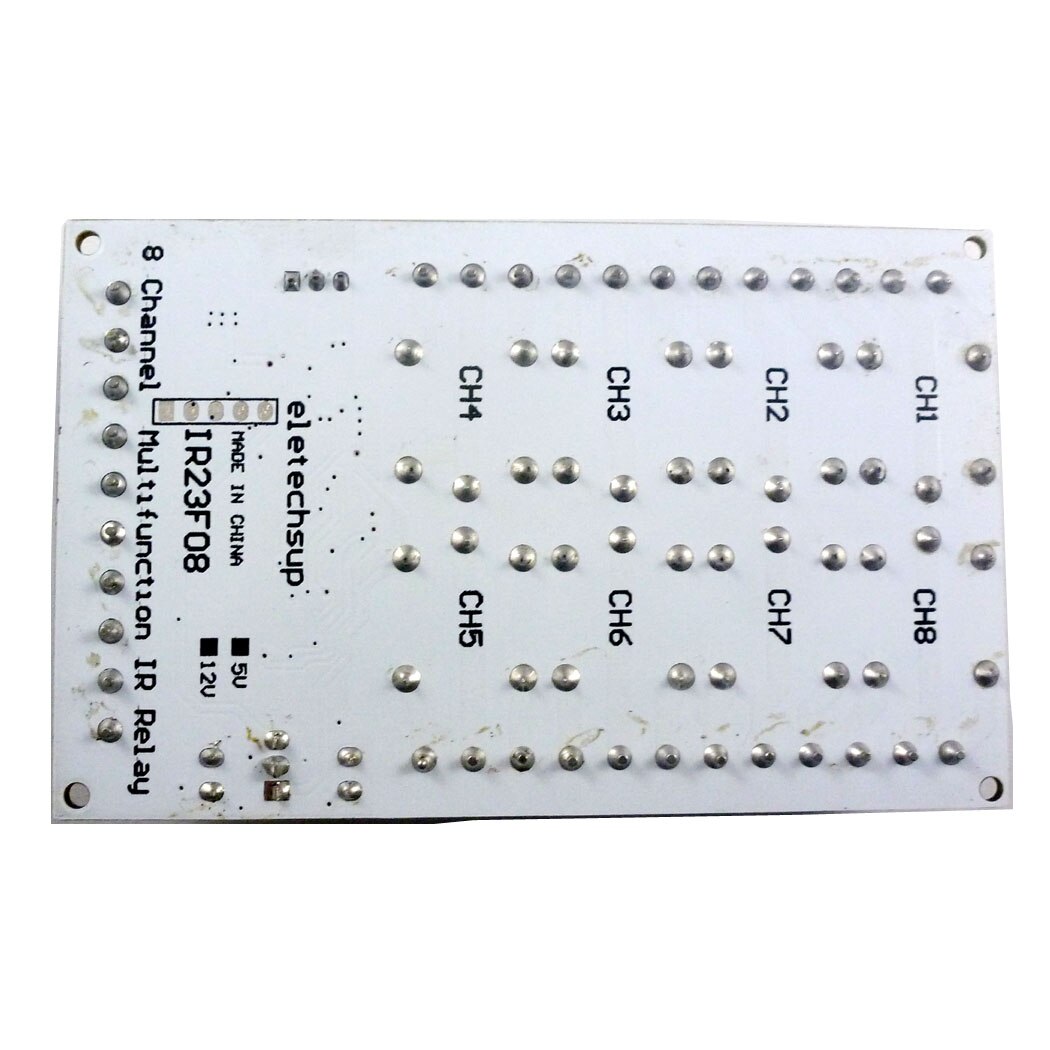

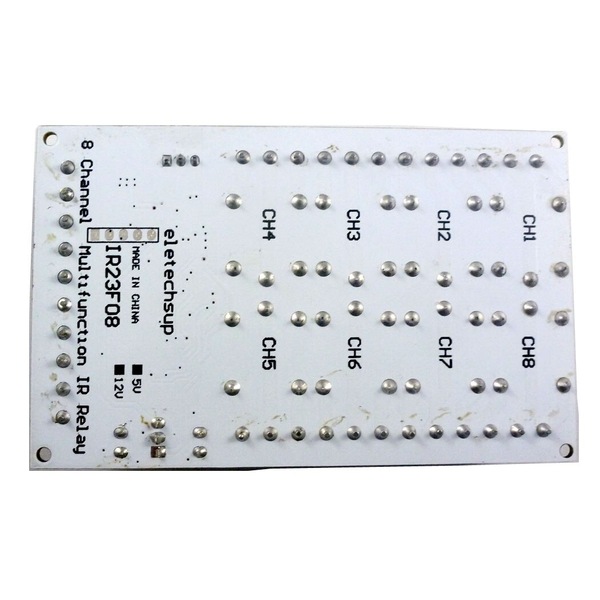

DC 12V 8ch IR Infrared Control Switch Module Timer Inter-locking Relay

DC 12V 8ch IR Infrared Control Switch Module Timer Inter-locking Relay

Price	$45.27
	Collect 45 Everyday Rewards points Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?
Product Specifications:

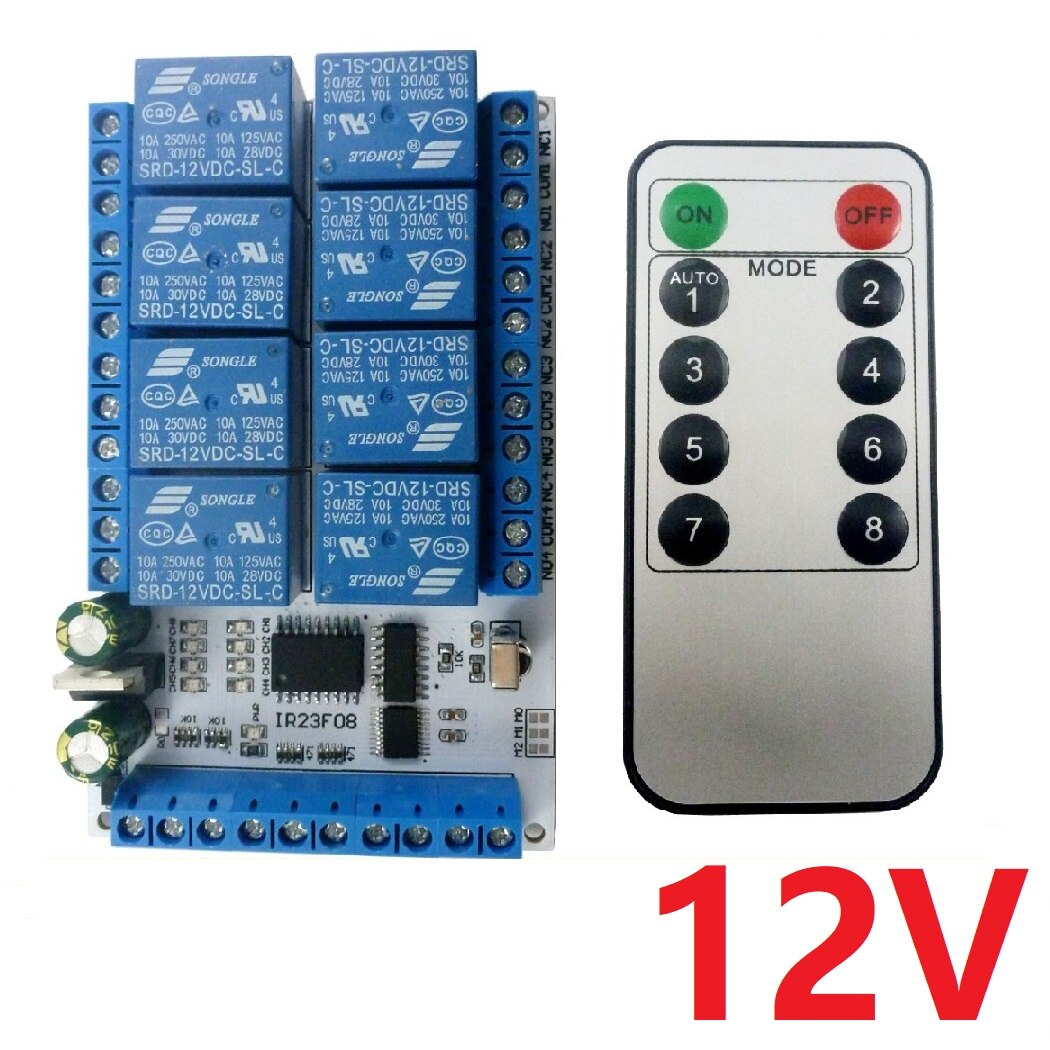

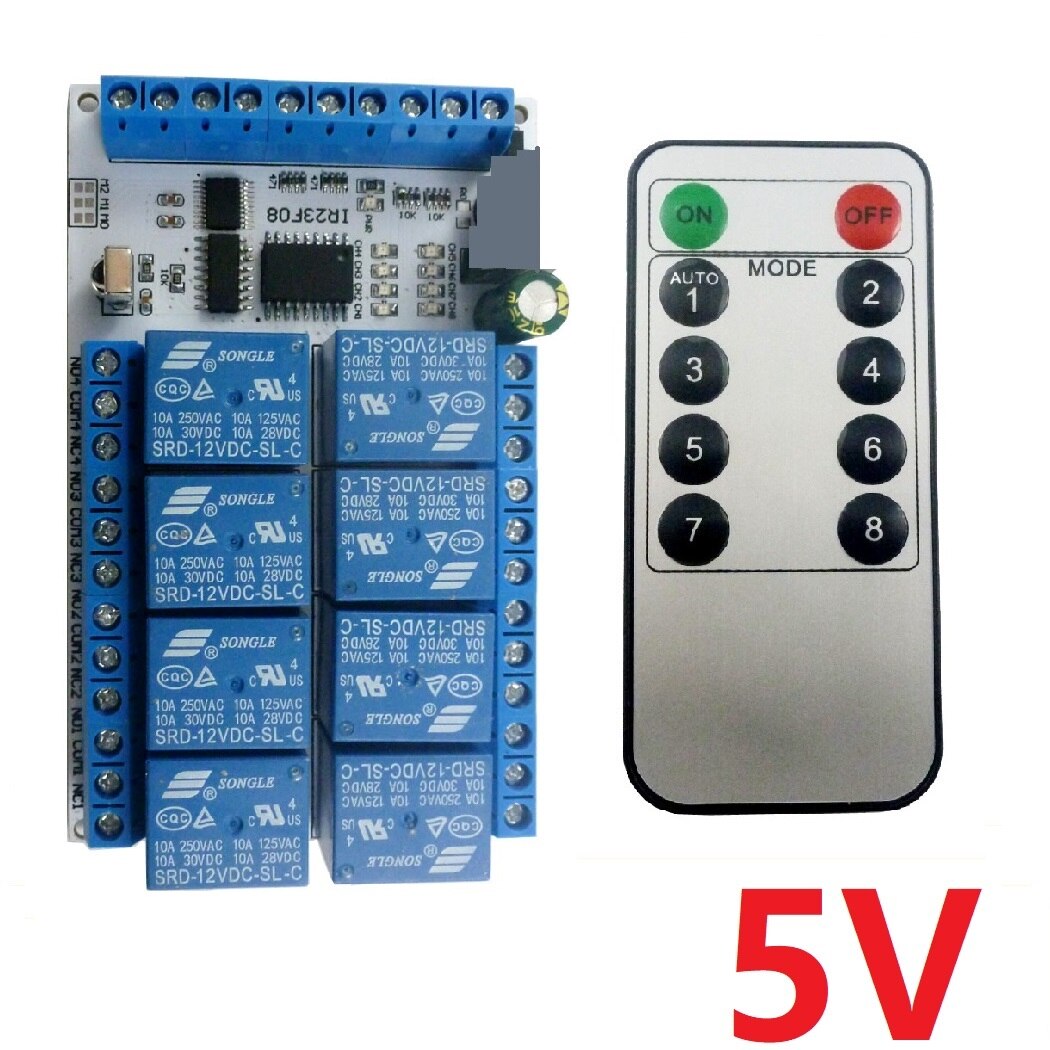

1 Operating Voltage : DC 12V(5V optional)
2 Operating Current(DC 12V) : Standby current 8MA, 1 relay open 37MA, 2 relays open 66MA, 3 relays open 94MA, 4 relays open 122MA, 5 relays open 150MA, 6 relays open 178MA, 7 relays open 206MA, 8 relays open 232MA
3? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' Four functional modes
4 Infrared receiver: VS1838(Or compatible IC)

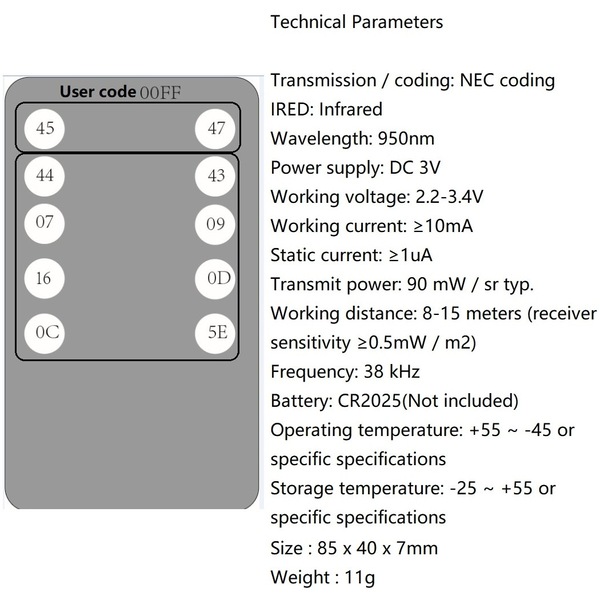

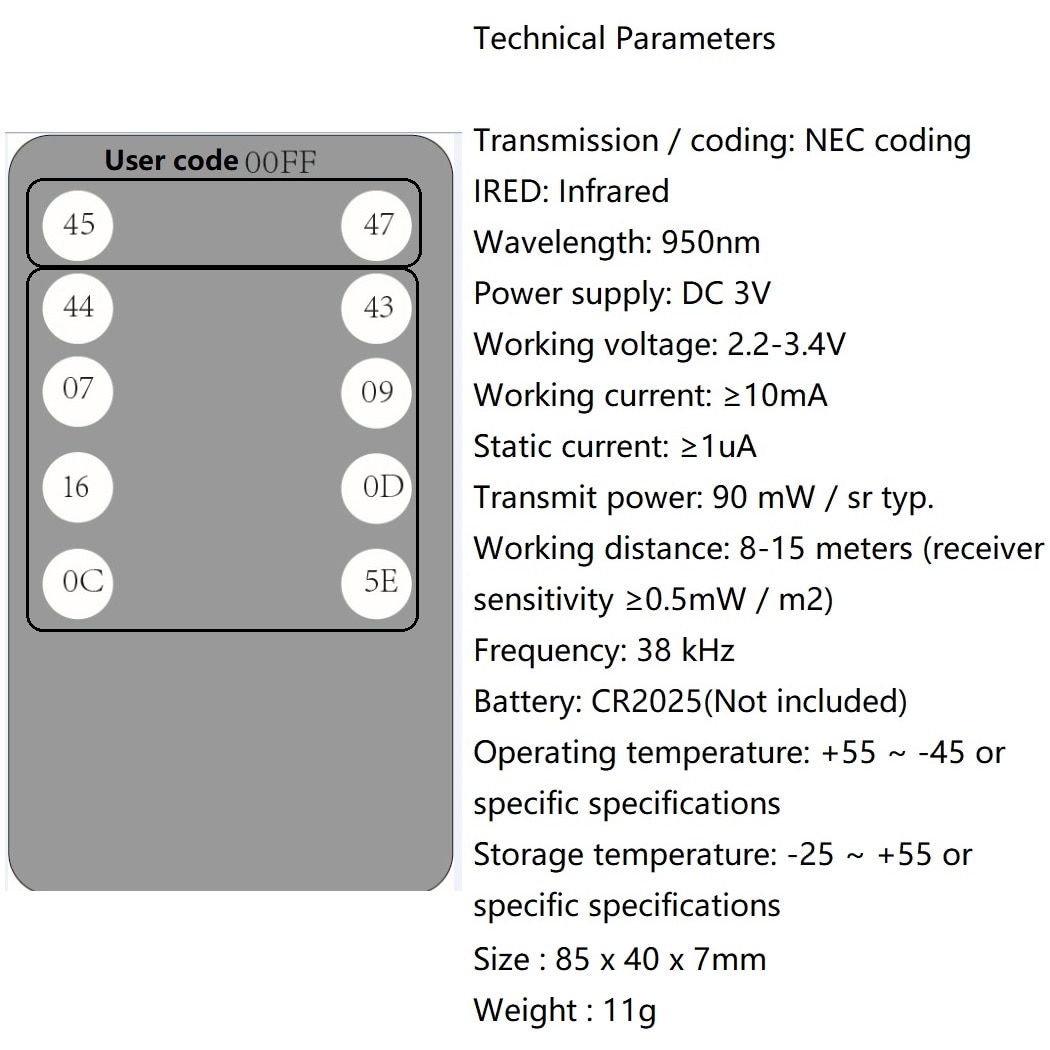

5 Infrared remote control: NEC coding
6 Working distance: 8-15 meters (receiver sensitivity ��0.5mW / m2)
7 Input control pins 8 ,5V TTL level ,NPN trigger, 0.2-2 second low pulse
8 Size: 99 x 62 x 20 mm
9 Weight : 116g
10 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A
??
Product Features:
8 channel Multi-function infrared controller, each channel independently triggered independent delay, do not interfere with each other.

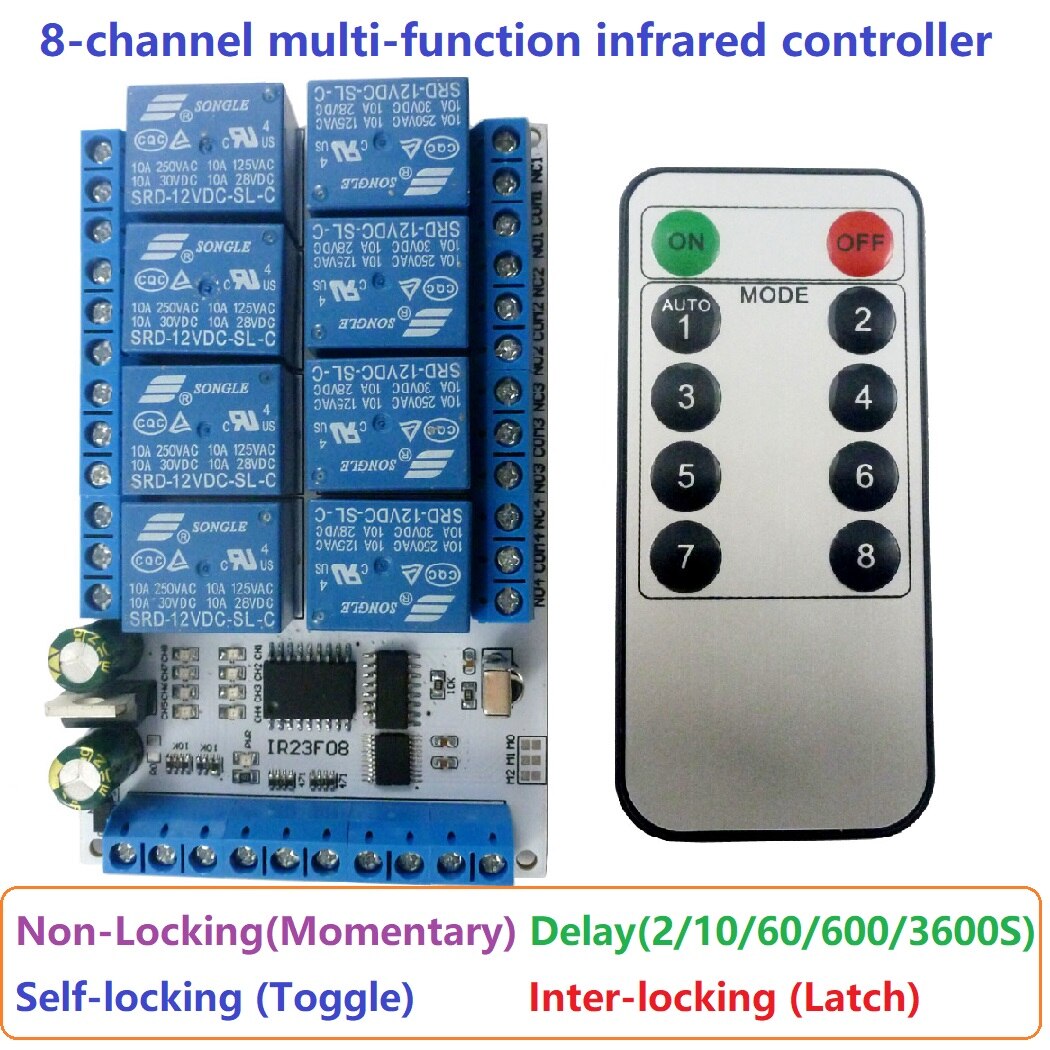

4 kinds of Functional mode: Non-locking (Momentary );Delay(2/10/60/600/3600seconds); Self-locking (Toggle); Inter-locking (Latch), The function mode and delay time are selected by the Solder pad.

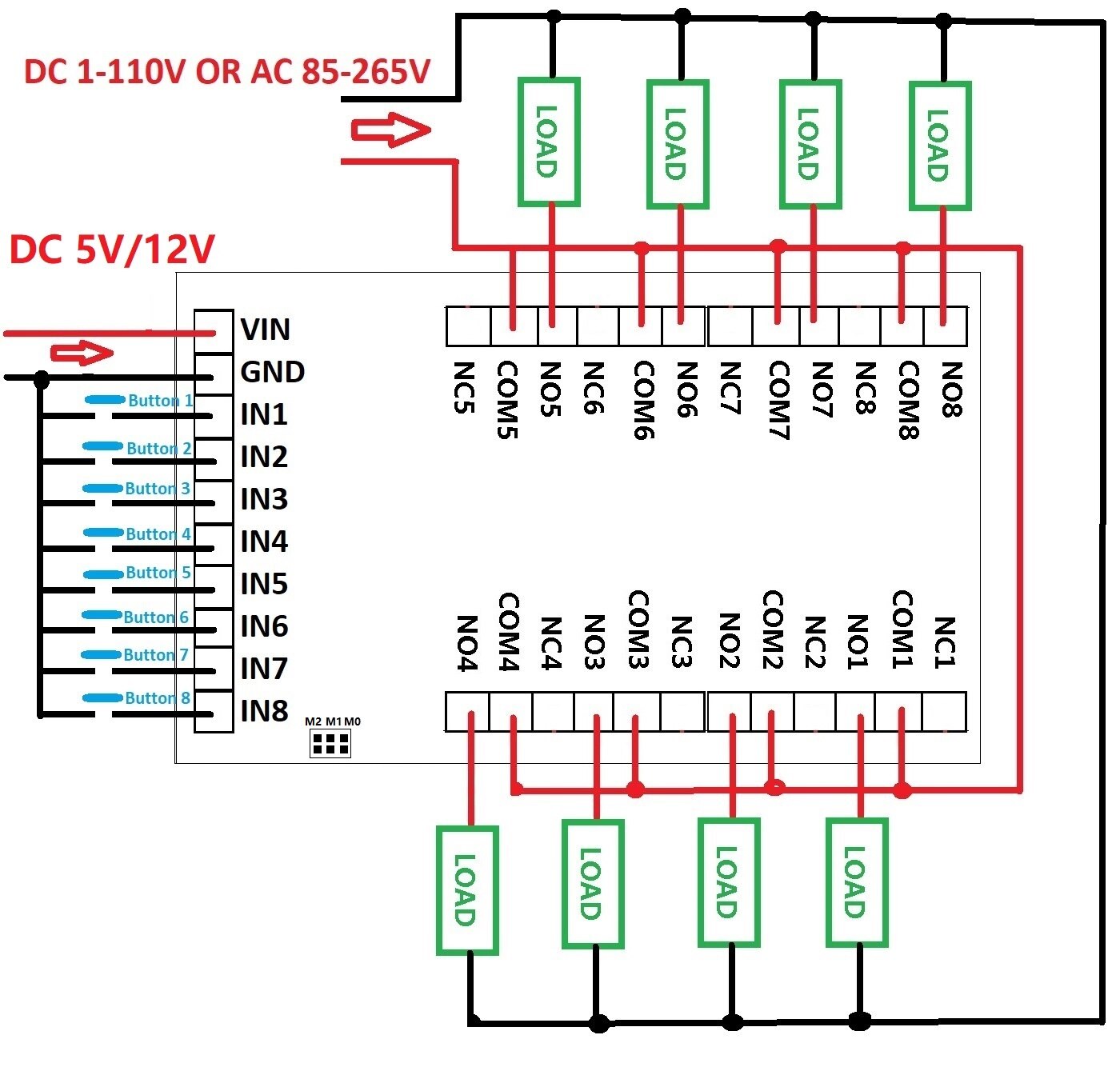

Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)

Package inlcuded:

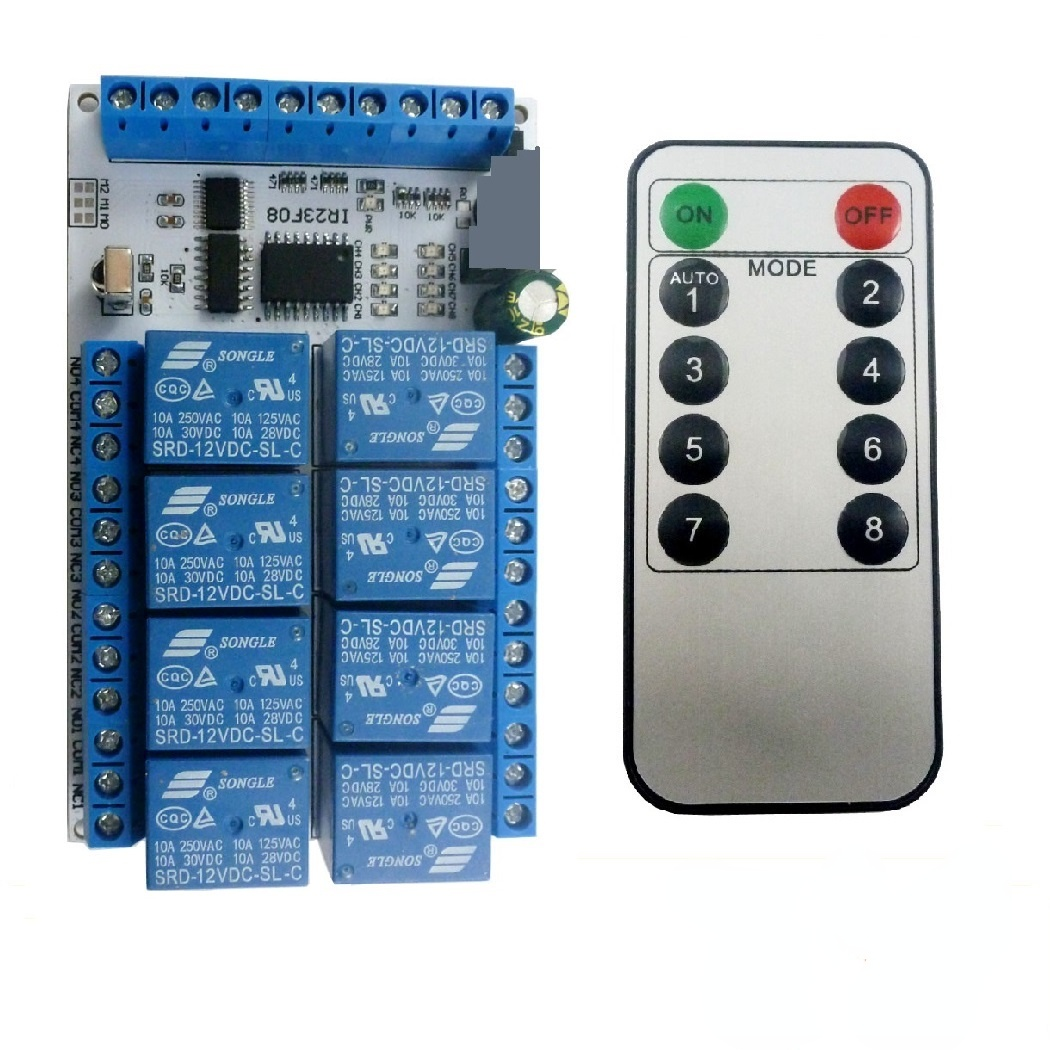

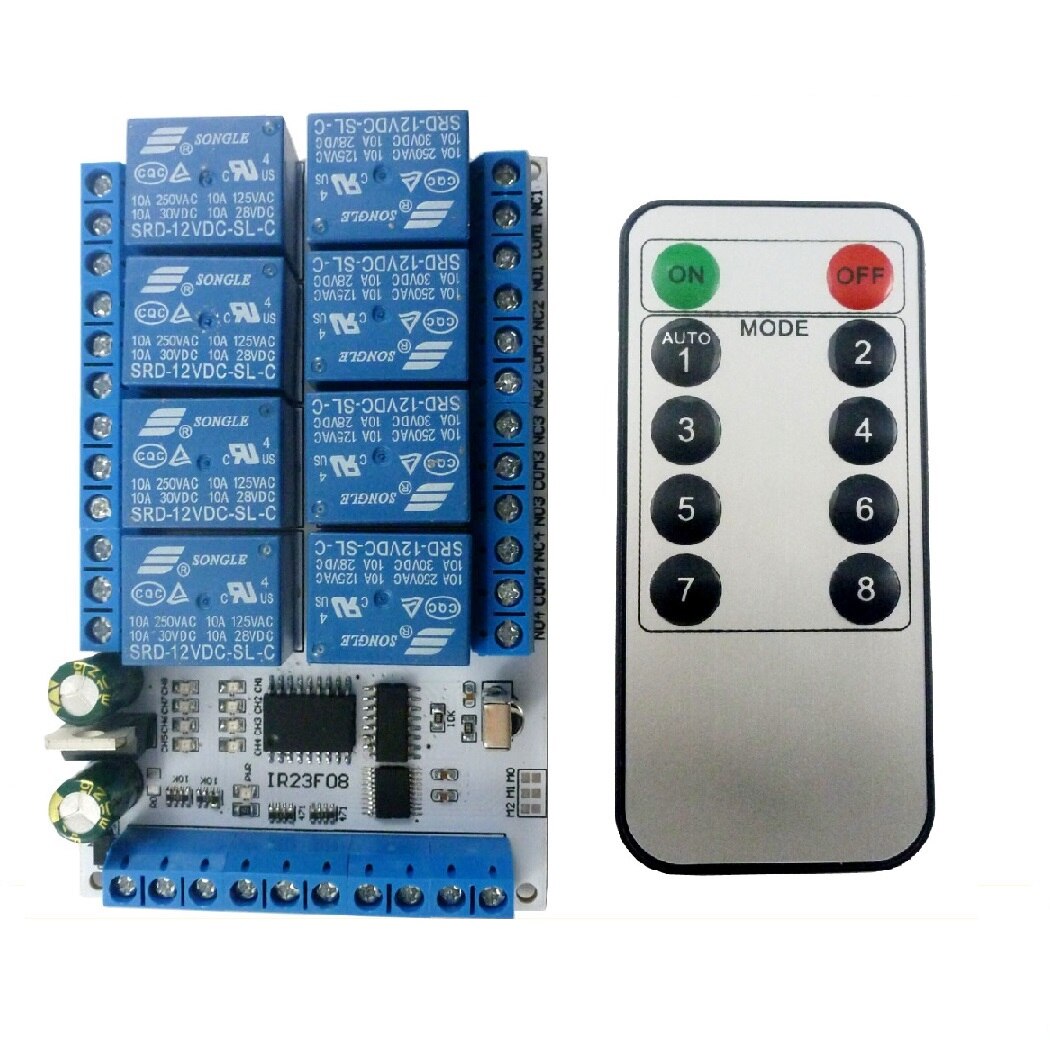

1 PCS? 8 Channel IR remote control
1 PCS? 8 Channel IR Relay Control
