Description:

1: Working voltage: DC12V (Range 6-25V)
2: Working current: 8-10MA(12V)
3 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4: 8 photoelectric isolated output ports,''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
5: MODBUS RTU command, Support 03 06 16 function code
6: Under the ''Delay'' command ,the maximum delay is 255 seconds;

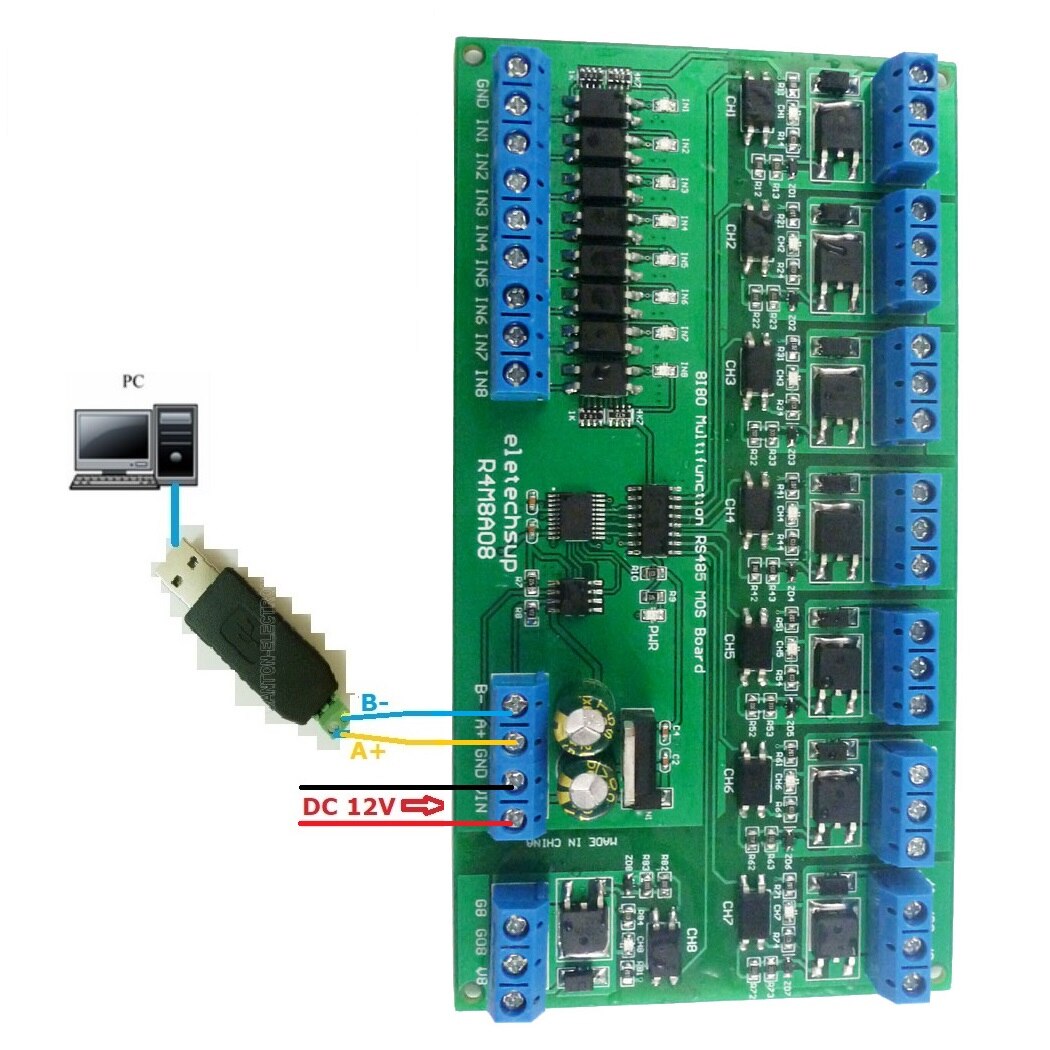

7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
8 Under the MODBUS command mode, it can support up to 64 devices in parallel
9 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

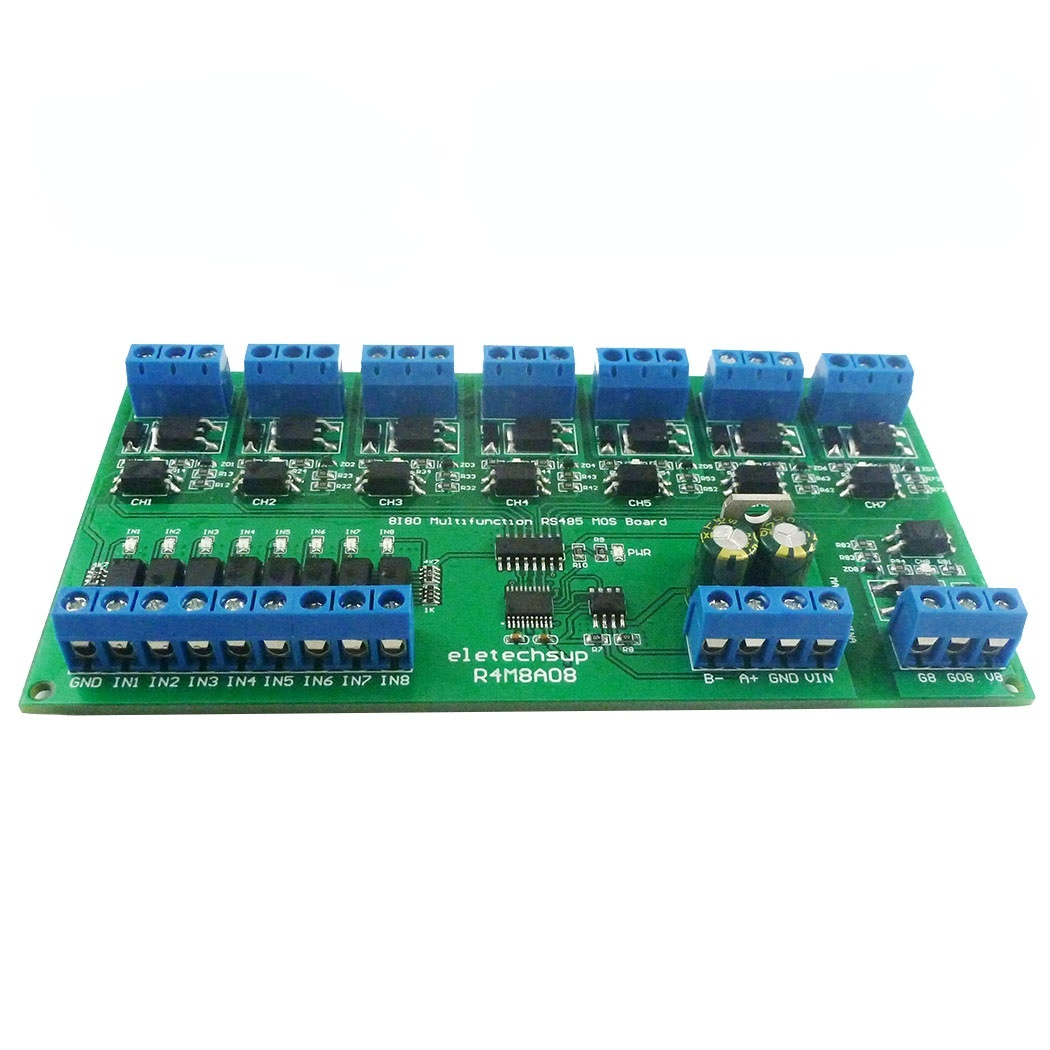

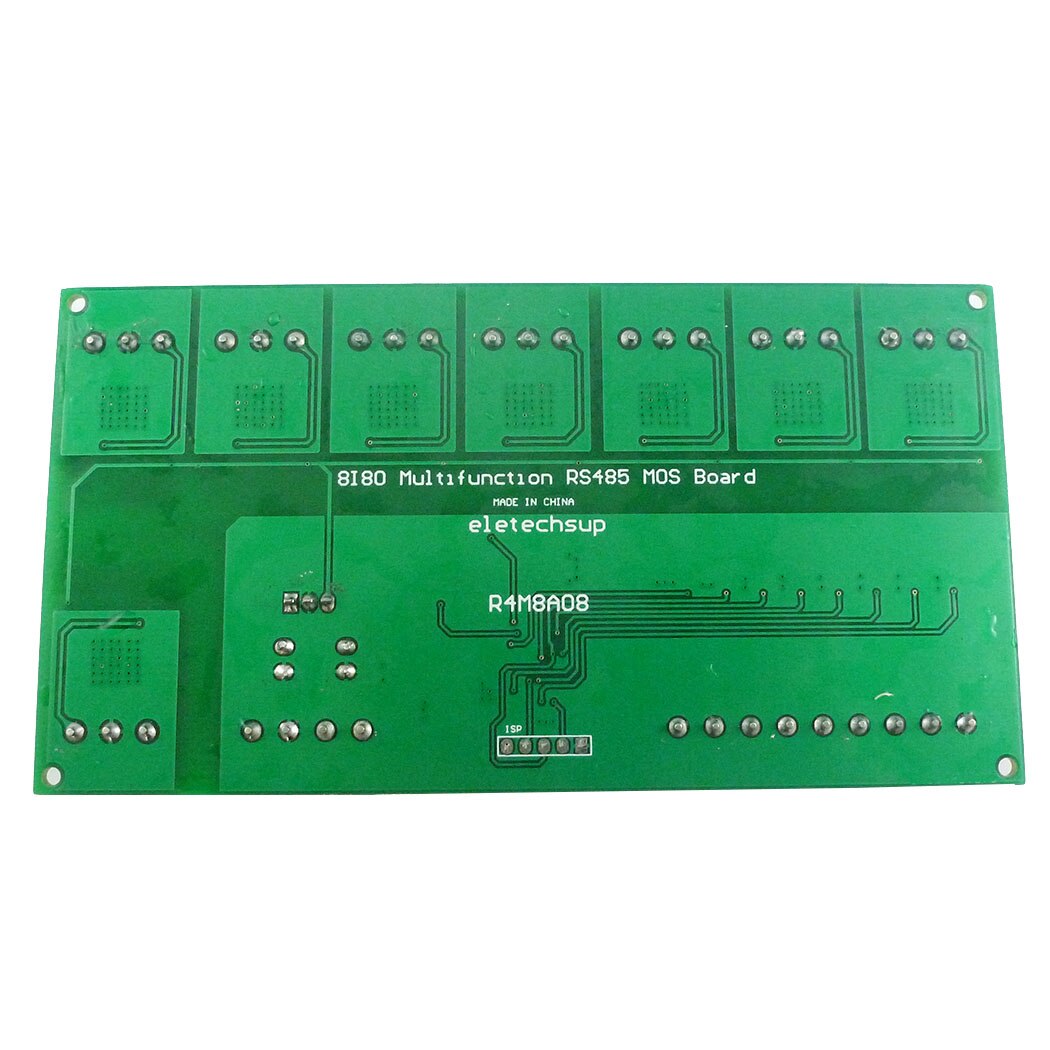

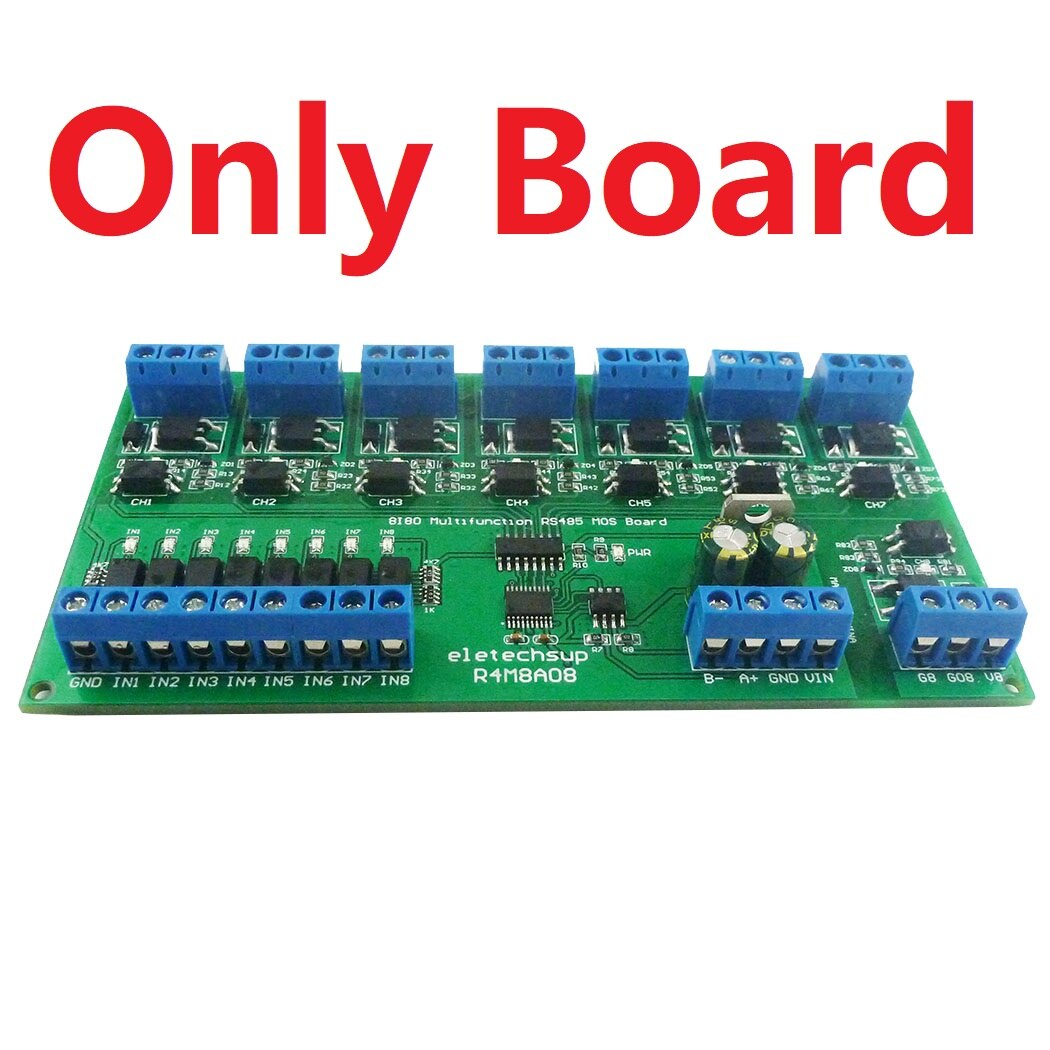

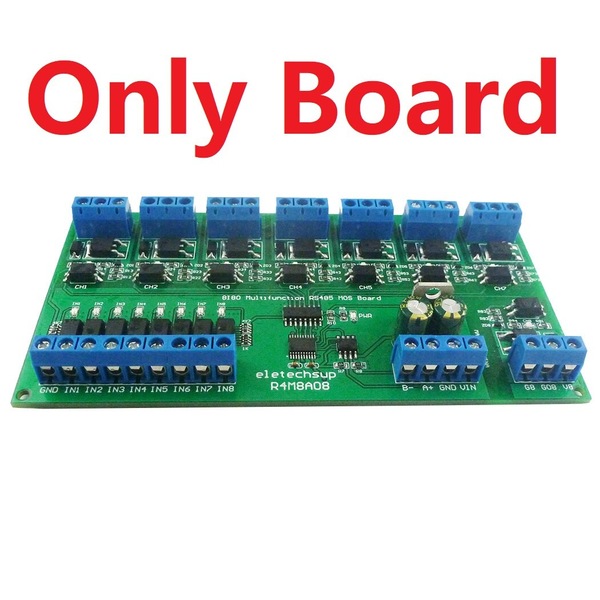

10 Size: 136 * 72 * 18mm(Only PCB Board)
11 Weight:75g(Only PCB Board)
12 MOSFET load: 3.5-5V is 2A; 5-9V is 4A; 9-30V is 5A

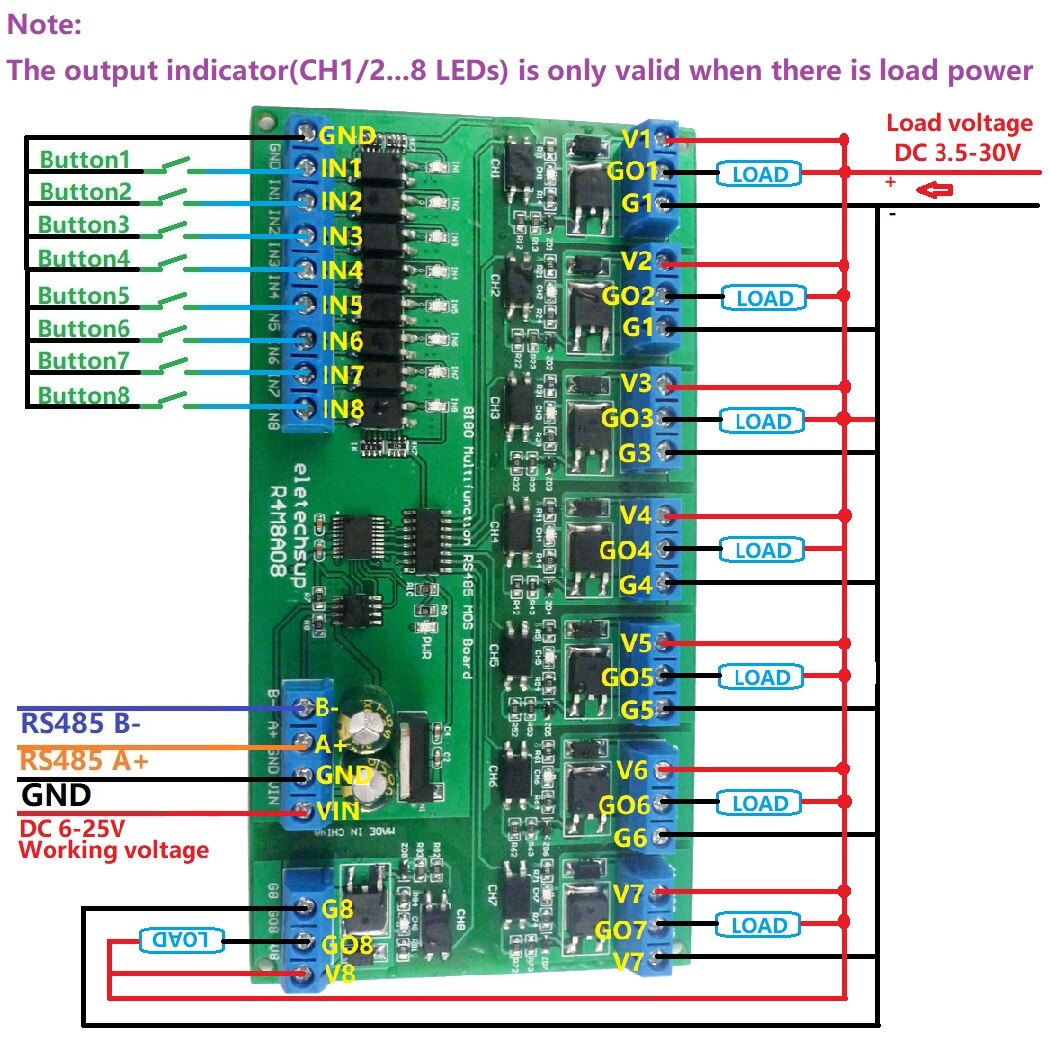

V1(V2-V8): Load input positive
GO1 (GO2-GO8): load output negative
G1 (G2-G8): load input negative

Note: The output indicator(CH1/2...8 LEDs) is only valid when there is load power

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 136 mm PCB boards
Net weight: 99g
Installation: DIN35 and C45 rail

Application
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control

Package inlcuded:1PCS DC 6-25V 8 Input & 8 Output RS485 MOSFET Module

GTIN: 774048924412
