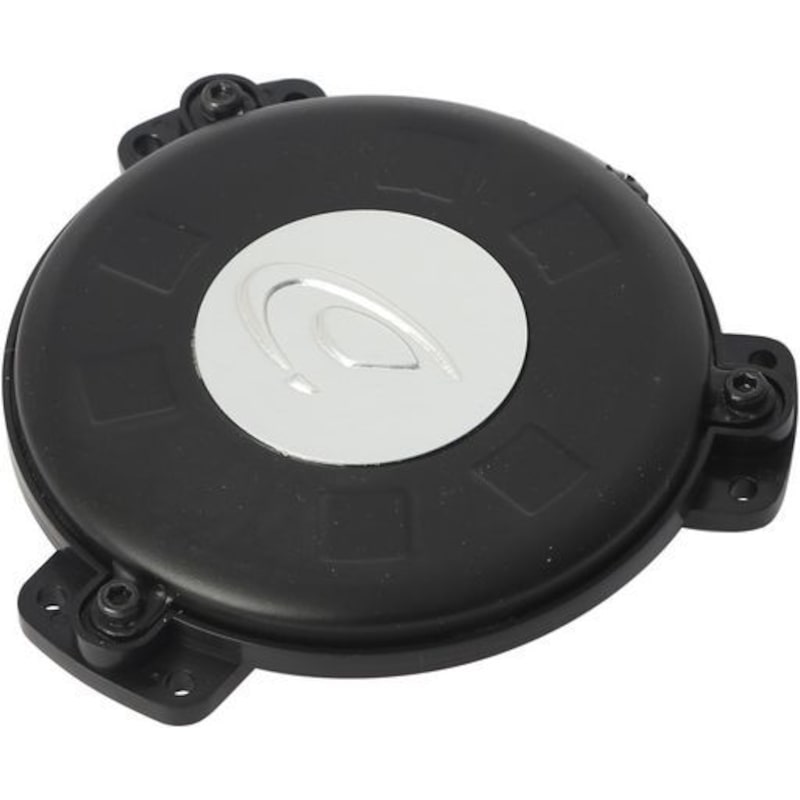

Dayton Audio TT25-8 PUCK Tactile Transducer Mini Bass Shaker 8 ohm

Dayton Audio's PUCK is a compact tactile transducer or mini bass shaker that is intended to be used in home theater, gaming, and auto sound applications. 15Wrms. Includes surface mounting ring.

This mini bass shaker has the unique ability to transfer low frequency sound waves directly to the listener by mounting the PUCK™ to surface areas that a listener’s body will come into contact with. Not actually designed to shake your world but actually, because the listener “feels” the low frequency, the listener perceives loudness and the volume of the overall sound can be kept to a minimum without sacrificing the audio experience. 16? for parallel wiring multiple drivers.


Popular haptic sensory experience

Mini Bass Shaker for infra-sonics

Home theatre or gaming, etc.

Options for wiring up multiple units

Includes surface mounting ring

Power handling: 15 watts RMS/30 watts max Impedance: 16 ohms Usable frequency response: 20 to 80 Hz Fs: 40 Hz Force peak: 30 lbs. per ft. total when used in 4 PUCK configuration Dimensions: 3.37" dia. x 1" H Cutout Dimension: 70 mm with 25 mm slot for wire pass through Consult owners manual for cut-out template and wiring information.
