Dayton Audio BST-1 High Power Pro Tactile Bass Shaker 50 Watts Home Theater

TACTILE BASS SHAKER 50W 100MM - DAYTON INFRASONICTRANSDUCER

• The BST-1 Bass Shaker fromDayton Audio can add a 4th dimension to yoursensory experience fromyour home theatre. It allows you to feel extremely lowfrequency sound and adds a new dimension to your listening, gaming,and movie experience. If you want realistic movie experience or into die-hard gaming, the BST-1 Bass Shaker is the perfect addition to your gaming chair orcouch.
• The human ear has the ability to heara wide range ofsounds, however, some sound is simply too lowto hearand must be felt through the body. Feeling this extremely lowfrequency sound adds a newdimension to your listening, gaming,and movie experiences.
• With a Dayton Audio BST-1 Bass Shaker installed in your home orauto sound system, you’ll feel those lowbass notes or the thundering weight ofa dinosaur’s foot slamming against the ground as it approaches.
• Your favorite action movies willcome to life as you feel the cannon blasts and explosions impacting your body! If you’re into die-hard gaming the BST-1 Bass Shaker is the perfect addition to your gaming chair orcouch!
• The powerand impact ofa football tackle puts you on the field and in the game! Feel the kick of your proton gun as it fires against the enemy! Unlike subwoofers, the BST-1 Bass Shaker will not overload your listening area,and the perceived loudness of the BST-1 Bass Shaker improves listening at lowersound volumes.
• The engineers at Dayton Audio designed the BST-1 Bass Shaker to reproduce accurate, tactile sensations fromyourmusic and movie sound tracks. When a BST-1 Bass Shaker is installed on a resonant surface, it increases the portion of tactile sound as being "felt" beyond what is normally produced by subwoofers and ordinary speakers.
• Conventionalsubwoofers are traditionally considered optimized when you can feel rather than hear the bass. By using a BST-1 Bass Shaker in yoursystem, this goal becomes easier to achieve --enabling the subwoofer to performat a more naturalsound level. A specially formulated nylon/fiberspiderand the selection of quality hardware components allowthe BST-1's internalmotorstructure to not only outperformthe competition but increase the product lifespan.
• Simply put, with a Dayton Audio BST-1 Bass Shaker you can count on years and years' worth ofamazing blasts, shakes, rolls, rattles, rumbles, thumps, bangs, and bumps

WARNING: Always check under carpeted locations and recheck the mounting area so as to not cut or drill into any existing electrical wiring, airbag sensors, hydraulics, brakes, gas, or fuel lines.

ADDITIONAL NOTES AND SUGGESTIONS:
• 80 Hz or under low pass crossover suggested to reduce the possibility of high frequency sounds
• Recommended Amplifiers: Dayton Audio SA70 for single Bass Shakers, Dayton Audio SPA250 for 2 – 4 Bass Shaker installations. For larger installations we recommend the Dayton Audio SPA1000 or SA1000.

Connecting a Single BST-1 Dayton Audio Bass Shaker

• The impedance of the BST-1 Bass Shaker is 4 ohms. When used in a single unit configuration it must be hooked up to an amplifier that is either stereo or bridged mono, the same way you would connect a subwoofer. Please consult the amplifier manual for details regarding the impedance rating of your amplifier.

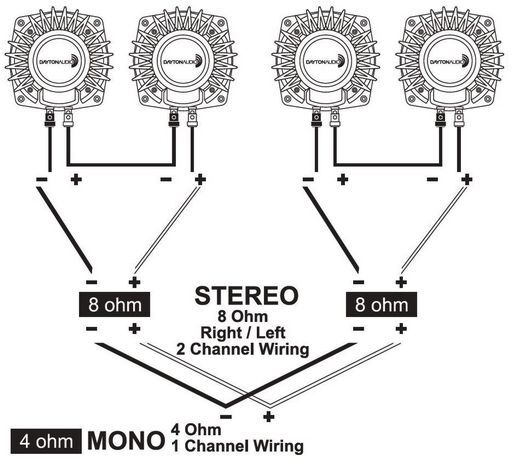

Connecting Multiple BST-1 Dayton Audio Bass Shakers

• Two or four Dayton Audio BST-1 Bass Shakers can be used in situations where more bass energy is desired or in larger applications. Connecting two in Series configuration will raise the impedance to 8 ohms, connecting two in Parallel will lower the impedance to 2 ohms, and wiring four BST-1 Bass Shakers in Series-Parallel will keep the overall impedance to 4 ohms. Again, always consult your amplifier’s owners manual to verify it has the power capability that produce the wattage safely at various impedances

WARNING: Do NOT exceed 50 watts RMS per Bass Shaker multiplied by the number of Shakers (example: 50 x 4 = 200 Watts RMS)

Installation Notes

•  Mounting the Bass Shaker to chairs or couches that are not fixed to the floor will provide the greatest effects. The Bass Shaker's energy will impact the user’s body rather than travel through the furniture and disperse the energy into the floor. Isolating the furniture from the floor is highly recommended by using pads or rubber feet. Find a solid mounting area for your Bass Shaker(s) underneath and/or on the rear of the furniture’s construction. Use four wood screws or stingers to mount the Bass Shaker to the structure. Should no solid mount exist it is recommended that one be constructed using hardwood or plywood. Try to avoid fabric or padding coming into contact with the Bass Shaker. It is important the Bass Shaker makes full contact with a solid flat surface. Recommended wire gauge is 14-16 AWG speaker wire.

•  Mounting the Bass Shaker under the seats is highly recommended rather than on the seat itself. Move (or remove) your seat forward as far as possible, and identify the spot under the seat that vibrates the most by knocking on the flooring using a rubber mallet or soft hammer. Again, ensuring the Bass Shaker comes into full contact with the floor surface is critical to the performance of the Bass Shaker. Wiring in advance of the installation is recommended. Ensure your wire is without kinks or bends and that no bare wire is touching metal. Use four steel screws or stingers to mount the Bass Shaker to the floor of your vehicle. Recommended wire gauge is 14-16 AWG speaker wire.

• Dayton Audio’s Bass Shaker

• Add an extra dimension to yoursensory experience with home theatre &gaming

• Feel the extremely lowfrequency sound

• Bolt to yourchair orcouch for punch

• High powersubsonic motion actuator

• Large 150mmØscrew-down base

• High Grade AluminiumHousing 1.7Kg

• Deflection Diam: 100mmÃ

• 4Ohms, 50 Watts RMS

• Dimensions: 56x147mmØ
