Das-Kit E-Bike Conversion Kit, 36V 250W, Das-Kit X-15 Motor, LCD-Display, for Freewheel in 26", 27,5" or 28" inch

Das-Kit E-Bike Conversion Kit, 36V 250W, Das-Kit X-15 Motor, LCD-Display, for Freewheel in 26", 27,5" or 28" inch

SOLD OUT


Compatibility

Compatible with almost every 26" / 27.5" / 28" bicycle

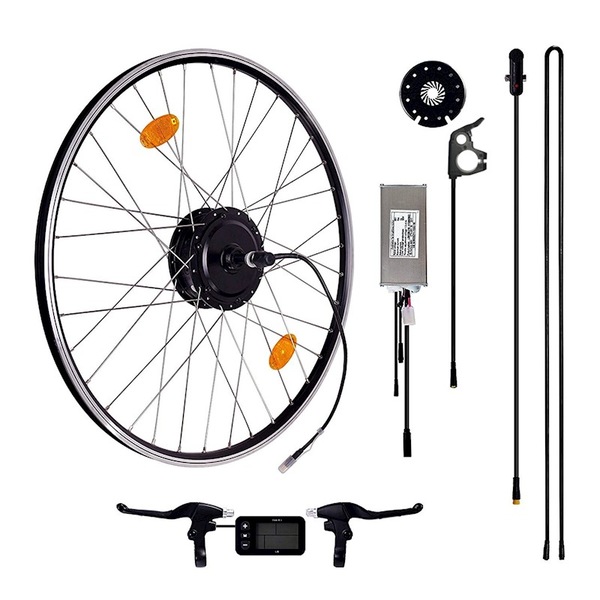

Features

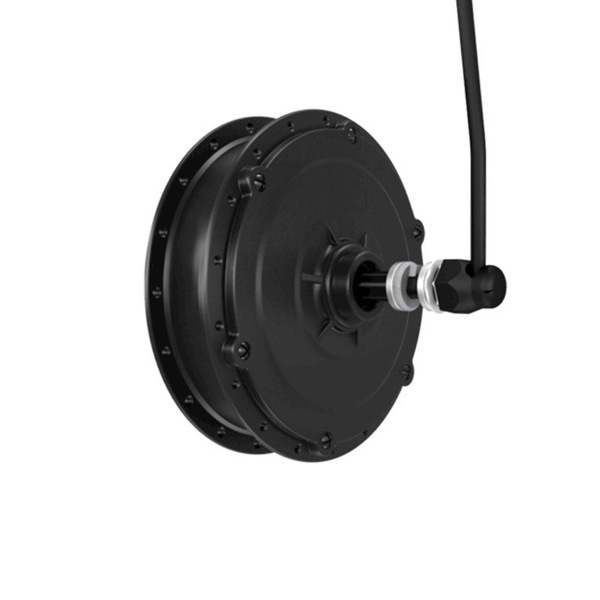

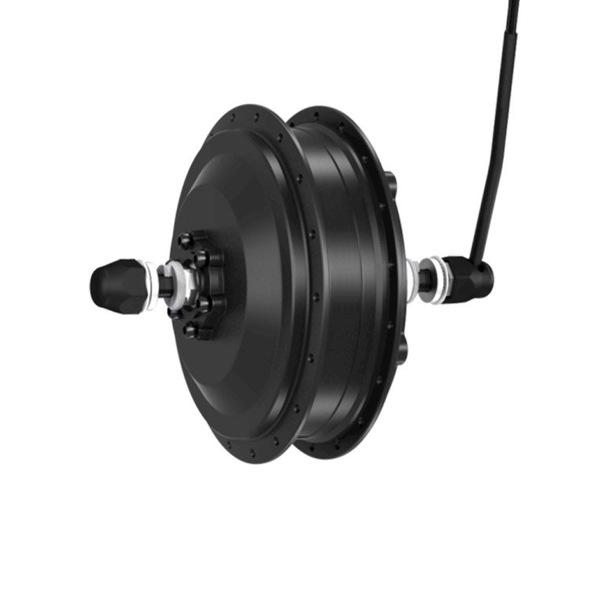

  • Motor Das-Kit X-15 Rear Motor Wheel (55Nm), black, 36V 250W, planetary gear
  • Sprocket Ready for freewheel sprocket (up to 7-speed) Brake 6-hole disc brake mount (disc not included), rim brake possible to be used.
  • Display & Throttle L6BT 2.5" LC display incl. backlight, display extension cable , 6 Assistant Levels, Thumb Throttle included
  • Controller Sinus Wave Controller 31V, Current 8A, maximum current 17A (1 Sec.), Connections: Motor, Battery, Display, Front light up to 42V
  • PAS-Disc (left side only) PAS-Disc (12 magnets) Installation on the right side of the bottom bracket. For an installation on the left side, a special Hollowtech & Octalink Sensor is needed.
  • PAS-Sensor (left side only) Easy installation, for example at bicycle frame.
  • Brake Levers Artek brake levers, cut-off sensor on the left side
  • Spokes: Stainless steel
  • Rim :hollow section type rim [black]
  • Fixing Cable ties included
  • Weight Rear wheel motor including rim: approx. 4,7kg

Dimensions

  • Controller: L x H x W = approx. 9cm  x 6cm x 2.7 cm
  • Rim size: 26, 27.5 or 29 inch depending on selection
  • Cable length from Display to Controller: 190 cm
  • PAS sensor cable length: 95cm
  • Required gap between PAS Disc and PAS sensor: approx. 5-7mm
  • Width of rim at outer edge: 25mm

Limitations

This conversion kit is limited to 25km/h maximum speed on pedal assist mode and also the throttle is limited to 6 km/h as per Australian legislation.

Please note that the left brake lever interrupts the power to the motor if it is pulled.
