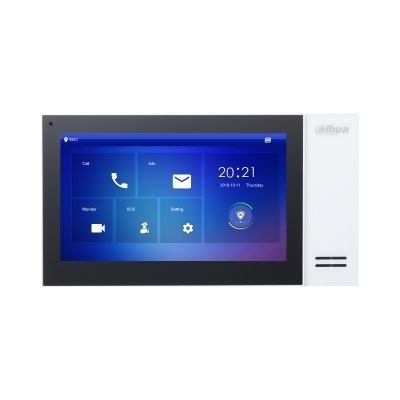

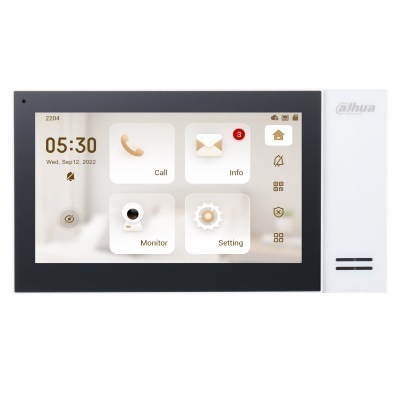

Dahua VTH2421FW-P IP Indoor Monitor compatible with DHI-KTP01L-S-2421
7" TFT Capacitive touch screen, 1024 x 600
> IPC surveillance
> Alarm integration
> High performance & Cost-effective
> Embedded 8GB SD card
> Support standard PoE
Technical Specification |
|
Main Processor |
High performace embedded processor |
Operating System |
Embedded LINUX OS |
Screen Type |
Capacitive screen |
Display |
7-inch TFT screen |
Resolution |
1024 × 600 |
Video Compression |
H.264 |
Audio Compression |
G.711A/G.711U/PCM |
Audio Input |
1 channel all-direction microphone |
Audio Output |
Built-in 1.5W loudspeaker |
Audio Mode |
Support dual-way bidirectional talk |
Audio Enhancement |
Support echo cancellation/DNR |
Audio Bit Rate |
16 kbps |
Communication Mode |
Full digital |
Information Release |
Support to receive and view notifications issued by center |
Leave Videos or Text Messages |
Support |
DND Mode |
Support to set DND period |
Sub-station Quantity |
9 |
Alarm Input |
6 channel (switch quantity) |
Alarm Output |
1 channel |
Network |
1 RJ-45 |
SOS Alarm |
Support |
Casing |
PC+ABS |
Appearance Color |
Appearance Color |
Power Supply |
Standard PoE DC 12V 1A |
Installation |
Wall mount |
Accessories |
Default bracket |
Dimensions |
119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") |
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
Operating Humidity |
10%RH-95%RH |
Power Consumption |
Standby≤4W, work≤6W |
Gross Weight |
0.35 Kg (0.77 lb) |
Power supply mode |
PoE |
Storage |
Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
Manufacturer Warranty: 3 Years Manufacturer Warranty
