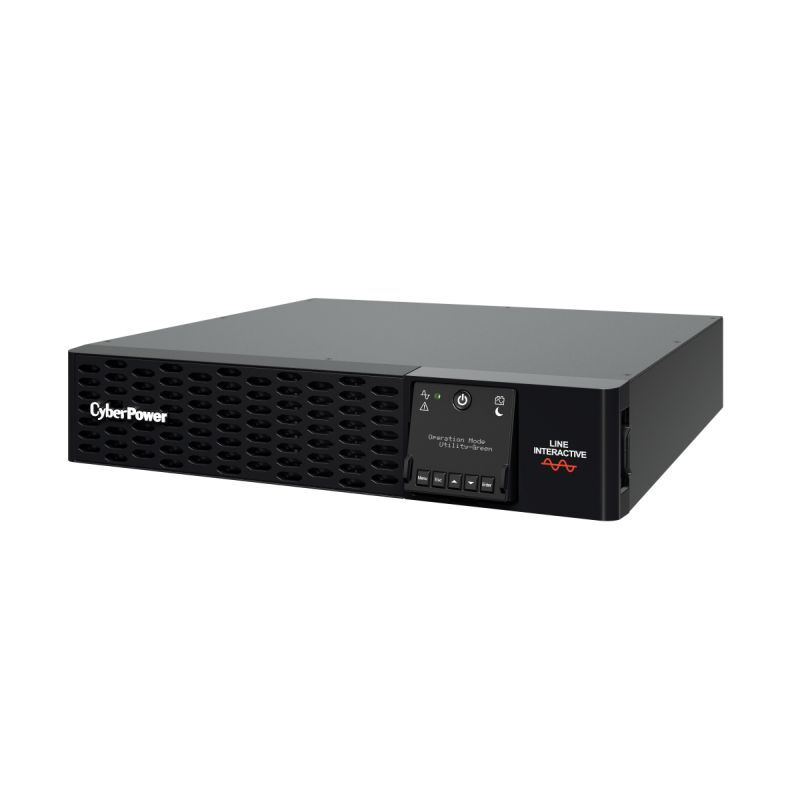

Designed for computer room and server room applications, the Professional Rackmount Series adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilised AC power output with a pure sine wave to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage.
Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption.
Features:
Line-interactive UPS Topology
Energy Saving Technology
Pure Sine Wave Output
High Output Power Factor
Toolless Battery Replacement
Battery Management Technology
Extended Battery Module (EBM)
Multi-functional Matrix LCD
Night Mode Design
PowerPanel® Management Software
SNMP/HTTP Remote Management Capability (Optional)
Rack/Tower Convertible Configurations
Application:
SOHO Office
Office
Back Office
Server Room
Data Center
Supermarket
Factory
Airport
Product Callouts:
Power On Indicator
Power On/Off Switch
LCD Display Panel
Function Button(s)
Battery Backup & Surge Protected Outlets
Communication Protection Ports RJ45
Input Circuit Breaker
Output Circuit Breaker
AC Inlet
BM/ENV Port
Dry Contact
Serial Port
USB Port
EPO/ROO Port
SNMP/HTTP Network Slot
Extended Battery Module Connector Socket
TVSS Screw
Includes:
1x CP PRO Rack/Tower LCD 1000VA
General
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Active PFC Compatibility: Yes
Input
Nominal Input Voltage (Vac): 220, 230, 240
Input Voltage Range (Vac): 159 ~ 288
Input Frequency (Hz): 50 ± 3, 60 ± 3
Input Frequency Detection: Auto-sensing
Input Connector Type: IEC C14
Output
Capacity (VA): 1000
Capacity (Watts): 1000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 220 ± 5%, 230 ± 5%, 240 ± 5%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) - Battery & Surge Protected: 10
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 5
Typical Transfer Time (ms): 4
Battery
Runtime at Half Load (min): 21.3
Runtime at Full Load (min): 7.9
Typical Recharge Time (Hours): 3
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0128
RBP Quantity (pcs): 1
Extended Battery Module (EBM): BP48VP2U01 (Built-in charger)
Max. EBM Quantity (pcs): Unlimited
Surge Protection & Filtering
Surge Suppression (Joules): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
Management & Communications
LCD Panel: Yes
LCD Orientation: Rotatable LCD panel
HID-Compliant USB Port(s): 1
Serial Port: RS232
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Power Management Software: PowerPanel® Business
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Physical

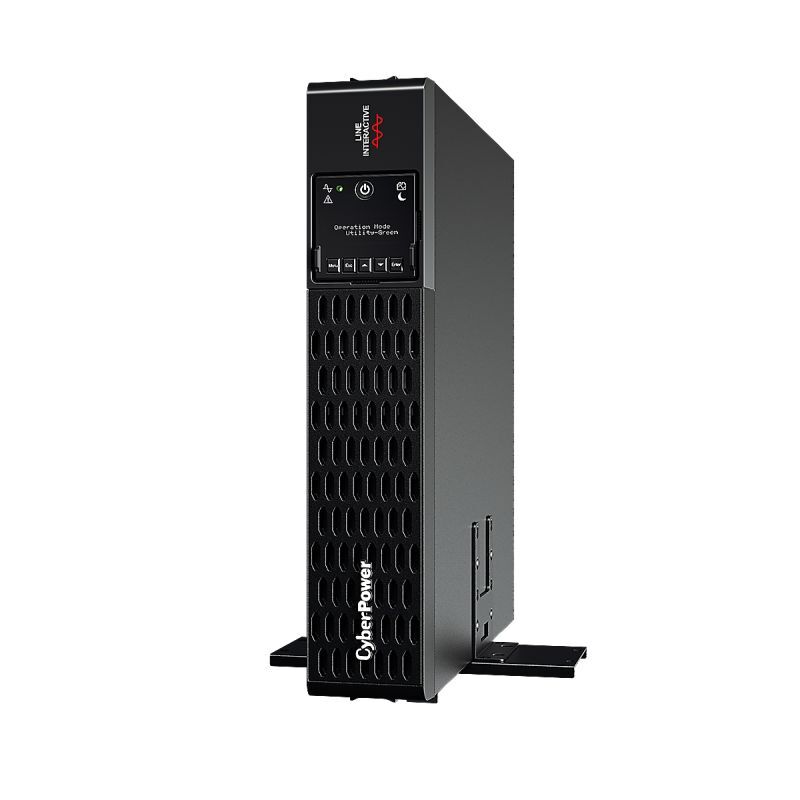

Form Factor: Rack/Tower
Physical Size - UPS Module
Dimensions (WxHxD) (mm.): 433 x 86.5 x 412
Weight (kg.): 23.6
Installed Rack Height (U): 2
Environmental
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 95
Online Thermal Dissipation (BTU/hr): 47.4
Certifications
Certifications: CE, FCC Class A (for PR3000ERTXL2U only), FCC Class B, UL, RCM, VCCI
RoHS: Yes
This item comes with a 3-year warranty.
Please allow 2-8 business days for delivery.
