The Online S UPS Series is ideal for servers, networking equipment, workstations, and other mission-critical applications which require Pure Sine Wave power input.
Featuring an Online Double Conversion design and Zero Transfer Time, the UPS provides consistent and seamless power to critical loads. Numerous engineering excellences showcase in this enterprise-level application including Economy Mode, Smart Battery Management, and External Battery Module, which further enhance its overall performance and capability.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through a standard web browser.
Together with the PowerPanel® Business Edition management software, the UPS can provide administrators comprehensive network power management including unattended shutdown, event logging, reporting, and notifications.
Features:
Pure Sine Wave Output
Online (Double Conversion) UPS Topology
GreenPower UPSTM Technology
EMI, RFI, Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
Multifunction LCD Readout
USB & Serial Connectivity Ports
Generator Compatible
Smart Battery Management
Extended Runtime Model- Up to 3 battery packs
SNMP/HTTP Remote Management Capability (Optional)
PowerPanel® Business Edition Software
Application:
Medium Business
Corporate Data Center
Networking, Servers & Workstations
Industrial Equipment
Includes:

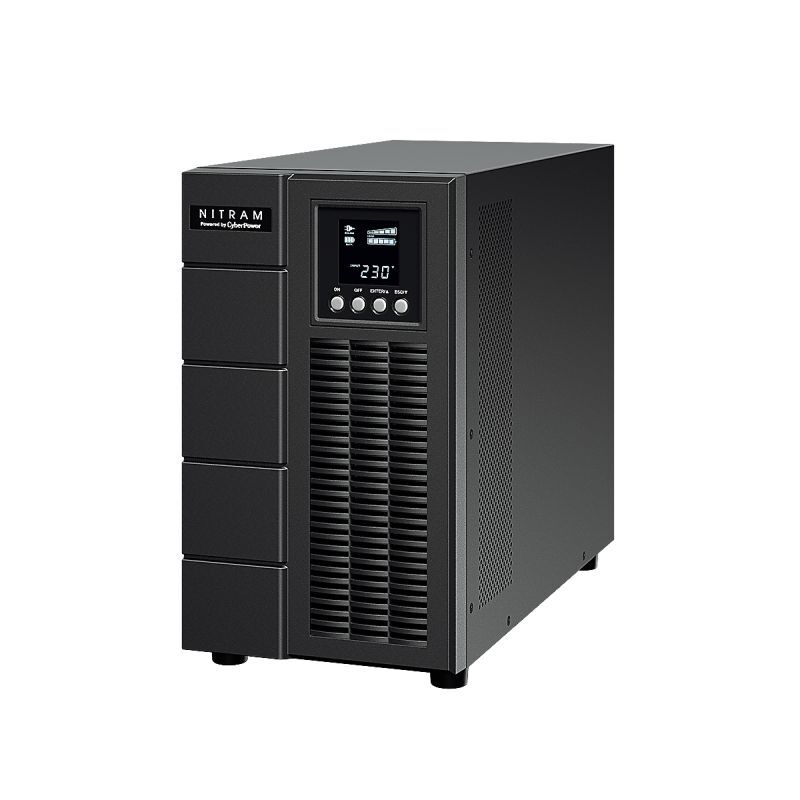

1x CP 2000VA/1800W Tower UPS
General
UPS Topology: Online Double Conversion
Energy Saving: Online ECO Mode Efficiency > 95%
Input
Generator Compatibility: Yes
Nominal Input Voltage: 230Vac ± 10%
Input Voltage Range: 160 - 300Vac
Input Frequency Range: 50/60 ± 10Hz (Auto-sensing)
Rated Input current: 9A
Input Power Factor: 0.98
Plug Type: IEC C20
Output
VA/Watts: 2000/1800
On Battery Waveform: Pure Sine Wave
On Battery Voltage: 208, 220, 230, 240Vac ± 1% (Configurable)
On Battery Frequency: 50/60Hz ± 0.5% (Configurable)
Overload Protection (Line Mode): 110~120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Outlets - Total: 5
Outlet Type: Hardwire Terminal Block x 1, IEC C13 x 4
Outlets - Battery & Surge Protected: 4
Rated Power Factor: 0.9
Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
Transfer Time: 0ms
Battery
Runtime at Half Load (min): 15
Runtime at Full Load (min): 5
Battery Type: Sealed Lead-Acid
User-replaceable: No
Typical Recharge Time: 5 Hours
Smart Battery Management (SBM) Mode: Yes
Extended Battery Module (EBM): BPSE72V45A
Max. EBM Quantity: 3
Surge Protection & Filtering
Surge Suppression (Joules): 440
Phone/Network Protection RJ11/RJ45: 1-in, 1-out
Management & Communications
LCD Panel: Yes
HID Compliant USB Port: 1
Serial Port: RS232
Emergency Power Off (EPO) Port: Yes
Software: PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
Physical
Form Factor: Tower
Physical – UPS Module
Dimensions (WxHxD) (mm.): 196 x 337 x 416
Weight (kg.): 23.8
Environmental
Operating Temperature: 32 °F to 104 °F / 0 °C to 40 °C
Operating Humidity: 20% - 90% non-condensing
Operating Elevation: 0-5,000 feet (0-1,500 meters)
Storage Temperature: -4 °F to 122°F / -20°C to 50 °C
Storage Relative Humidity: 10% - 90% non-condensing
Online Thermal Dissipation: 666 BTU/hr
Certifications
Certifications: CE, EAC, LOA, BIS, RCM
RoHS Compliant: Yes
This item comes with a 3-year warranty.
