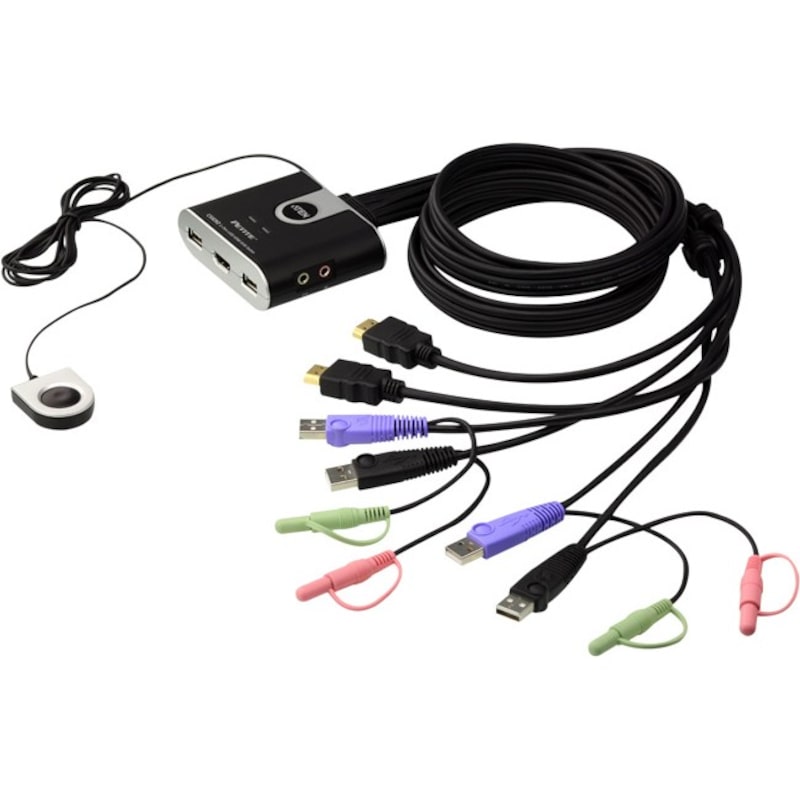

2-Port USB HDMI KVM Switch - ATEN

The CS692 HDMI USB KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.

Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.

FEATURES:
  • One HDMI video console controls two USB computers
  • HDMI 1.3a compatible; HDCP compatible
  • Computer selection via remote port selector, hotkeys,and USB mouse
  • Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus1
  • Multiplatform support - Windows, Mac, Linux
  • Compact design, built-in all-in-one cables (2 x 1.2 m)
  • Superior video quality - up to 1920 x 1200; 1080p
  • Compatible with widescreen LCD monitors
  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizesresolution when switching between ports
  • Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
  • Supports gaming and multimedia keyboards
  • Supports multifunction and wireless keyboards and mice
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Mac keyboard support and emulation2
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing3
  • Non-Powered
  • Firmware upgradable

Note:

  • 1. HDMI audio through the HDMI monitor's built-in speakers cannot be switched independently.
  • 2. PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
  • 3. May require an additional power adapter.
SPECIFICATIONS:
Function_ CS692
Computer Connections_ 2
Console Connections_ 1
Port Selection_ Remote Port Selector, Mouse, Hotkeys
Connectors Console Ports Keyboard_ 1 x USB Type A Female (Silver)
Video_ 1 x HDMI Type A Female (White)
Mouse_ 1 x USB Type A Female (Silver)
Speakers_ 1 x Mini Stereo Jack Female (Green)
Mic._ 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard_ 2 x USB Type A Male (Purple)
Video_ 2 x HDMI Type A Male (Black)
Mouse_ 2 x USB Type A Male (Black)
Speakers_ 2 x Mini Stereo Plug Male (Green)
Mic._ 2 x Mini Stereo Plug Male (Pink)
LEDs_ KVM_ 2 (Green)
Cable Length KVM_ 2 x 1.2 m
Remote Port Selector_ 1. 8 m
Emulation_ Keyboard / Mouse USB USB
Video_ 1080p; 1920 x 1200
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption _DC 5V, 2.65W
Environment Operating Temp._ 0-50ºC
Storage Temp._ -20-60ºC
Humidity_ 0-80% RH, Non-condensing
Physical Properties Housing_ Plastic
Weight_ 0.41 kg
Dimensions (L x W x H)_ 6.70 x 8.20 x 2.65 cm

Weight: 0.531
