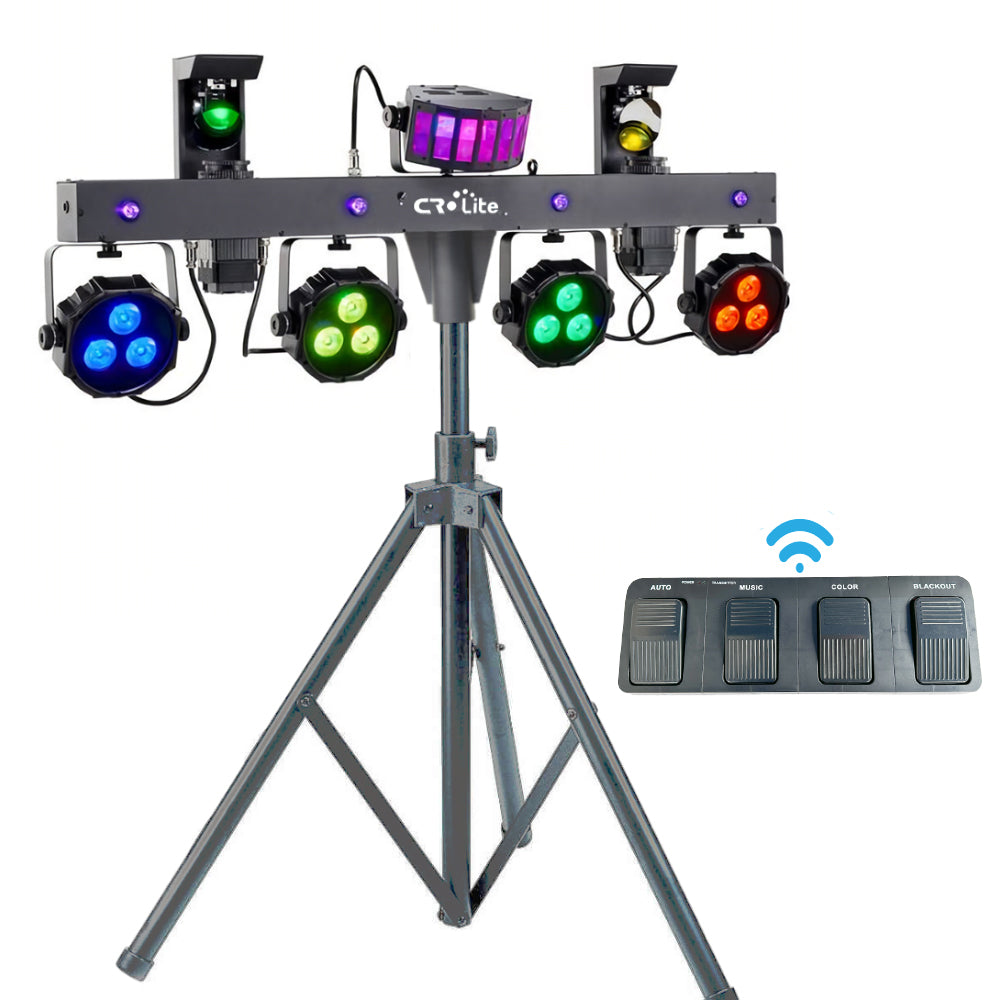

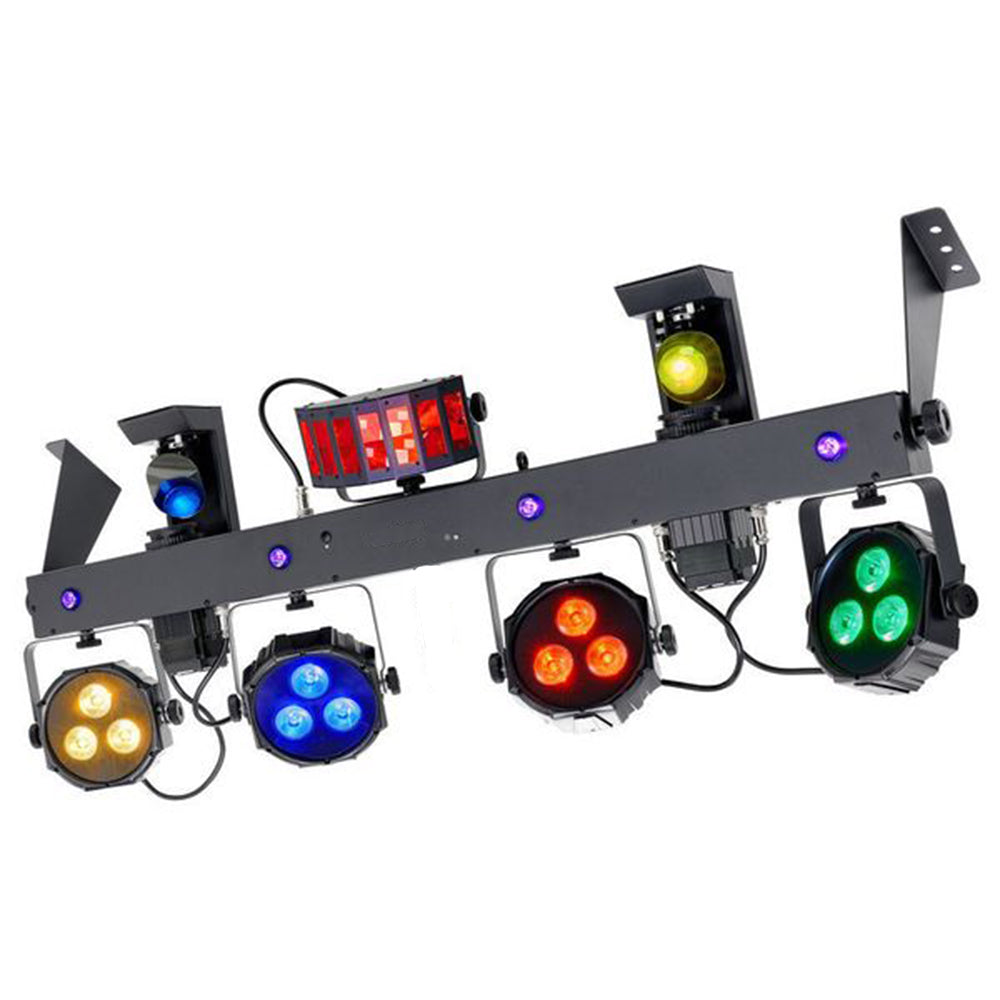

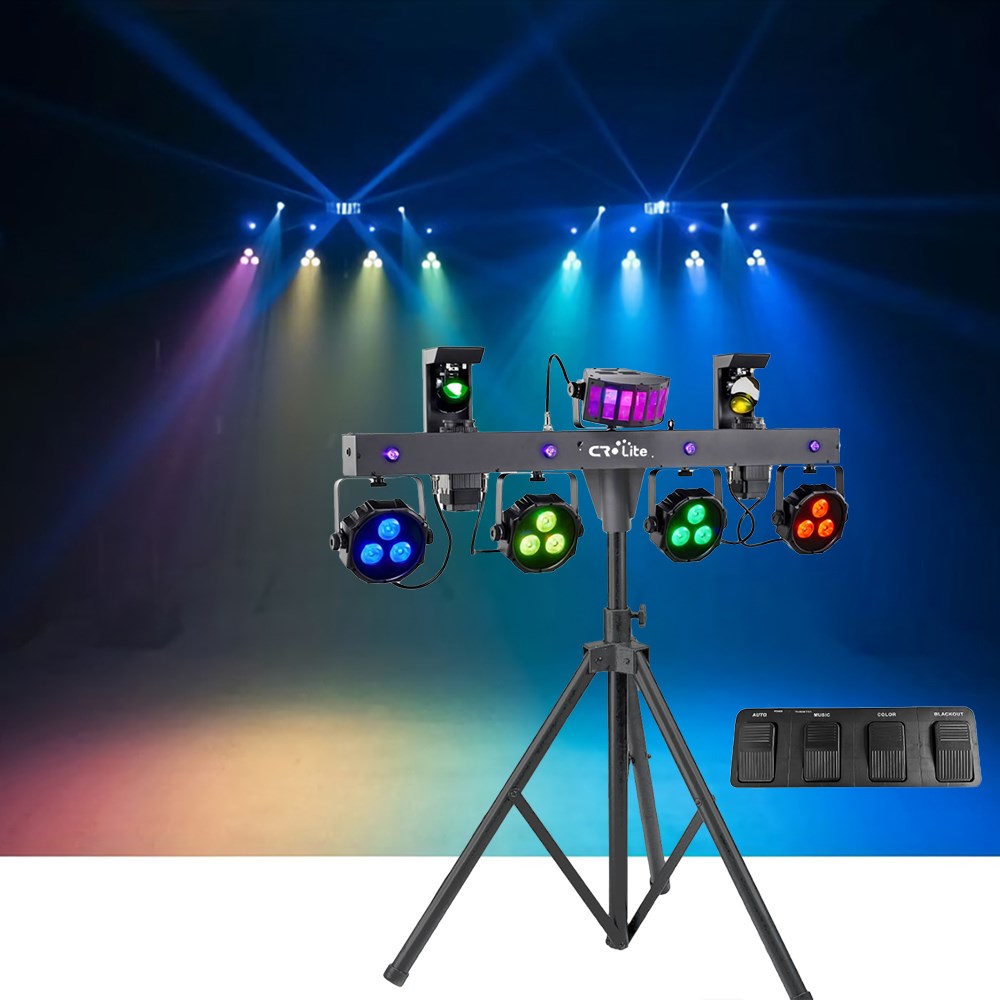

This compact lighting fixture comes with a range of features, including a derby effect, LED spots, scanners, UV effect, Wireless Footswitch and a bag for easy transport. It's ultra-lightweight and perfect for mobile use, with a crossbar that has an integrated DMX control unit and a tripod stand for quick setup. The device has various DMX modes to suit different consoles and requirements.

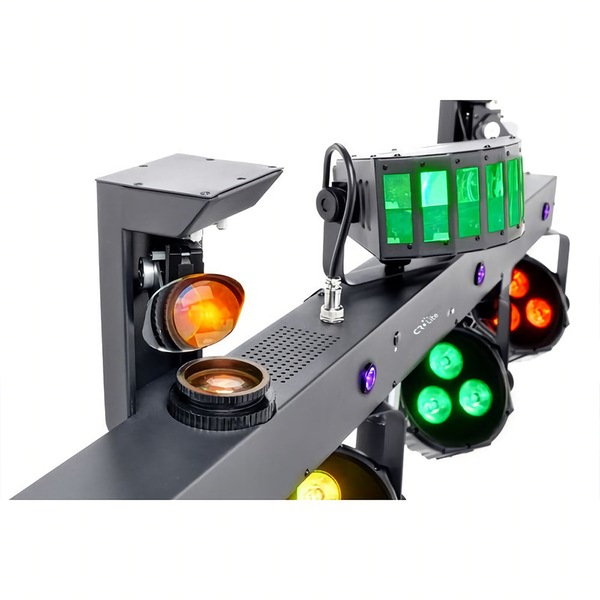

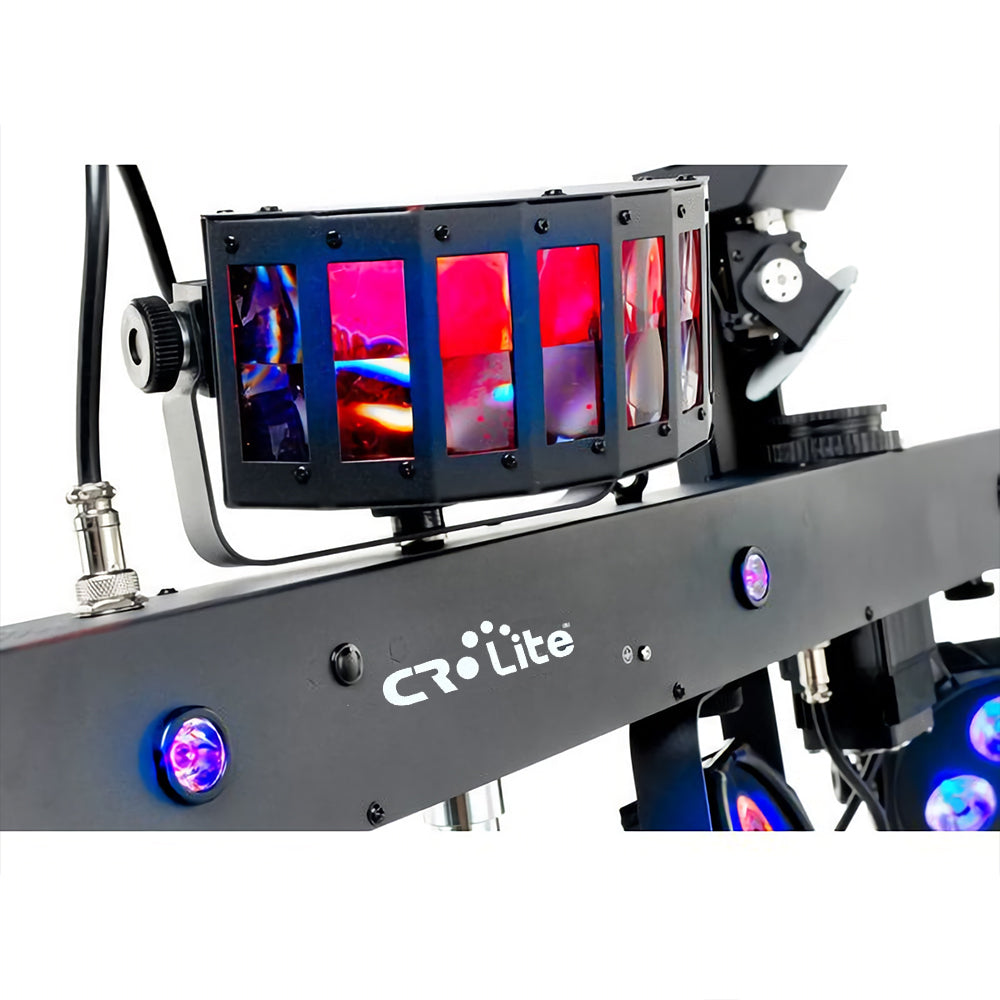

The LED derby and LED spots can be controlled and tilted individually, and the mirror movement can be inverted separately for both scanners. The device features a brand-new software design with smart programs and becomes especially attractive when used in a fog. It also has mains input and output for power linking up to eight units and can be positioned within PAN and TILT.
With 20 integrated Show programs, this device can be operated in various modes, including 3, 7, 13, 14, 15, 18, 19, 30, 32, and 39 CH modes. It's cooled by a cooling fan and can be controlled using DMX, auto, sound to light via microphone, stand-alone, master/slave function, and wireless footswitch.
The device is preprogrammed in Light Captain, EASY SHOW 2, and EASY SHOW 3, and has a beam angle of 15°. It comes with a tripod stand and mounting bracket, as well as an OLED display. This lighting fixture is ideal for use in wedding/gala/events, lender, and small lender application areas.
Features:
- Mix models combination: Laser lighting + Par lighting + derby lighting
- Mix effects combination: grating laser + LED par + LED derby + White/UV Strobe
- Mix shows combination: every show can be combined together arbitrarily, according to your mood
- Manual color setting available, creating super color washing effect
- IR remote control
- New wireless technology applied to our wireless footswitch
- Ideal for gathering parties, DJ bands, and stage performances
Technical Parameter：
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 115 W
- IP rating: IP20
- Protection class: Class I

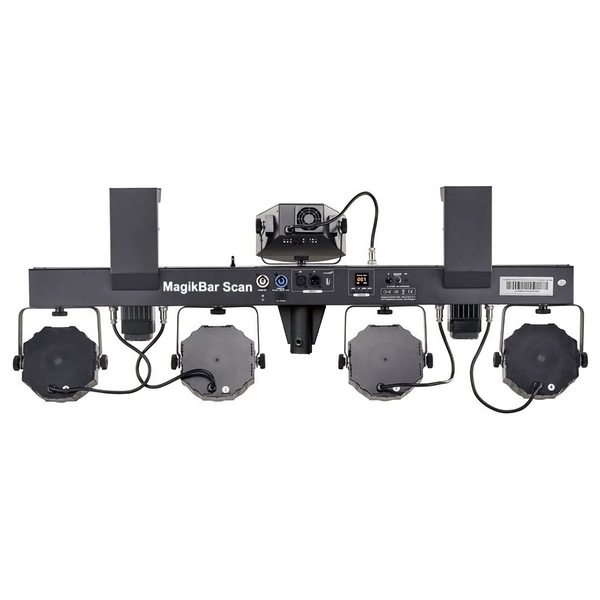

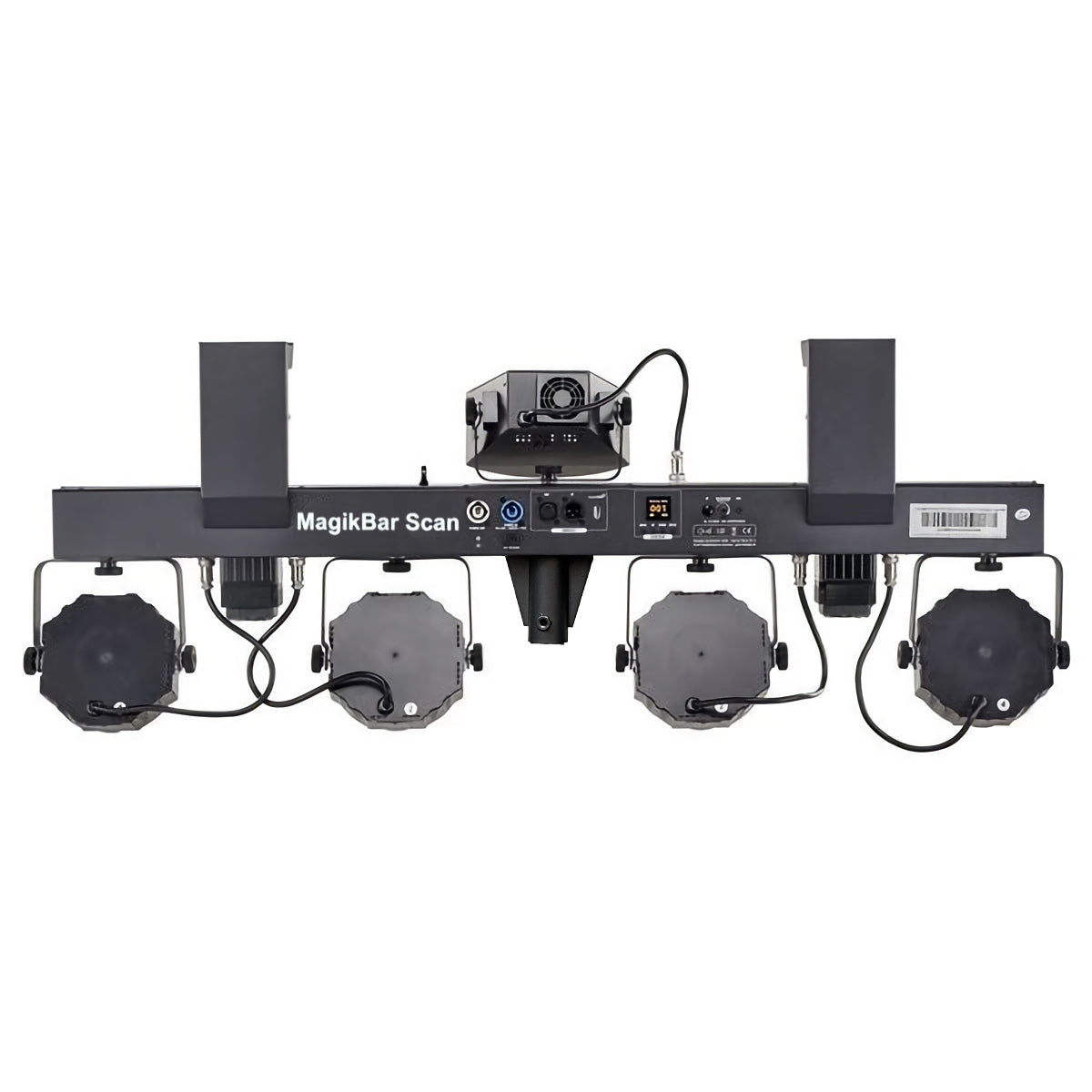

- Power connection: Mains input via P-Con (blue), with mounting version power supply cord featuring a safety plug (included)
- Power output: P-Con (gray), with mounting version
- Fuse: Replaceable 5 x 20 mm, T 2 A fuse
- Lamp type: LED lamp
- Features: Color wheel; gobo wheel with static gobos
- DMX channels: 3, 7, 13, 14, 15, 18, 19, 30, 32, 39
- Cooling: Cooling fan
- Control options:
- DMX; IR remote control; Sound to light; stand-alone;Master/slave function; Optional wireless footswitch
- Beam angle: 15°
- Peak beam angle: Spot 15° (1/2 peak), Spot 28° (1/10 peak)
- Illuminance in lux (lx):
- Red (R) 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx;
- Green (G) 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx;
- Blue (B) 1m: 395 lx, 3m: 47 lx, 6m: 13 lx;
- Warm white (WW) 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx;
- All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx
- Housing color: Black
- Display type: OLED display
- Dimensions: Width: 1.1m, Depth: 15.5cm, Height: 43cm
- Weight: 19.60kg
- Spotlight: Spot each with 3 x 7 W high-power 4in1 QCL RGB/WW
- Light effect: Multi-beam effect each with 2 x 3 W R/G/B

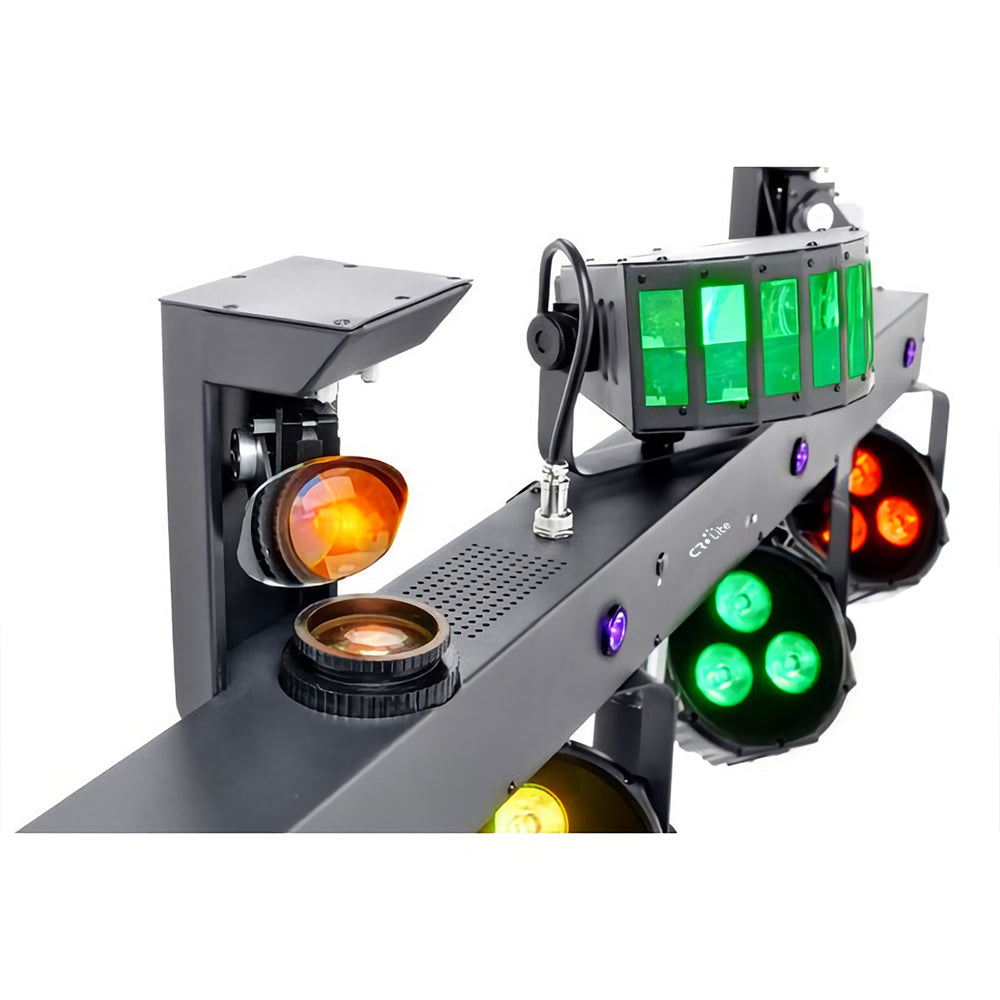

- Moving light: Scanner each with 1 x 15 W cold white (CW)
- Bar: 4 x 1 W high-power ultra-violet (UV)
