- 【1 Key For Multiple Locks & Android IOS NFC Unlock】Program the key into several locks as you want and test it before installation. You can use 1 key (RFID card/fob) to unlock several cabinet locks without touch. (Frequency 13.56mhz)【NFC Setup】For iOS, you need to hold an existing transit card or bank card, the card needs to be configured successfully, and add this card to IPhone Wallet. For Android, copy your rfid key to your smartphone's wallet via NFC fucntion.
- 【Low Power Alarm Auto-unlock】Low-battery status with a long beep after being opened, the lock can be used approximately 15 times. When the battery is too low, the lock will automatically open, replaced the battery before it can be used again.The battery usually lasts 18 months.

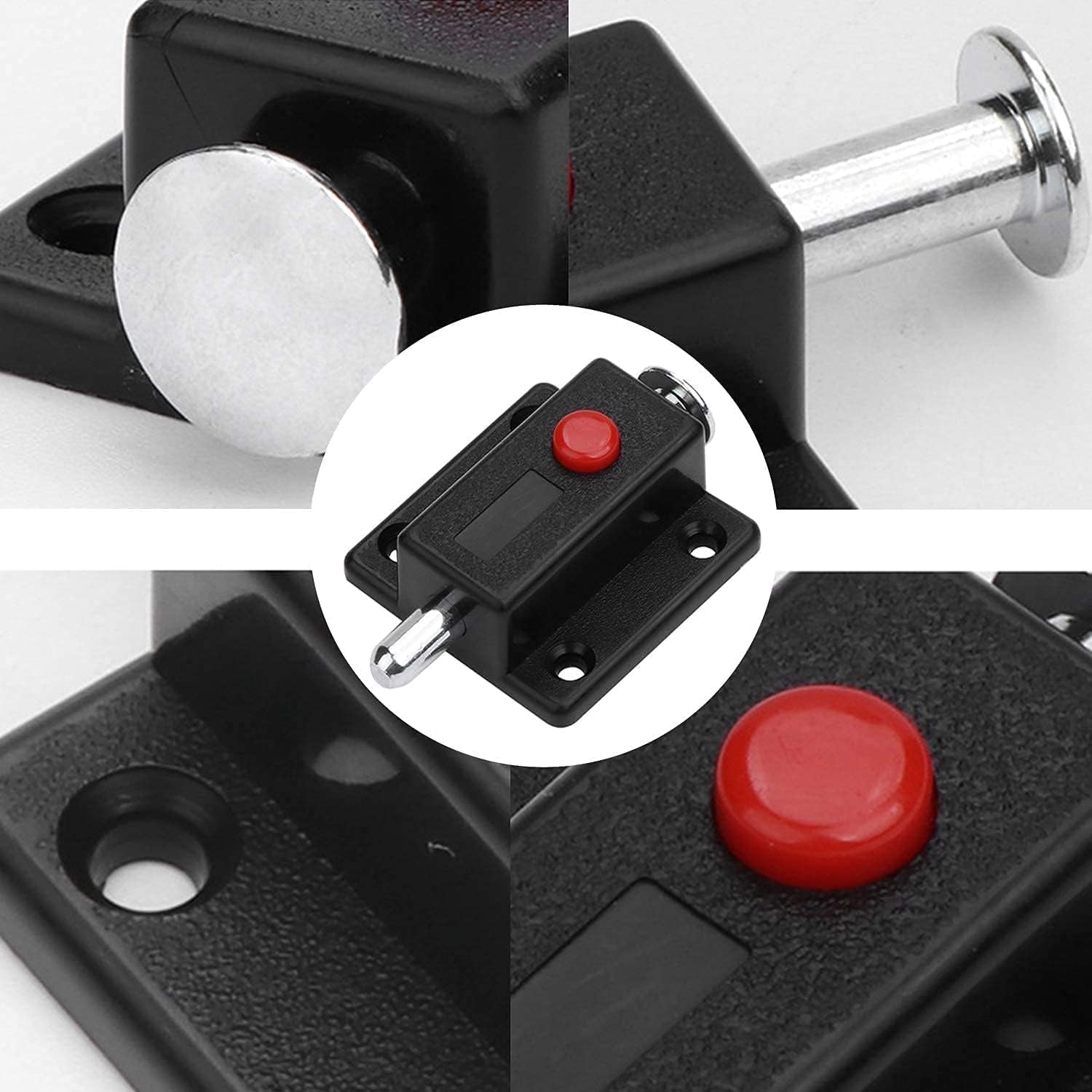

- 【Work on Single/Double Door Cabinet for Double Protection 】Cabinet locks can not only work perfectly on single door cabinet but also on double door cabinet with our barrel bolt latch. Press the button to unlock, non-touch to unlock, to prevent accidental touch unlock, improve operational safety.
- 【Rfid Sensing Thickness 1.5 in】The latch are made by top grade metal, whose locking mechanism are sturdy enough for all kinds of drawers and cabinets. The rfid cards can serve wood cabinet less than 1.5" thickness, and RFID tags can transmit through wood up to 1.2" thickness. The lock fit for the doors less than 1.2" thickness, ideal for gun boxes, medical carts, data racks and safes etc. Not suitable for metal doors.
- 【Hidden Sturdy Lock】No need to drill holes, No damage to your cabinet. Package：1 x Rfid lock, 1 x Latch, 2 x Rfid card, 1 x Slide Latch, 1 x Tag, 1x Screw set, 1 x USB cable, 1x Induction label and User manual.
Product Description
- Note: For iOS, you need to hold an existing transit card or bank card, the card needs to be configured successfully, and add this card to IPhone Wallet.
Pre-Installation Preparation(IOS)
1. need an existing transportation card or bank card X1
2. an Iphone with wallet function X 1
3. electronic lock with AAA battery X 1
Add an existing transportation card or bank card
1. Install the battery, then use the included screwdriver to insert it into the hole of the reset button (it can be reset when you hear the sound of Di).
2. Hold the traffic card or bank card near the induction area of the lock until you hear a short sound (successful configuration).
3. Open your IPhone wallet and add this existing card scan to your phone
Input NFC Signal
1. Re-open the wallet and click Use Card.
2. After the electronic lock is unlocked, enter the mobile phone card information and confirm the input with two beeps.
Package includes:
- 1 x Drawer Lock
- 1 x Latch
- 1 x Slide Latch Lock
- 1x USB Cable
- 1 x RFID Tag/Fob
- 2 x RFID Card
- 1 x Screw set
- 1 x Location Icon
CODACE Smart RFID Lock for Cabinet Drawer
- Verification Method: Mifare /IC Card /13.56MHz

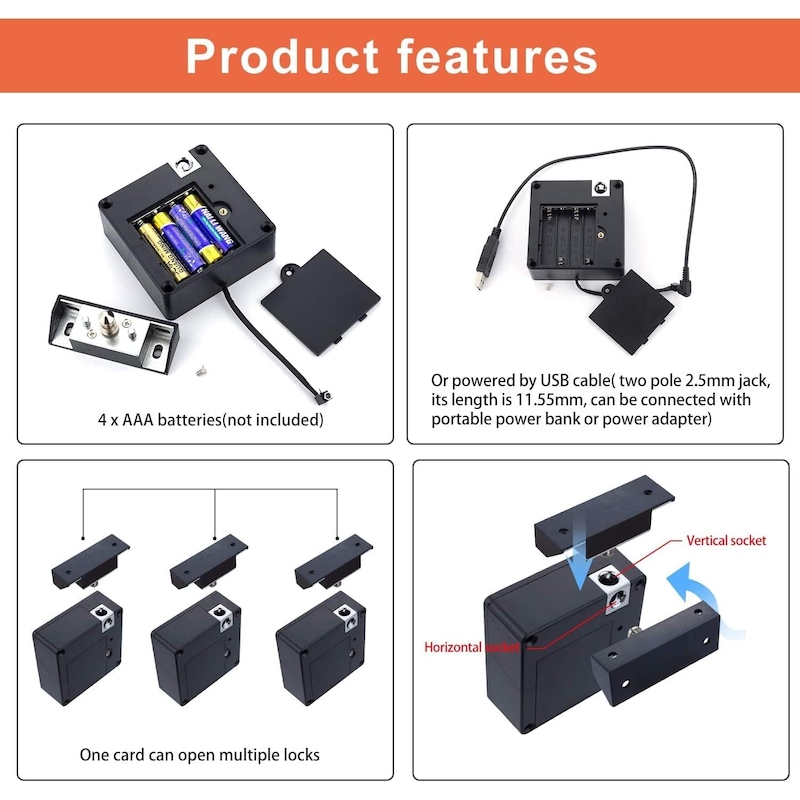

- Power Supply: 4*AAA Batteries（Not Included !!!）or USB powered
- Low battery alarm: Voltage less than 10% Pin Length: 16mm
- Bolt Plate Dimensions: (L*W*H) 70*24*16mm
- Lock Dimensions: (L*W*H) 75*75*30mm
- Holding force: More than 170kg
- Installtion way: Side or top Sureface mounting
- Emergency power supply port: USB
- Weight: 0.27kg
|
|
|
|
|
|
Reading Distance up tp 50mm
|
Installed vertically or horizontally
|
One card open multiple locks(vedio display)
|
Strong locking for double door cabinet
|
QA about Lock:
- What is the rfid lock made of ?
——Stainless steel latch and ABS plastic lock body, durable and anti-corrosion
- What specific rfid cards does this locker require?
——M1 13.56MHz Card
- What is the wire cable sticking out the box used for?
——The cable is external power supply for emergency. When installing the cabinet lock, you could leave the cable outside for emergency to get power( the other way is powered by 4pcs AAA batteries)
QA about Application:
- Will this electronic drawer lock serve for door?
——Please be noted: this rfid lock is not for door, but ONLY used for wooden cabinet door / drawer / lockers / pantry / cupboard etc
- Where can i install this rfid lock?
——This is a mini intelligent cabinet lock, which can be installed in the lockers or drawers for home, gym, supermarket, school, etc.
QA about Operation:
- How can i install this cabinet lock rfid?
——This cabinet lock include the screws, you just use a screwdriver to secure the lock in the appropriate place of the cabinet. No Drilling. Easy to install.
- How to do all the locks with the same key?
——Please use the management card to sense the lock and then quickly sense the key. Use the same way to set another lock.
Case You May have:
- How to open my drawer if the rfid hidden drawer lock has been installed to use for a month then it suddenly stopped working?
——Attention: Do not swipe the management card 9 times continuously, it will turn off the low-power unlock function
- Can't get them to work only on 2.5 mini jack / usb with 5v. only battery option works. am i doing something wrong?
——You can use two pole 2.5 jack, length is 11.55mm. If you can't get this jack, you can cut off the cable, and connect directly without jack. But please make sure connect cathode&anode correctly. And when you use USB to power, please take out batteries.
- What happens if the batteries go dead while it is locked?
——It will unlock automatically shortly before the batteries go dead. And there will be warming beep to remind you while it is in lower power status.
- Can use only a power adapter and no batteries?
——Yes, it's not problem, but it should be 5VDC. If you want 5V DC instead of 4xAAA batteries, the lock maybe have lower power alert. You can't input 4xAAA batteries and connect 5V DC for long time, the lock will break.
