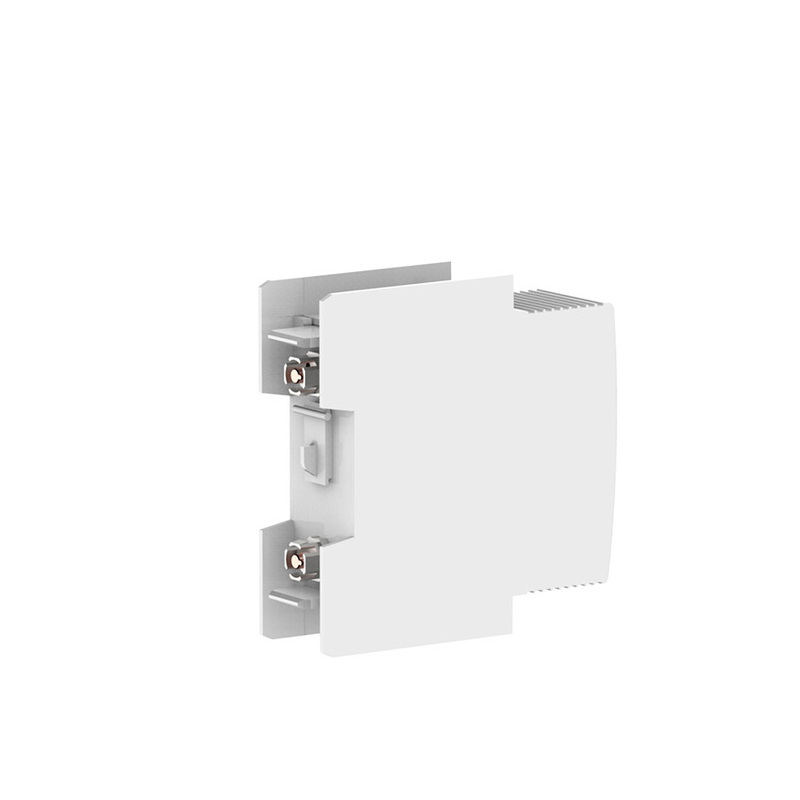

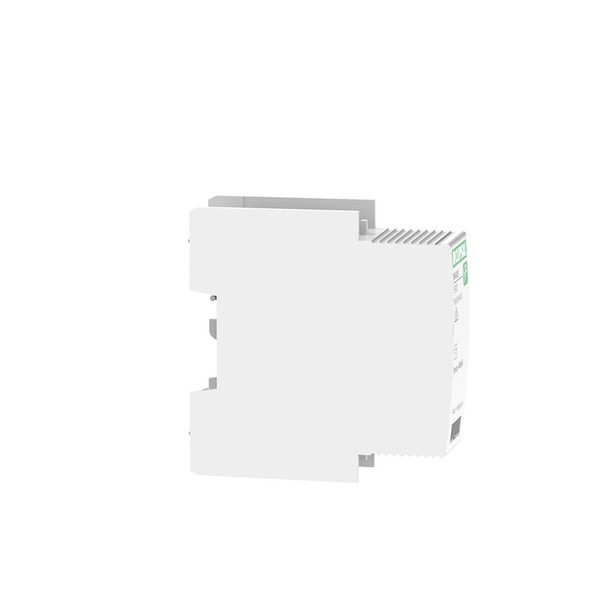

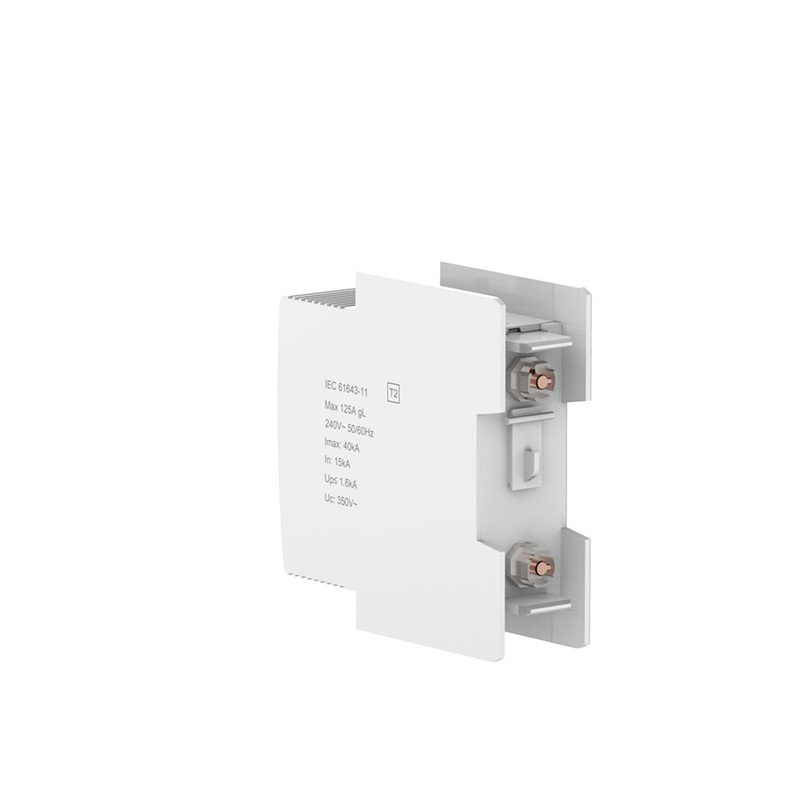

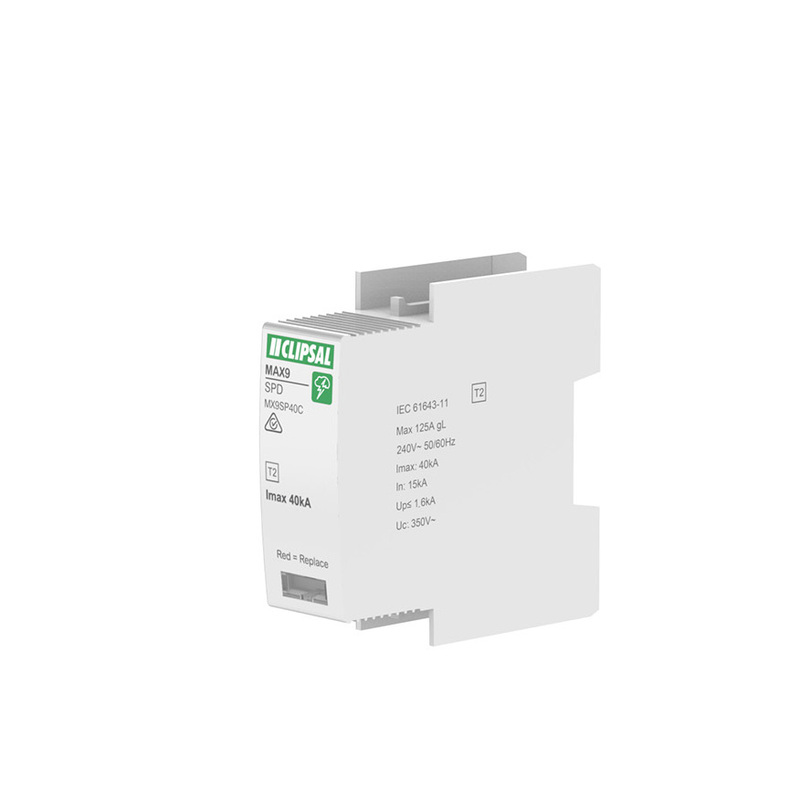

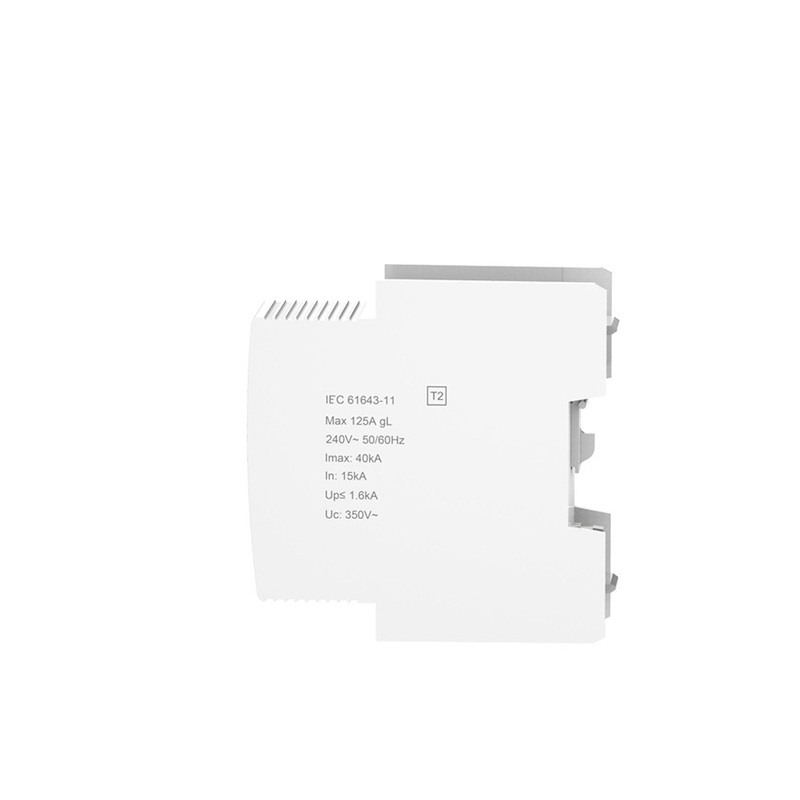

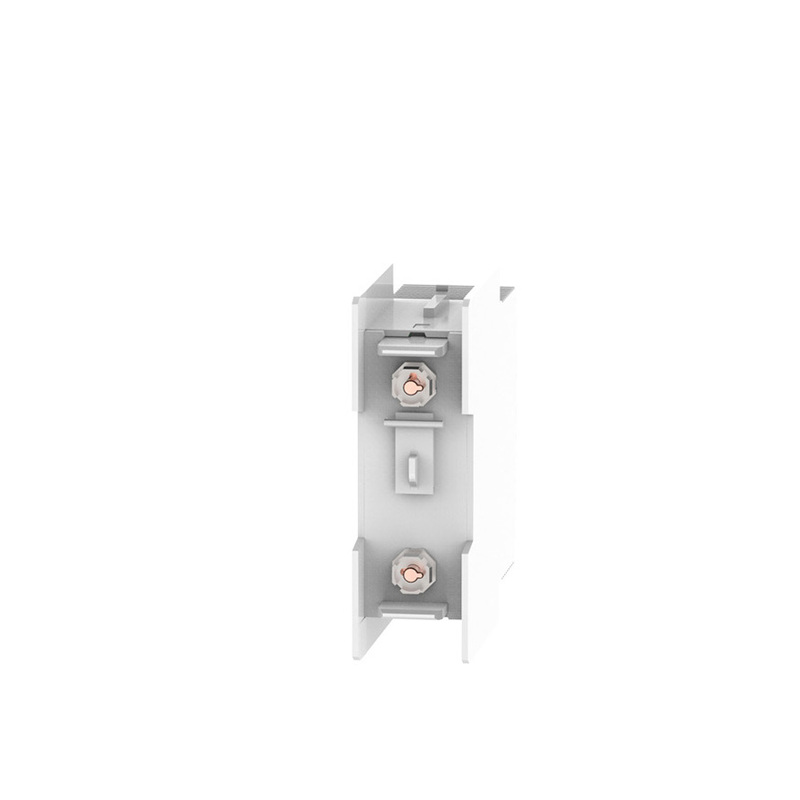

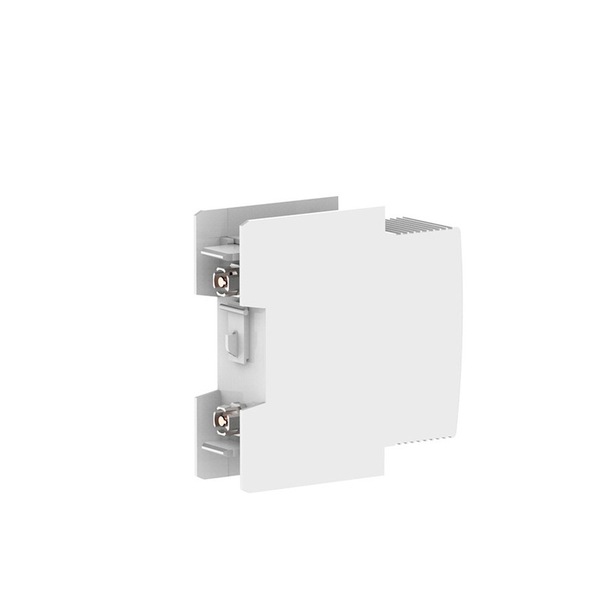

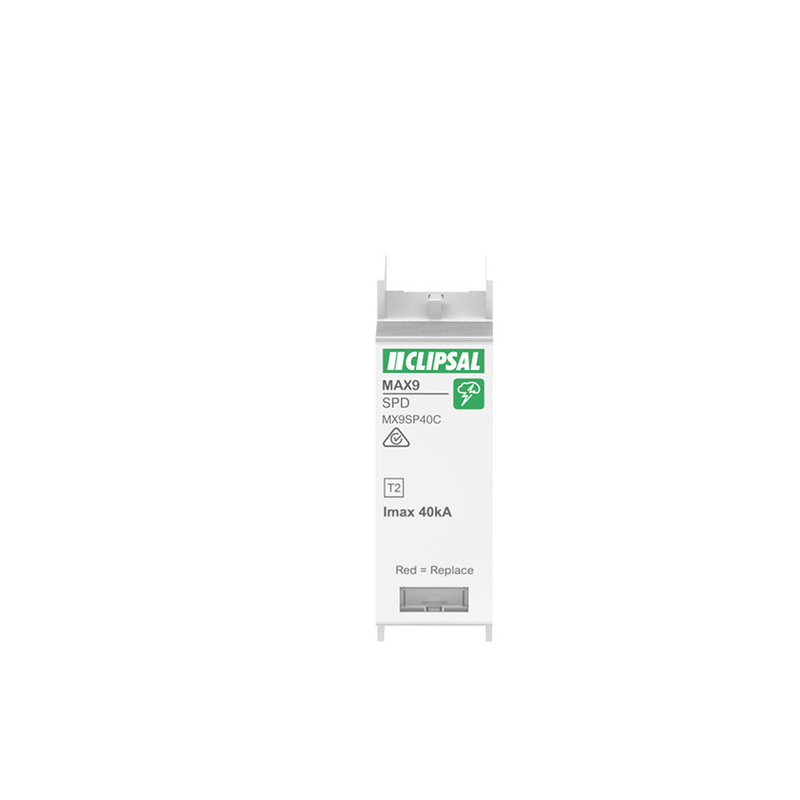

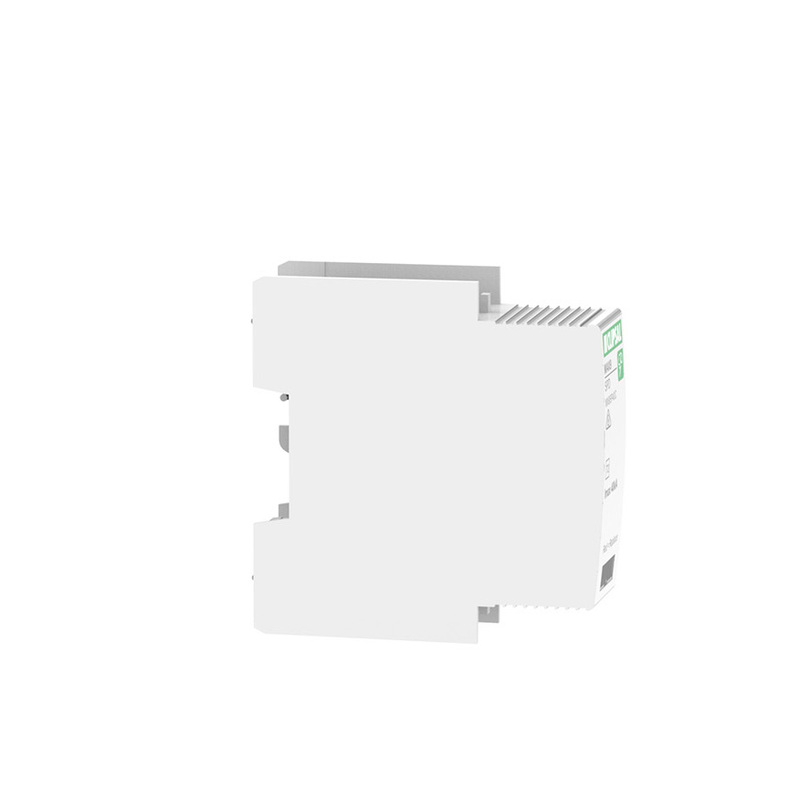

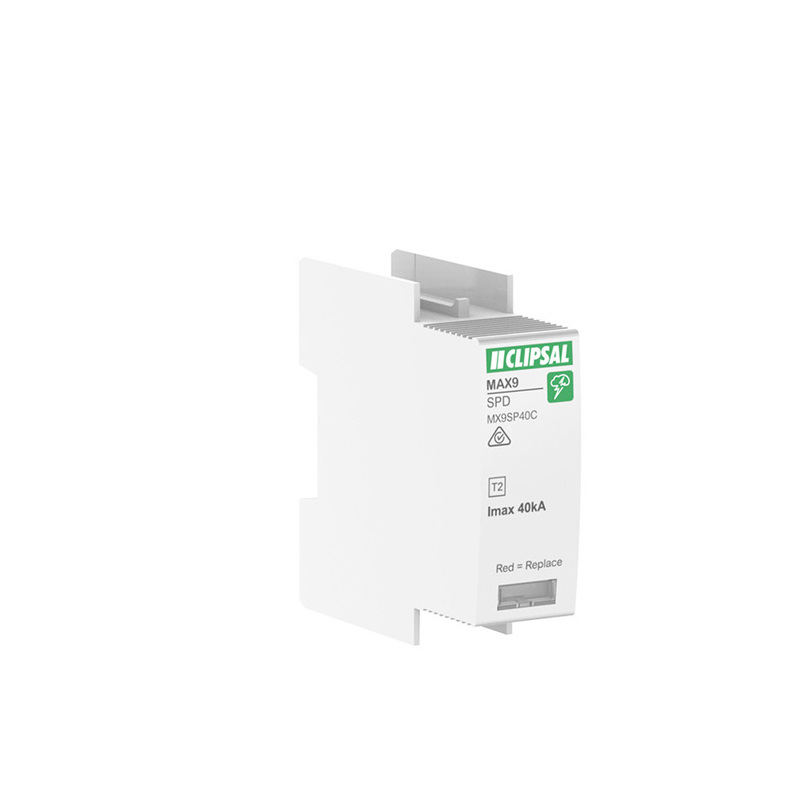

Clipsal MX9SP40C - MAX9 SPD 1P 40kA Cartridge

The Clipsal MX9SP40C MAX9 cartridge surge protection device is a modular surge arrester. It is a 1 Pole surge arrester.

Surge Protection Device – SPD

When lightning strikes, there are no second chances. The MAX9 range of surge protection devices won’t let you down. Modern Australian homes have an estimated $15,000 worth of electronics unprotected against voltage surges. From fridge to washer/dryer, smart appliances have a lot of electronic components inside them. Surge protection strips only offer limited protection to the devices connected to them. Items that are not compatible with plug strips such as washers, dryers, refrigerators, stoves, and lighting can be protected against voltage surges with a Surge Protective Device.

One device can help to protect the whole house from voltage spikes.

Features and benefits:

• The maximum discharge capacity of 40kA (8/20μs)
• Uniform terminal heights and modular size enable neat and efficient installation
• Cartridge replacement is quick and easy
• This MAX9 surge arrester is compatible with TN-C, TN-S and TT earthing systems.
• The maximum discharge current is 40kA.
• The nominal discharge current is 15kA.
• It ensures the protection of electronic devices against destruction by lightning.
• It is recommended in building supplied by overhead lines and protected.
• It is also recommended in buildings protected by a lightning arrester combined with a type 2 surge arrester.
• It has an RCM quality label.
• The Ue rated operational voltage is 240VAC +/-6%.
• The Up maximum voltage protection level is 1.6kV.
• The Uc maximum continuous operating voltage is 350VAC.
• The width in 9mm pitches is 2.
• The dimensions are (W) 18mm x (H) 85mm x (D) 64mm.
• The product colour is white (RAL9003).
• The product weight is 51g.
• According to IEC 60529 standard, the degree of protection is IP20 and IK03 conforms to IEC 62262 standard.
• The operating temperature is from -25øC to +70øC.
• The storage temperature is from -40øC to +85øC.
• This product complies with EN 61643-11 and IEC 61643-11 standards.
