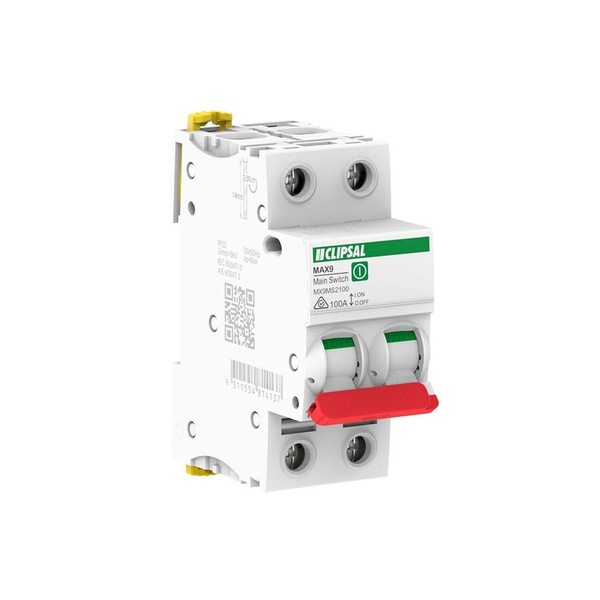

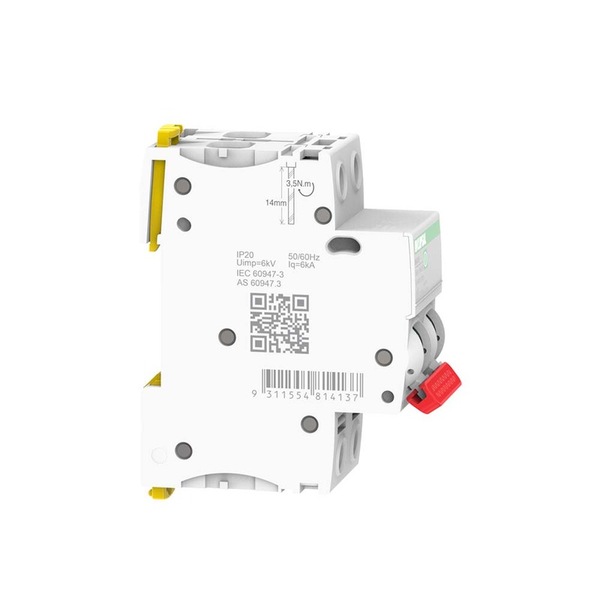

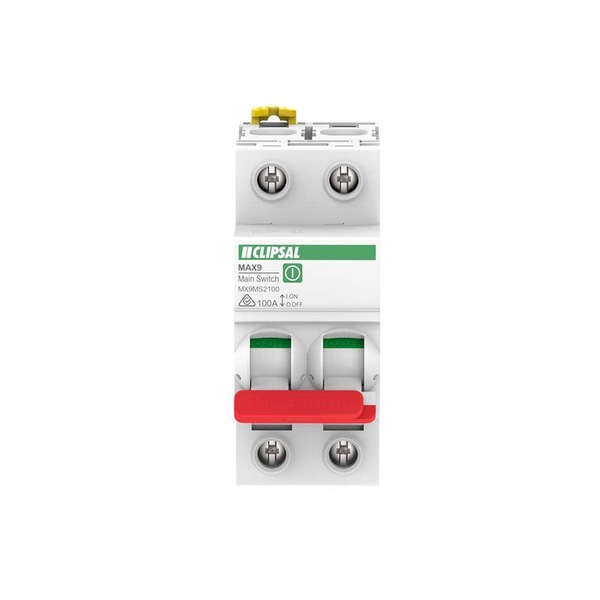

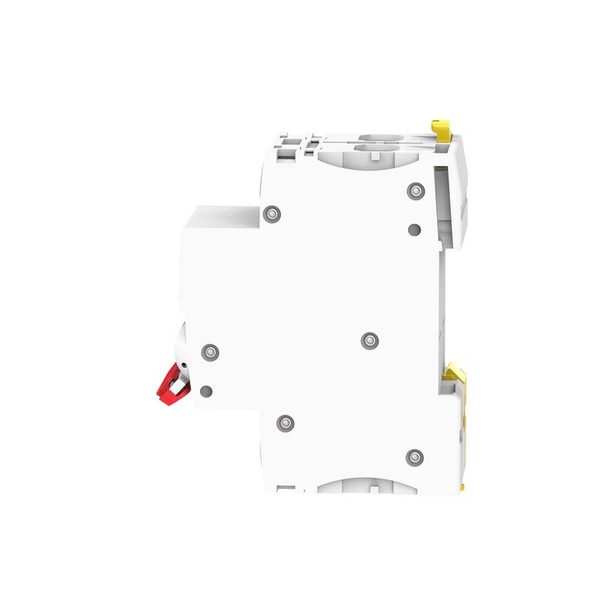

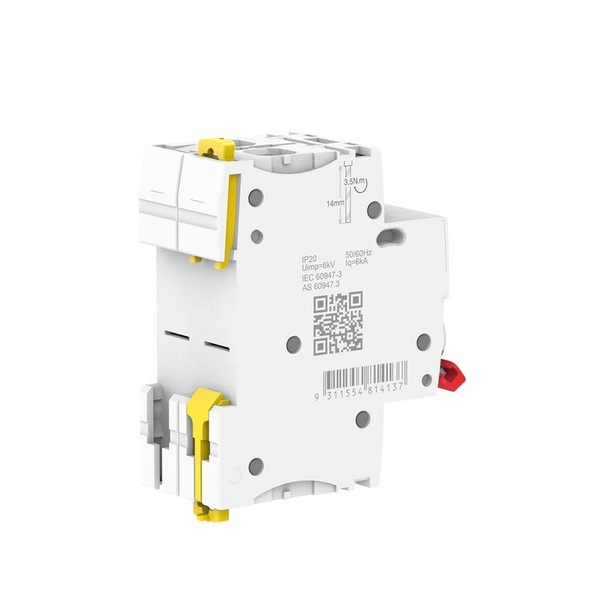

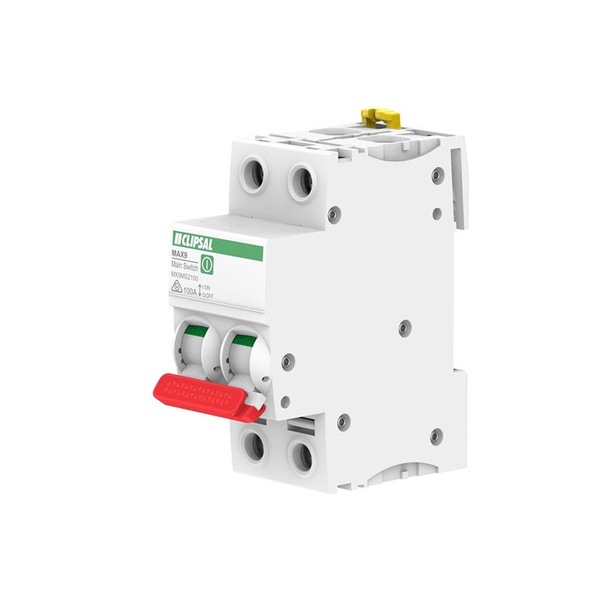

Clipsal MX9MS2100 - MAX9 Main Switch 2P 100A

The Clipsal MX9MS2100 MAX9 is a switch disconnector.
This switch disconnector is used for control (opening and closing of circuits under load).
This product is also used for the disconnection of on-load electrical circuits already protected against overload and short-circuits.

Main Switches

All Clipsal Main Switches incorporate high-quality internal mechanisms and come with a highly visible ON/OFF toggle, which allows for quick location when isolation of power is required in an emergency

• Cable automatically guided to the correct position: terminals with guard.
• Insulated terminals – IP20.
• Manual control on front face by O-I lever.
• The Green strip on the toggle indicates the full opening of the poles
• Compatible with MAXBAR
• Big terminal capacity with up to 35 mm2 flexible cable
• Installation flexibility with the choice of line connection either from top or bottom
• Compatible with multiple types of screw-drivers with combination head screws

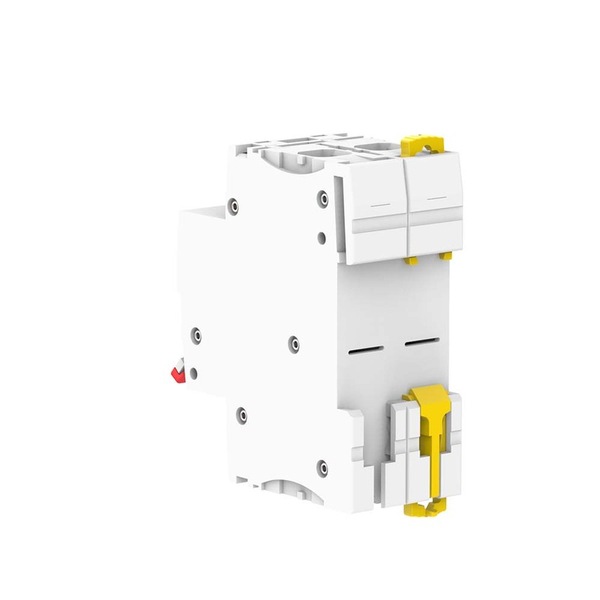

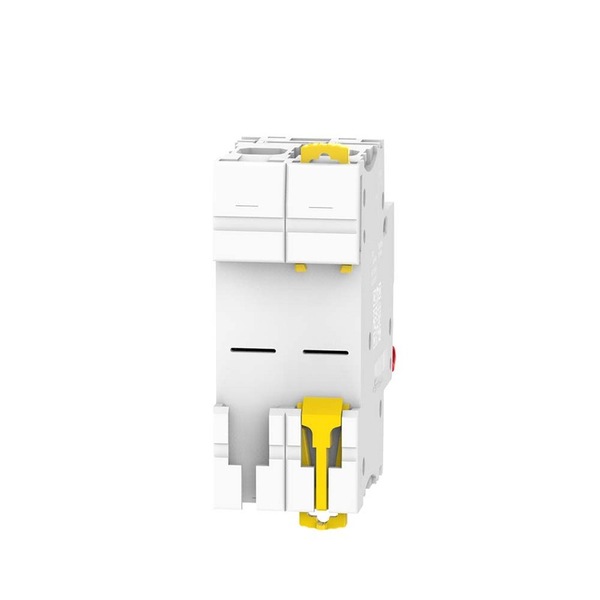

• Double locking clip for ease of installation or removal from busbar
• It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard.
• It is a 2P switch disconnector with 100A In rated current.
• The MAX9 is targeted to residential for individual and collective buildings.
• The Ue rated operational current 415VAC.
• It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
• The Ue operational voltage is 415VAC.
• The Ui rated insulation voltage is 500VAC.
• The operating frequency is 50Hz or 60Hz.
• It can be mounted on a DIN rail for modular installation.
• Its width is 4 pitches of 9mm.
• The product colour is white (RAL9003).
• The dimensions are (W) 36mm x (H) 85mm x (D) 75mm.
• According to IEC 60947-3 standard, the degree of protection is IP20 and IP40 in the enclosure.
• The operating temperature is -25-70 øC.
• The storage temperature is -40-70 øC.
