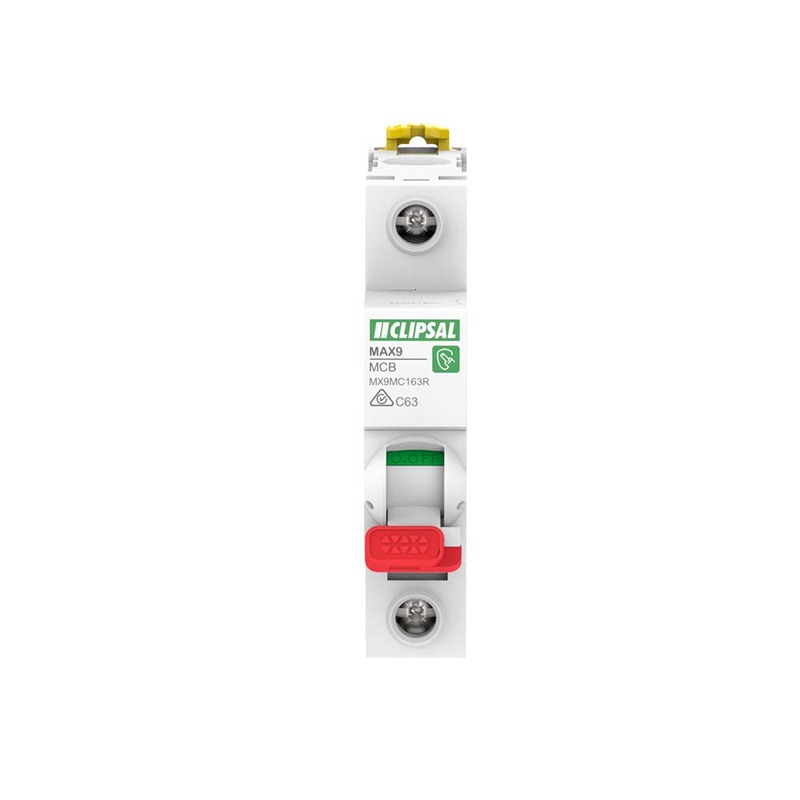

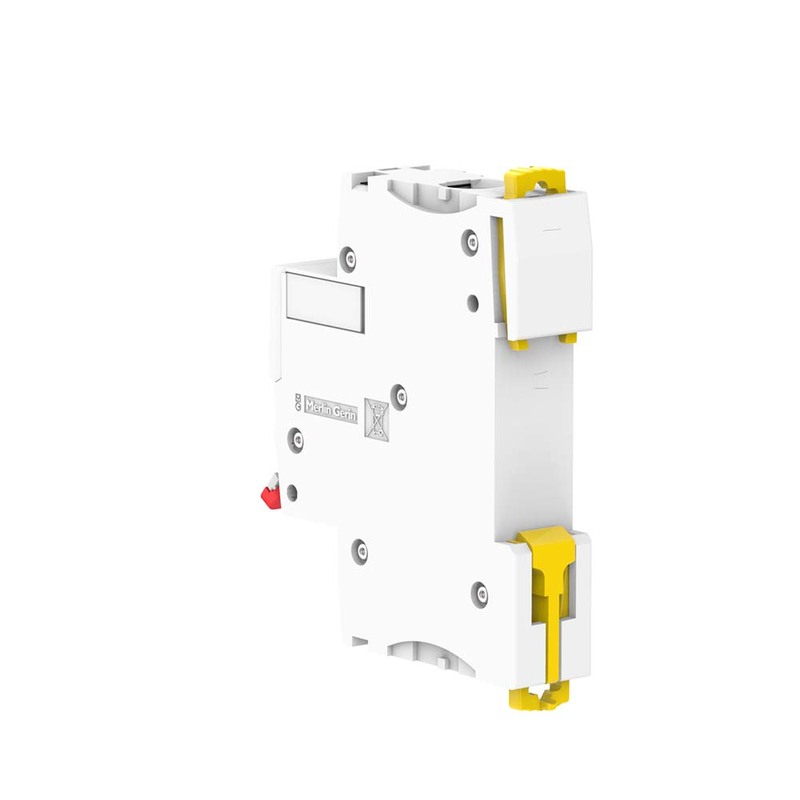

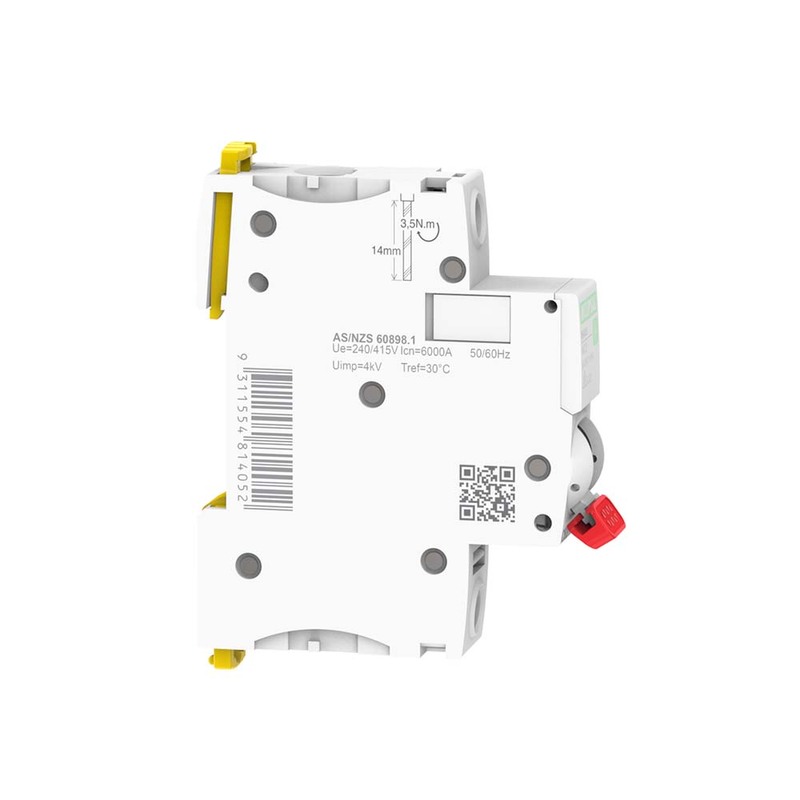

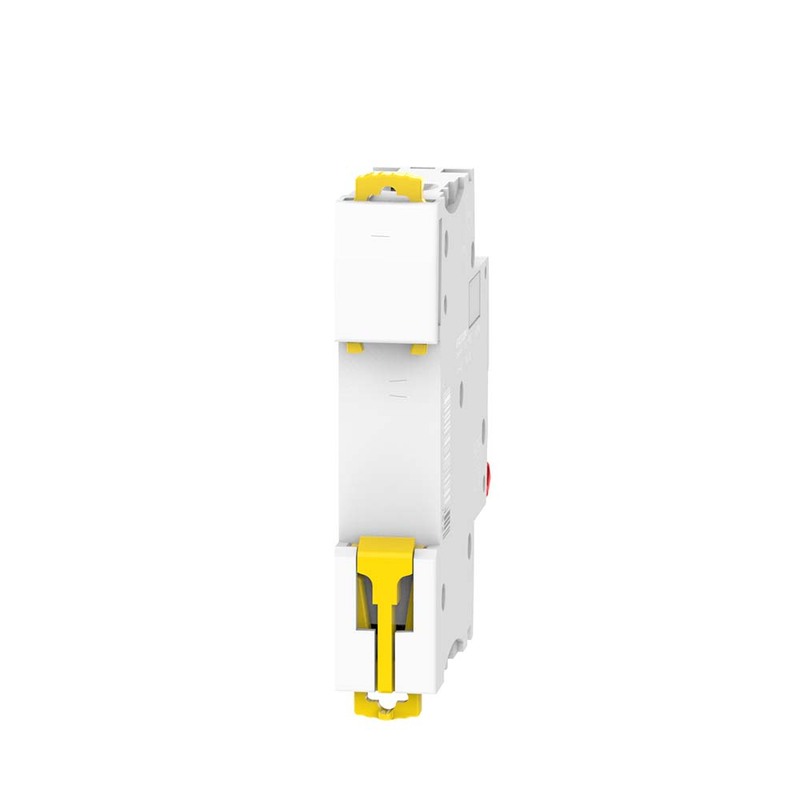

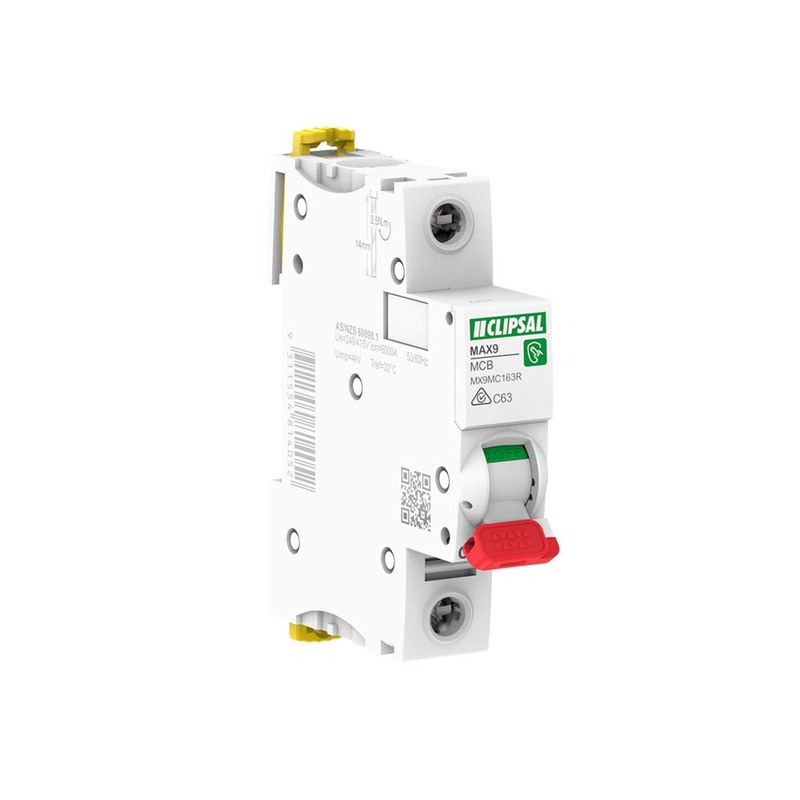

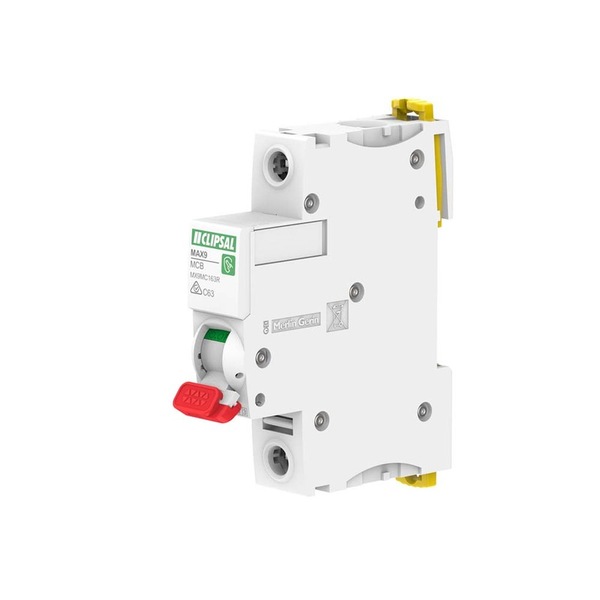

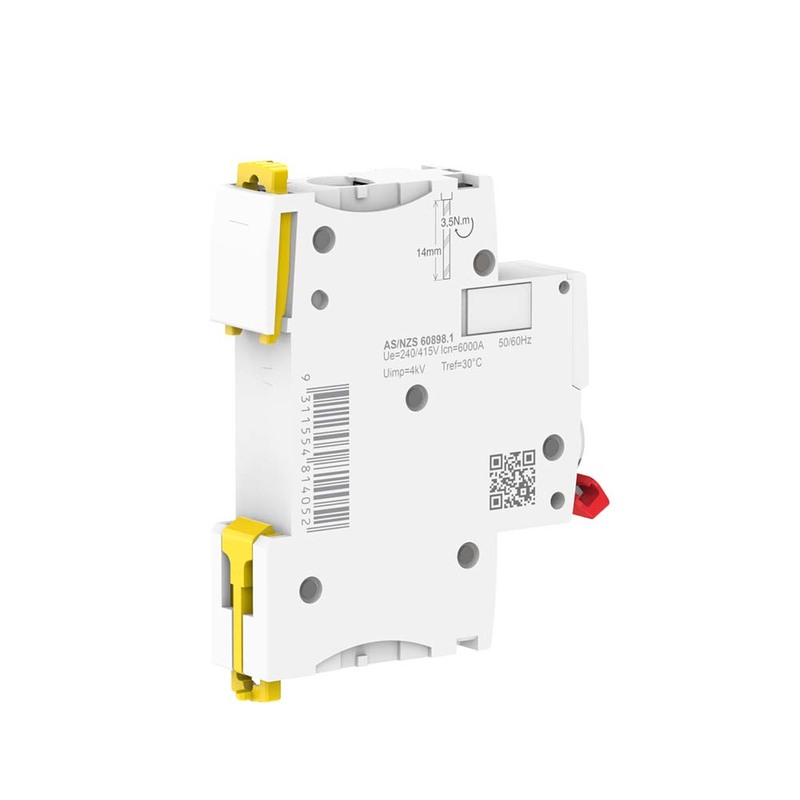

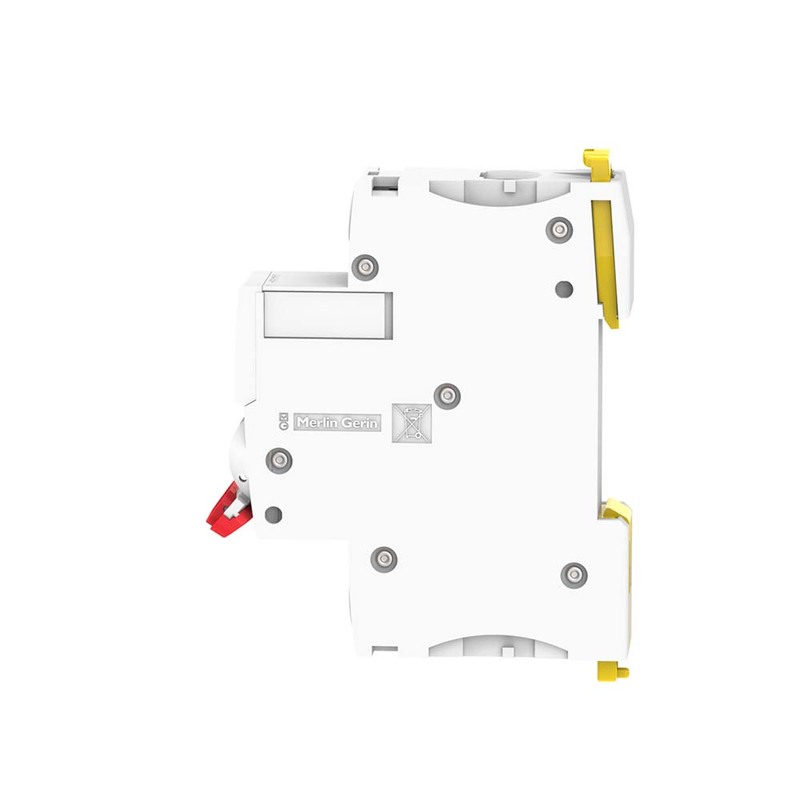

Clipsal MX9MC163R - 63A Single Pole Circuit Breaker 6kA - Red Handle - MAX9

The MAX9 Clipsal MX9MC163R product is a low voltage miniature circuit breaker (MCB).
The MX9MC163R is a 1P circuit breaker with 1 protected pole and 63A In rated current and C tripping curve.

Miniature Circuit Breakers

Features and benefits:

• Red Handle
• Unique new white finish for a fresh modern look.
• The standard characteristic is C-Curve suits most applications.
• Complete solution with 1, 2 & 3 pole versions.
• Compact standardised and consistent module dimensions.
• Lift-up terminals. ‘No hot spot’ terminations and all cable strands are locked in.
• Combination head screws, choice of screwdrivers.
• MCB mechanism is free tripping and If the switch is held in the ON position, the MCB will still operate.
• Clipsal MCBs allow line or load cables to be connected at either top or bottom for greater installation flexibility
• The Icn rated short circuit breaking capacity is up to 6000A at 240/415VAC conforming to AS/NZS 60898 standard.
• This product is compliant with AS/NZS 60898 standard.
• This miniature circuit breaker protects the circuit against short circuits and overload currents.
• The MAX9 is targeted to residential for individual and collective buildings.
• It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
• The Ue operational voltage is 240/415VAC.
• The Ui rated insulation voltage is 500VAC.
• The operating frequency is 50Hz or 60Hz.
• It can be mounted on a DIN rail for modular installation.
• Its width is 2 pitches of 9mm.
• The product colour is white (RAL9003).
• The dimensions are (W) 18mm x (H) 85mm x (D) 75mm.
• According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in the enclosure.
• The operating temperature is -25-70 øC.
• The storage temperature is -40-85 øC.
