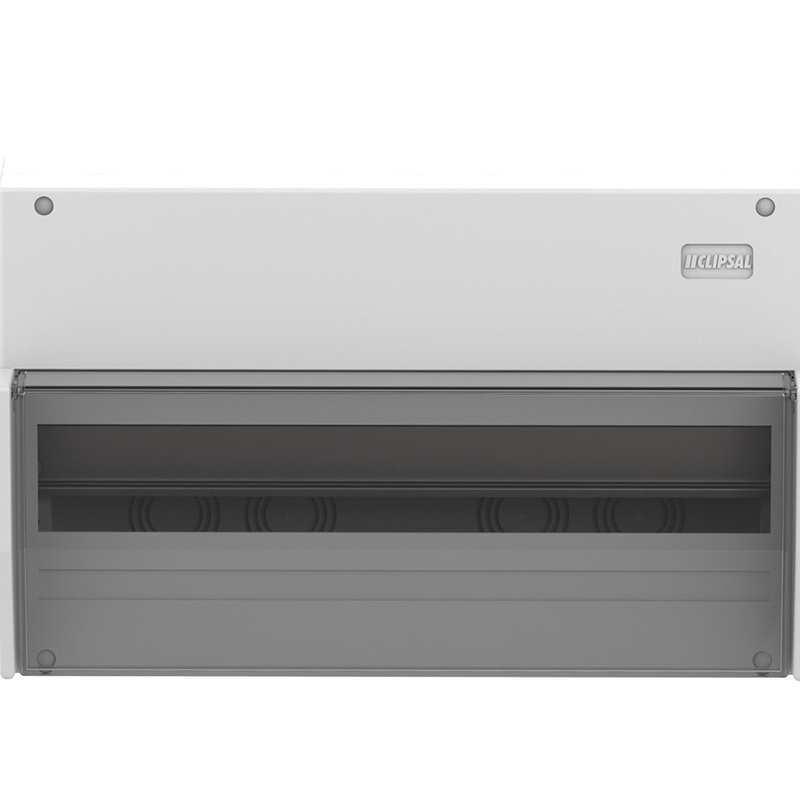

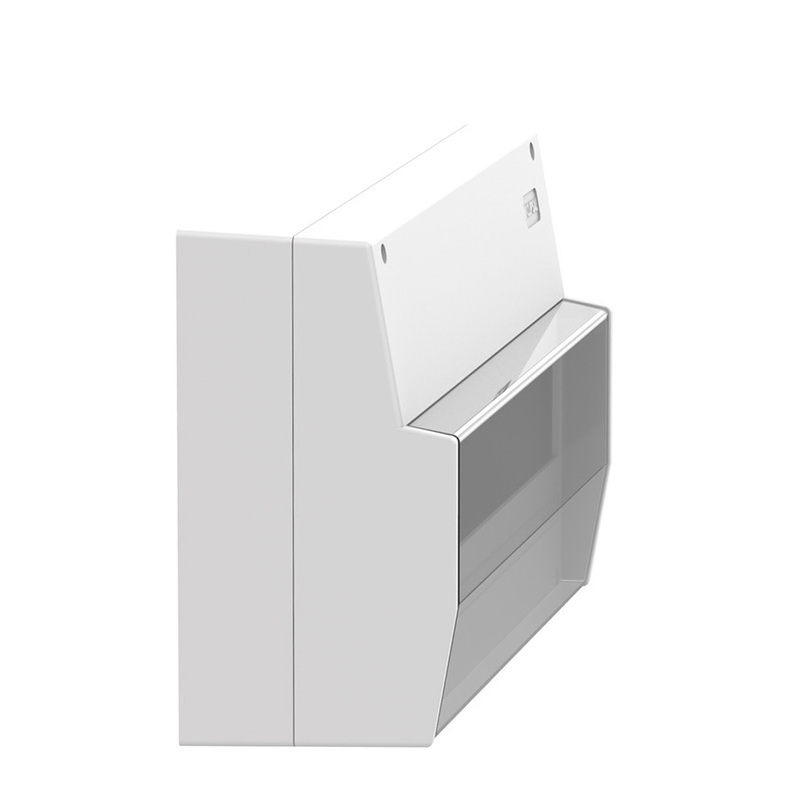

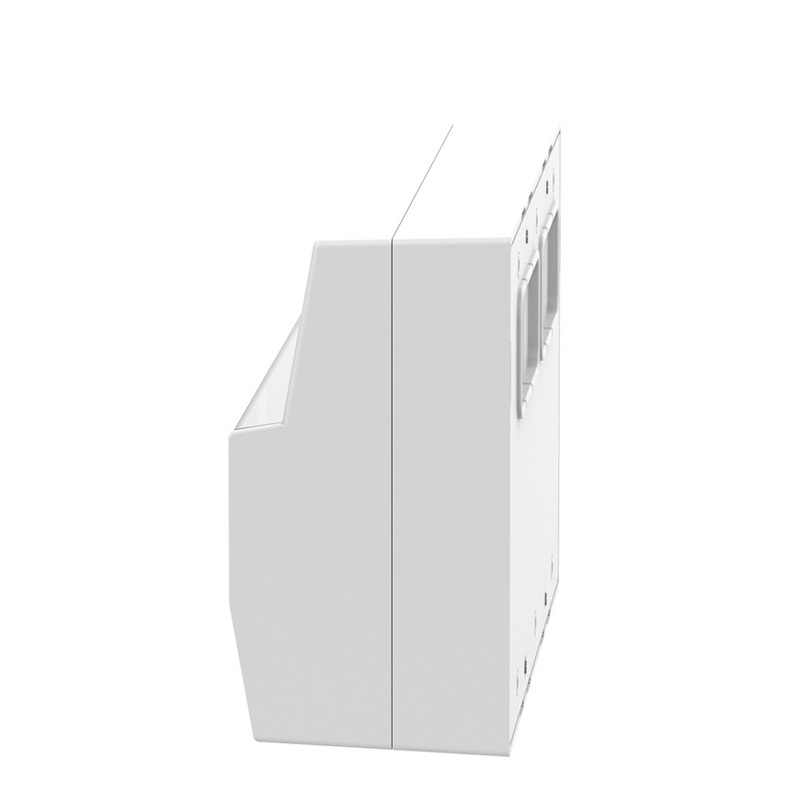

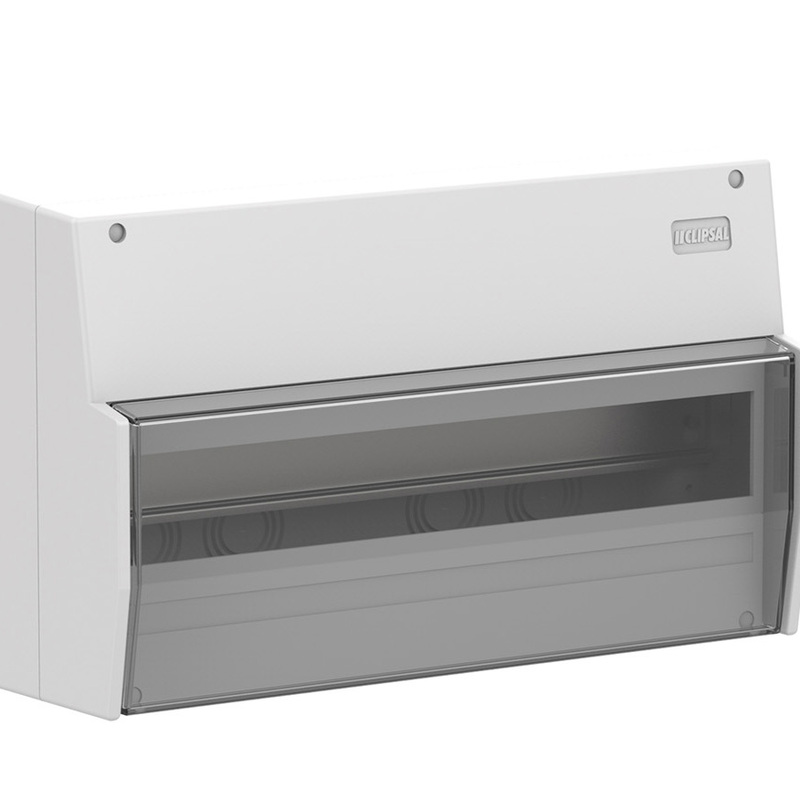

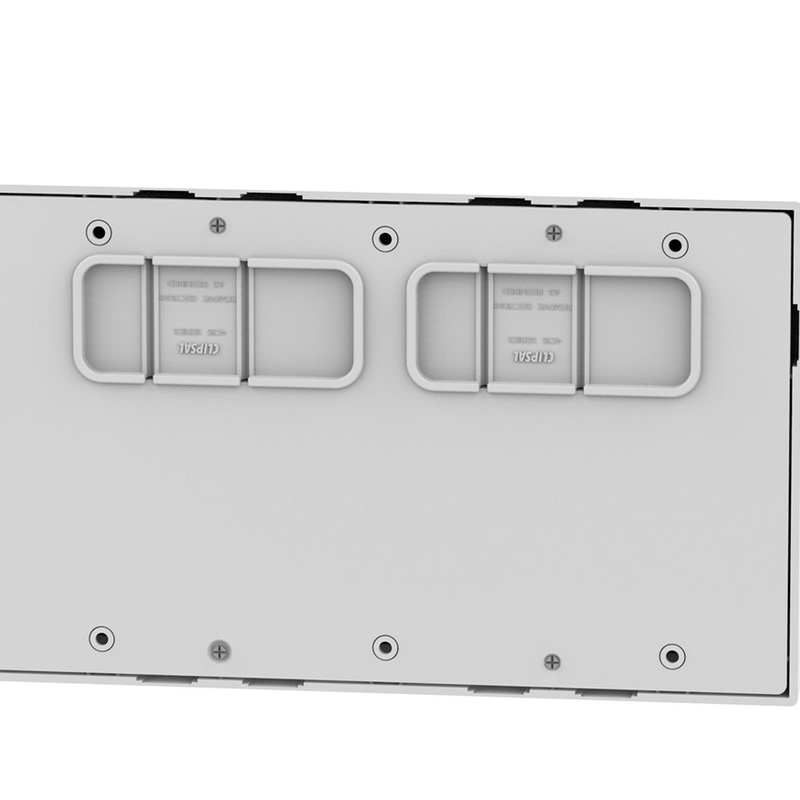

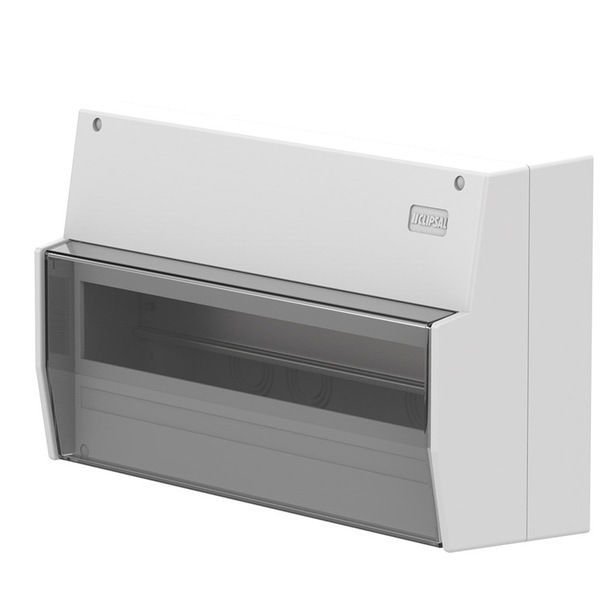

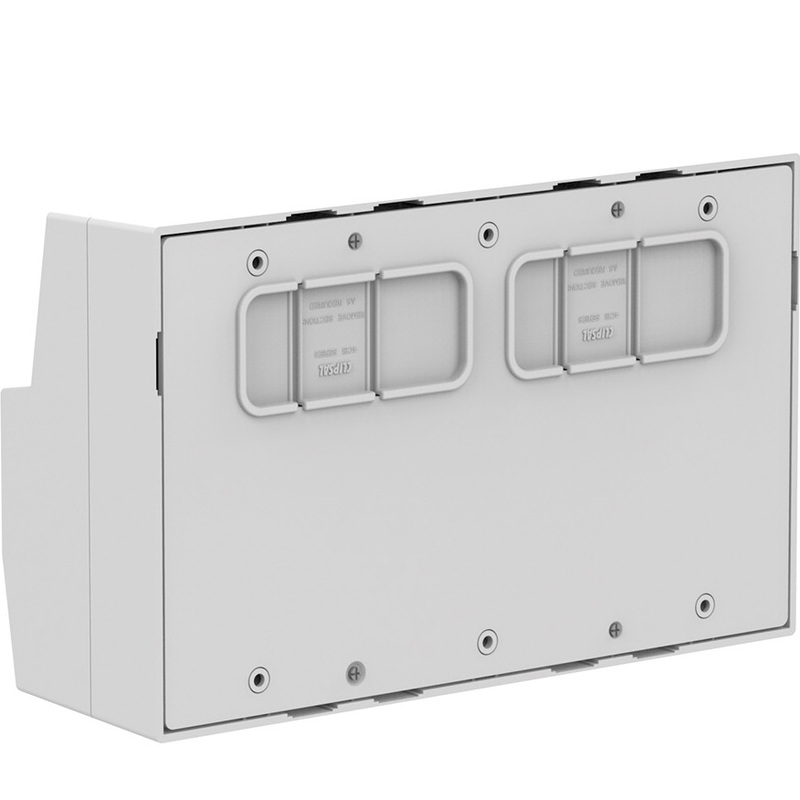

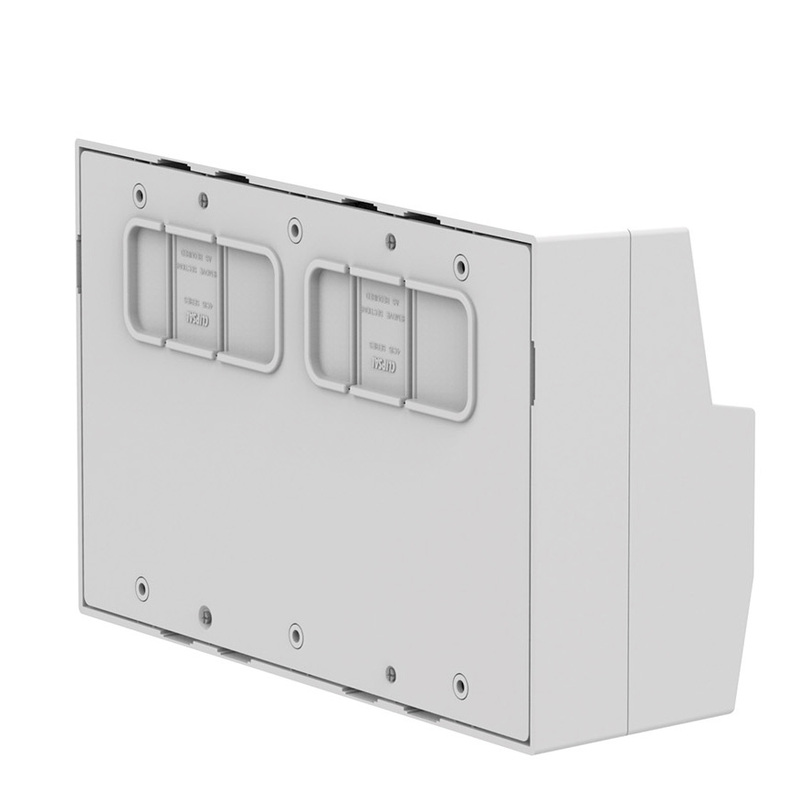

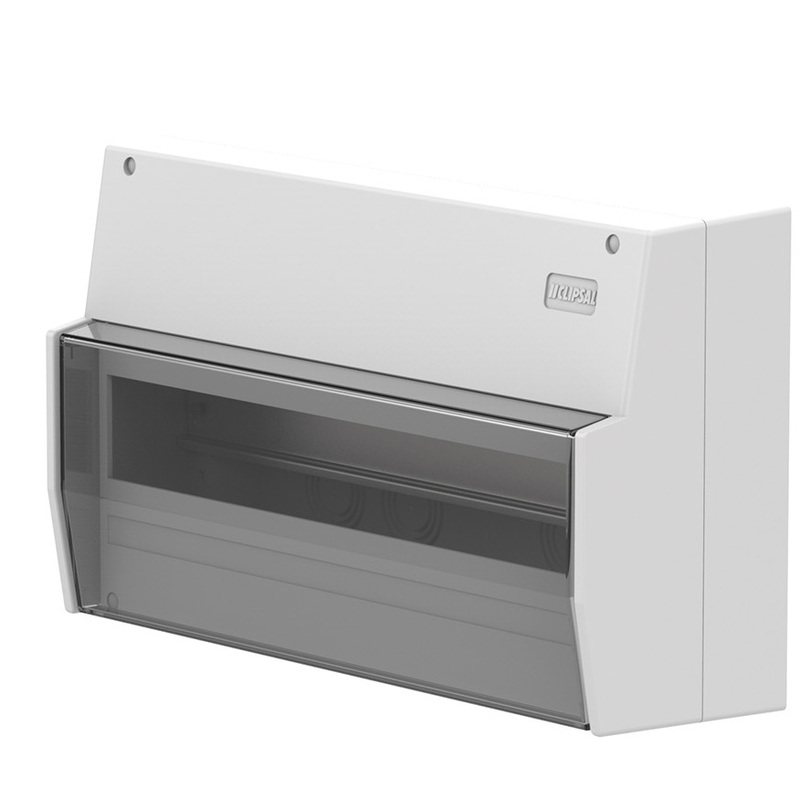

Clipsal MX9E1117S - MAX9 Enclosure 1 row 17 Mod Surface

Features:

• MAX9 switchboard enclosure is surface mounted.
• The rated current is 100A.
• This switchboard is composed of 1 row of 17 modules of 18mm (17 modules total).
• It can accommodate all types of modular Clipsal devices. It has a tinted door lid
• The provided equipment is an earthing bar, neutral bar, circuit identification label and blanking plate.
• It is dedicated to the residential market.
• The Ue rated operational voltage is 230VAC or 415VAC.
• The Ui rated insulation voltage is 500V.
• Removable DIN rail helps organise the cables in position before mounting the devices
• Ample Earth and Neutral terminals to suit typical configurations and comply with MEN type system
• Multiple cable entry/exit knock-outs
• Extra wiring space with 135 mm Space between the DIN rails and sufficient space under the DIN rail
• The degree of protection is IP30 in an enclosure.
• This switchboard complies with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards.
• The switchboard colour is white electric (RAL9003)
• Width: 341mm
• Height: 210mm
• Depth: 113mm
