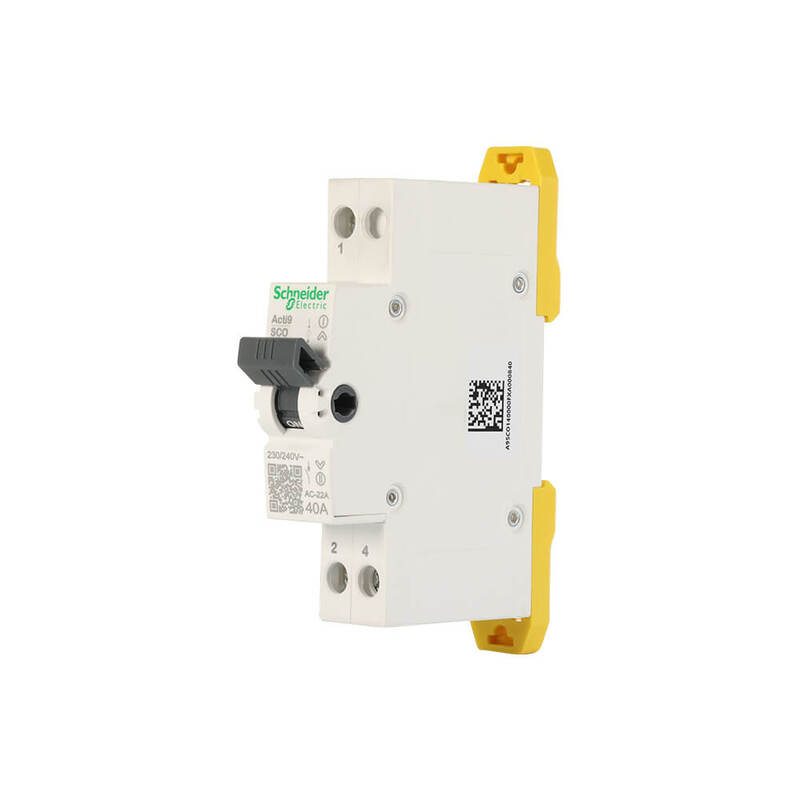

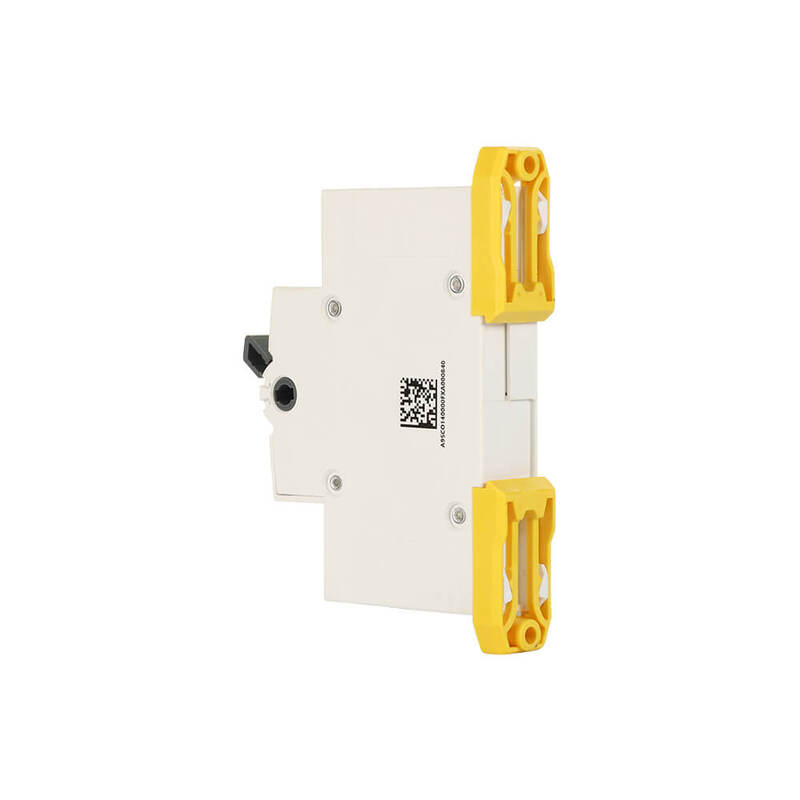

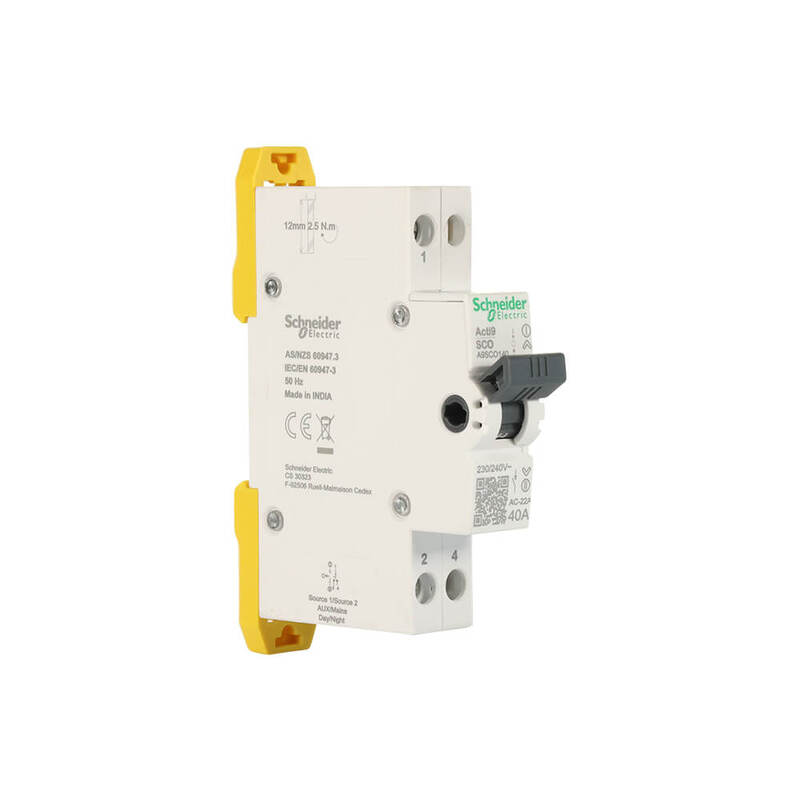

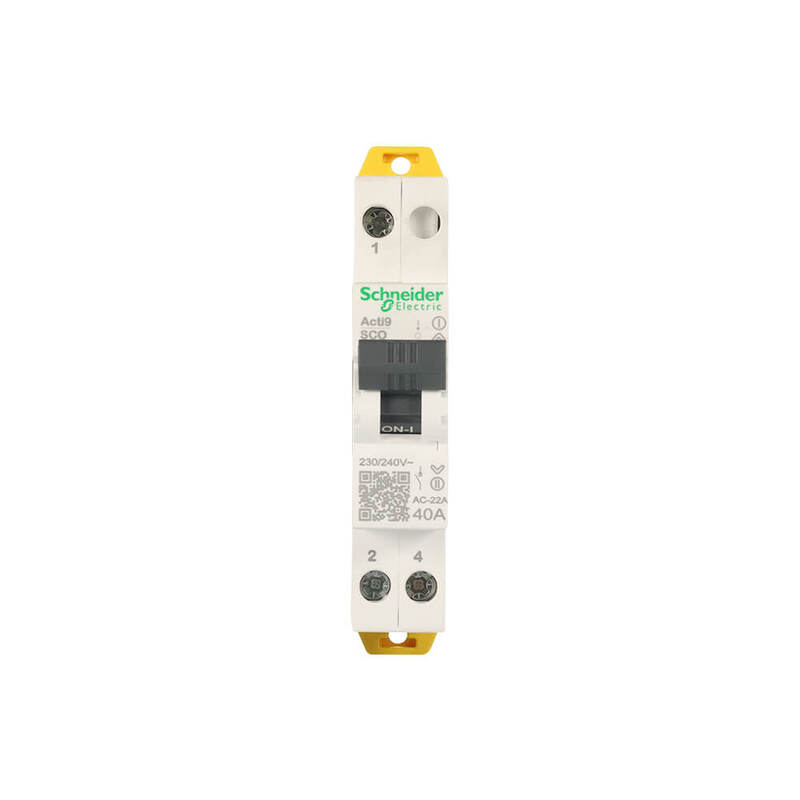

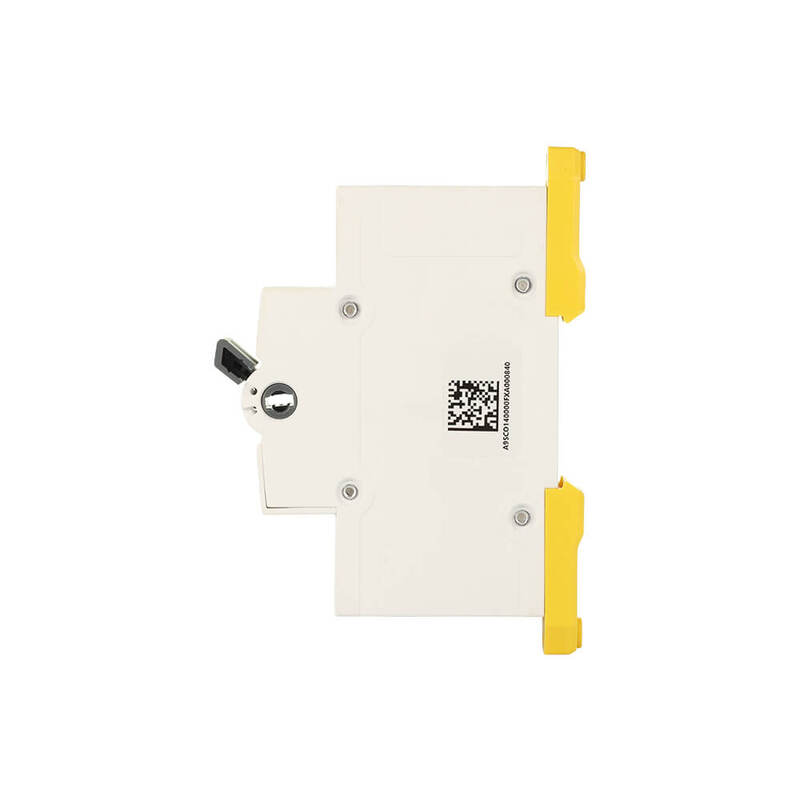

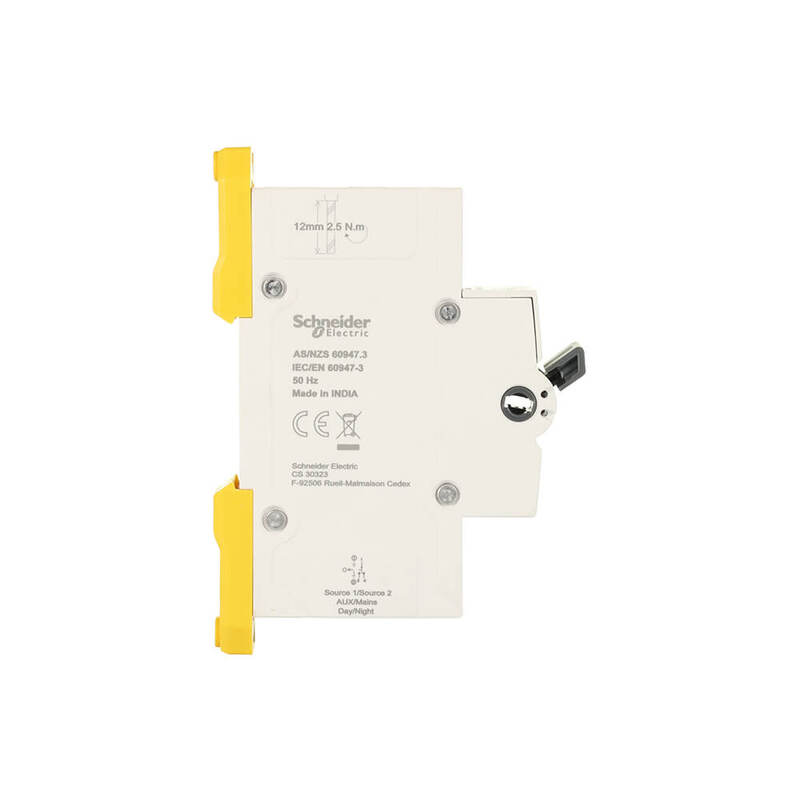

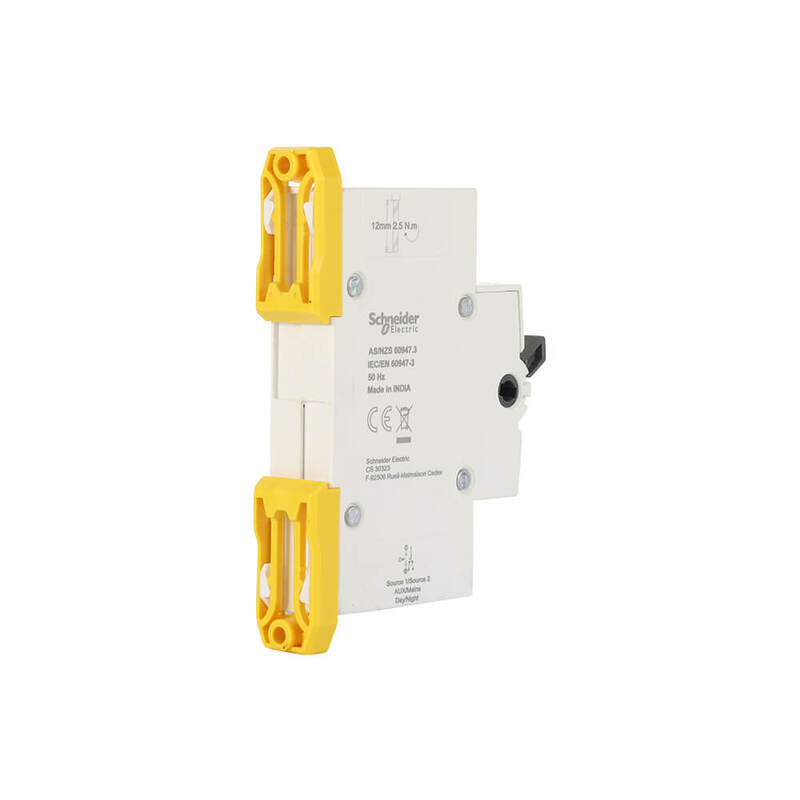

Schneider Electric A9SCO140 - 40A Changeover Switch Acti9 1P 240VAC

The Acti9 Changeover Switches provide the perfect solution to switch manually between two power supplies or circuits.

The Acti9 iSSW changeover switch is designed to change power supply sources efficiently.

This 1-pole switch has a rated operational current of 40A and operates at 230/240VAC.

The device is equipped with a toggle control and can be mounted vertically on a 35mm DIN rail.

It offers versatile connectivity with screw terminals supporting flexible and rigid wires. Suitable for both industrial and commercial applications, it ensures reliable performance with an electrical durability of 7000 cycles and mechanical durability of 10000 cycles.

• Knob Indicates the actual position of the contacts inside
• Provisions for padlock to prevent unauthorized access
• Conforms to IEC/EN 60947-3 and AS/NZS 60947.3
• Available in 3 positions (I-0-II) with Centre OFF position
• Utilization category AC-22 A
• Range: Acti9
• Rated operational current: 40A
• Rated operational voltage: 230/240VAC
• Control type: Toggle 3 positions

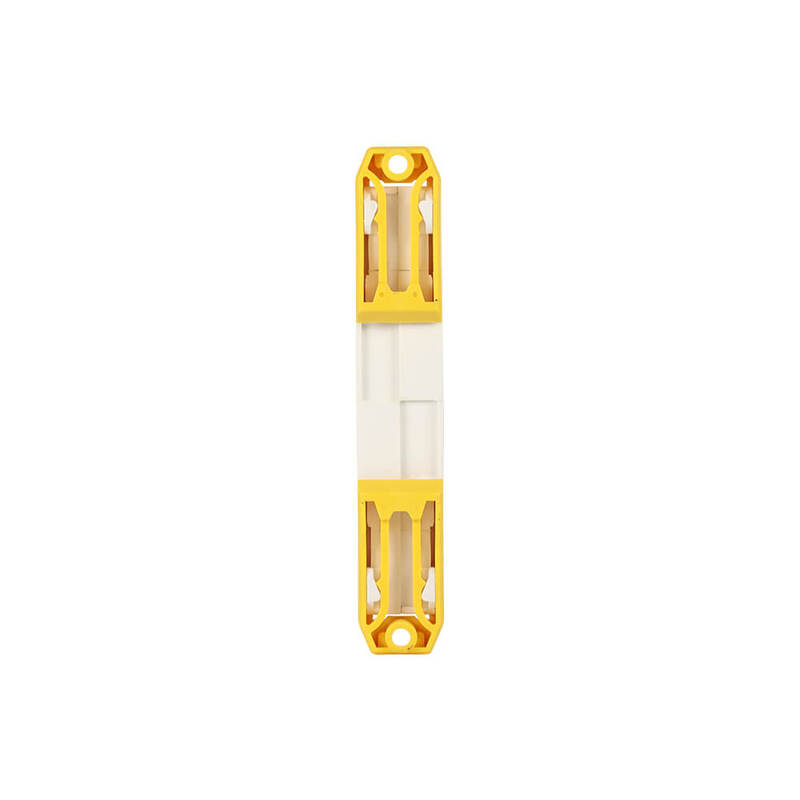

• Mounting support: 35mm DIN rail
• Electrical durability: 7000 cycles
• Mechanical durability: 10000 cycles
• Height: 85mm, Width: 17.5mm, Depth: 44mm
• Net weight: 85g
• IP degree of protection: IP20, IP40 inside enclosure
• Compliance: CE, RCM

Q: What is the rated operational current of this changeover switch?
A: The rated operational current is 40A.

Q: Can this switch be mounted in any position?
A: Yes, it can be mounted in any position.

Q: What type of terminals does this switch use?
A: It uses screw terminals that support both flexible and rigid wires.
