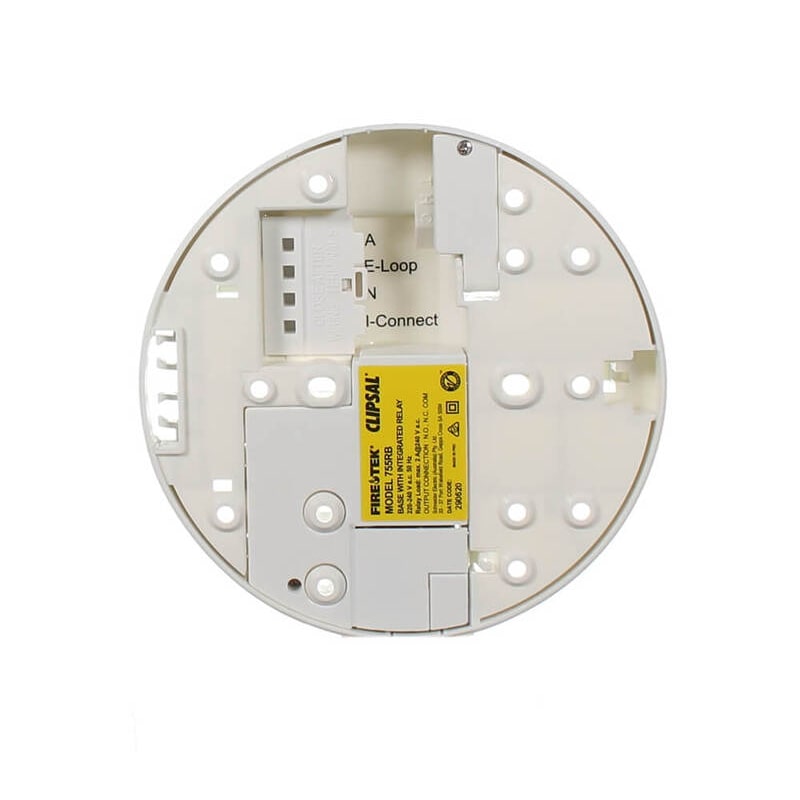

CLIPSAL 755RB - Relay Base for 240v Smoke Alarm

The 755RB is an optional accessory for the 755PSMA4 or 755RLPSMA4 Clipsal smoke alarms to offer integration with 3rd party devices such as lights, sirens and home automation systems. The relay base offers this functionality through a changeover, voltage free contact as well as remote test hush through momentary pushbuttons.

The voltage free contacts are segregated from the mains connections terminals as well as being electrically isolated. The smoke alarm can be configured so the relay operates only when the local alarm is activated or when any connected alarm activates

Features

• Integral 2A Isolated voltage free changeover relay
• Control/activate third party devices (i.e. lighting, security, or home automation systems)
• Dry contact input for remote test/hush functions from a momentary switch
• Suitable for use with 755PSMA4 and 755RLPSMA4 smoke alarms
• Fast and easy installation
• Interconnect up to 40 smoke alarms (wired over 150 meters maximum)
• Relay Contacts NO/COM/NC voltage free contacts
• Relay Rating 2A
• Terminal Provisions Active, Neutral, Loop and Interconnected terminals - each accommodates 2 x 1.5mm²

Important Information
Queensland Smoke Alarm legislation
The new QLD smoke alarm legislation start on January 1st 2022, All properties leased or sold in Queensland must be fitted with photoelectric, interconnected smoke alarms in all bedrooms of the home as well as hallways or between areas containing bedrooms and on each storey of the dwelling.
