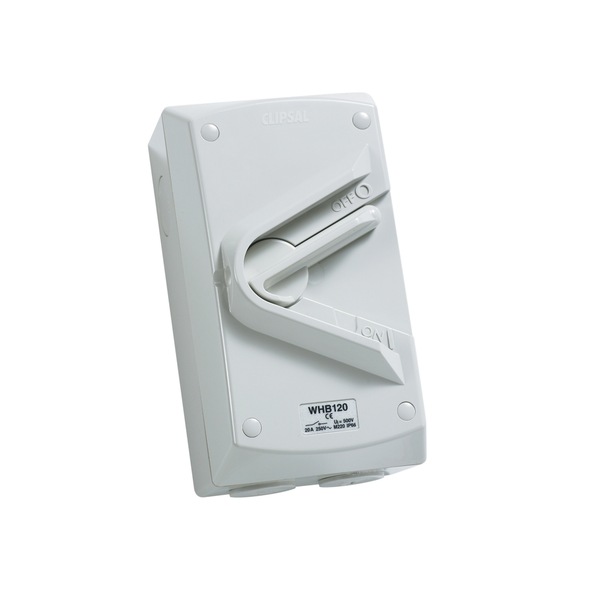

Clipsal 1P 20A Weatherproof Isolating Switch

Clipsal Weathershield Isolating Switches are specifically designed to suit the harsh Australian environment. The complete range includes a huge 8mm diameter padlocking facility and a rotary handle, which ensures the product will not accidentally be switched on. Raised on/off marking is also guaranteed not to rub off.

The impact resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a co-injection gasket. The range provides ample conduit entries and is suitable for side entry from a vertical duct. Its compact size means it is aesthetically pleasing and suits installations where space is limited such as with residential air conditioning applications.

Features

• 1 Pole Weatherproof Isolating Switch
• 20A Rating
• IP66 (Screw caps must be installed to ensure IP Rating)
• 1 Way ON/OFF Switch
• 8mm Diameter Padlocking Facility
• M220 Rating
• 94mm x 165mm with an overall height of 85mm
• Dual 25mm screwed conduit entries top and bottom
• One 25mm cut out and one 25mm push out is provided in the rear
• Each unit is supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw caps.
• Raised on/off marking is also guaranteed not to rub off
• Chemical Grey Colour
