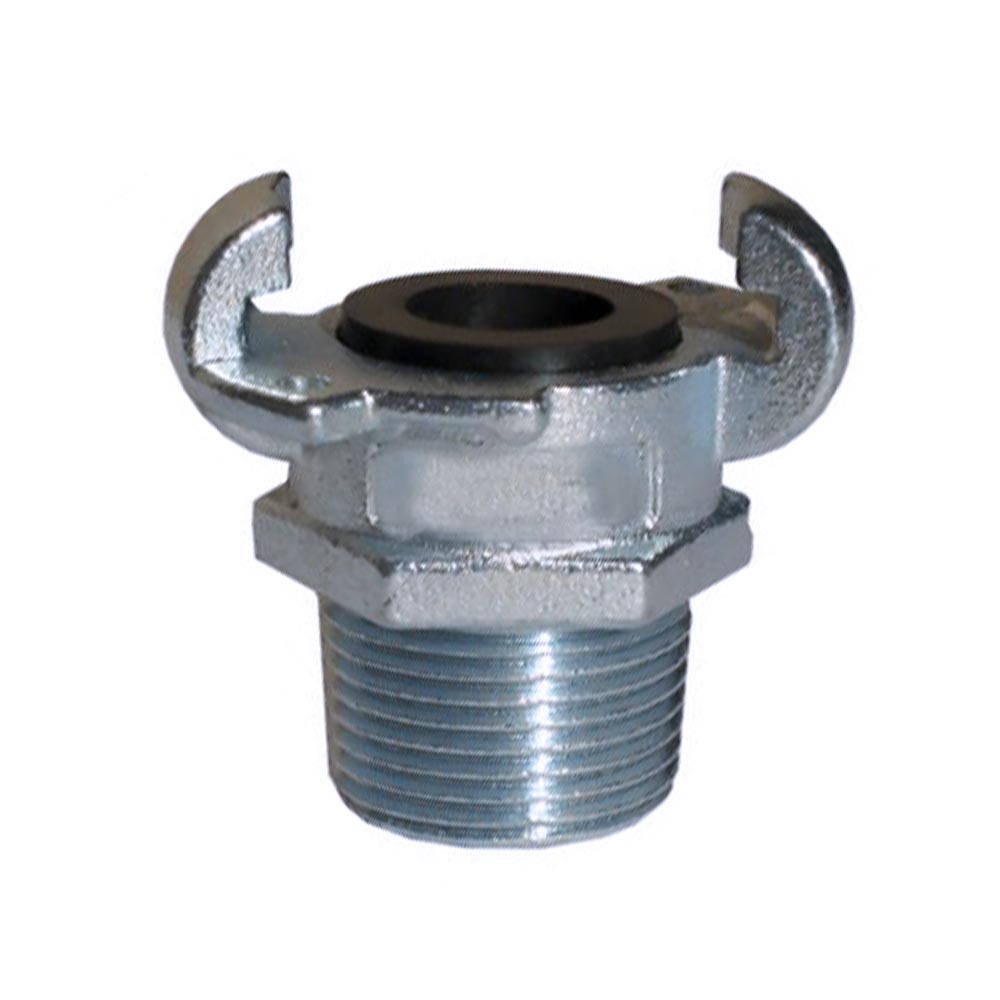

Claw Coupling With Safety Pin Hole Minquip (Type A) - Male BSPT
3x

Claw Coupling With Safety Pin Hole Minquip (Type A) - Male BSPT

SOLD OUT


Claw Coupling Type A (MINQUIP) - Male BSPT

Claw Couplings are universal hose coupling that provide quick, safe and reliable connections. Claw couplings are designed with a common or universal claw which enables differing hose sizes and nominal bore sizes to be connected. Claw fittings are most commonly used for conveying air and water, and not to be used for steam applications

Minquip Claw Coupling Type A

  • Manufactured conforms to AS 2660-1991 and AS 2554-1982
  • Claw internal distance 42mm, external distance 63mm
  • Reliable quick connect coupling for transfer of water and air under pressure
  • Standard Natural Rubber seal installed
  • Not suited for use with steam
  • Temperature range: -29 to 71 Deg Celcius
  • Working pressure: 500PSI
  • Note: Internal claw distance = 42mm (different for each DN). Not interchangable with Express, Geka couplings and with other compressed air claw fittings (Type B, type S)

MINQUIP CLAW FITTING TYPE A - MALE BSPT (EUROPEAN TYPE) SPECIFICATIONS
ITEM CODE IMPERIAL SIZE CLAW DISTANCE (Internal) mm CLAW DISTANCE (External) mm THREAD TYPE MATERIAL WEIGHT (kg)
6301.01.10 3/8" 42 63 BSPT Steel Plated 0.210
6301.01.15 1/2" 42 63 BSPT Steel Plated 0.222
6301.01.20 3/4" 42 63 BSPT Steel Plated 0.255
6301.01.25 1" 42 63 BSPT Steel Plated 0.289
