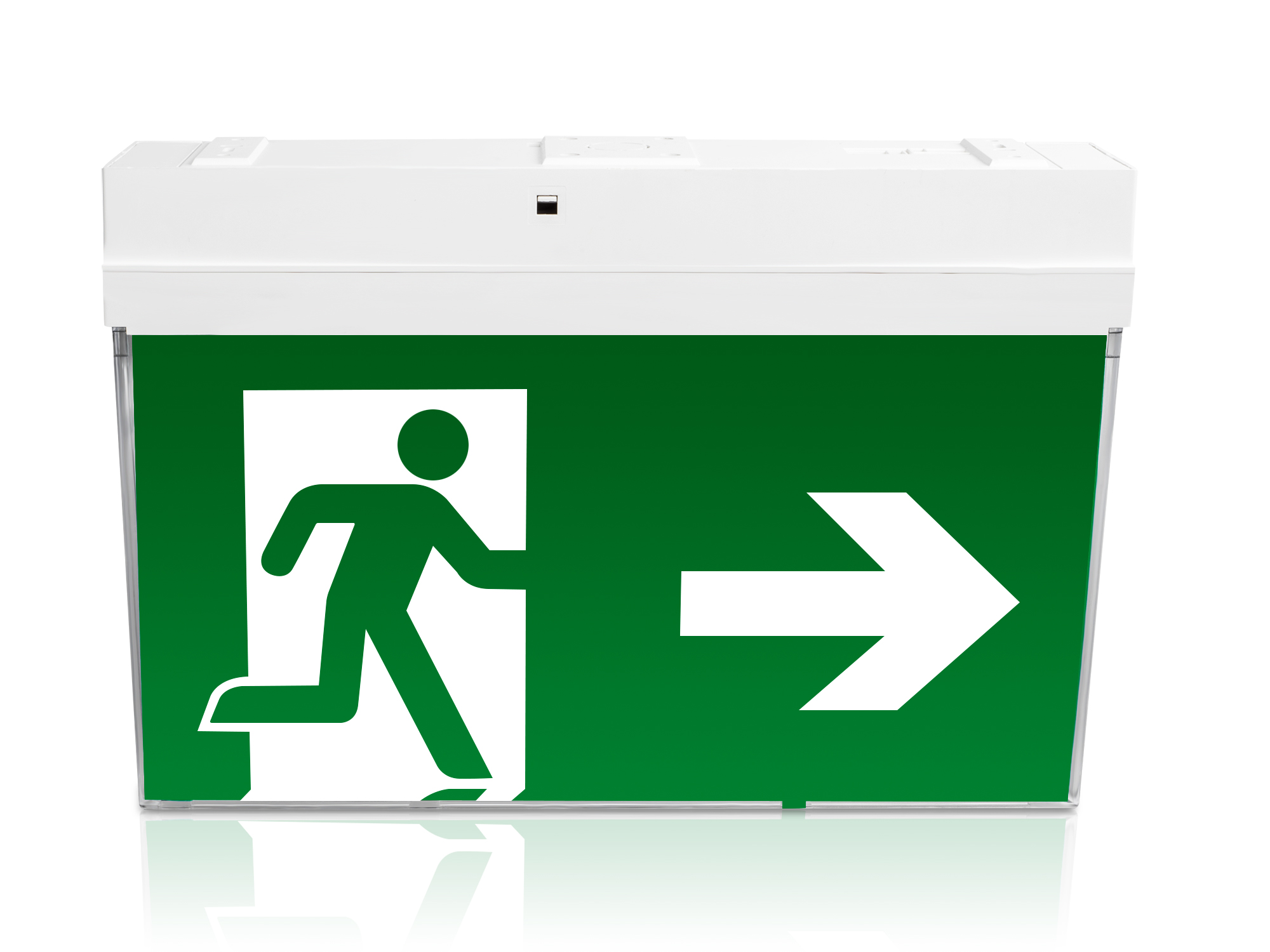

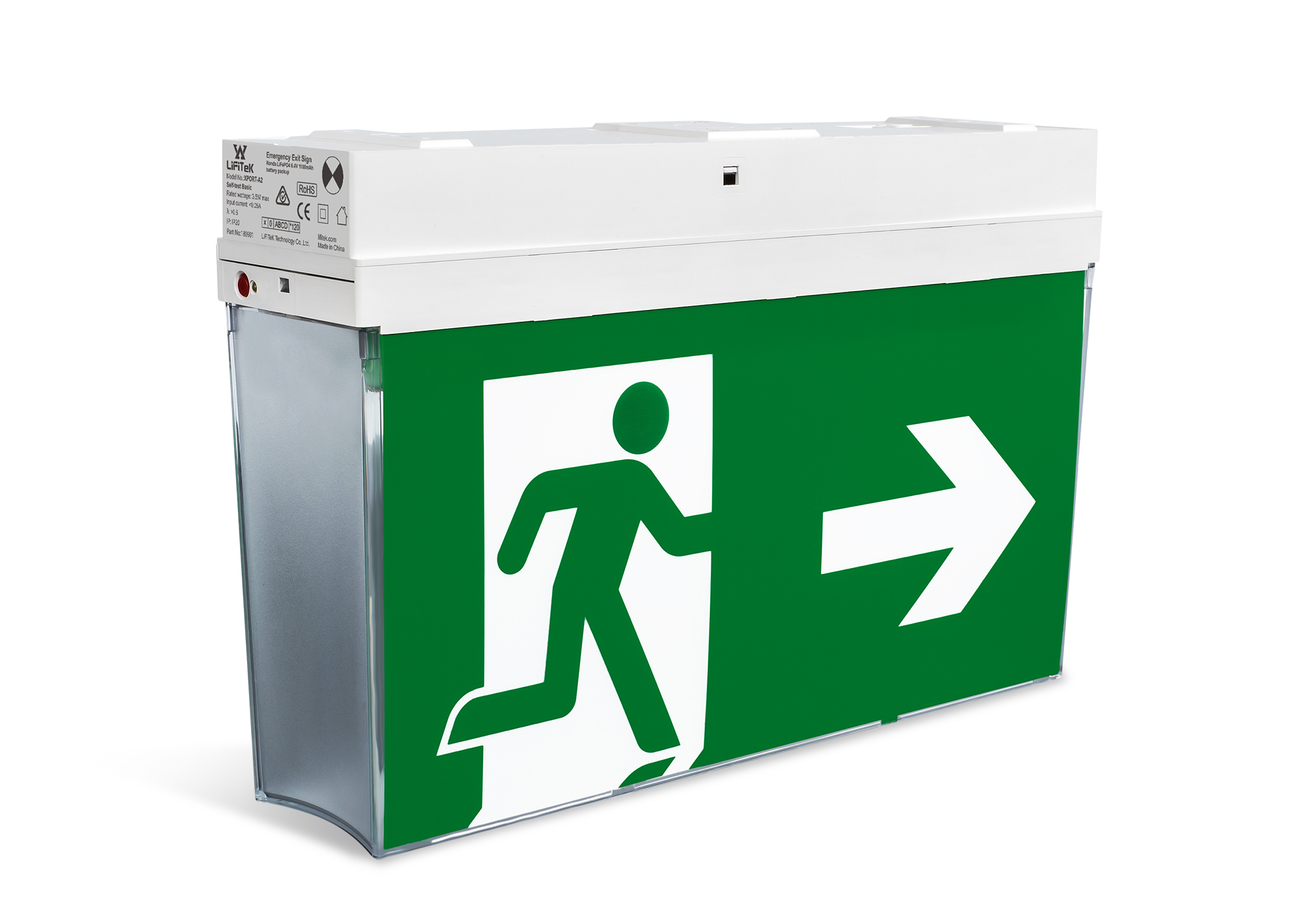

Citilux Exit Box Emergency Light

Applications

• - Use in damp and dry environment
• - Ambient range ta:0...60°C
• - IP20 protection, relies on end-product enclosure for protection against accidental contact live parts
• - Not intended for use in luminaries for high-risk task area lighting

Basic data

• AC input power: < 5W
• During: > 2 hours
• Battery Pack: LiFePo4 Battery 6.4v 1100mAh
• Surface mounted or wall mount
• Viewing Distance: 24M
• Size: 320mm W x 80mm H x 20mm D

Technical data

• - Protection against electric shock:
• Class II (Safety extra low voltage for fitting)
• -Input voltage: 220-240VAC 50-60Hz
• -AC input power:<5 W
• -AC input current: <80 mA
• - Power factor: >0.5
• - Max. casing temperature: 50°C
• - Recharge time: >=16 hours
• - Duration: > 2hours
• - Battery pack: LiFePo4 battery 6.4V 1100mAh
• - Rated 500 charge/discharge cycle
• - Battery voltage: 3.2V/cell (2S1P 6.4V 1100mAh)
• - Battery type: IFR18500 (Ronda)
• - Class: 2 - Emergency Classification CO: E2 C90: E1.6
• - Viewing Distance: 24M
• - Mounting Type: surface, wall mount
• - Wiring: Terminal block
