ATEN CE700A USB VGA Kvm Extender Over Cat5 Cat5e Cable Connects, Local and Remote Units - Up To
3x

ATEN CE700A USB VGA Kvm Extender Over Cat5 Cat5e Cable Connects, Local and Remote Units - Up To


Description
Aten USB VGA KVM Console Extender - 1920x1200

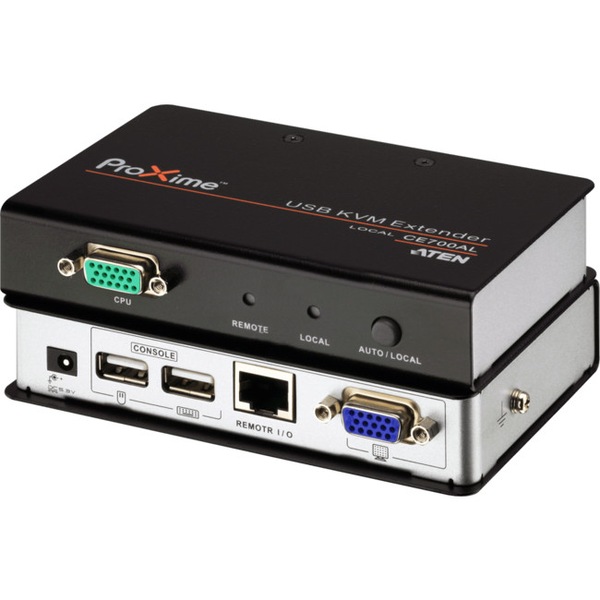

Aten CE-700A - USB KVM Extender

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Features
  • Cat 5e cable connects the Local and Remote Units - up to 150m apart
  • Dual console operation - control your system from boththe local and remote USB keyboard, monitor, and mouse consoles
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • USB Keyboard and USB Mouse Ports
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV;Air voltage 15KV) and 2KV surge protection
  • Automatic gain control - adjusts signal strength to compensate for distance
  • High resolution video - up to 1920 x 1200@60Hz (30m );1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
  • Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
  • Rack mountableEasy to install - no software required -connecting cables to the devices is all it takes
  • Multiplatform support - Windows, Linux

Compatible Cables:2L-5201U, 2L-5202U, 2L-5203U, 2L-5205U, 2A-130G

Specifications
  • Connectors:
    • Console Ports:
      • Keyboard:1 x USB Type A Female (White)
      • Video:1 x HDB-15 Female (Blue)
      • Mouse:1 x USB Type A Female (White)
    • KVM Ports CE700AL:
      • Keyboard/Video/Mouse:1 x SPHD-17 Female (Green)
    • Unit to Unit:1 x RJ-45 Female (Black)
    • Power:1 x DC Jack (Black)
  • Pushbuttons CE700AL:
    • Operating Mode Selection:1 x Pushbutton
  • LEDs CE700AL:
    • Local:1 (Green)
    • Remote:1 (Green)
  • LEDs CE700AR:
    • Remote:1 (Green)
    • Link:1 (Green)
  • Emulation - Keyboard/Mouse:USB
  • Power Consumption:
    • CE700AL:DC5.3V/2.31W
    • CE700AR:DC5.3V/2.84W
  • Video:
    • 1920 x 1200 @ 60Hz (30m)
    • 1600 x 1200 @ 60Hz (100m)
    • 1280 x 1024 @ 60Hz (150m)
  • Environment:
    • Operating Temp.:0 ~ 50°C
    • Storage Temp.:-20 ~ 60°C
    • Humidity:0 ~ 80% RH, Non-condensing
  • Physical Properties:
    • Housing:Metal
    • Weight:
      • CE700AL:0.32 kg
      • CE700AR:0.31 kg
    • Dimensions (LxWxH):12.50 x 8.15 x 2.50cm
  • Package Contents:
    • 1 x CE700AL USB KVM Extender (Local Unit)
    • 1 x CE700AR USB KVM Extender (Remote Unit)
    • 2 x Power Adapters
    • 1 x USB KVM Cable (1.8m)
    • 1 x Mounting Kit

Weight: 1.456
